3.6KW-Hybrid Inverter-L-HOLLE-3K6-1PNN

Easy to install, smart setting through LCD
Avariety of intelligent working modes
Remote monitoring via APP or Web
Support BMS communication
Support parallel operation up to 6 units
Can work without battery

Inquire Now Next Product

Product Description

Model	L-HOLLE-3K6-1PNN	L-HOMLE-05K-1PTW
AC INPUT
Rated Voltage	208/220/230/240 V a.c.,L+N+PE
Rated Frequency	50 Hz/60 Hz
Current (Maximum Continuous)	20 A a.c.	40 A a.c.
INVERTER OUTPUT
Rated Power	3.6 kW	5 kW
Rated Voltage	208/220/230/240 V a.c.,L+N+PE
Power Factor	1
Wave Form	Pure Sine Wave
Switch Time
Inverter Efficiency (Peak)	>92%	>94%
Current (Maximum Continuous)	15.6 A a.c.	22.7 A a.c.
Maximum Output Overcurrent Protection	102%~110% 1min / 110% ~ 130% 10s/ 130% ~ 150% 3s/ 150% 0.2s
BATTERY
Battery Type	Lithium / Lead-acid
Rated Battery Voltage	24 V d.c.	48 V d.c.
Battery Voltage Range	21~ 30.2 V d.c.	42~60 V d.c.
Max. Charge Current	100 A d.c.	80 A d.c.
PV INPUT
No.of MPPT Tracker/Strings	1/1
Max. PV Array Power	5 kW	6 kW
Max.DC Voltage	500 V d.c.	500 V d.c.
MPPT Voltage Range	40~ 450 V d.c.	120 ~ 430 V d.c.
Start-up Voltage	60 V d.c.	120 V d.c.
MPPT Maximum Charge Current	100 A d.c.	80 A d.c.
Max. Input Current	18 A d.c.	18 A d.c.
Isc PV (Absolute Maximum)	22 A d.c.	22 A d.c.
PROTECTION & FEATURE
Parallel Function	No	Yes (up to 6pcs,optional)
Protection Degree	IP20, Indoor only
Certifications	CE (IEC62109-1), EN61000 NRS
Other Protection	Overload, Over temperature, Short circuit
GENERAL PARAMETER
Storage Temperature	-10℃~+60℃
Operating Temperature	-10℃~+50℃
Humidity	5%~ 95% (Non-condensing)
Operating Altitude	4000 m(>1000 m Derating)
Noise
Machine Dimensions (WHD)	335470125 mm	335470125 mm
Machine Weight/ N.W.	8.1 kg	8.6 kg
DISPLAY AND COMMUNICATION
Display	LCD Display (Display Running Mode, Loads / Input / Output etc.)

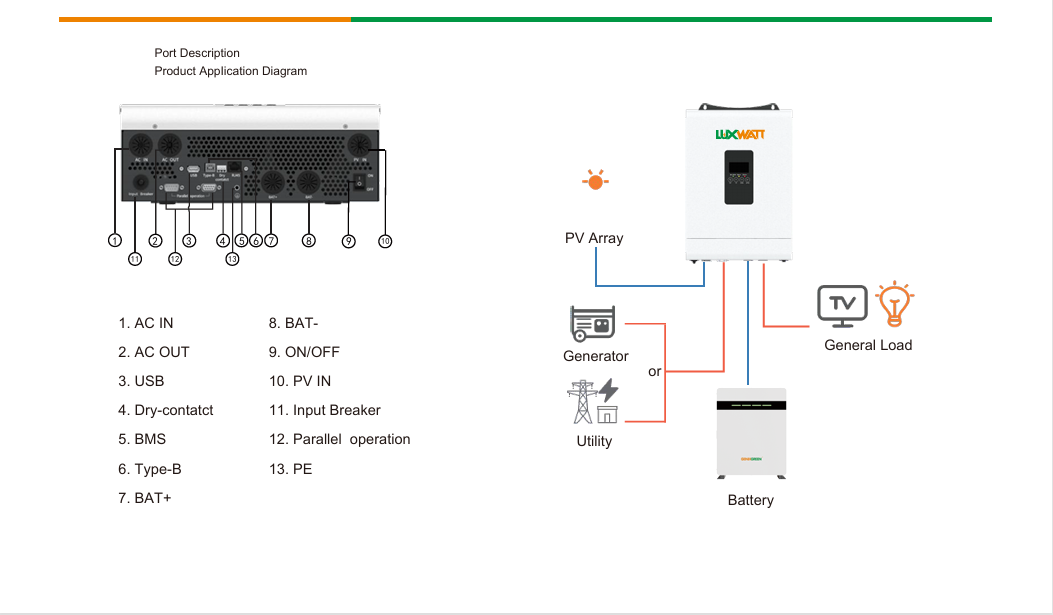

Interface	RS485 / CAN / Dry Contact / WiFi (Optional)
