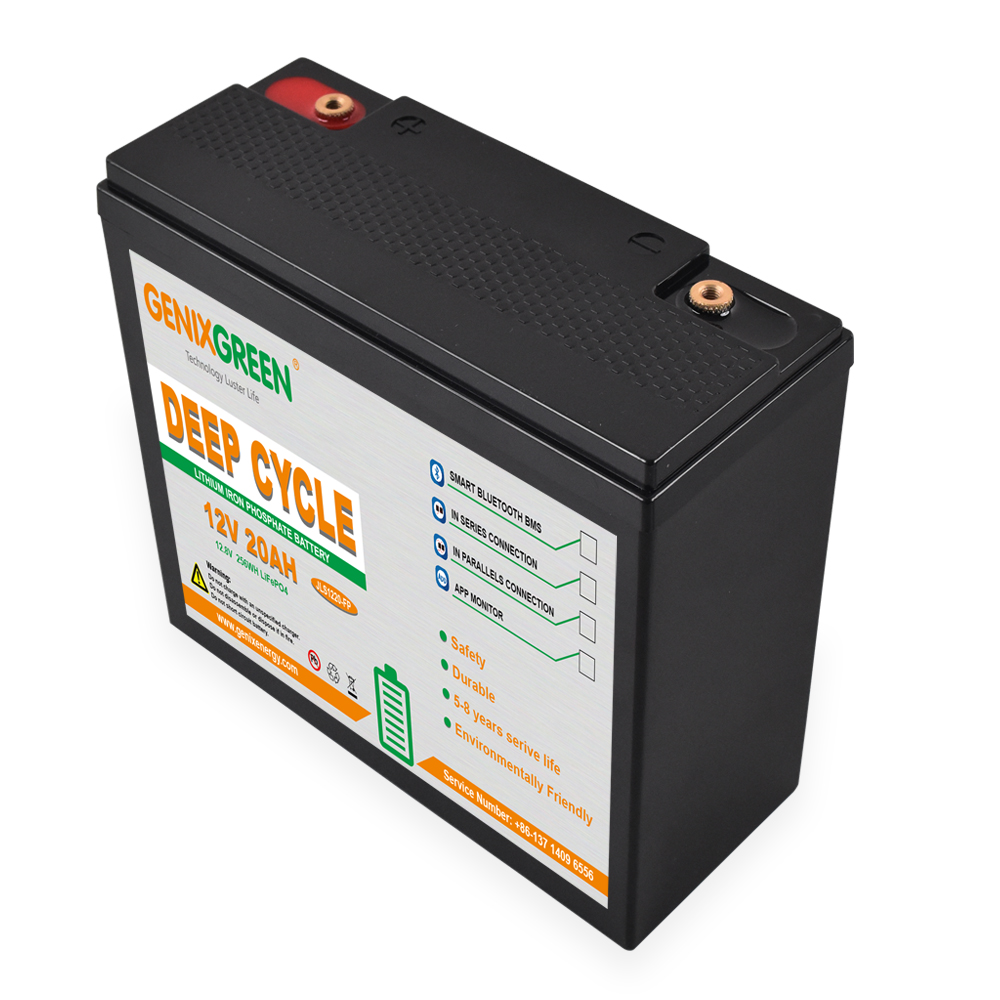

Model：JLS-1212FP
Nominal Voltage：12.8V
Nominal Capacity @25℃：20AH
Full Charged Voltage：14.6V
Warranty：3 years
LCD Screen Display：Optional (Show voltage V, Power %)
Waterproof：IP65
Dimension (mm)：180*172*77mm

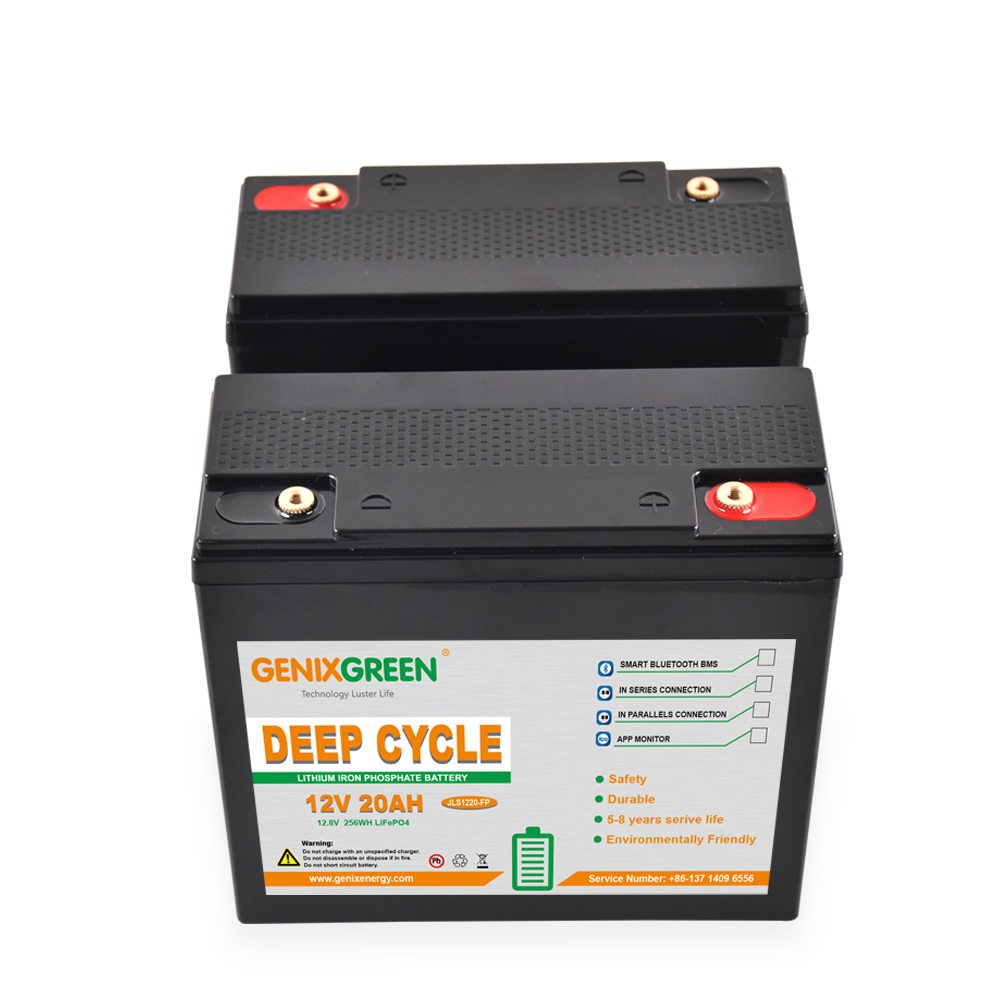

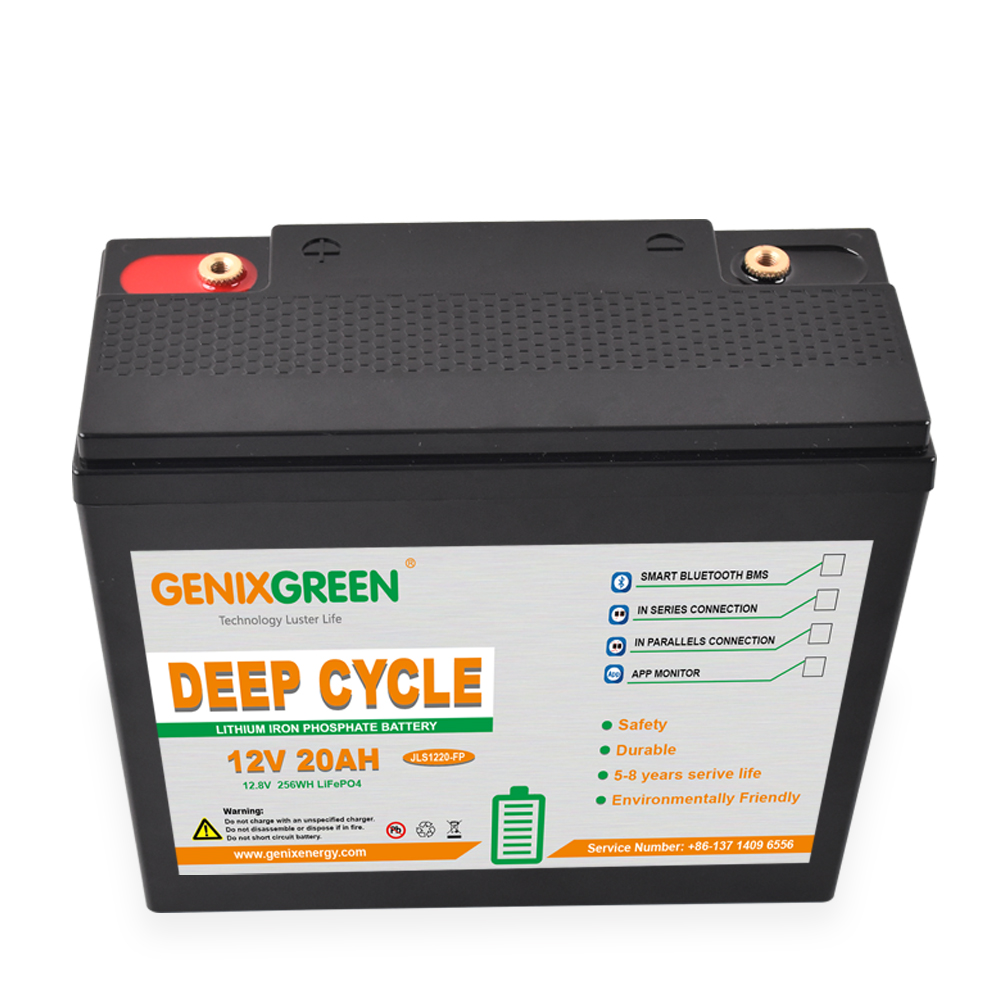

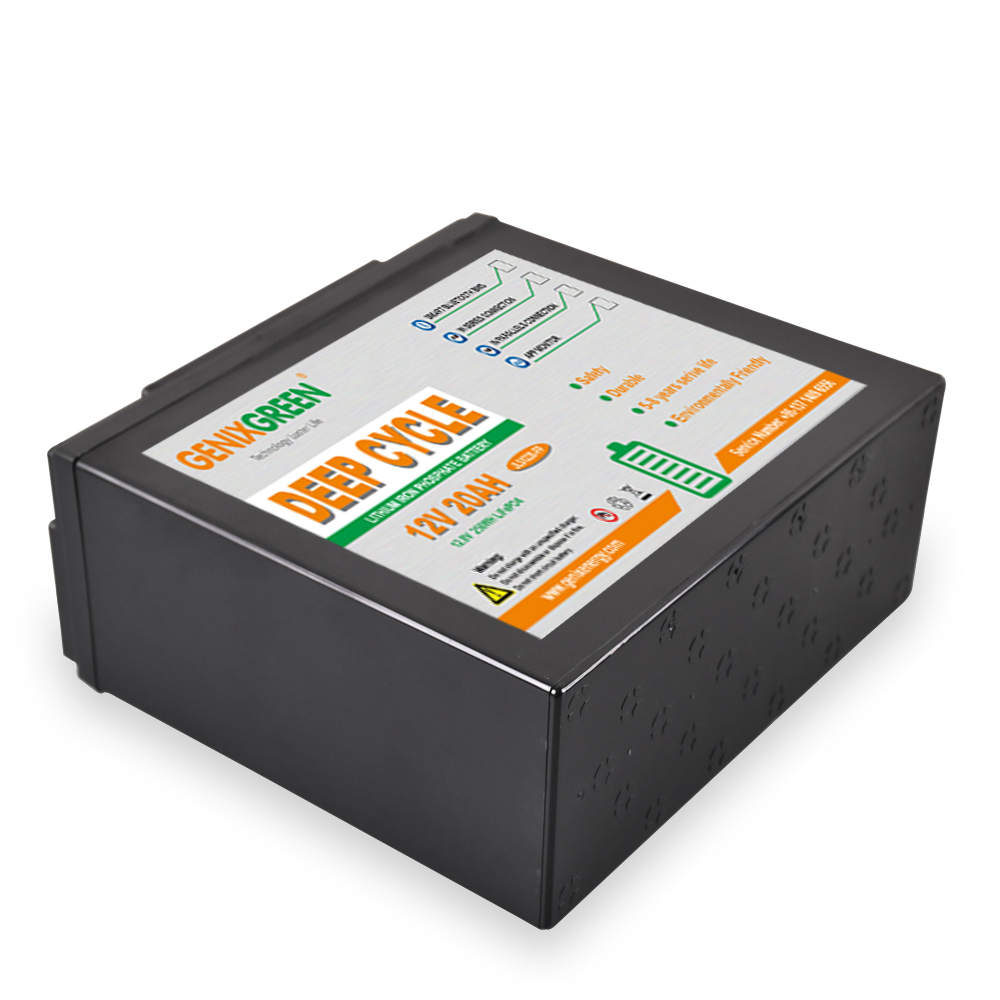

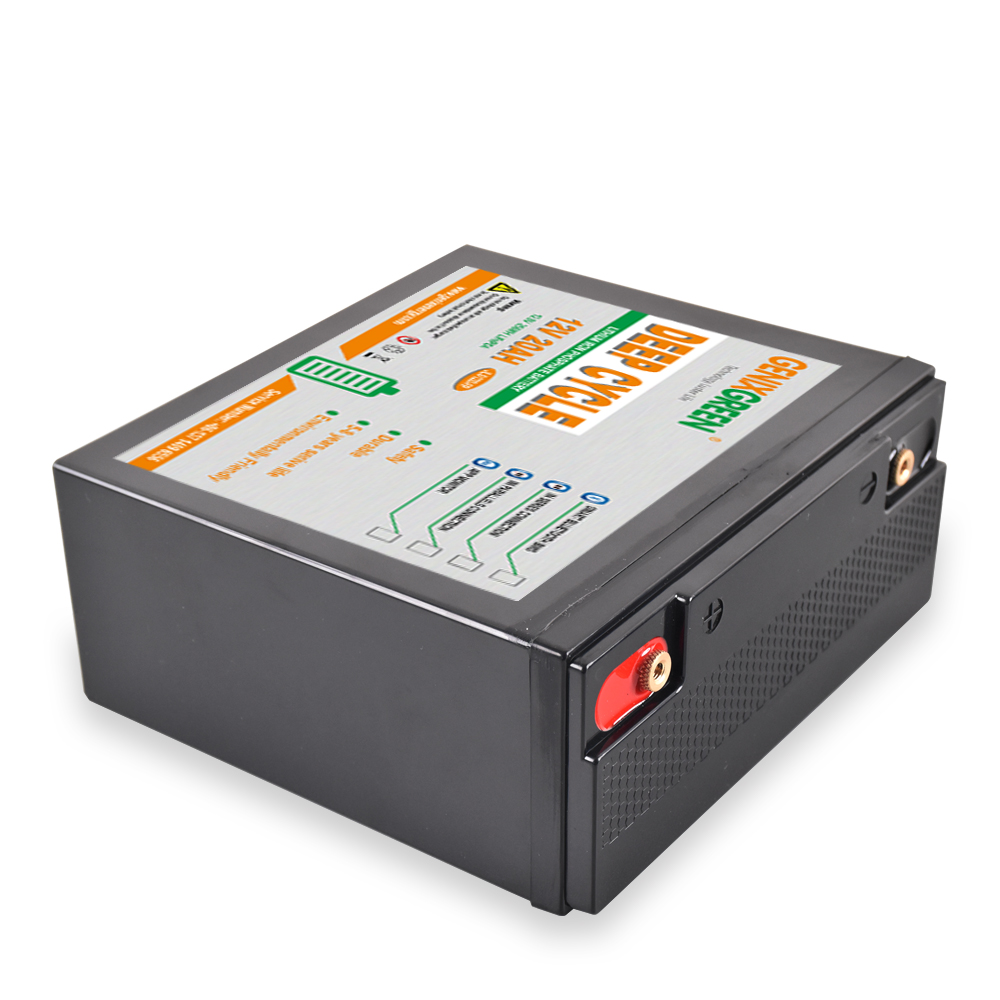

12v 20ah lithium ion battery Module with compact designed housing, built-in BMS and LED indicator as a key-turn and plug-and-play battery solution todirect drop in Replacement on typical lithium ion battery applications.
Providing twice the run-time at approximately half the weight of a comparatively sized lead-acid battery, excellent float and cycle life over 2000times results in low operating costs with high investment returns for end user applications.

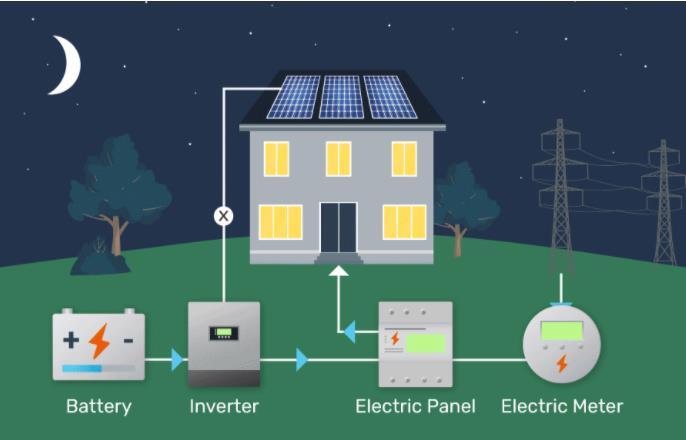

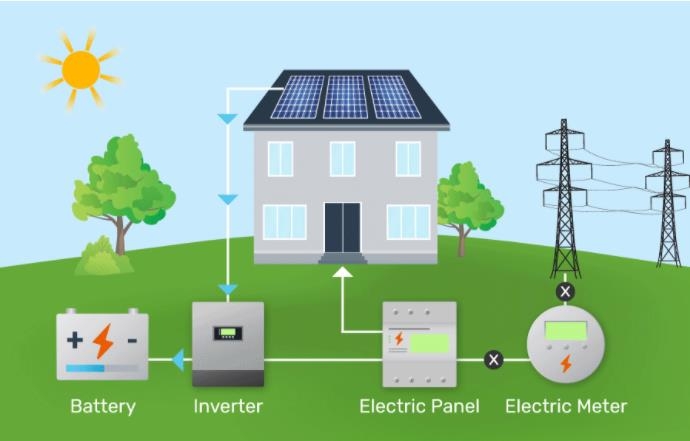

12v 20ah lithium ion battery is widely applied to RV, camping car, motorhome, solar system(off-grid system), boat, marine, trolling motor, yatch which give a replacement to your lead acid/AGM/GEL battery,
| Model | JLS-1207FP |
| Nominal Voltage | 12.8V |
| Nominal Capacity @25℃ | 20AH |
| Nominal Energy @25℃ | 256WH |
| Battery Cell Type | Cylinder |
| Configuration (*S*P) | 4S3P |
| Max. Continous Charge Current @25℃ | 20A |
| Max. Pulse charge Current @25°C,10s | 22A |
| Max. Continous Charge Current @25℃ | 20A |
| Max. Pulse Discharge Current @ 25°C, 10s | 22A |
| DC Resistance | ≤10mΩ |
| Full Charged Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C |
| Humidity (non-condensing) | Max. 95% |
| Dimension (mm) | 180*172*77mm |
| Weight (KG) | 3KG |
| Terminal Type | F1 terminal |

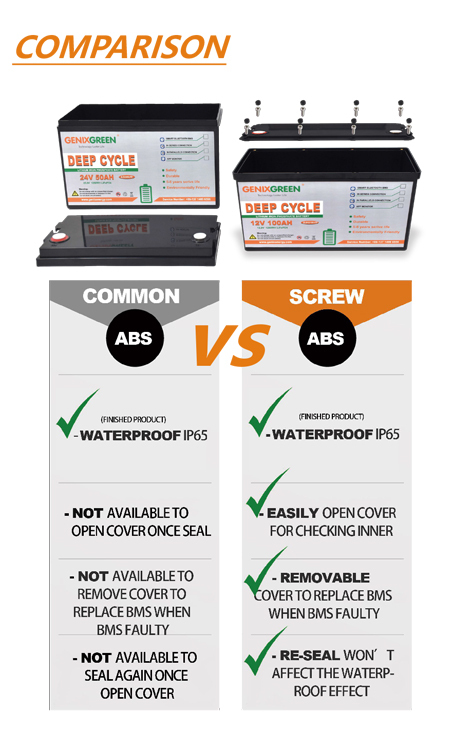

| Cover Sealing type | Screw / gel sealing optional |
| Waterproof | IP65 |

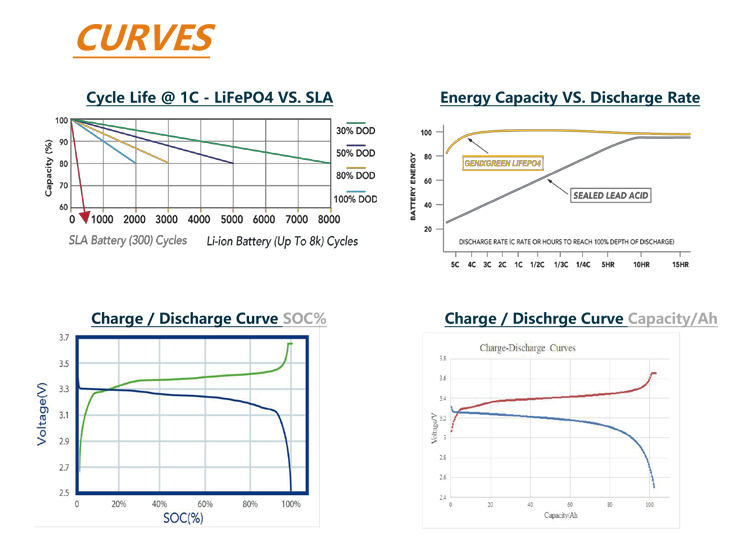

| Cycle life | 100% DOD Cycles @ 25°C, 1C/1C: >2000 times; 80% DOD Cycles @ 25°C, 1C/1C: >3000 times 50% DOD Cycles @ 25°C, 1C/1C: >5000 times |
| Service Life | 5-10 years |
| Warranty | 3 years |
| LCD Screen Display | Optional (Show voltage V, Power %) |

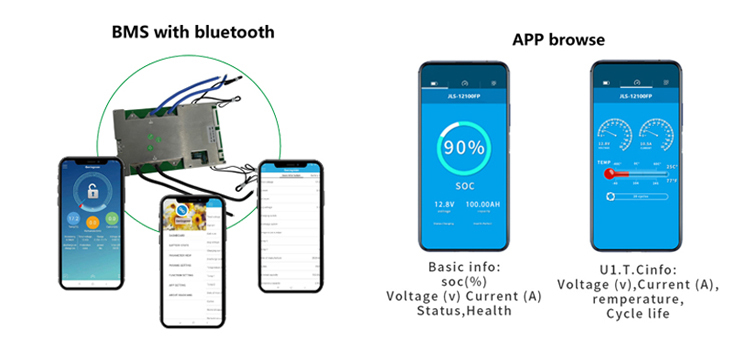

| Bluetooth | Optional (Bluetooth with mobile APP) |
| Series and Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V |
