Product model:Talis-500S
Rated Capacity:500Wh
Rated Voltage:12.8V
Calender Life:> 2000 cycles
Terminal Output:12VDC (Class I sheet F, C13)230VAC (Tipe F)
Max Effiency:85%
Memory:Monitoring the system SOC, working time and cycle life
Sistem TALIS500 Talis-500S | |
Battery | |
Battery Type: | LiFePo4 | Cylinder |
Rated Capacity: | 500Wh |
Rated Voltage: | 12.8V |
Calender Life: | > 2000 cycles |
BMS | |
Max Working Current: | < 40A |
Protection: | Over-charging Protection, Over-discharging, Protection,Short-Circuit Protection |
Memory: | Monitoring the system SOC, working time and cycle life |
Inverter | |
Input Voltage: | 12VDC |
Ouput AC Voltage: | 230VAC | 50 Hz |
Output Type: | Pure Sine Wave |
THD: | <3% |
Max Effiency: | 85% |
Nominal Output Current: | < 1A |
Protection: | Fuse and BMS short circuit protection |
Work Temp: | 0-45℃ |
DC to DC Converter | |
Input Voltage: | 12VDC |
DC Output1 Voltage: | 5VDC |
USB Output Current: | 1.5 -2.5A |
DC Output 2 Voltage: | 12VDC |
Tube: | |
Casing: | Aluminum + Plastic |
Ingress Protection: | IP54 |
Terminal Input: | Class I sheet J , C19 |

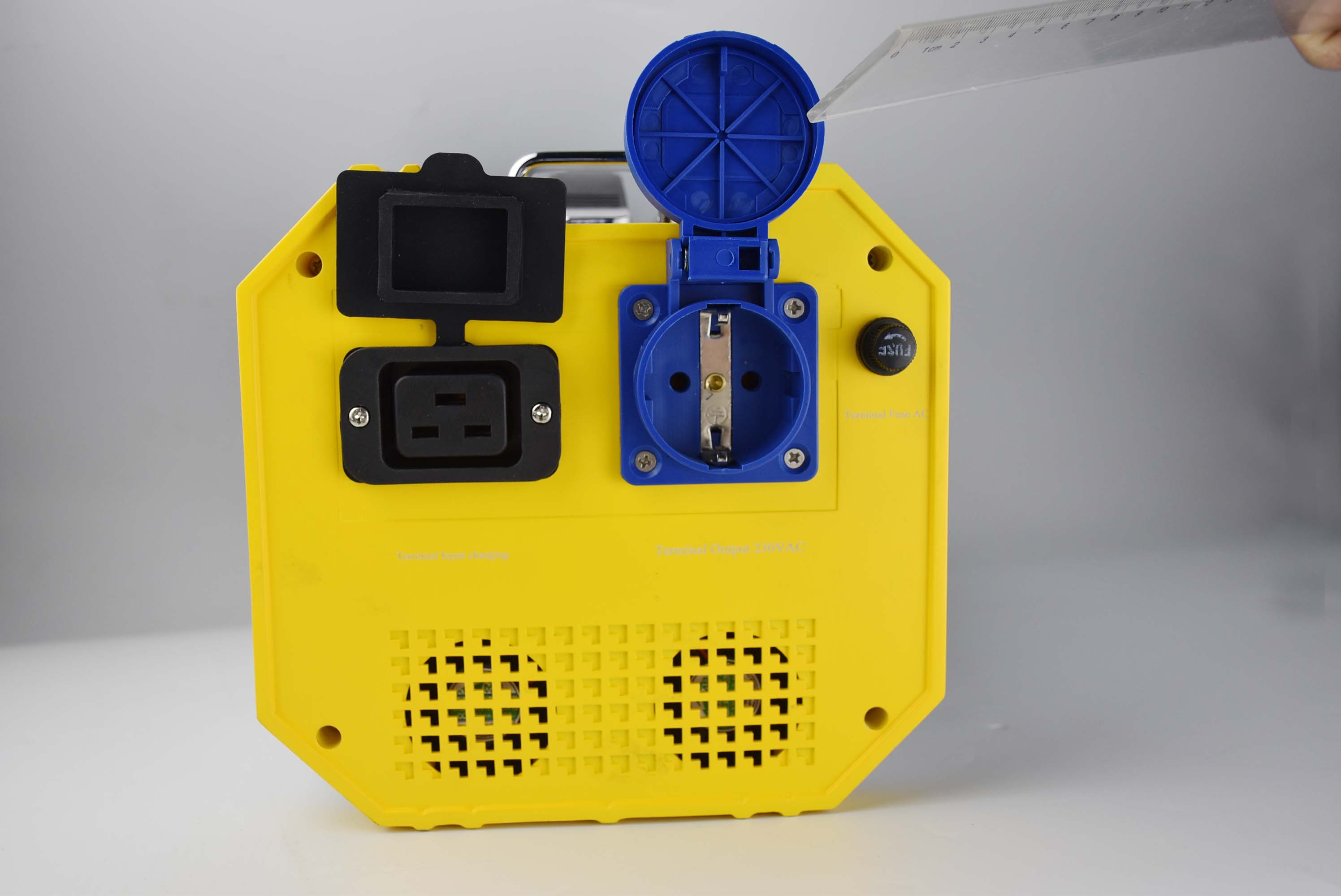

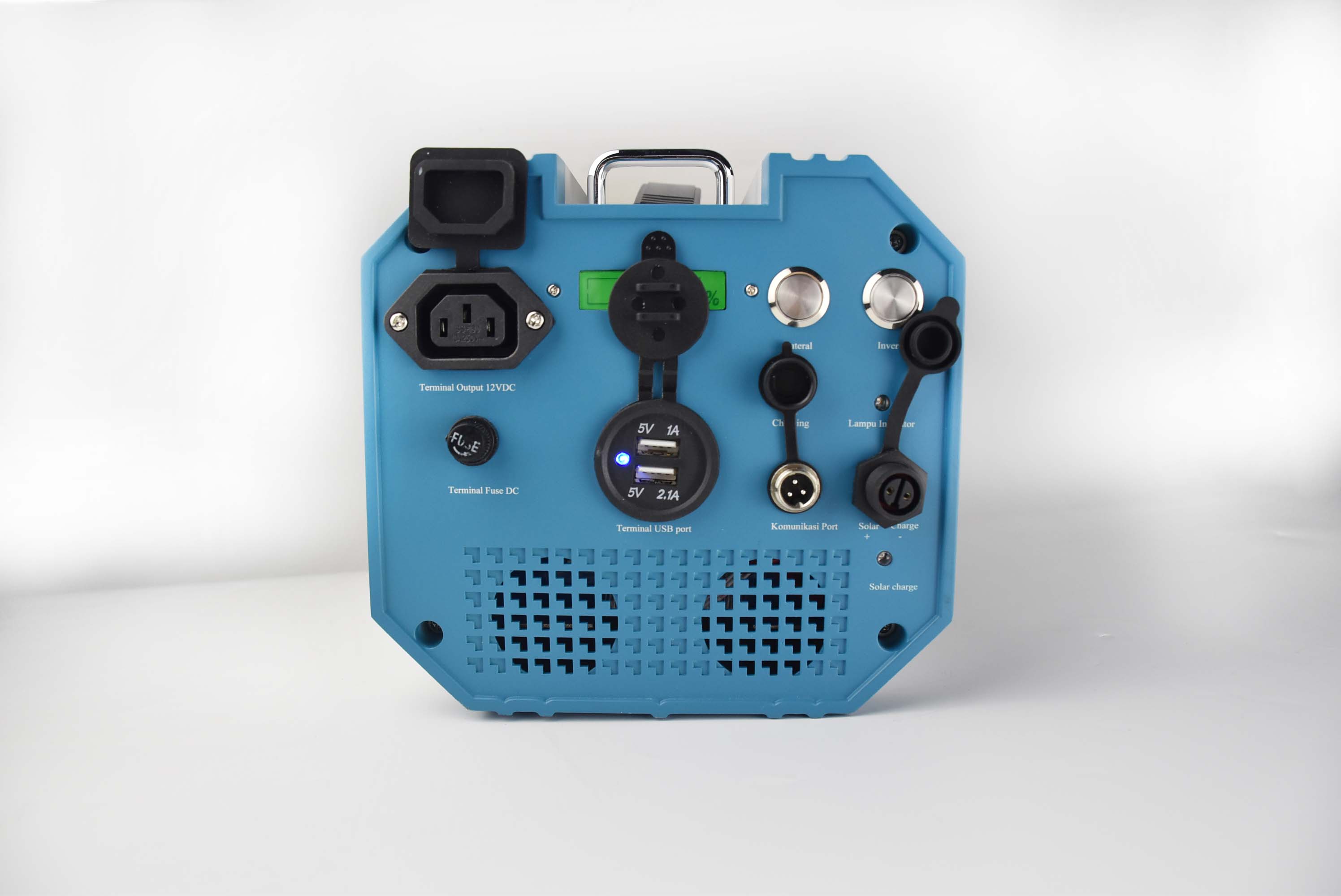

Terminal Output: | 12VDC (Class I sheet F, C13) 230VAC (Tipe F) |
Switch | Indicator / Display |
a: Battery Switch | a: Battery Power Display |
b: Inverter Switch | b: Inverter LED indicator |
c: Battery LED indicator |
