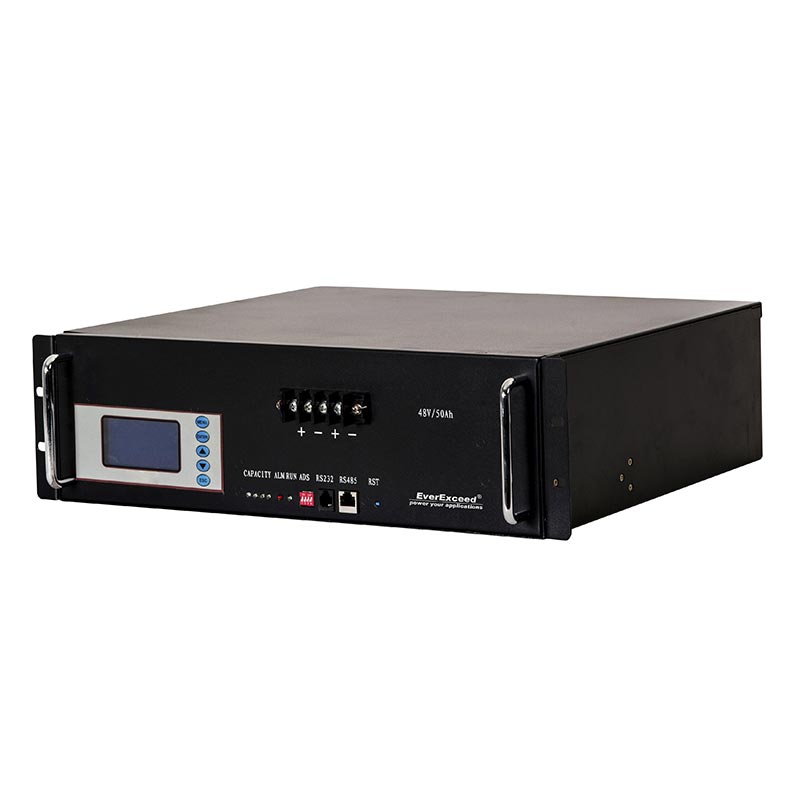

Model: JLS-LFP4850
Battery Type: LiFePo4
Battery Voltage: 48V
Battery Capacity: 50Ah
Cycle Life: 3000 times ~ 5000 times

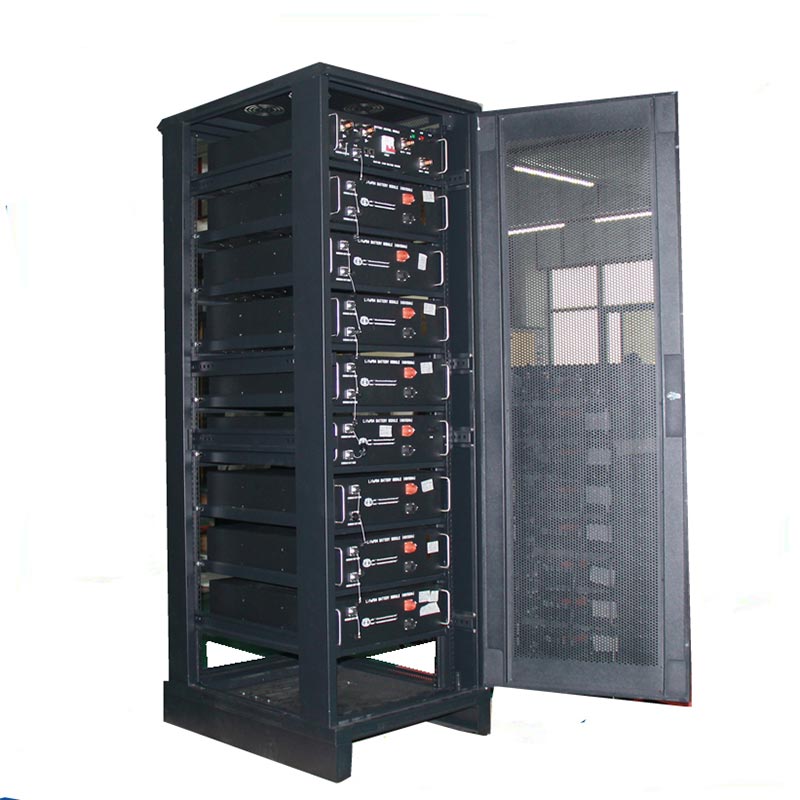

Application: Energy storage system, Telecom base
Communication inverter: Deye SMA, Victron, Grottwatt, UZ, Sola-X, Sinxcel, Sungrow etc.
| Specification | JLS-LFP4850 |
| Voltage | 48V |
| Nominal Capacity (40°C , 0.5C) | 50 Ah |
| Weight (Approximate) | 31.0 ±0.3Kg |
| Normal energy (40°C , 0.5C) | 2500 Wh |
| Volumetric energy density | 95Wh/L |
| Gravimetric energy density | 80Wh/kg |
| Width*Depth* Height | 483mm*440mm*134.5mm |
| Max. constant current | 50A |
| Cut-off voltage | 42V |
| Charge Voltage(Standard charge 25℃) | 53.5V~54V |
| Max. constant current(Standard charge 25℃) | 50A |
| Recommended charging current and time (Standard charge 25℃) | 20A(0.4C) for 3 hours |
| Round trip efficiency(%) | ＞98% |
| Calendar life 25℃ | ＞5 years |
| Cycle life (0.5C, 25℃) | 60% DOD 4000 cycles |
| Charging Temp Range | 0℃~55℃ |
| Discharging Temp Range | -20℃~65℃ |
| Storage temperature | Recommended range: -20℃~55℃ |
