  • 3.2V 40Ah lifepo4 square cell
  • 3.2V 40Ah lifepo4 square cell

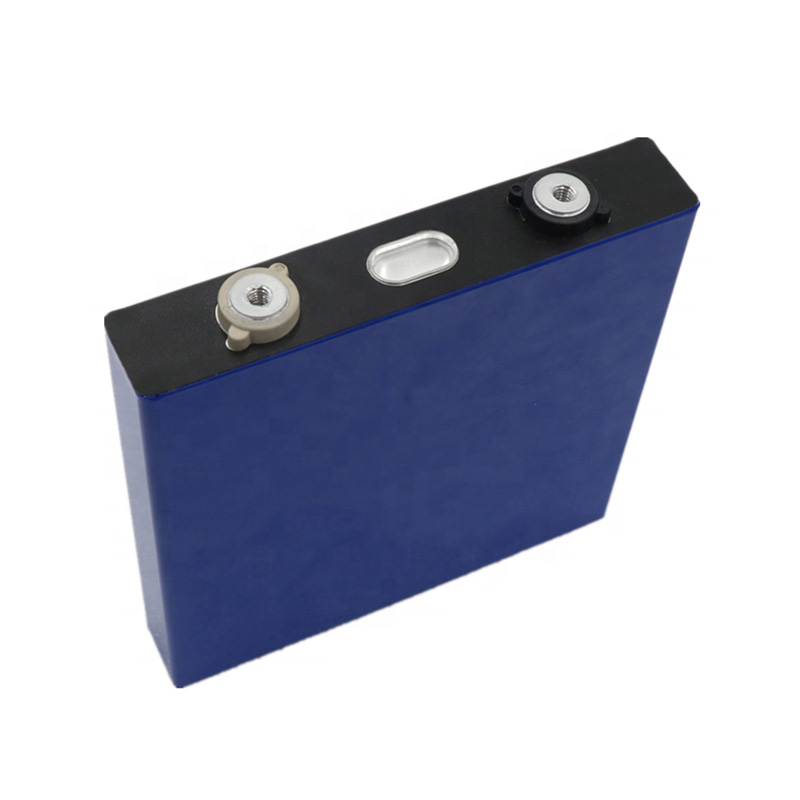

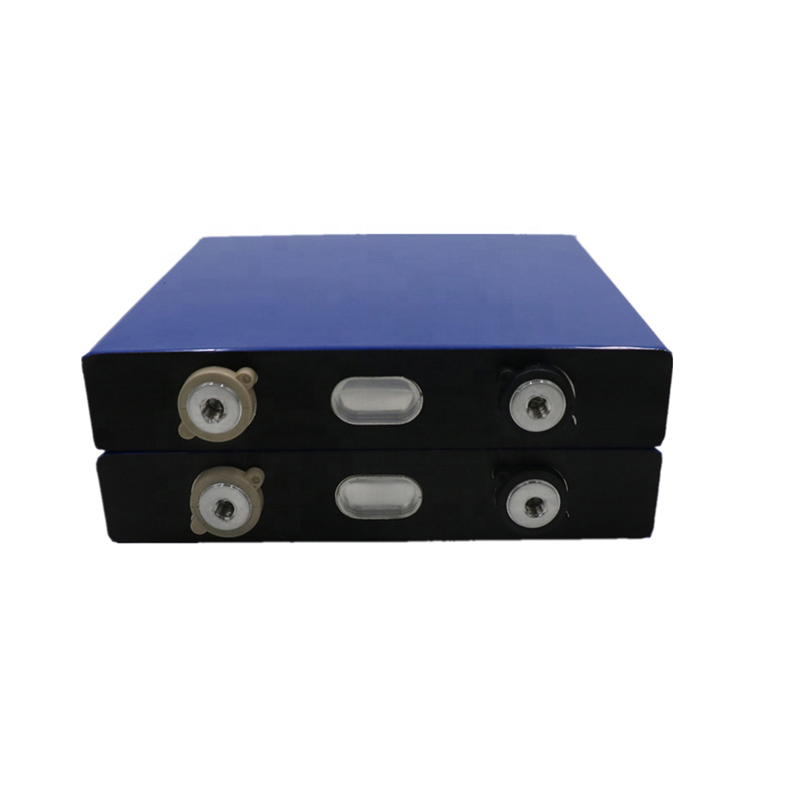

3.2V 40Ah lifepo4 square cell

Share

Model: 27148147-LFP40

Battery Cell Type: LiFePo4

Battery Cell Voltage: 3.2V

Battery Cell Capacity: 40Ah

Cycle life: 2000 times

Application: Make LiFePo4 battery Module

Product Description
Specification
Model27148147-LFP40
Voltage3.2V
Capacity40Ah
Size27*148*147mm
Weight1.22kg
Resistance0.2~0.4mΩ
standard charge current13A
standard discharge current40A
Max.charge voltage3.65V
Discharge cut-off voltage2.5V
Charge methodCC/CV
Charge working temp0ºC~45ºC
Discharge working temp20ºC~55ºC
Cycle life2000Times

Feature: Resist high temp, environment friendly, deep cycle life
