3 best batteries for solar off grid

Dec. 14, 2022

3 best batteries for solar off grid

Here are some of the best batteries for solar off grid on the market. For those of you who are completely off-grid, here are a few products that will meet your solar battery storage needs.

1.Genixgreen 432V High lithium deep cycle Voltage Battery System
Overview/Advantages	Product Pictures
Imported core electronic components with a lifespan of 10+ years
The component MOS tube can be replaced, which is convenient for after-sales maintenance
The relay performs switching operations for tens of thousands of times
Stronger load power capacity
High voltage, small current, low cost design for whole system
4 safety protection management level
Grounding design, anti-surge, and alarm function

Battery Type:LiFePO4 (3500 Cycles*)
Nominal Voltage:432V
Nominal Capacity:100AH/200AH
Charge and Discharge Port：Same Port
Overcharge Recovery Voltage：465.75V
Over Temp. Protection：Charge: 0~55℃; Discharge: -10~65℃
LCD Display：Master control LCD display
Communication Function：CAN & RS485
Dimension：1380mm*1080mm*600mm (TBD)/1500mm*1800mm*750mm (TDB)

2.410V High Voltage Battery System LiFePO4 Battery Module

Overview/Advantages

Product Pictures

Parameter:410V 100Ah

Battery Type:LiFePO4

Nominal Voltage:410V

Nominal Capacity:100Ah

Configuration:128S1P

Load Power:41KW

Charge Current:Continuous: 80A Max.: 100A

Discharge Current:Max. Continuous: 100A Charge and Discharge Port Same Port

Over Charge Voltage:467.2V (Single cell: 3.65V)

Over Charge Delay:100ms

Dimension:1880mm*600mm*600mm

Remark:Charging and discharging aerial plug: (FN08-200-001SS/left negative and right positive)*20

Relay: HFZ16V-100P/900-24-SHSA1.5E-1*3

Circuit breaker: DM6Z -125S/3310 100A DC 500V/DV24*1

Fuse: FWP-125A/700VDC/AC*1 RX24-200W*

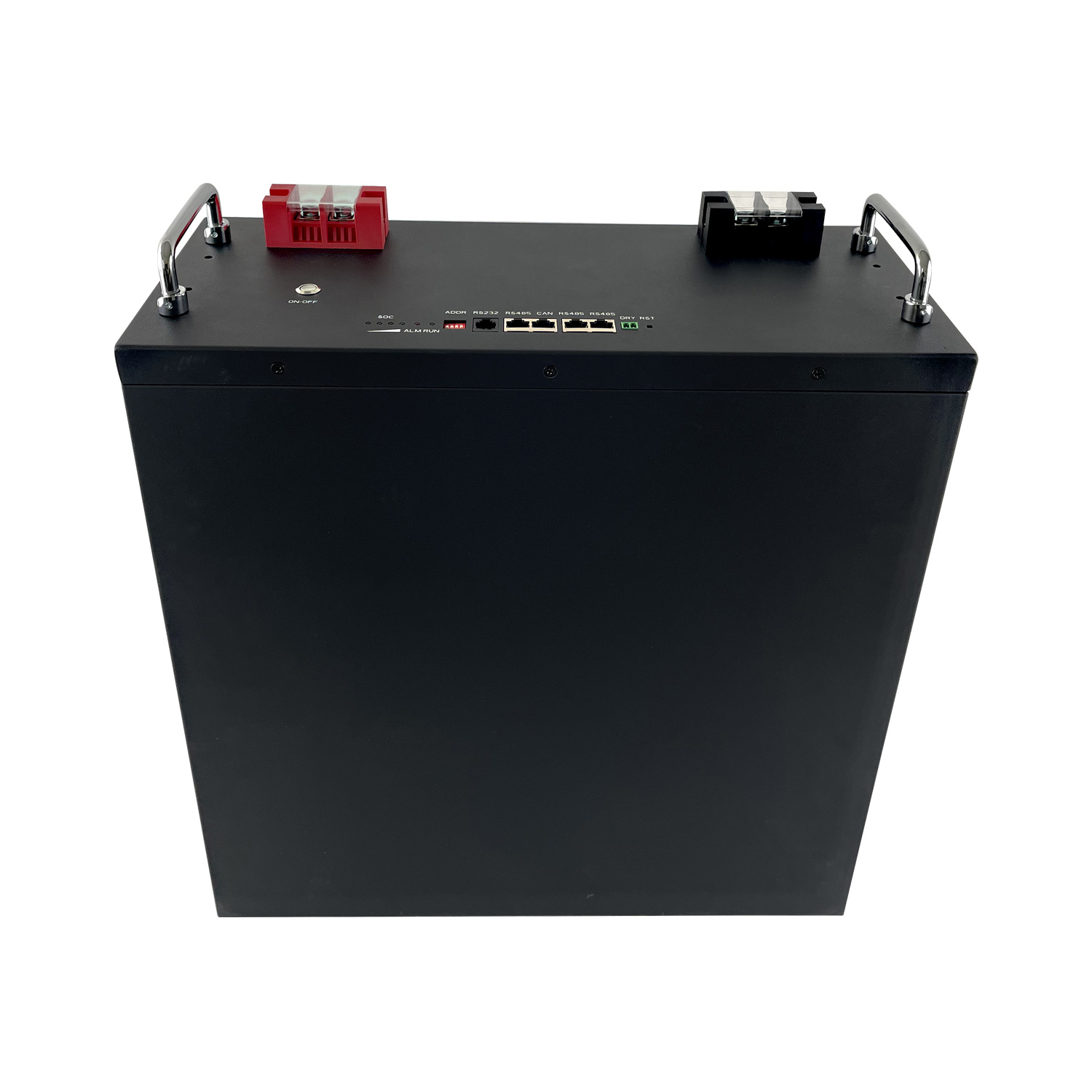

3.51.2V 200Ah ESS- 10240 Lithium LiFePO4 Battery Module
Overview/Advantages	Product Pictures
HIGHER SPECIFIC ENERGY,EASY ToINSTALL BUILT-IN SECURITY CHIP CANGREATLY ENHANCE PRODUCT SECURITY
LED LIGHT POWER DISPLAY, WITHMULTIPLE INTERFACES To SUPPORTMULTI-DIRECTIONAL EXPANSION
COMPATIBLE WITH 50+ INVERTER BRANDS(SMA, VICTRON, GROWATT,DEYE,ETC)sUPPORT DEEP CUSTOMIZATION
Model：ESS- 10240 Nominal voltage：51.2V
Nominal capacity @ 25°C：200Ah Nominal eapacity @ 0°C：160Ah
Nominal energy @ 25°C：10240Wh Dimensions (LxWxH) mm：483x 440x 267
CYCLE LIFE (eapacity ≥ 80% of nominal)：100% DOD，4,000 cycles Operating temperature：Discharge: -20℃ to +50℃, Charge: +5℃ to +50℃
