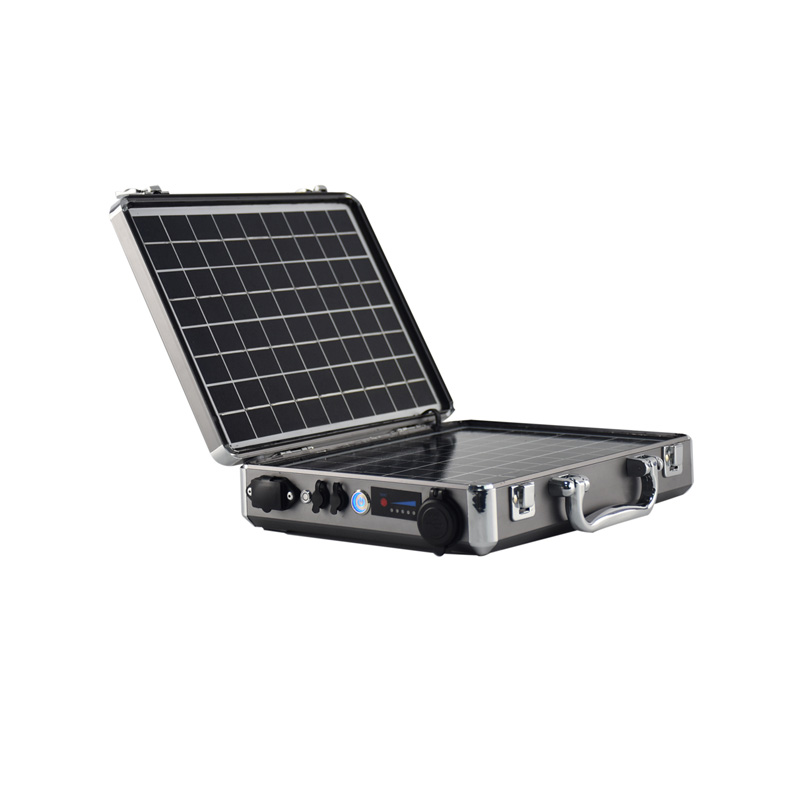

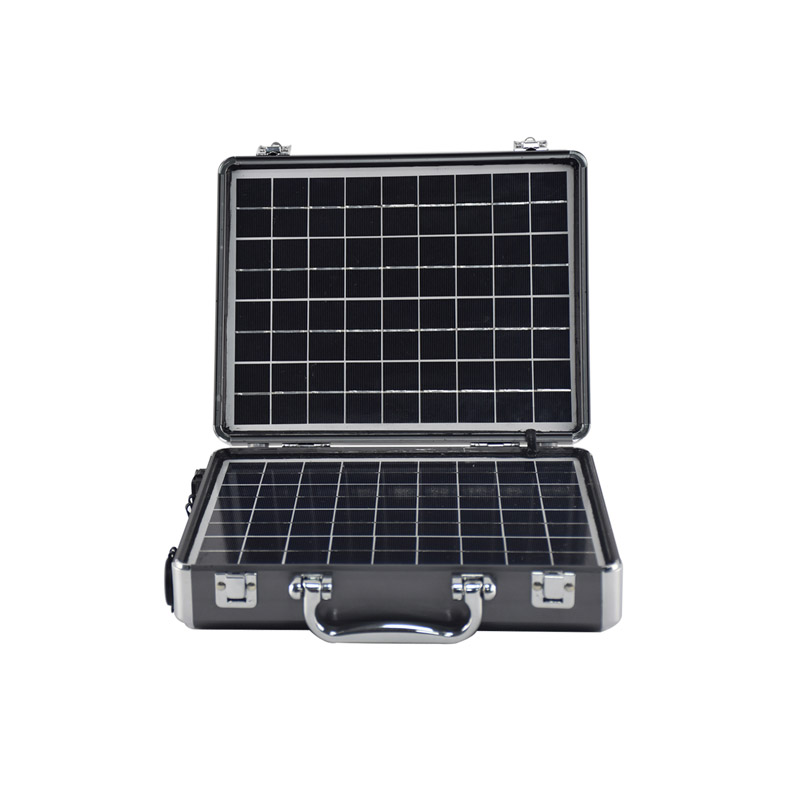

Model: SHK150
Battery Type: LiFePo4
Battery Voltage : 12.8V
Battery Energy: 150Wh
Cycle Life: 1000times

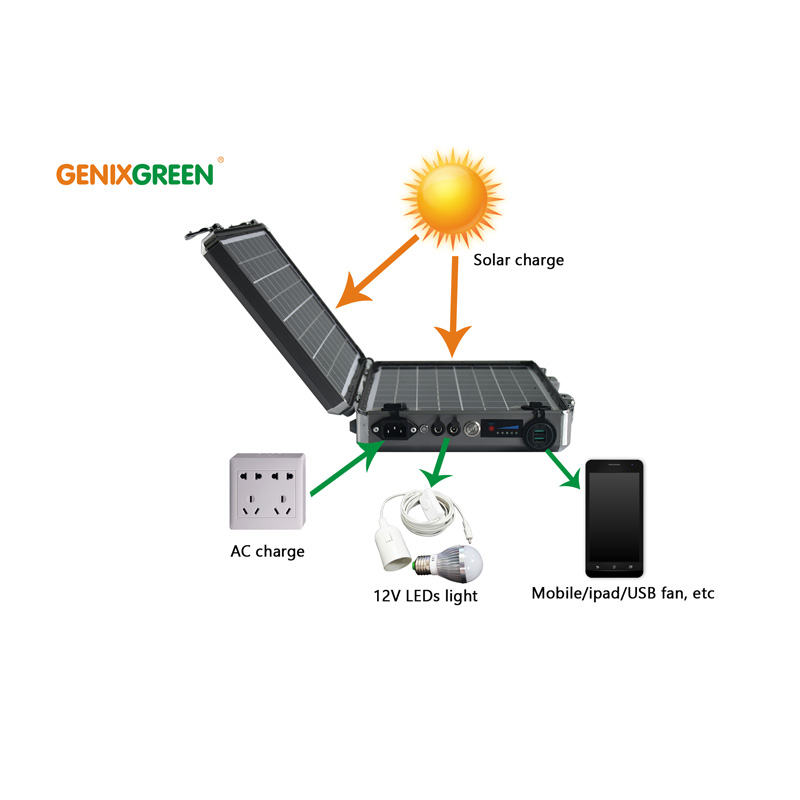

Application: Light, Phone charging , Portbale Energy Box
Specification | |
Rated Voltage | 12.8V |
Rated Capacity | 150Wh |
Cycle life | More than 1000 times |
Continuous Discharge Current | 10A |
Over current protection | 30±5A |
Charge Voltage | 14.6V |
Charge Current | ≦10A |
Cut-off current | 30±5A |
Release condition | Release load |
AC Charging Input Voltage | 220V turns to 14.6V 3A |
Solar Input Interface Type | Solar Panel 18V20W |
Solar Rated Input Voltage (V) | 18V |
Solar Input Voltage Range(V) | 14.6 -18 V |
Solar Input Current (A) | <2A |
USB 5V Output | USB QC3.0 interface |
5V 2A having Over-current Protection | |
12V DCOutput | 12VDC5.5*2.1 interface |
12V 2A having Over-current Protection | |
19V DCOutput | 19VDC5.5*2.5 interface |
18V 2A having Over-current Protection | |
Switch Type | Circle metal button |
Working Temperature (℃) | -10℃~+55℃ |
Charge Temperature (℃) | 0℃~+45℃ |
Humidity(%) | 10~85% |
Dimension | 290*230*75m(±5mm ) |
Weight | 3.5kg |
