Battery System Side

Model

HV-768V280AH

Rated voltage

768V

Rated capacity

280ah (0.2C)

Charge voltage

852VDC (adjustable)

Discharge voltage

672VDC

Rated working current

100A (0.35C)

Max. working current

140A (0.5C)

Rated power

78KW

Max output power

100KW

Recommended DoD

90%

Range of working temp.

-10  50°C

Working humidity range

5-85%RH

Communication method

two way CAN2.0/RS485

Working indicator

Blue:Power; Green:Running; Red:Alarm protection

Cycle life

25A2°C, 0.2C/0.2C,EOL70%* 6000

Display method

10 inch (LCD)/PC Software

Protective function

Voltage protection

Over charge and over discharge

Temperature protection

Over temperature range protection

Current / Leakage protec

YES

Dielectric withstand volta

1000VDC(not less than 1Gf2)

Dimension

2981*2500*2550MM

Protection level

IP 65

Product packaging

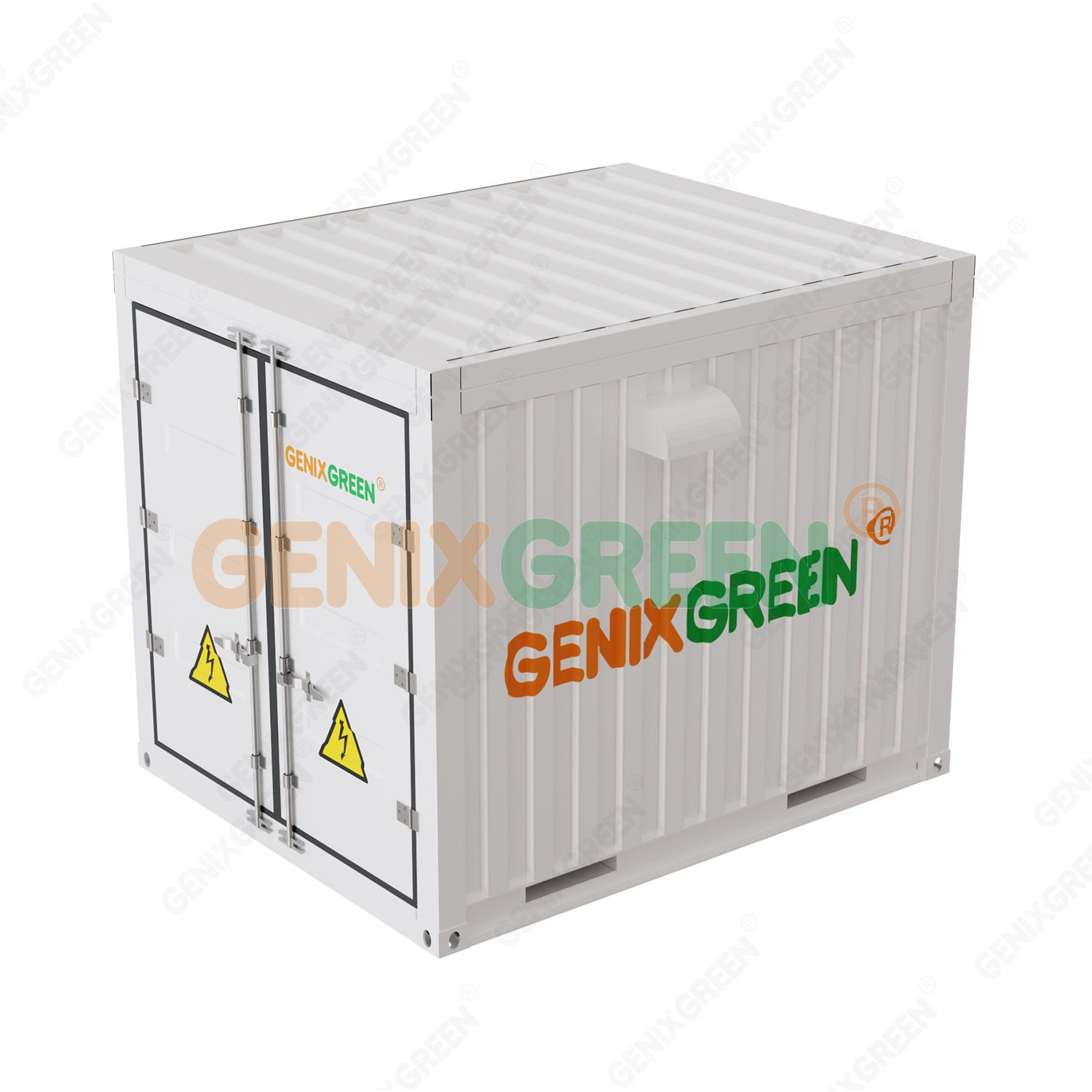

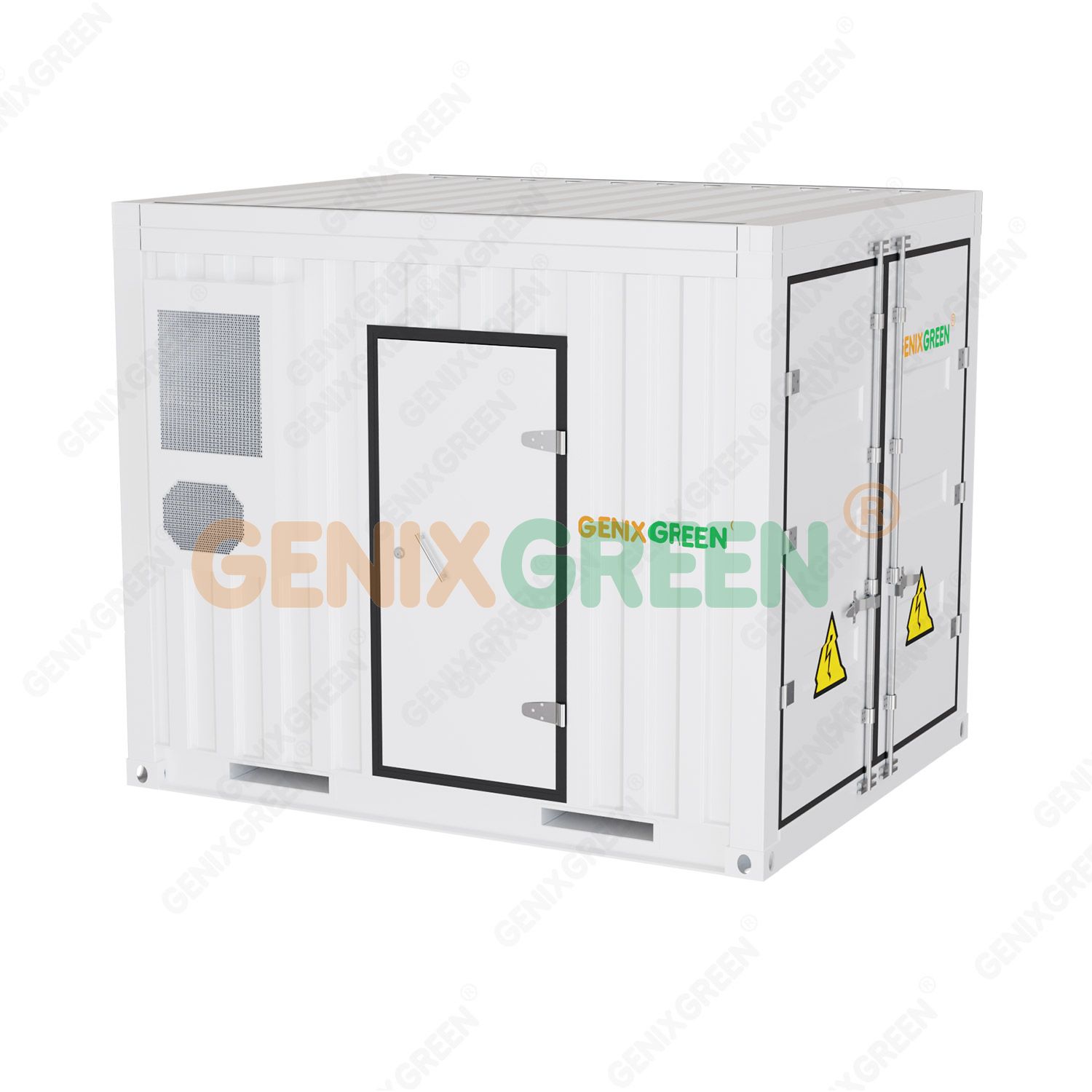

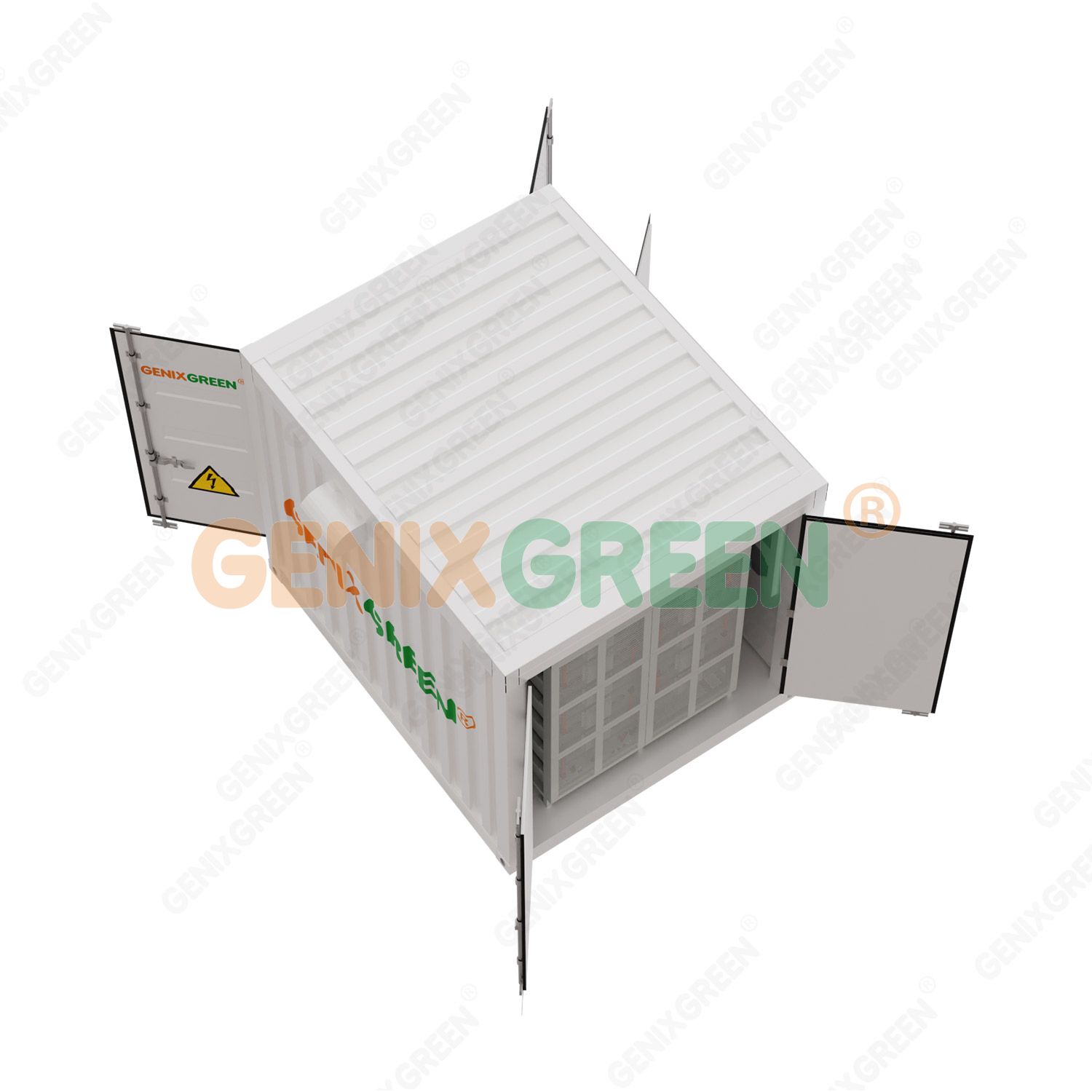

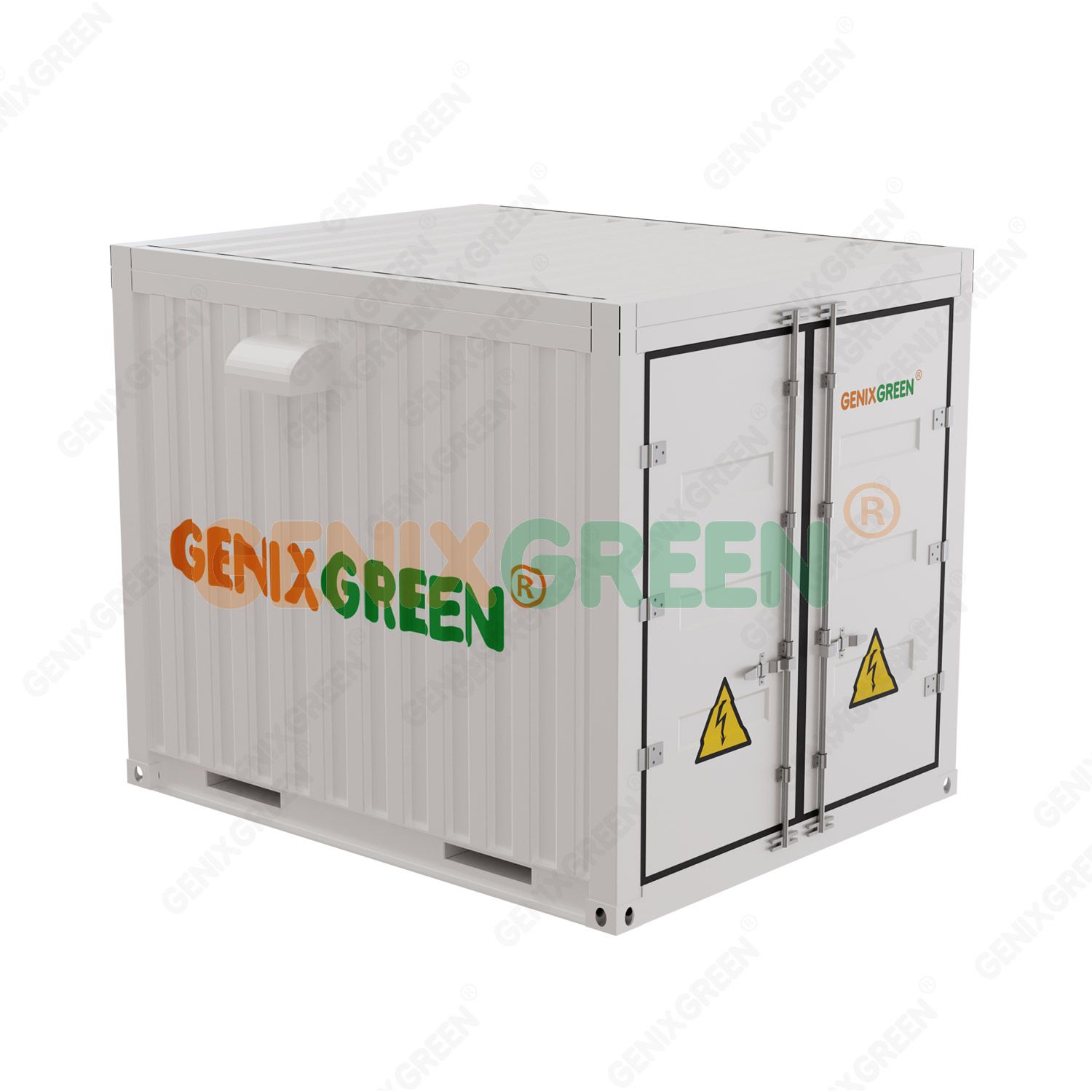

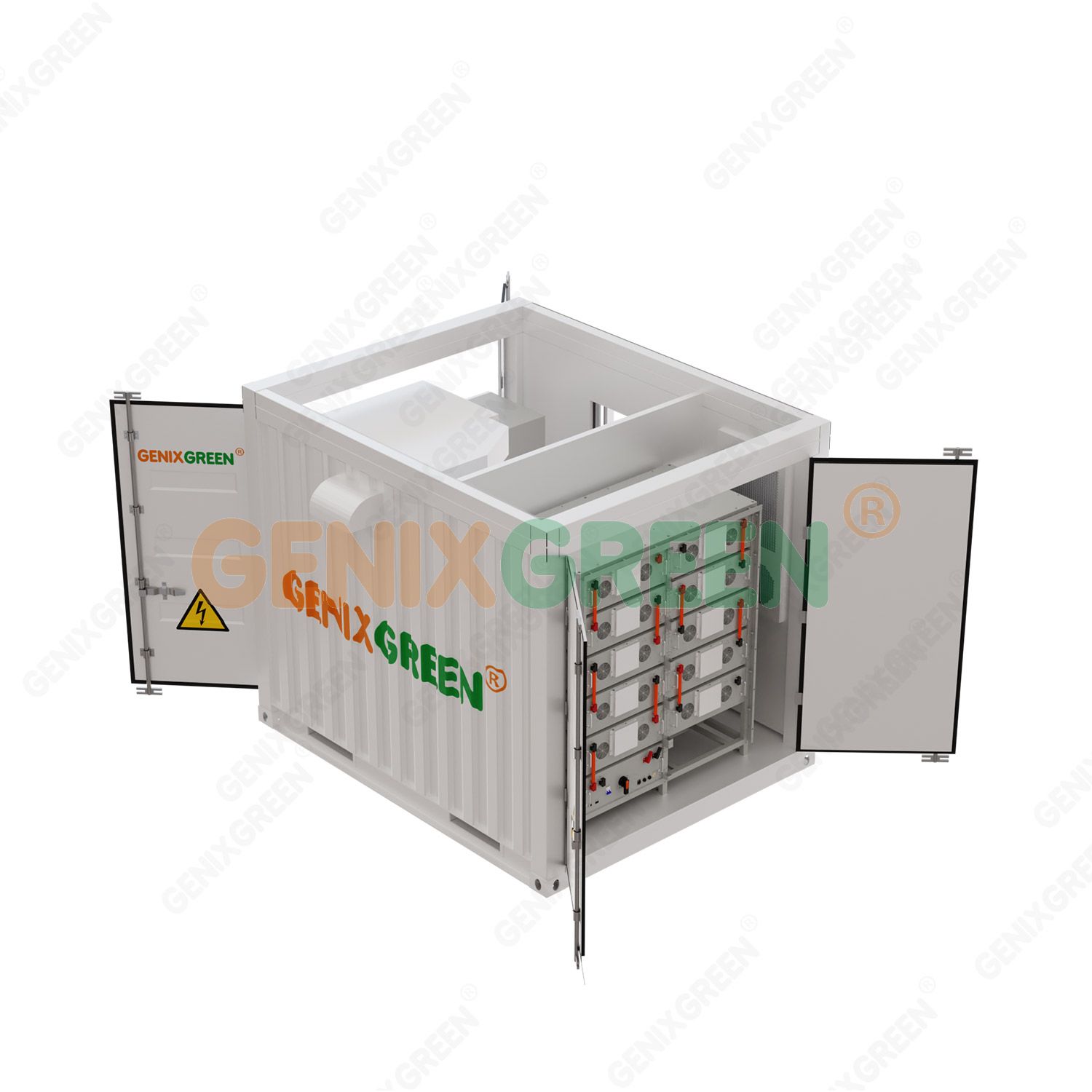

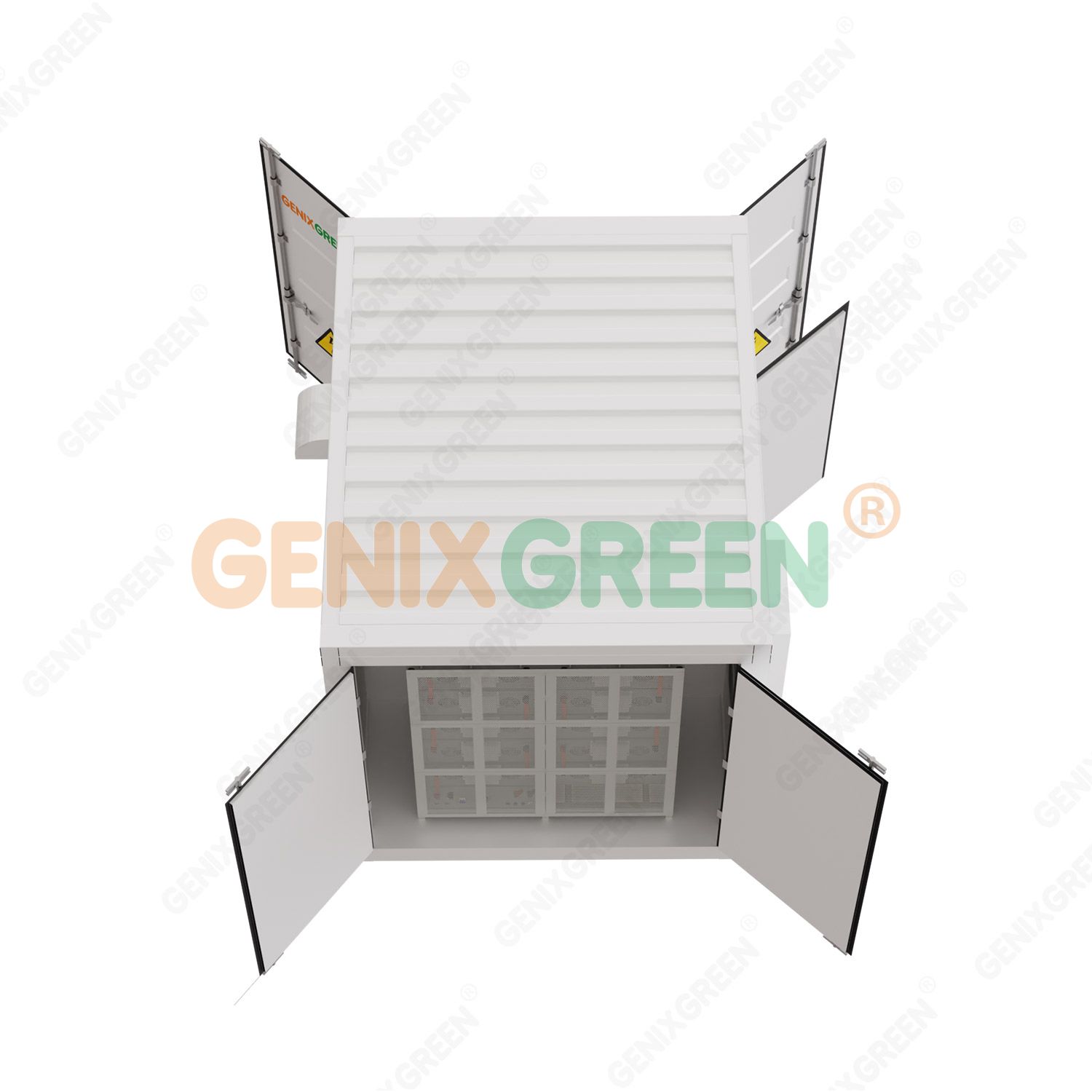

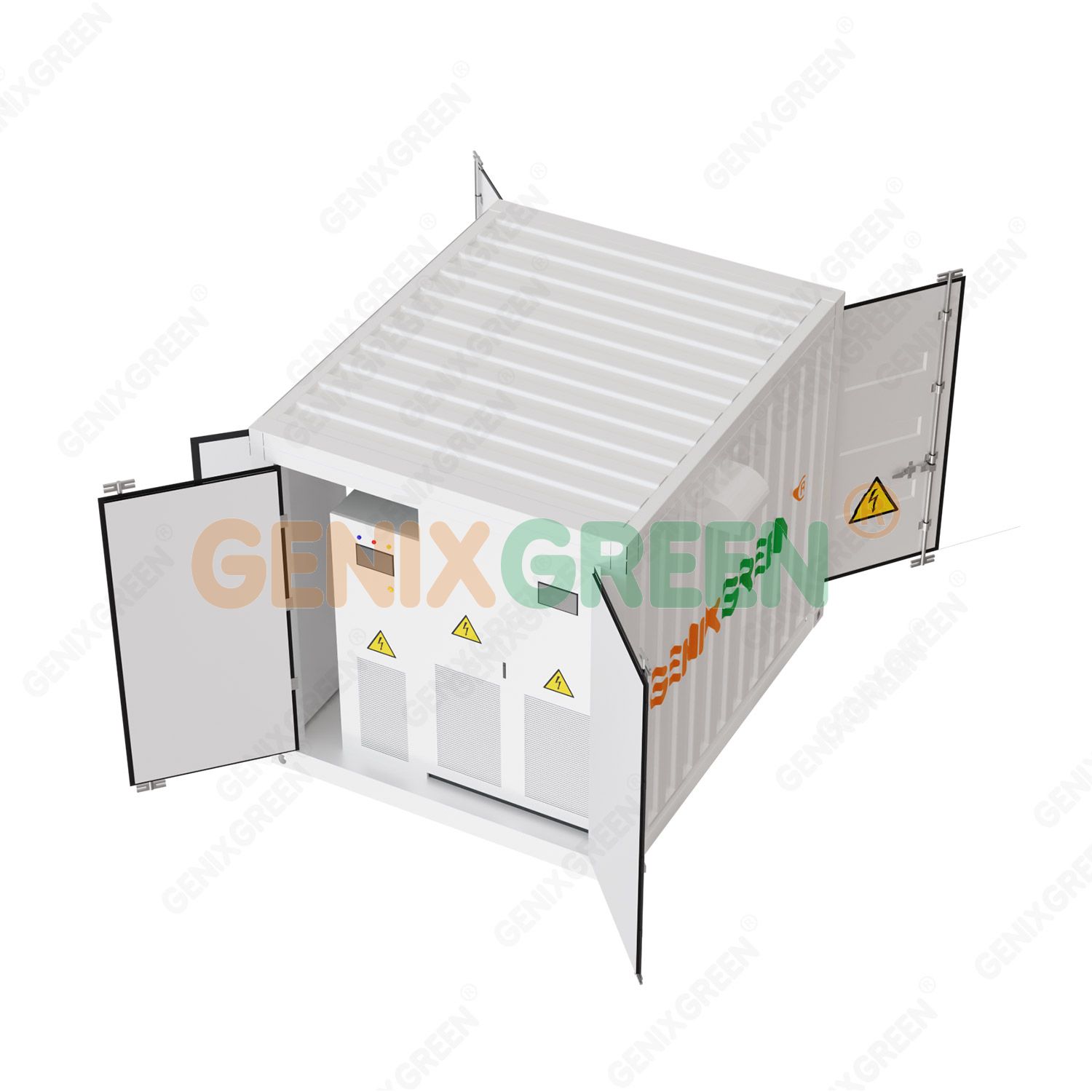

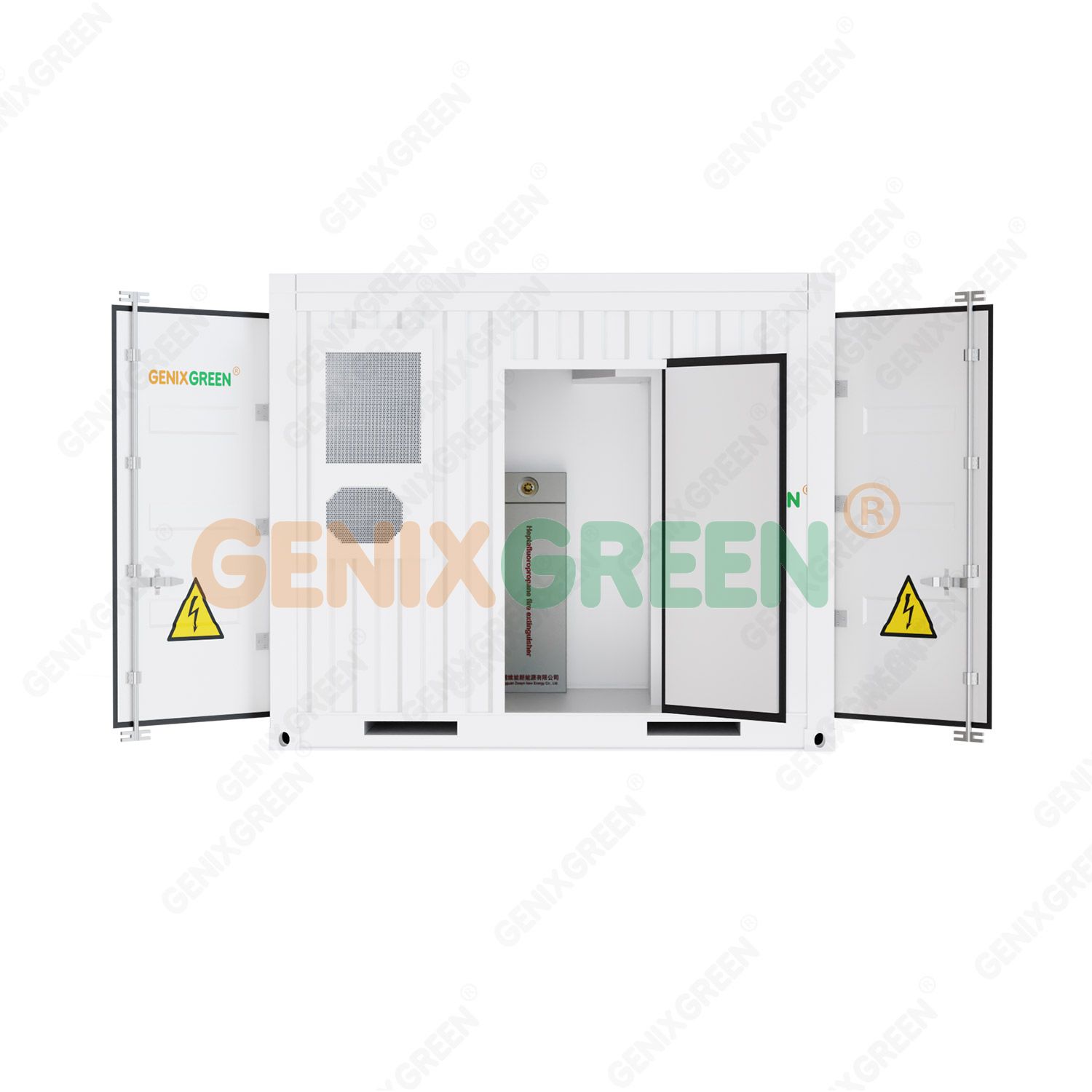

Container

PCS DC Input Side

Voltage

420-850VDC(768V)

Max. charge power

120KW

PCS—PV Input side

Max photovoltaic power

120000W

Max. photovoltaic voltage

1000V

Starting voltage

150V

MPPT range

250-850VDC

Full load DC voltage

450-850VDC

Rated DC input

600V

PV input current

36A+36A+36A+36A

PV input channel

4 ways

communication method

two way CAN2.0/RS485

PCS —AC output side (Off-grid)

Rated AC power

110KVA

Active power

100KW

Rated voltage

400VAC

Rated current

144A

THDU

fi2% linear

Rated frequency

50/60Hz

Overload capacity

110% long-term

PCS—AC side (On-grid)

Rated AC power

110KVA

Active power

100KW

Rated Voltage

400VAC

rated current

144A

voltage range

320-460VAC

rated frequency

50/60Hz

THDU

<  3% linear

power factor

Standard: 1.0; lead 0.8 /lag 0.8

AC Phase

Three- phase four- wire + ground wire (3W+N+PE)

isolation transformer

0.68%

Grid certification

TUV,CE

Working temp. range

-40  60°C, >45°C Power down

Communication method

RS485/CAN
