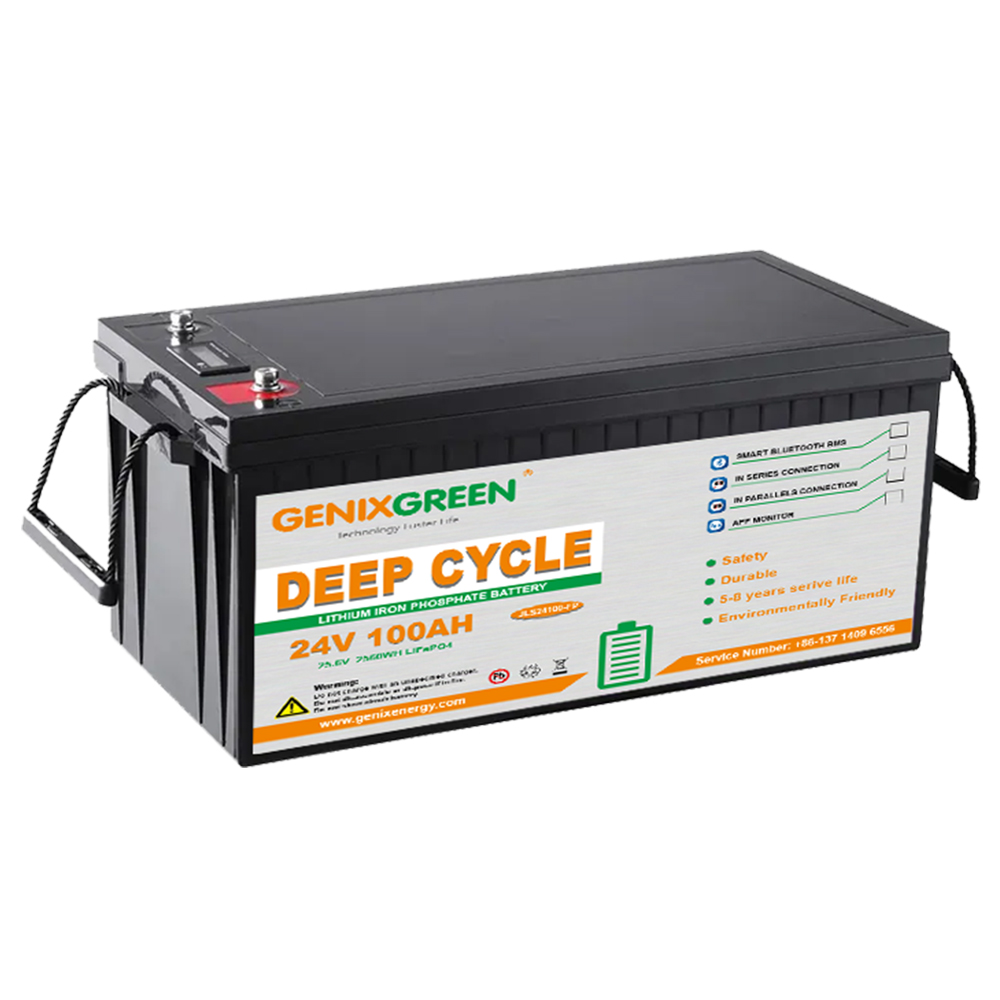

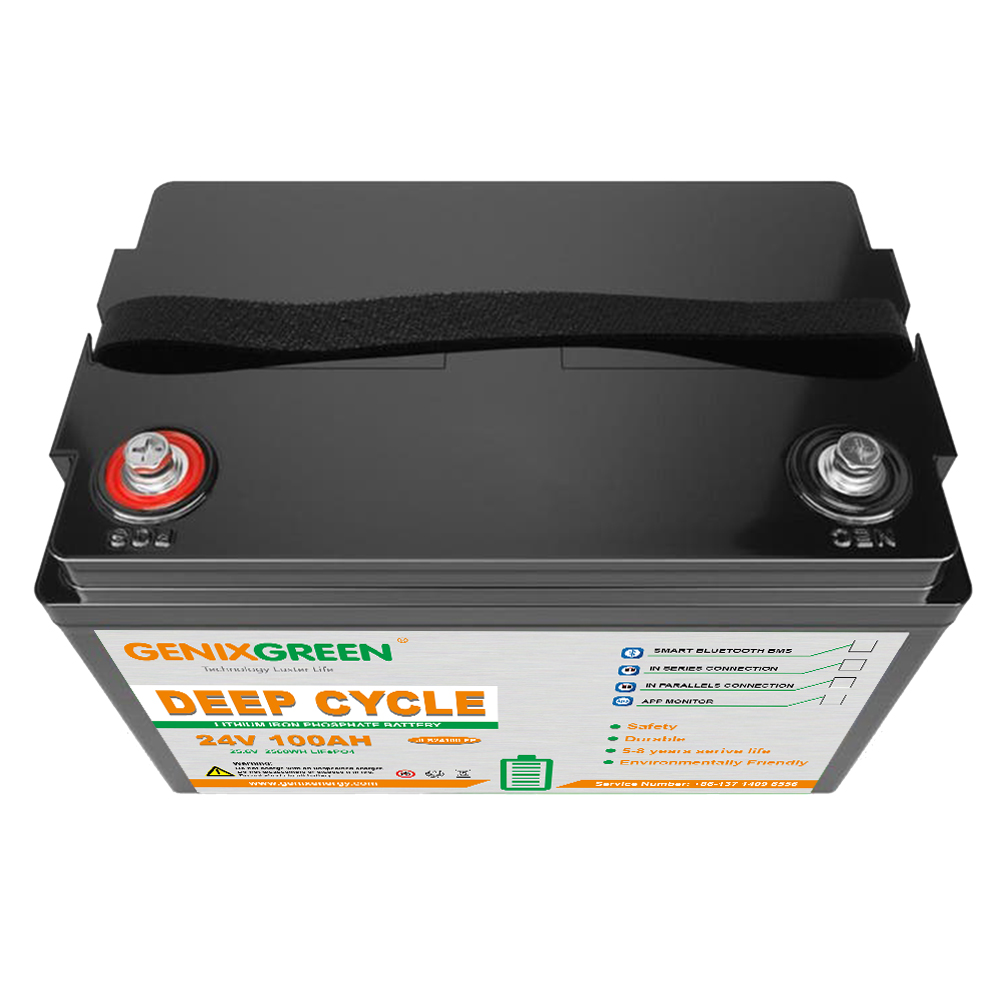

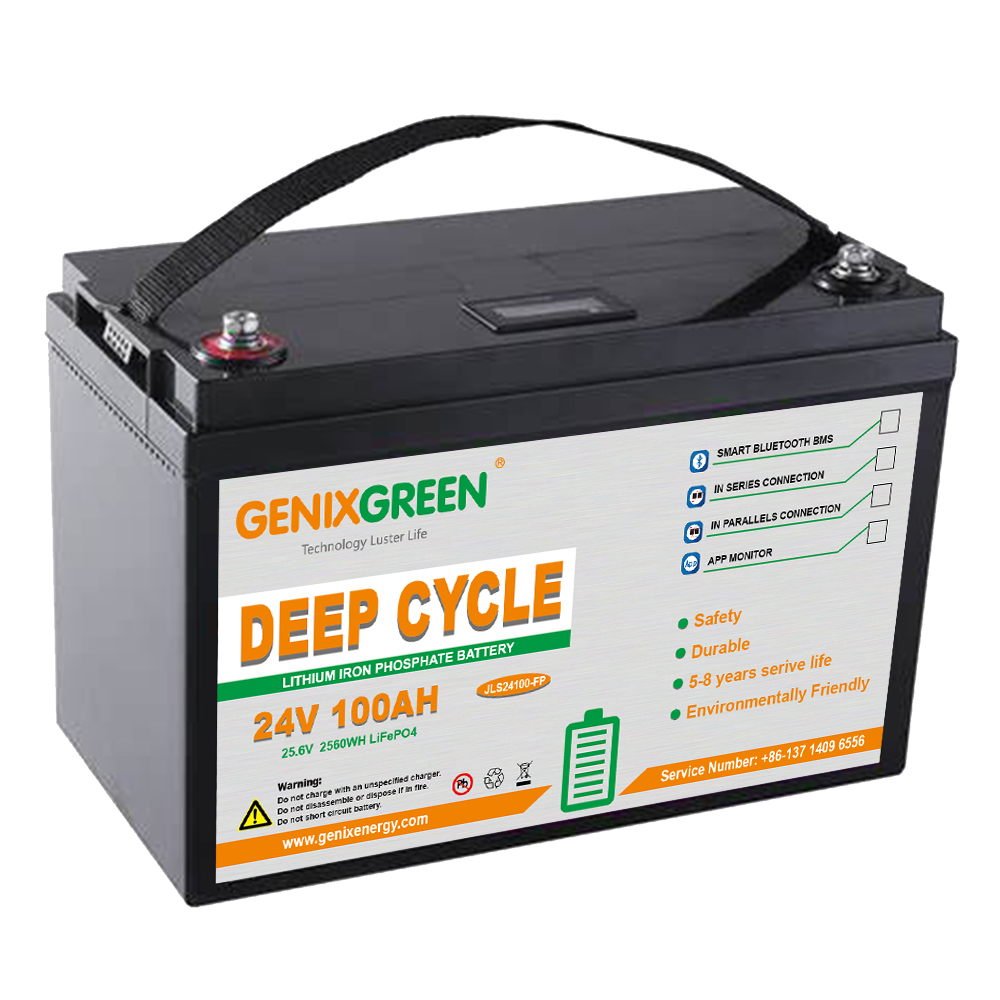

Model:JSL-JLS-24100FP
Nominal Capacity @25℃:100AH
Nominal Energy @25℃:2560WH
Cycle life:100% DOD Cycles @ 25°C, 1C/1C: >2000 times
80% DOD Cycles @ 25°C, 1C/1C: >3000 times
50% DOD Cycles @ 25°C, 1C/1C: >5000 times
Warranty:3 years
Service Life:5-10 years
Dimension (mm):522*240*218mm
Model | JLS-24100FP |
Nominal Voltage | 25.6V |
Nominal Capacity @25℃ | 100AH |
Nominal Energy @25℃ | 2560WH |
Battery Cell Type | Prismatic 100Ah |
Configuration (*S*P) | 8S1P |
Max. Continous Charge Current @25℃ | 100A |
Max. Pulse charge Current @25°C,10s | 120A |
Max. Continous Charge Current @25℃ | 100A |
Max. Pulse Discharge Current @ 25°C, 10s | 120A |
DC Resistance | ≤10mΩ |
Full Charged Voltage | 29.2V |
Discharge Cut-off Voltage | 20V |
Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C |
Humidity (non-condensing) | Max. 95% |
Dimension (mm) | 522*240*218mm |
Weight (KG) | 25KG |
Terminal Type | Screw termina |
Cover Sealing type | Screw / gel sealing optional |
Waterproof | IP65 |
Cycle life | 100% DOD Cycles @ 25°C, 1C/1C: >2000 times; 80% DOD Cycles @ 25°C, 1C/1C: >3000 times 50% DOD Cycles @ 25°C, 1C/1C: >5000 times |
Service Life | 5-10 years |
Warranty | 3 years |
LCD Screen Display | Optional (Show voltage V, Power %) |
Bluetooth | Optional (Bluetooth with mobile APP) |
Series and Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V |
