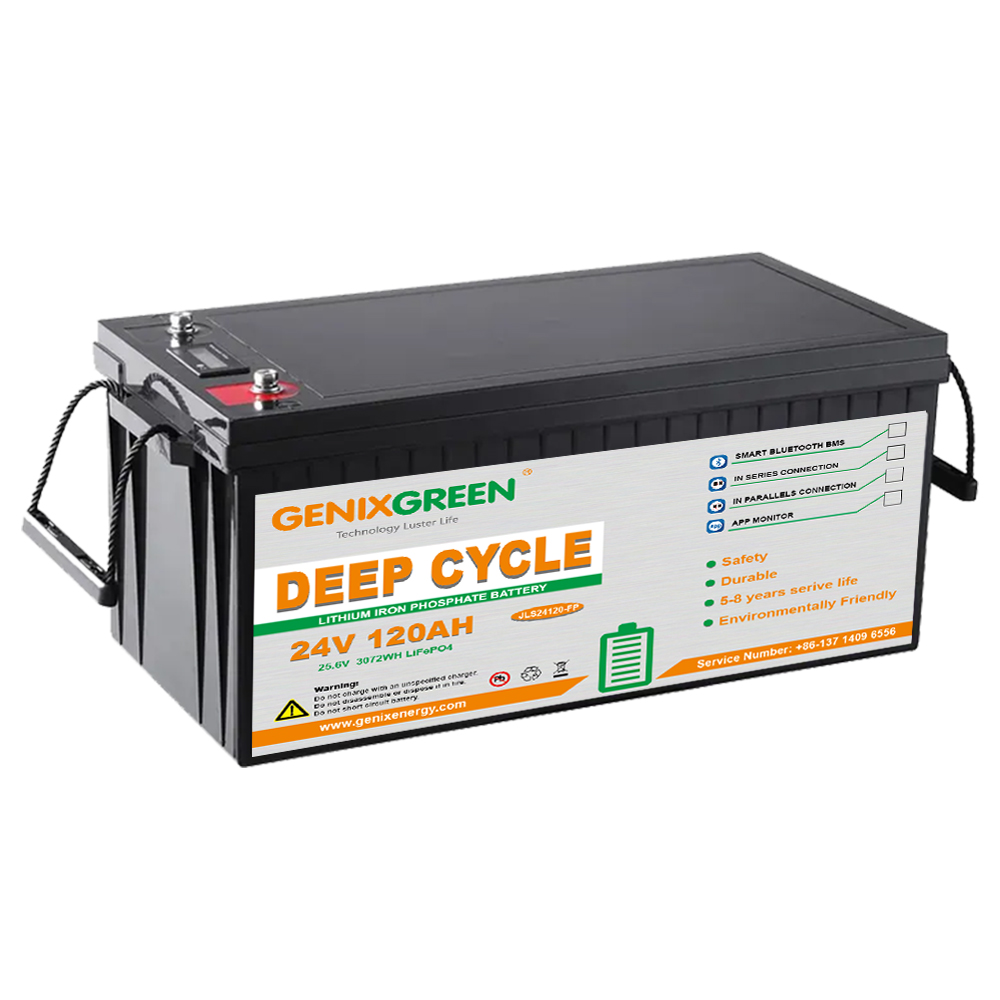

Model:JLS-24120FP
Nominal Capacity @25℃:120AH
Nominal Energy @25℃:3072WH
Cycle life:100% DOD Cycles @ 25°C, 1C/1C: >2000 times
80% DOD Cycles @ 25°C, 1C/1C: >3000 times
50% DOD Cycles @ 25°C, 1C/1C: >5000 times
Warranty:3 years
Service Life:5-10 years
Dimension (mm):522*240*218mm
| Model | JLS-24120FP |
| Nominal Voltage | 25.6V |
| Nominal Capacity @25℃ | 120AH |
| Nominal Energy @25℃ | 3072WH |
| Battery Cell Type | Prismatic 120Ah |
| Configuration (*S*P) | 8S1P |
| Max. Continous Charge Current @25℃ | 120A |
| Max. Pulse charge Current @25°C,10s | 140A |
| Max. Continous Charge Current @25℃ | 120A |
| Max. Pulse Discharge Current @ 25°C, 10s | 140A |
| DC Resistance | ≤10mΩ |
| Full Charged Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C |
| Humidity (non-condensing) | Max. 95% |
| Dimension (mm) | 522*240*218mm |
| Weight (KG) | 28KG |
| Terminal Type | Screw termina |
| Cover Sealing type | Screw / gel sealing optional |
| Waterproof | IP65 |
| Cycle life | 100% DOD Cycles @ 25°C, 1C/1C: >2000 times; 80% DOD Cycles @ 25°C, 1C/1C: >3000 times 50% DOD Cycles @ 25°C, 1C/1C: >5000 times |
| Service Life | 5-10 years |
| Warranty | 3 years |
| LCD Screen Display | Optional (Show voltage V, Power %) |
| Bluetooth | Optional (Bluetooth with mobile APP) |
| Series and Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V |
