Model: UPS1606-1220
Battery Type: NCM
Battery Voltage: 11.1V
Battery Cpacity: 2600mAh

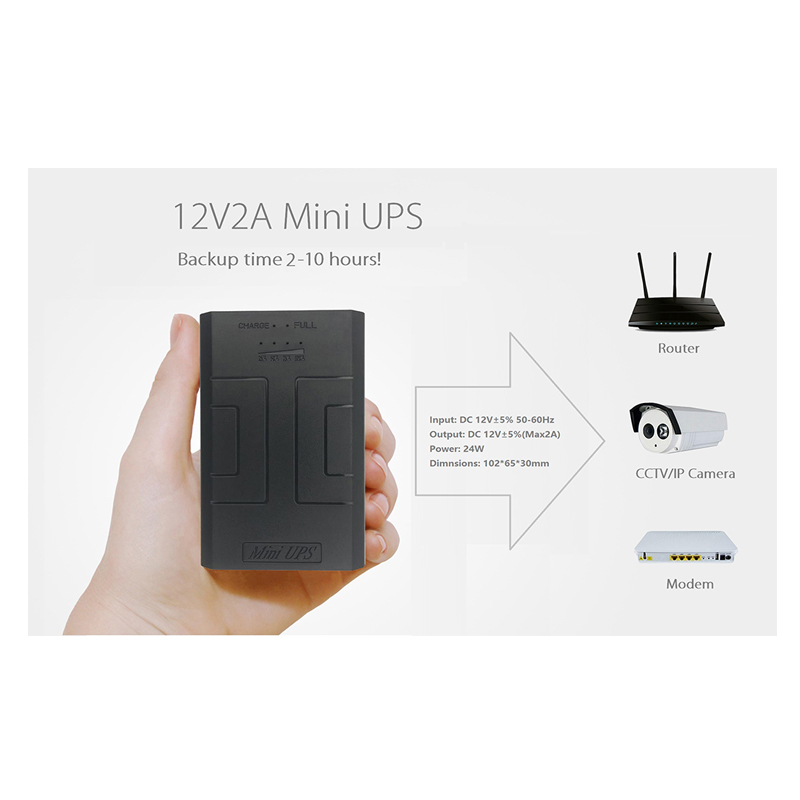

Application: Power backup
Mini UPS Specifications | |
Model | UPS1606-1220 |
Parameters | |
Output Voltage Rating | 12VDC ± 5% |
Input Current Rating | 2A |
Power Rating | 24W |
Adaptor Ripple | 1% |
Transfer Time | 6ms(ref) |
Battery Type | Li-ion |
Battery Pack Voltage | 11.1V |
Battery capacity | 11.1V 2600MAH(3PCS) |
Recharge Time | 9 hrs to 90%(2600mah) |
Discharge Time (Reference) | About 3 to 11 hours) |
Working termperture | -20℃~60℃ |
Protection | |
Circuit | Over-discharge protection |
Overcharge and short circuit protection | |
Battery | Reverse connect protection |
Input/Output | Short circuit of fuses and overload protection |
LED Indication/Switch | |
Adaptor Work | Red LED Light |
UPS Work | Green LED Light |
Battery pack Charging | Blue LED Trotting Horse Lamp |
Battery pack charge Complete | All Blue LED OFF |
Battery Pack Discharging | Blue Led Flash |
Battery Pack Low Power | Blue Led Quick Flash |
0-25% Electricity | LED 1 ON |
25-50% Electricity | LED 1 &LED 2 ON |
50-75% Electricity | LED 1 &LED 2 & LED 3 ON |
75-100% Electricity | LED 1 & LED 2 & LED 3 & LED 4 ON |

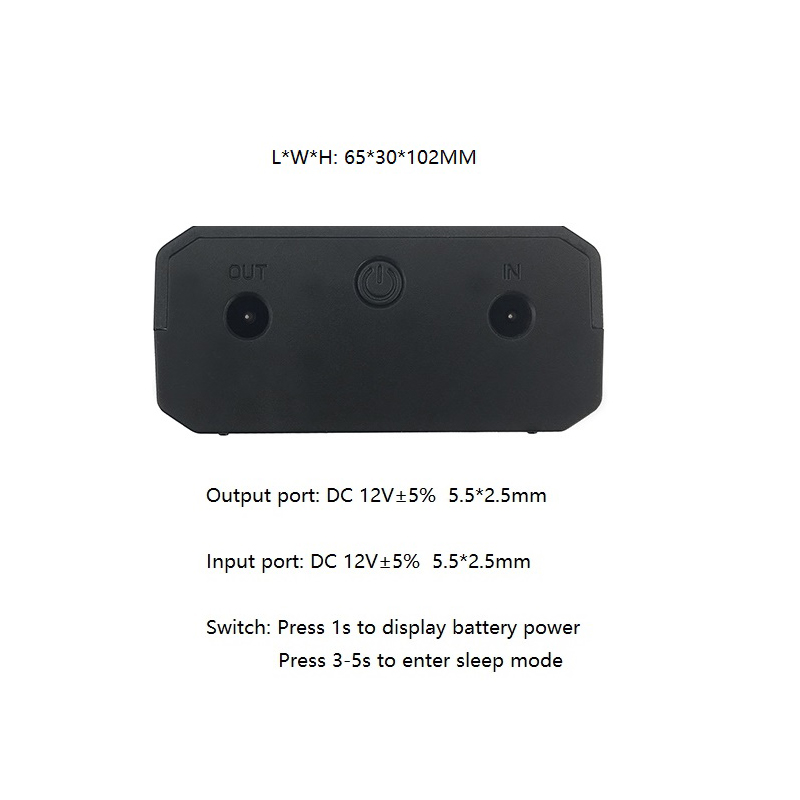

Key | Press 3-5s :Enter Sleep Mode or Turn on the mini ups |
Press 1s: Display battery capacity | |
Ouput cable | Length, 20cm+15cm/15cm; Plug(5.5*2.1mm/5.5*2.5mm/) |
Net Weight (g) | 210g |
Feature: Energy saving and power backup
