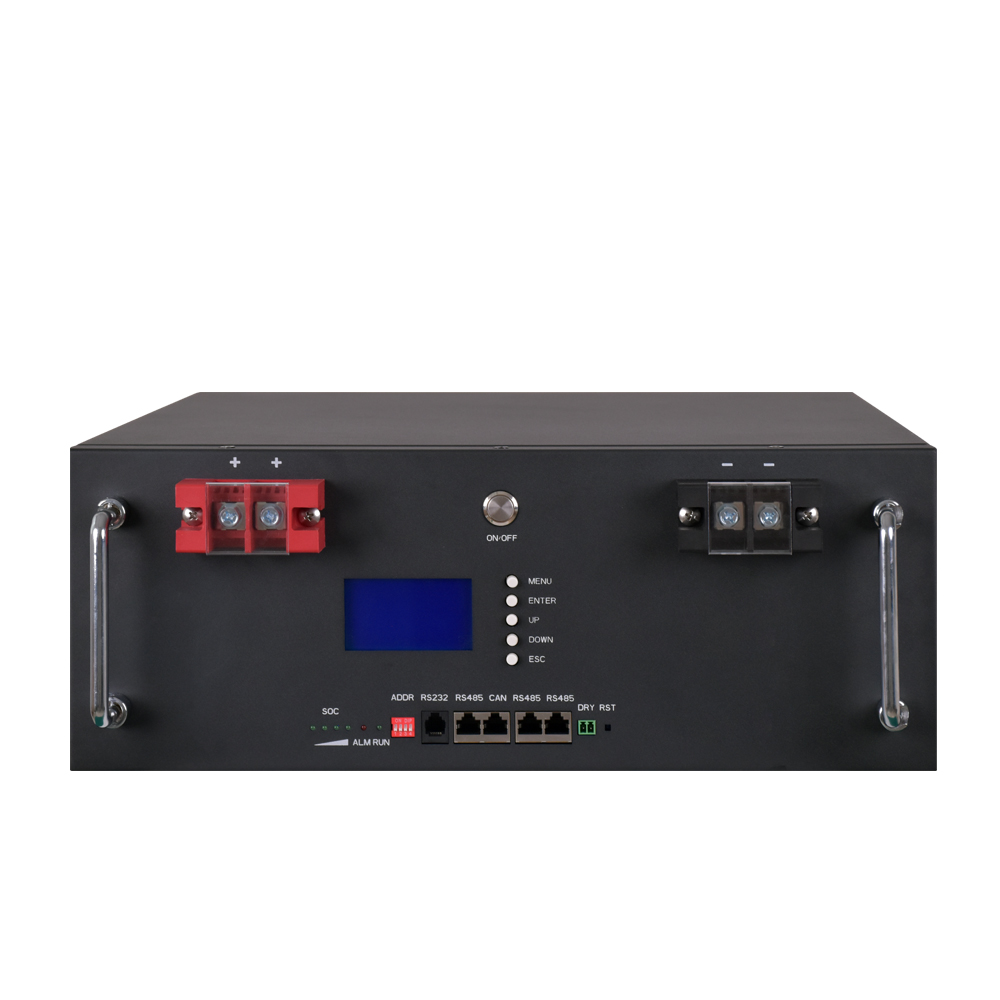

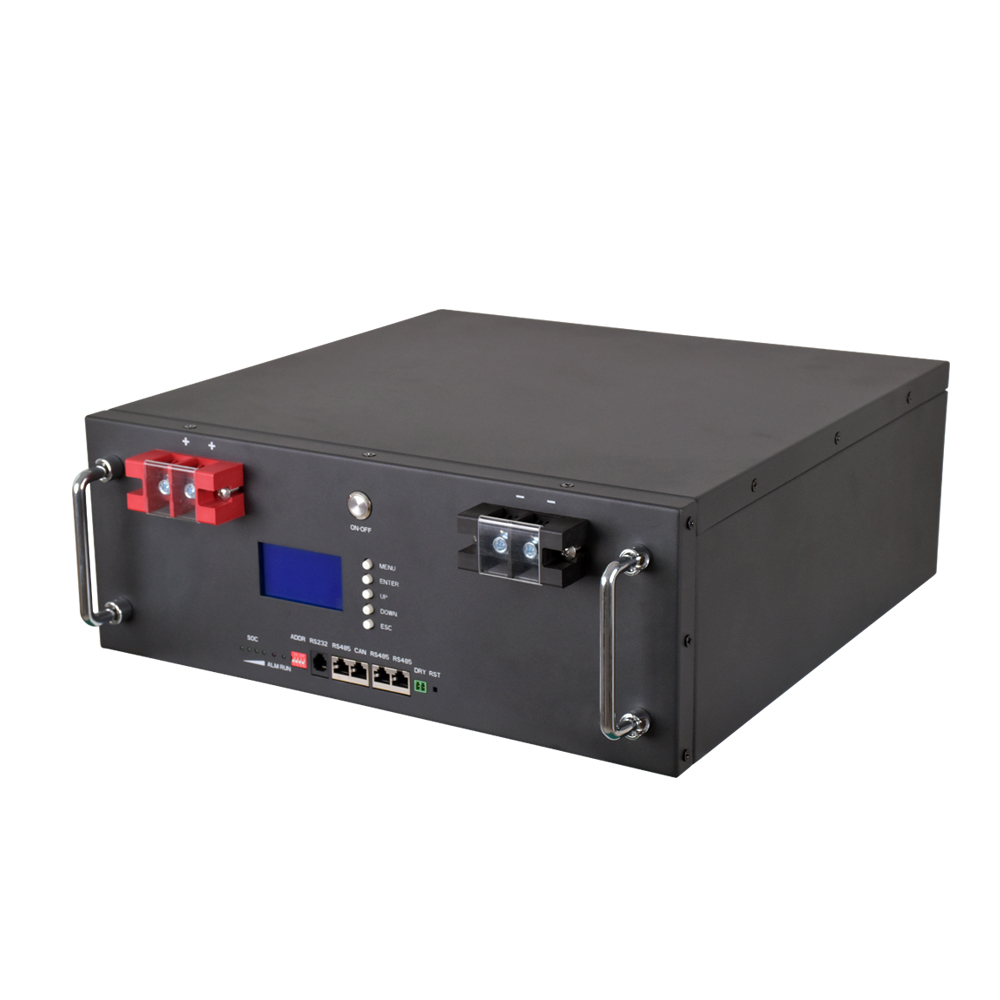

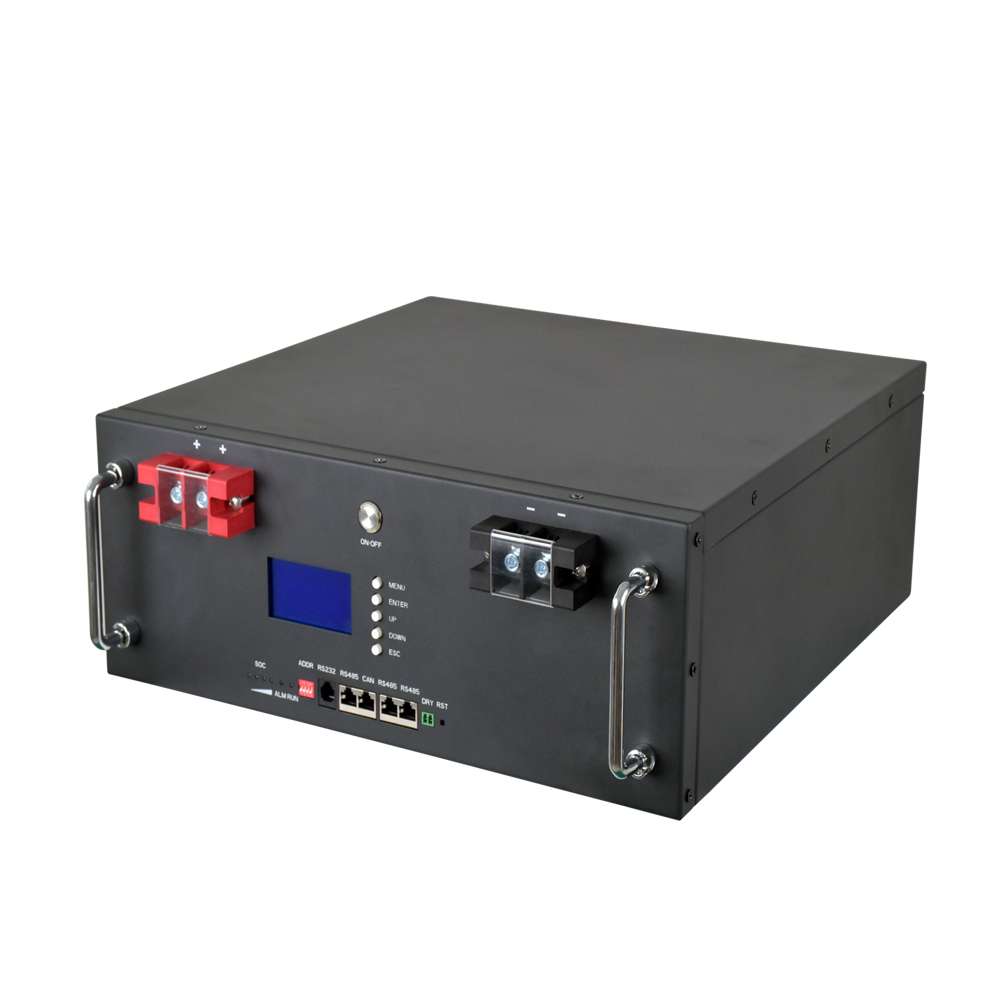

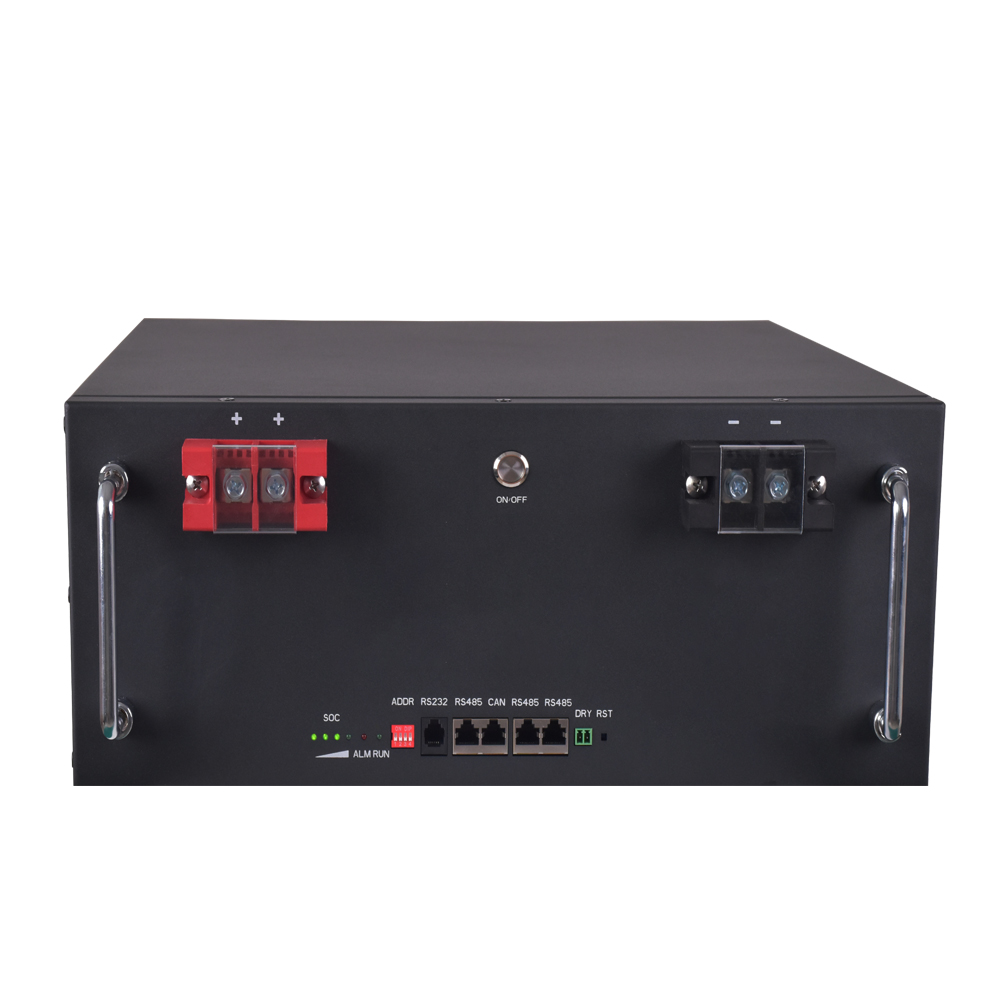

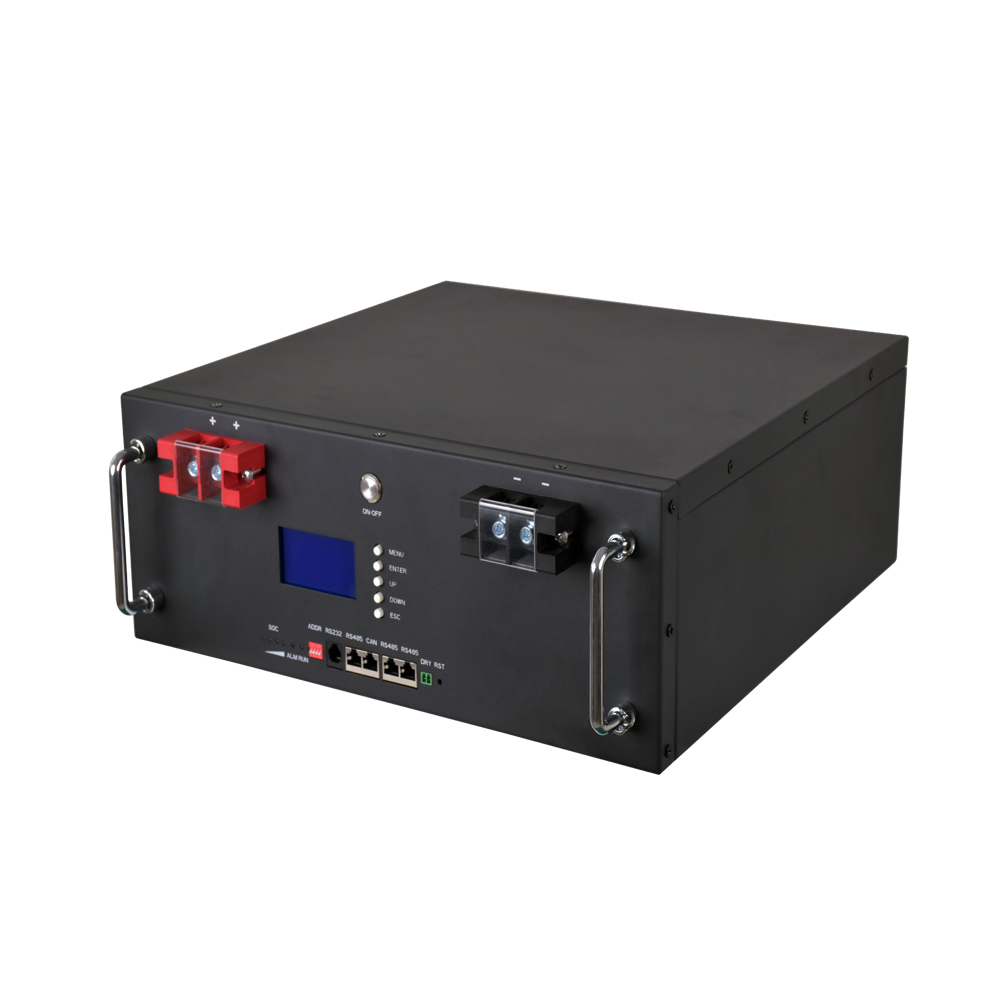

48V 100ah home battery storage system

Share

Model: JLS-48100LF

Battery Type: LiFePo4

Battery Voltage: 48V

Battery Capacity: 100Ah

Cycle Life: 60% DOD 4000 cycles

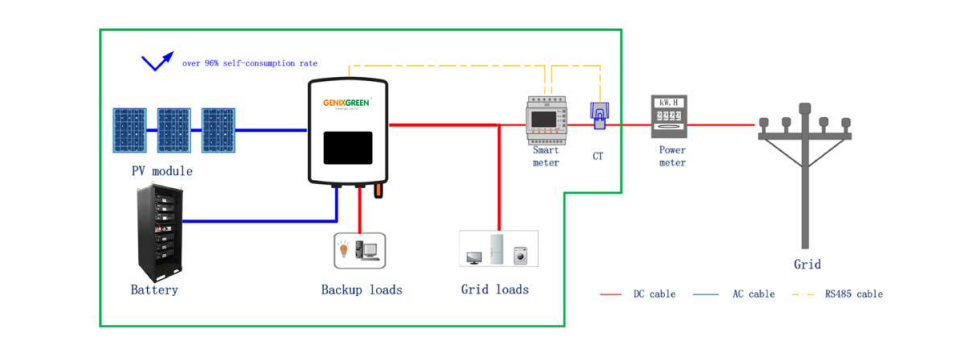

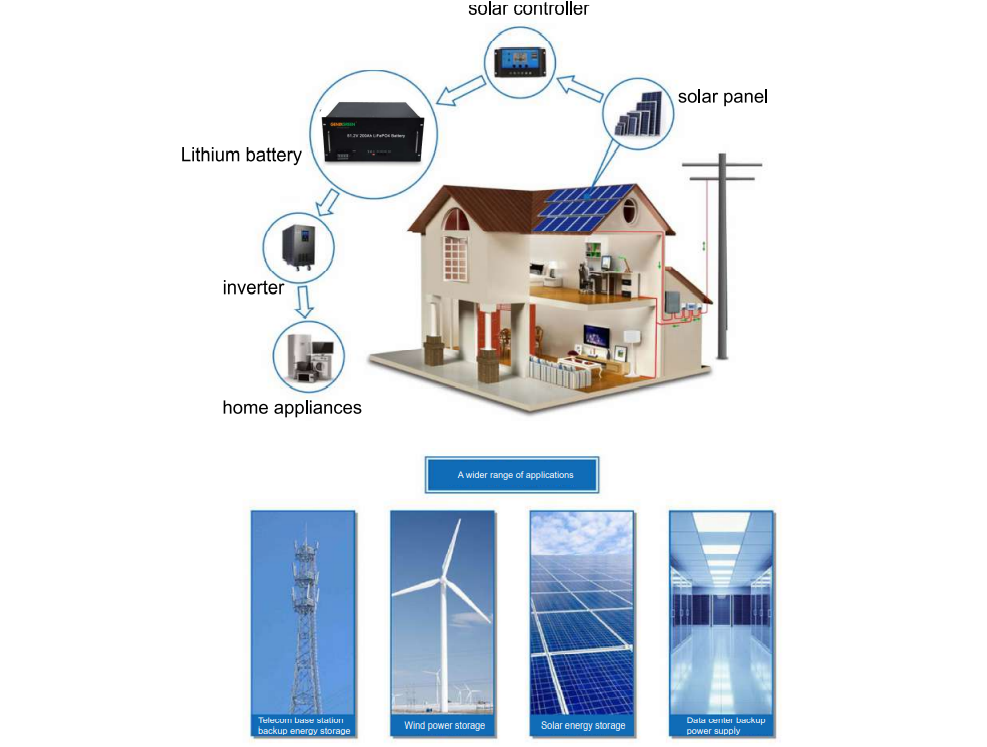

Application: Energy storage system, Telecom base

Communication inverter: Deye SMA, Victron, Grottwatt, UZ, Sola-X, Sinxcel, Sungrow etc.


Product Description

48V 100ah home battery storage system

Genixgreen Design and manufacture of custom and standard battery packs for a variety of portable, power and stationary applications.48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system

48V 100ah home battery storage system


Specifications
JLS-LFP48100
Voltage
48 V
Nominal Capacity (40°C , 0.5C)
100 Ah
Weight (Approximate)
50Kg


Energy
Normal energy (40°C , 0.5C)
4800 Wh
Volumetric energy density
95Wh/L
Gravimetric energy density
96Wh/kg
Dimensions (W*D*H)
Width*Depth* Height
442mm*440mm*222.5mm

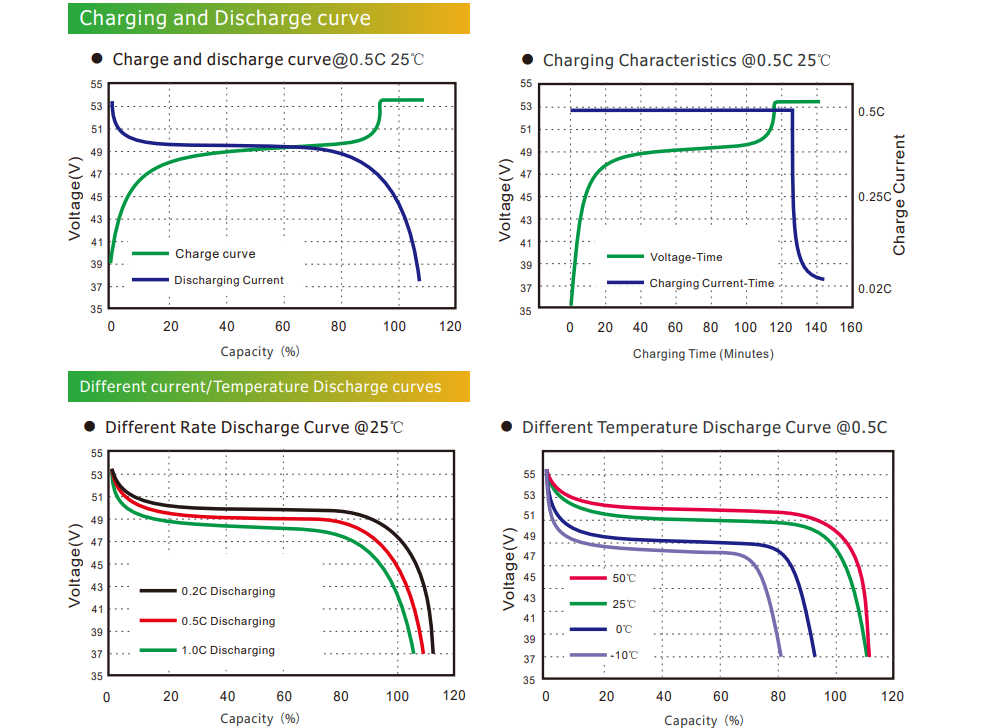

Standard Discharge 25°C
Max. constant current
50A
Cut-off voltage
42V


Standard charge 25℃
Charge Voltage
53.5V~54V
Max. constant current
50A
Recommended charging current and time
40A(0.4C) for 3 hours
Round trip efficiency(%)
>98%
Calendar life
25℃
>5 years

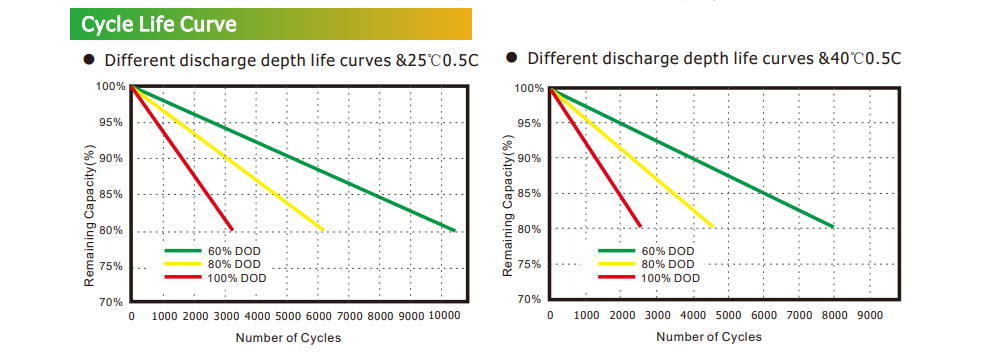

Cycle life (0.5C, 25℃)
60% DOD 4000 cycles


Operating temperature
Charging: 0℃~55℃
Discharging: -20℃~65℃
Storage temperature
Recommended range: -20℃~55℃
