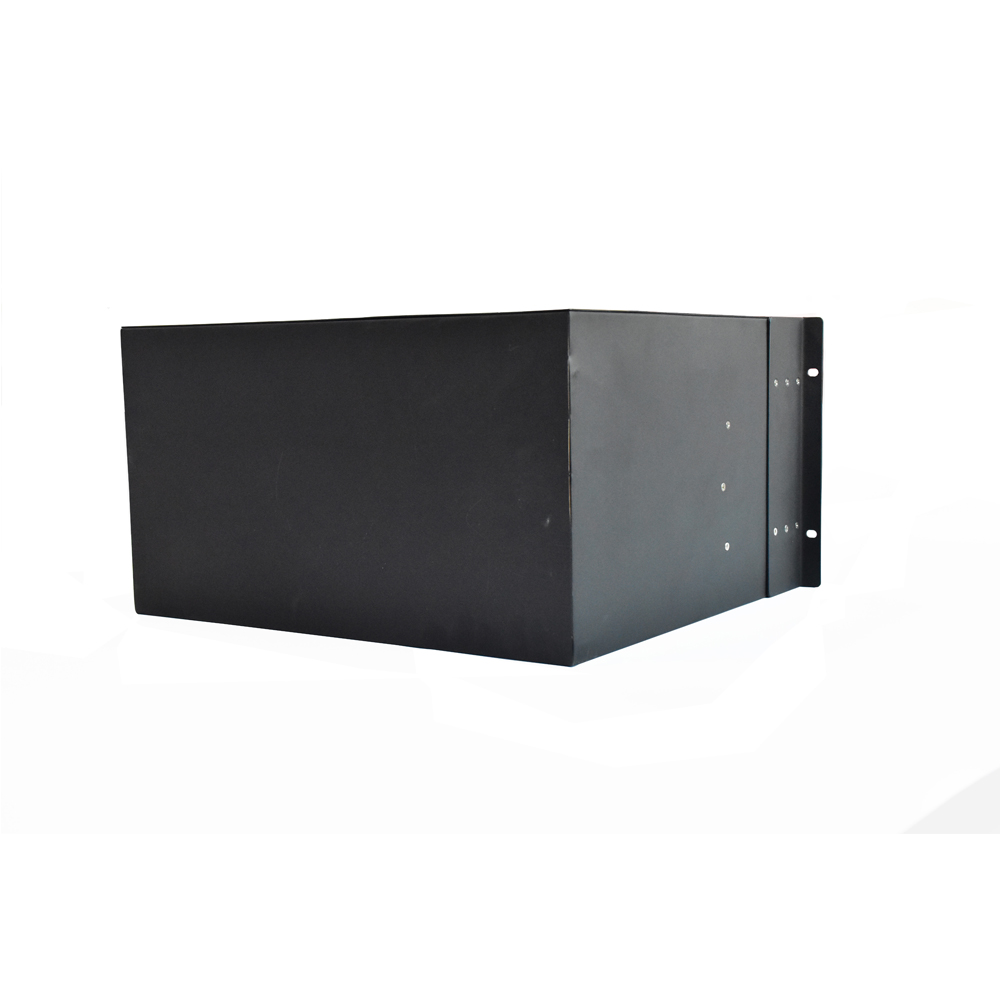

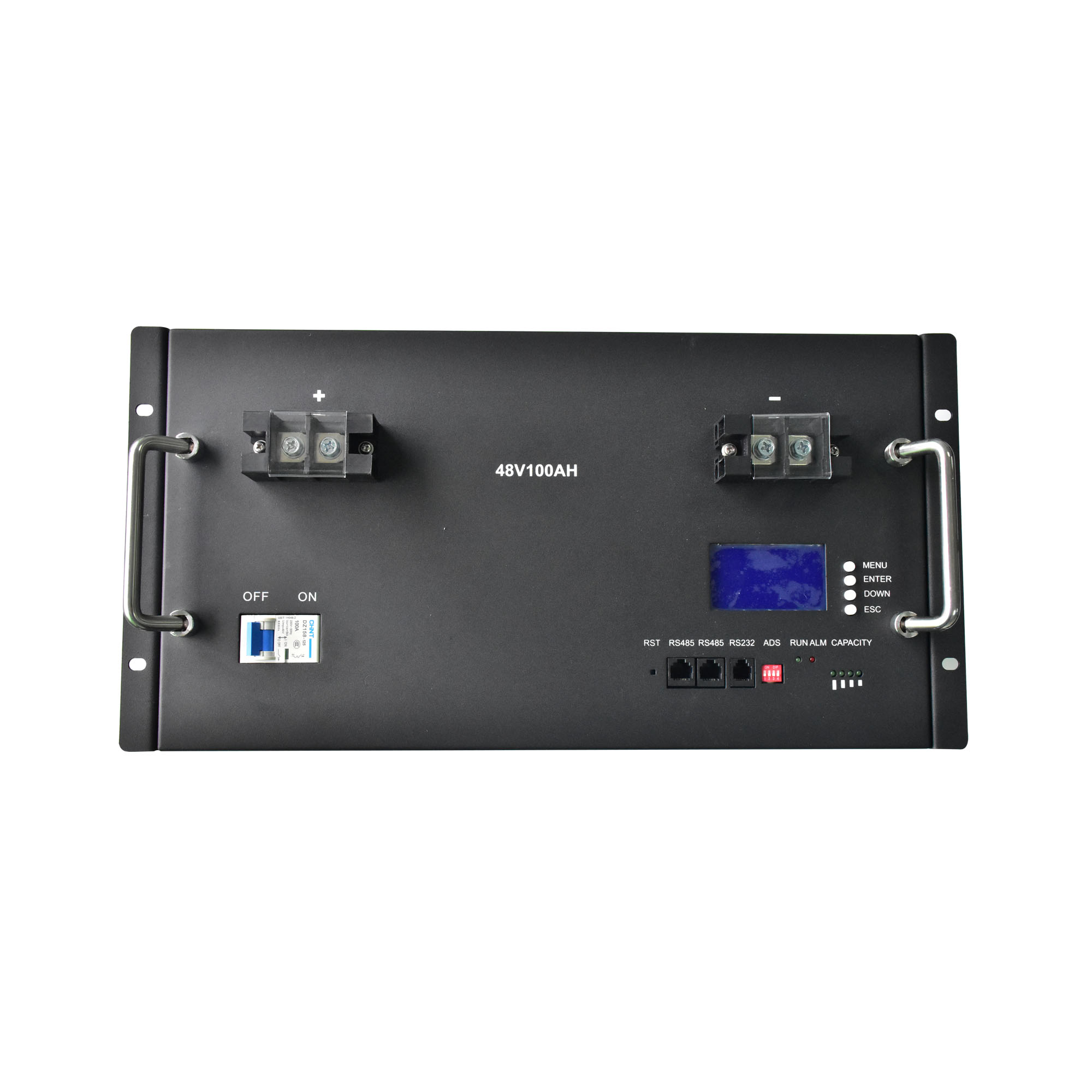

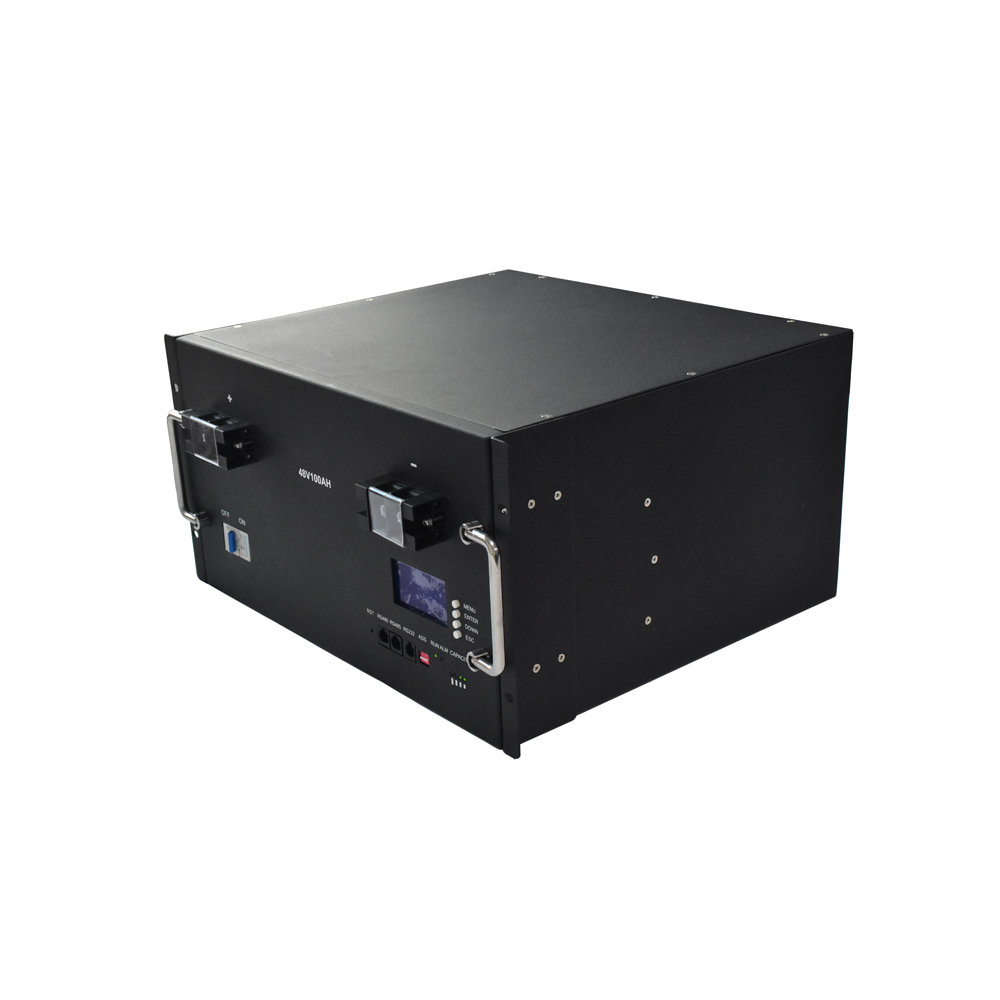

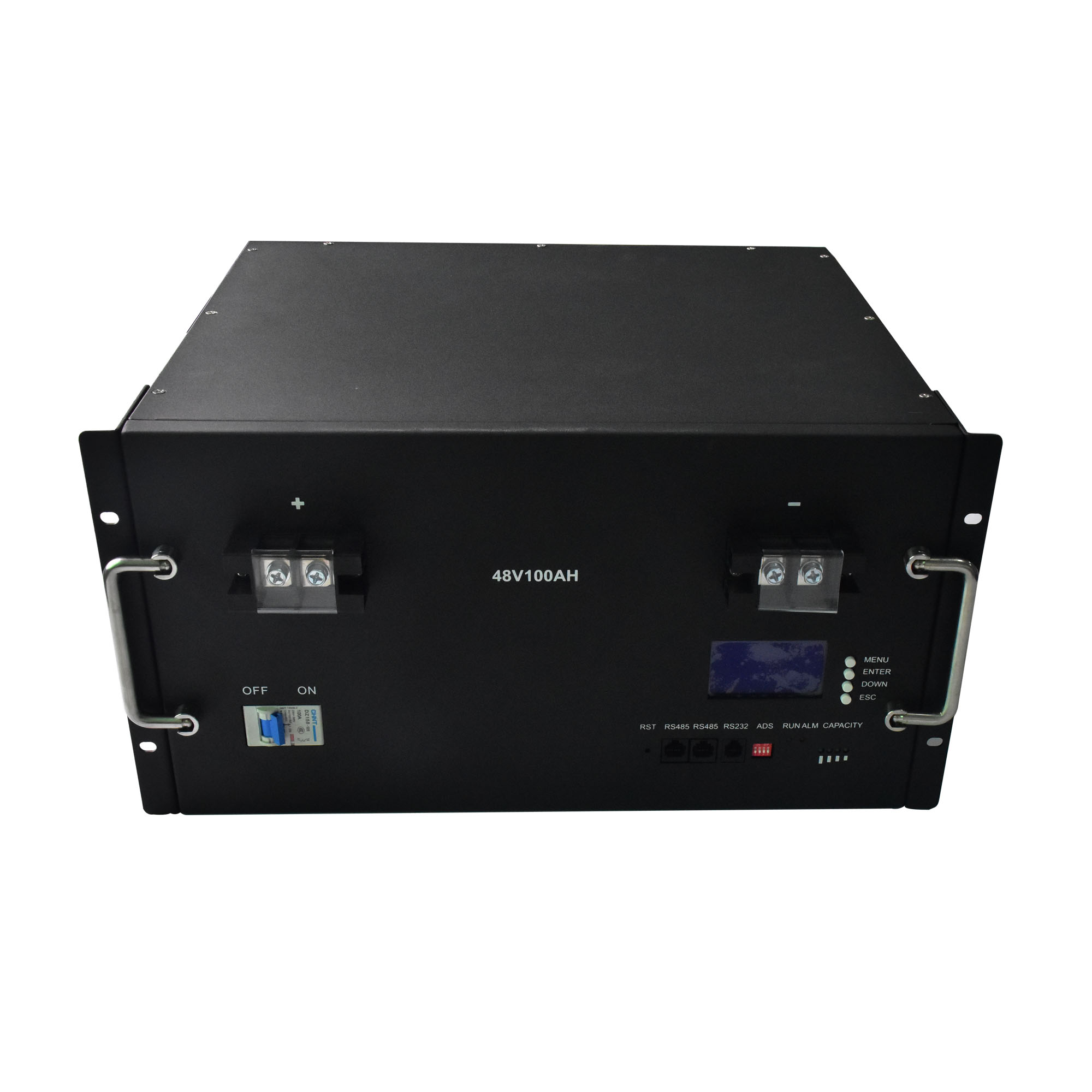

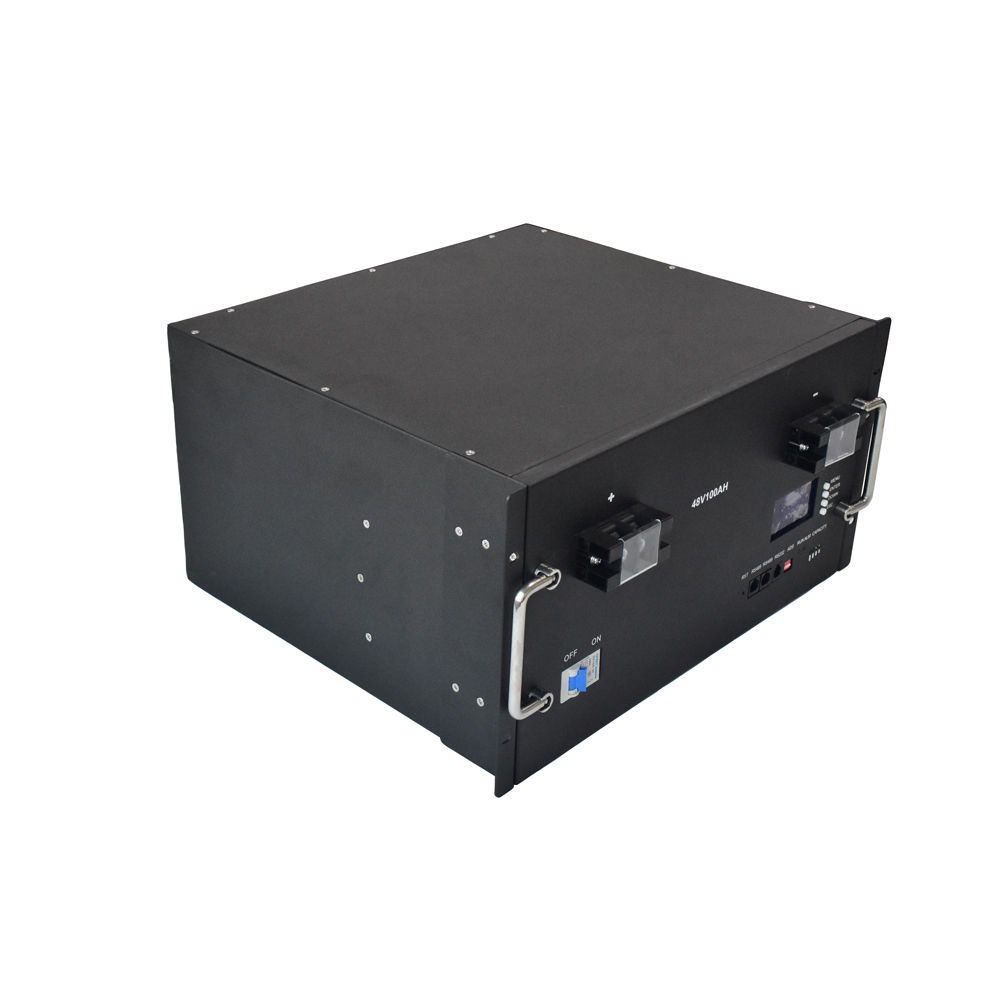

48V 100ah JLS-48100LF Rack LiFePO4 Battery

Model: JLS-48100LF

Battery Type: LiFePo4

Battery Voltage: 48V

Battery Capacity: 100Ah

Cycle Life: 60% DOD 4000 cycles

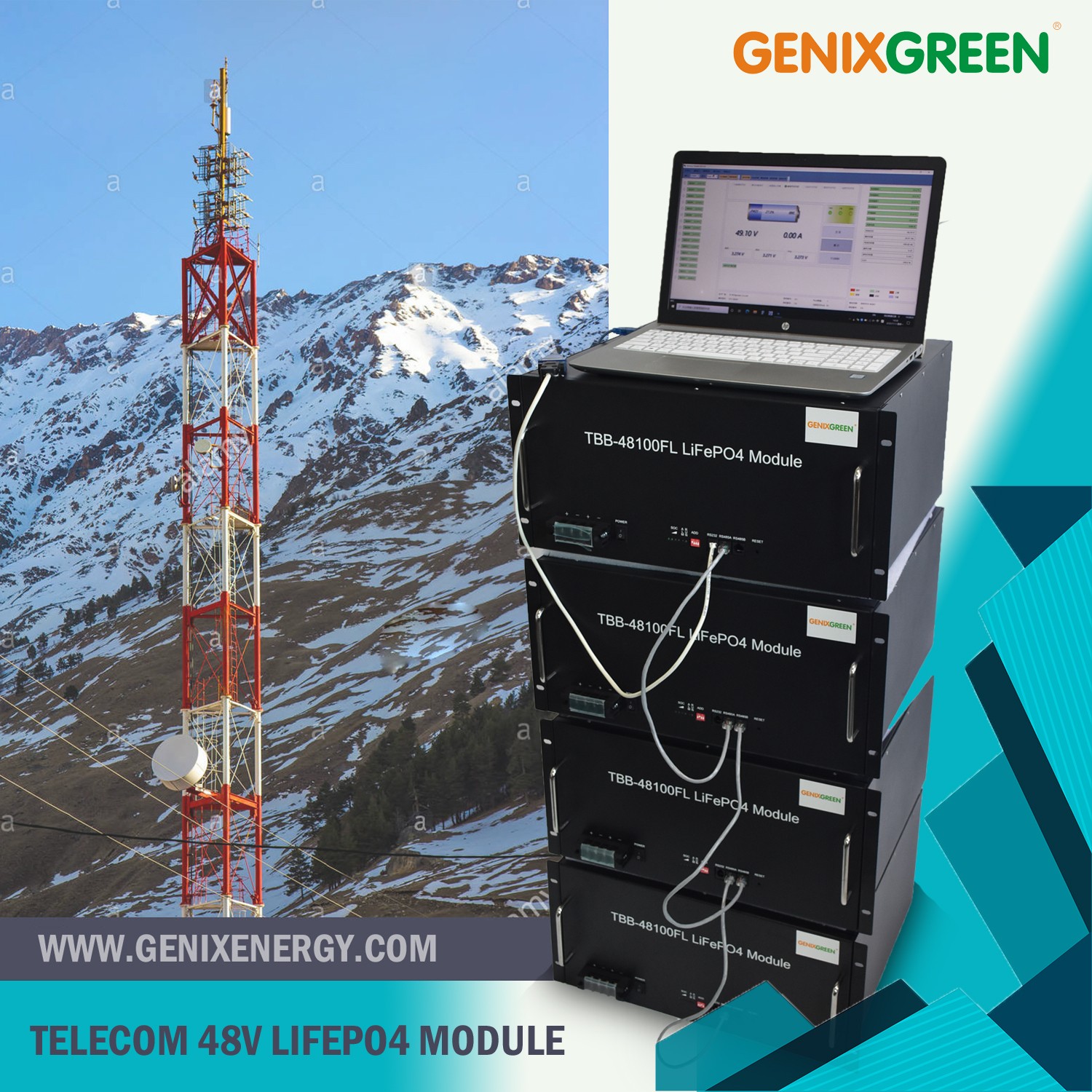

Application: Energy storage system, Telecom base

Communication inverter: Deye SMA, Victron, Grottwatt, UZ, Sola-X, Sinxcel, Sungrow etc.

Inquire Now Next Product Download

Product Description

48v 100ah JLS-48100LF Rack LiFePO4 Battery

48v 50ah JLS-4850LF Rack LiFePO4 Battery

Specifications		JLS-LFP48100
Voltage		48 V
Nominal Capacity (40°C , 0.5C)		100 Ah
Weight (Approximate)		50Kg
Energy	Normal energy (40°C , 0.5C)	4800 Wh
	Volumetric energy density	95Wh/L
	Gravimetric energy density	96Wh/kg

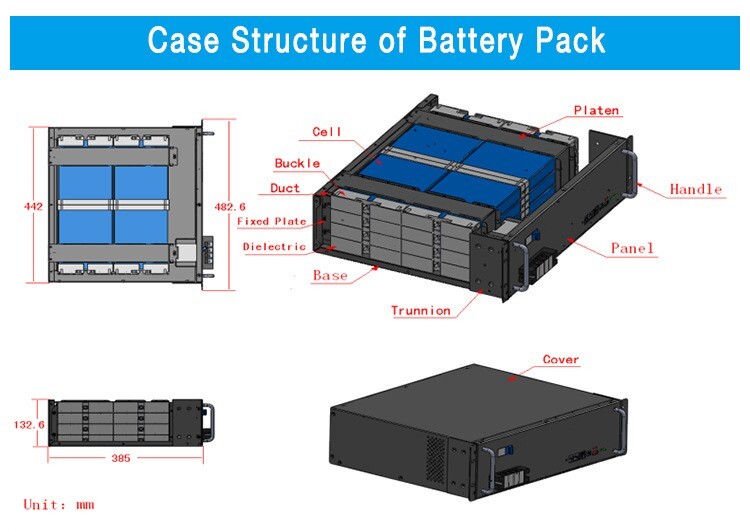

Dimensions (WDH)	WidthDepth Height	442mm440mm222.5mm
Standard Discharge 25°C	Max. constant current	50A
Standard Discharge 25°C	Cut-off voltage	42V
Standard charge 25℃	Charge Voltage	53.5V~54V
	Max. constant current	50A
	Recommended charging current and time	40A(0.4C) for 3 hours
Round trip efficiency(%)		＞98%
Calendar life	25℃	＞5 years

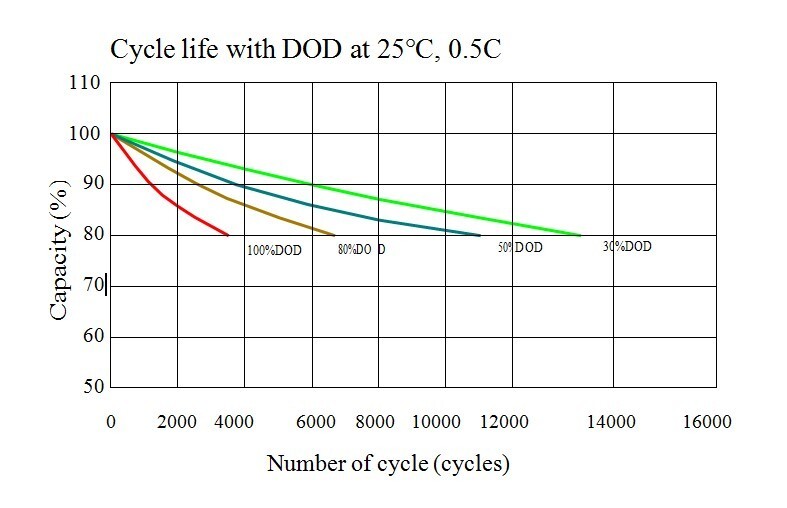

Cycle life (0.5C, 25℃)		60% DOD 4000 cycles
Operating temperature		Charging: 0℃~55℃
Operating temperature		Discharging: -20℃~65℃
Storage temperature		Recommended range: -20℃~55℃
