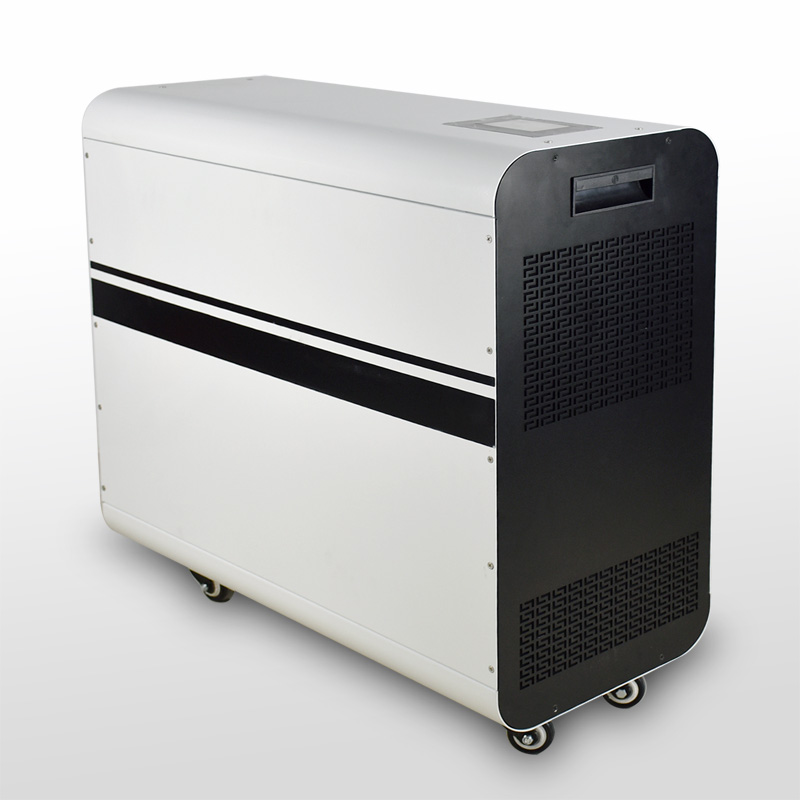

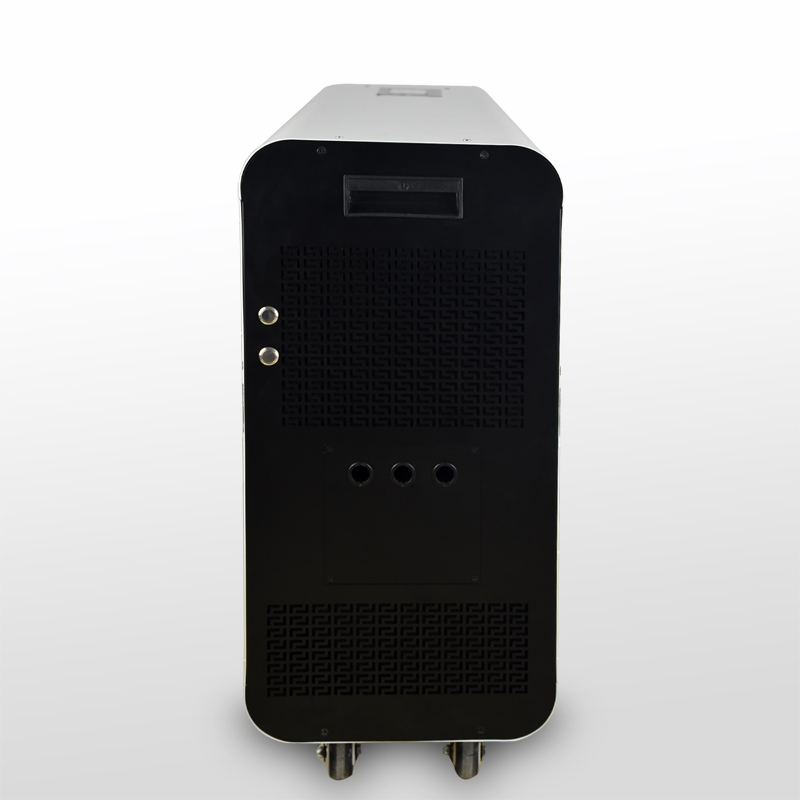

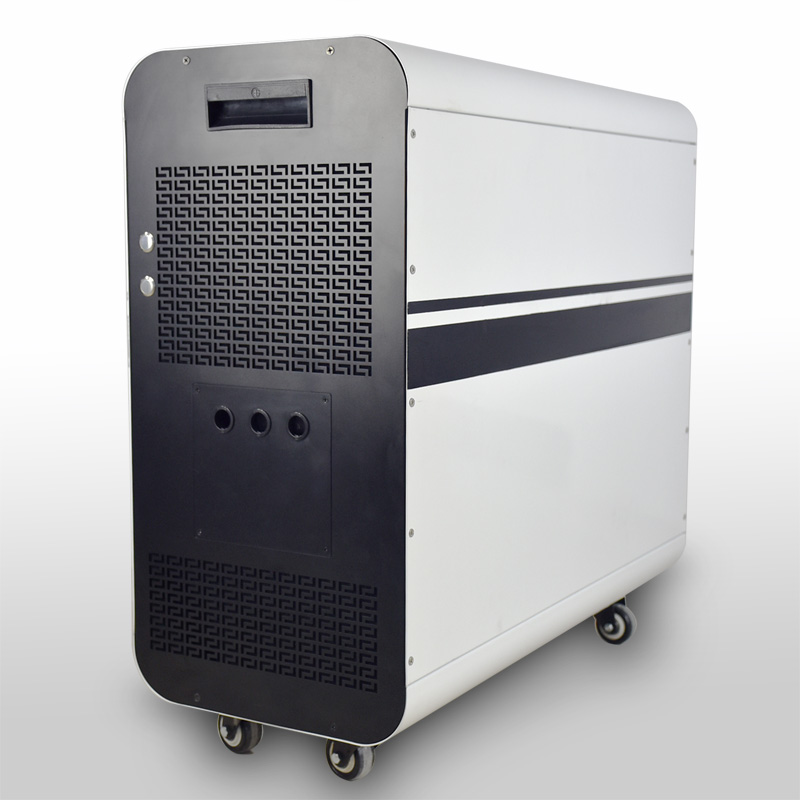

Model: ES-BOX1
Battery Type: LiFePo4
Battery Voltage: 51.2V
Battery Capacity: 100Ah
Cycle Life: >2000times
Application: Home appliance
| No | Item | Name | Specification | Remark |
| 1 | Display System | Display Screen Type | liquid crystal display touch screen | |
| Background light | Full Colour | |||
| 2 | Lithium Battery Pack | Battery Type | LiFePo4 | |
| Rated Energy | 5120KWH | |||
| Rated Capacity | 100Ah | |||
| Rated Voltage | 51.2V | |||
| Cycle Life | >2000times | |||
| 3 | BMS | Discharge characteristic | Continuous Current | 100A |
| Over current protection | 120A | |||
| Charge characteristic | Charge Voltage | 56V | ||
| Charge Current | ≦100A | |||
| Over-charge Protection | Single cell Cut-off voltage | 3.65V | ||
| Single cell Recovery Voltage | 3.58V | |||
| Over-discharge Protection | Single cell Cut-off Voltage | 2.8V | ||
| Single cell Recovery Voltage | 3.0V | |||
| Over-current Protection | Overcurrent detection current | 120A | ||
| Overcurrent protection release condition | Release load | |||
| Short Circuit Protection | Short Circuit Protection | Enable | ||
| Short circuit protection release condition | Release load | |||
| Self-consumption current | Operating mode power consumption | ≤25mA | ||
| Idle mode power consumption | ≤200uA | |||
| 4 | Charging Input | AC Charging Input | Rated Input Voltage (V) | 110V-220V 50/60HZ |
| AC maximum input voltage | AC300V | |||
| AC maximum input current | 60A | |||
| Over-current Protection | Yes | |||
| Interface Type | Wire presssure terminal | |||
| Solar PV Charging Input | Interface Type | Wire presssure terminal | ||
| Rated Input Voltage (V) | DC380V | |||
| Input Voltage Range(V) | 120-450V | |||
| Input Power | 5000W | |||
| Positive and negative pole insertion reverse protection | Yes | |||
| Over-current Protection | Yes | |||
| AC Output | Output Waveform | Pure sine wave | ||
| （Vac)Output Voltage | 220V-240V | |||
| (Hz)Output Frequency | 50HZ/60HZ | |||
| Output power | 3200W | |||
| No-load Power Consumption | 100W | |||
| Inversion Efficiency | ≥90% | |||
| Under-voltage Output Protection | Yes | |||
| Over-voltage Output Protection | Yes | |||
| Over-load Output Protection | Yes | |||
| Short-circuit Output Protection | Yes | |||
| Released condition of Short-circuit Protection | Disconnect the load, Charge to activate | |||
| 5 | Communication mode | Wireless connections | WIFI | |
| 6 | Environment | Environment Temperature | 0℃~+50℃ | |
| Charge Temperature(℃) | 0℃ ~+45℃ | |||
| Humidity(%) | 0~90% | |||
| Cooling | Forced air-cooling | |||
| 7 | Dimension | （L/W/H(MM) | 710*300*600 | Do not contain castor |
| 8 | Weight | Net Weight | 74KG |

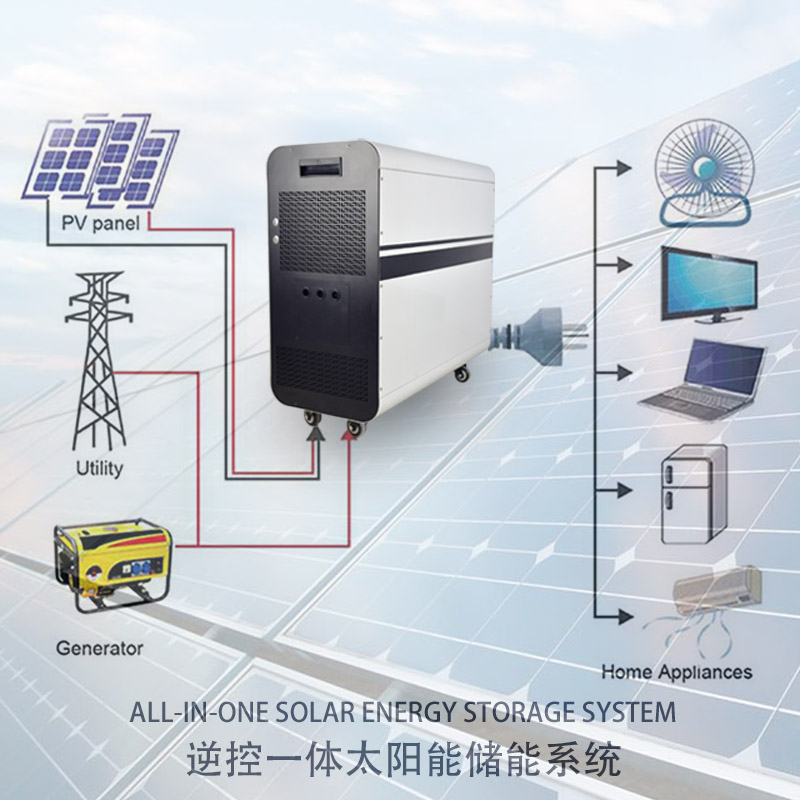

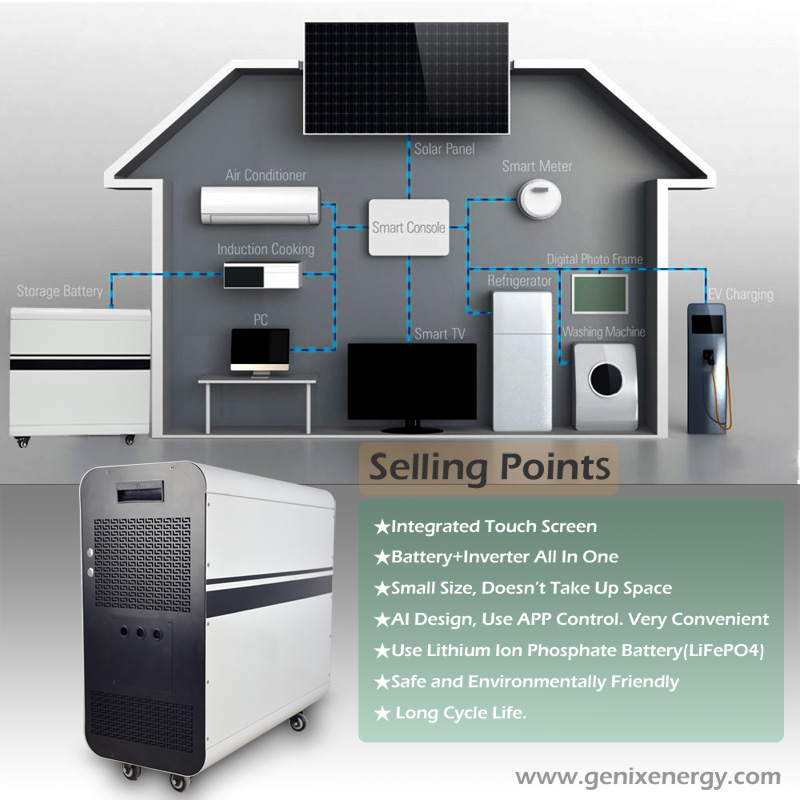

Feature: LiFePo4 Battery+ Inverter+ Controller inside. Easy Installation. Convenient for using. Environment Friendly
