Model: JLS32700Fe-4S17P
Battery Type: LiFePo4
Battery Voltage: 12.8V
Battery Capacity: 102Ah
Cycle Life: 3000~5000 times

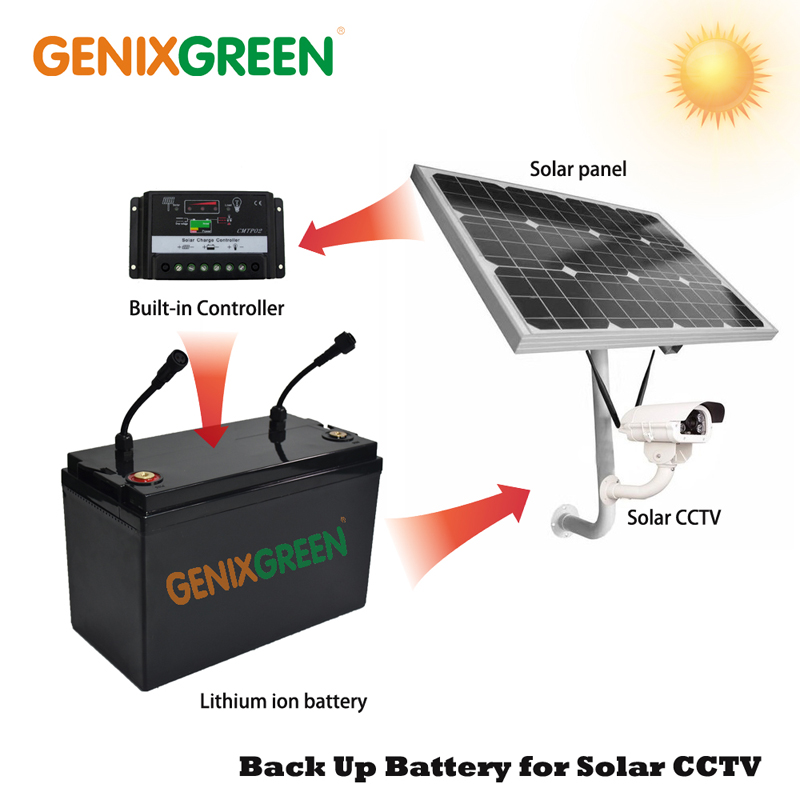

Application: CCTV Monitor
No | Item | Parameter | Remark | ||||
1 | Rating Voltage | 12.8V | |||||
2 | Capacity | Typical Value:102AH | 0.2C discharge to the capacity of cut off voltage after full charge。 | ||||
Minimum Value:100AH | |||||||
3 | Charge Voltage | 15.0V±0.5V | |||||
4 | Size | (T) | (W) | (H) | |||
165mm | 320mm | 180mm | |||||
5 | Impedance | ≦100mΩ | Static Resistance | ||||
6 | Charging Mode | C.C/C.V. | Constant Current/Constant Voltage | ||||
7 | Charging Method | ≦10A | Charging Current 10A | ||||
8 | Charging Time | Standard Charging | About 12H | ||||
9 | Overcharge Protect Voltage | 3.75±0.05V | Single Section Monitoring | ||||
10 | Overcharge protection removed Voltage | 3.6±0.05V | |||||
11 | Over Discharge Cut Off Voltage | 2.1V±0.1 | Single Section Monitoring | ||||
12 | Over Discharge protection Release voltage | 2.3V±0.1 | |||||
13 | Max continuous discharge current | ≦10A | |||||
14 | Over Current | 50A±7 | Instantaneous Current | ||||
15 | Overcurrent protection delay(ms) | 50~200mS | Overcurrent delay | ||||
16 | Output Short Circuit protection | External short-circuit protection | Automatic recovery after disconnection | ||||
17 | Operating Consumption Current | 55UA(MAX) | |||||
18 | Operating Temperature | Charging | 0~45℃ | ||||
Discharging | -10~60℃ | ||||||
19 | Storage Temperature | -10℃-40℃Recommend(25±5℃) | Storage capacity should be 40%~50% full charge capacity | ||||
20 | Weight | About 11.8KG |
Feature: Solar battery, Long lifespan, Deep cycle life
