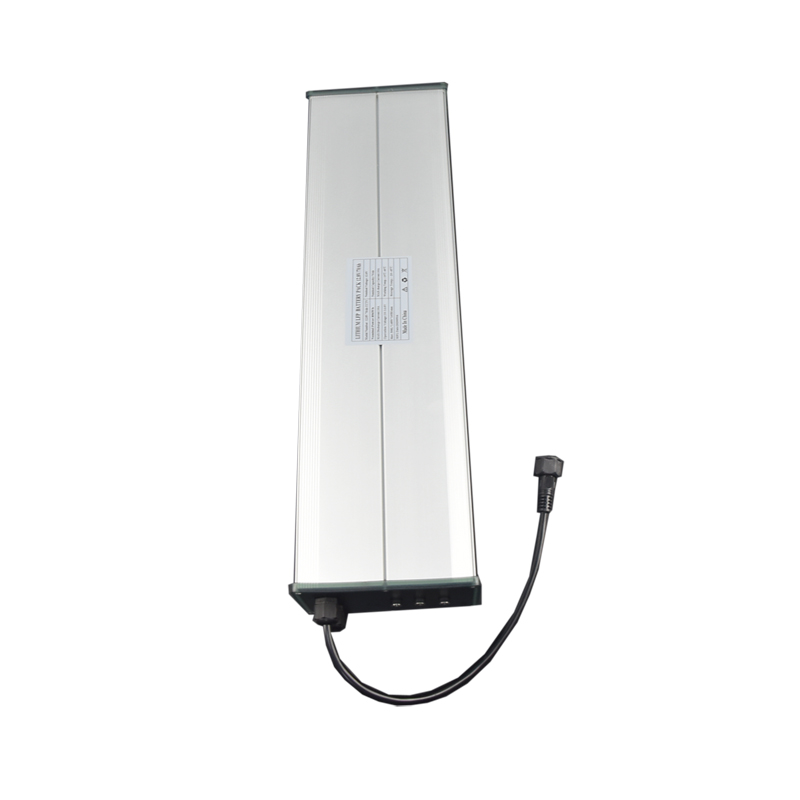

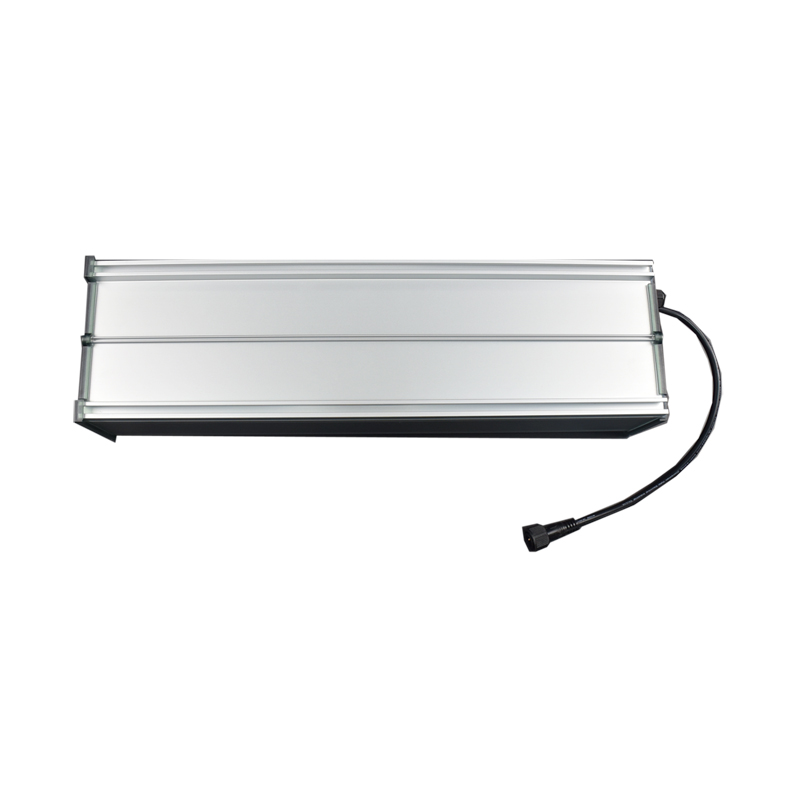

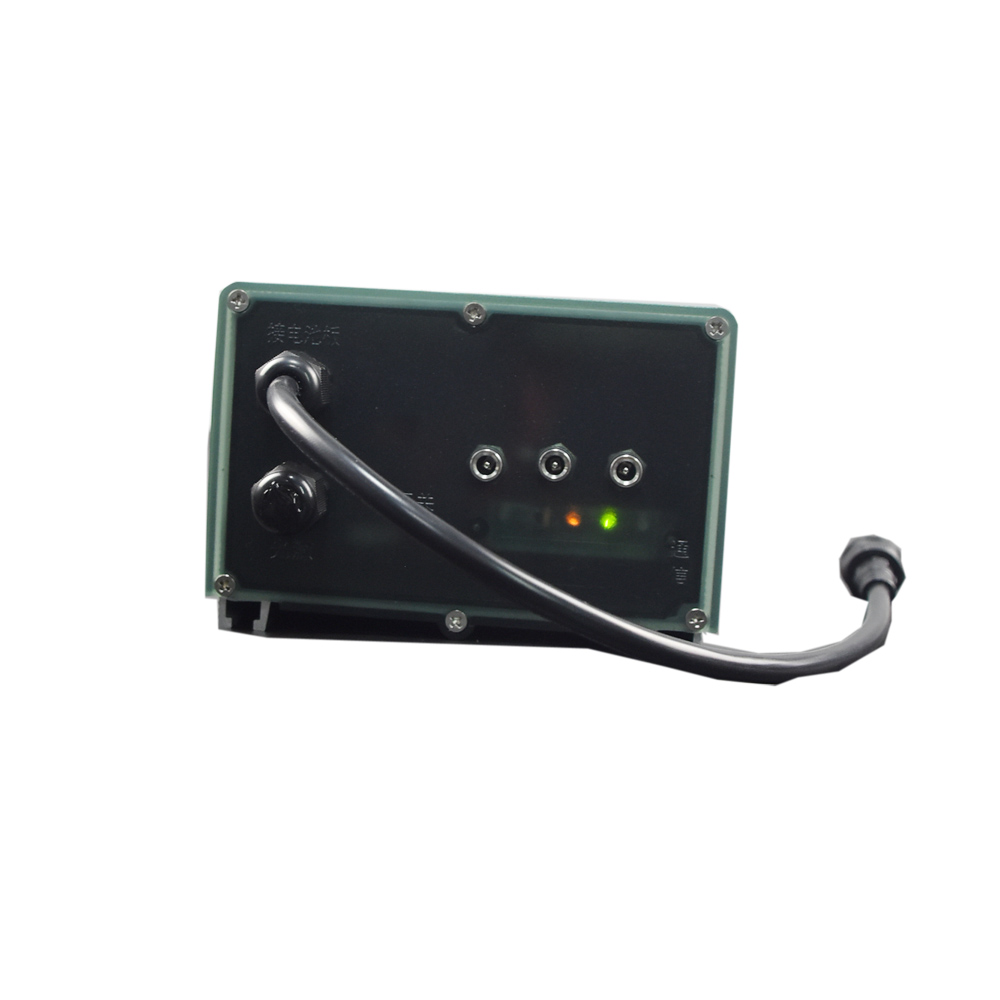

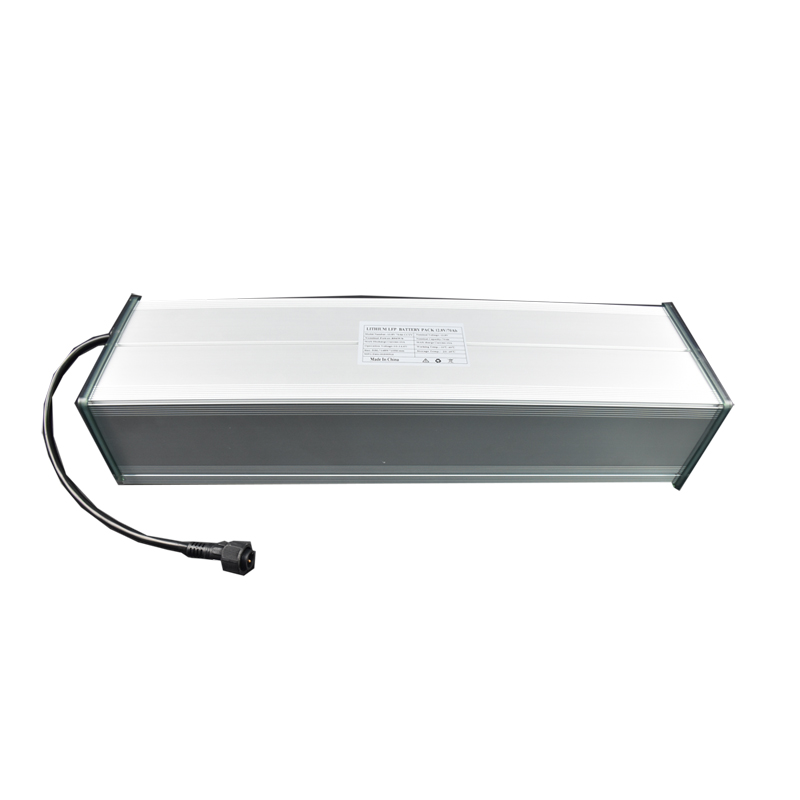

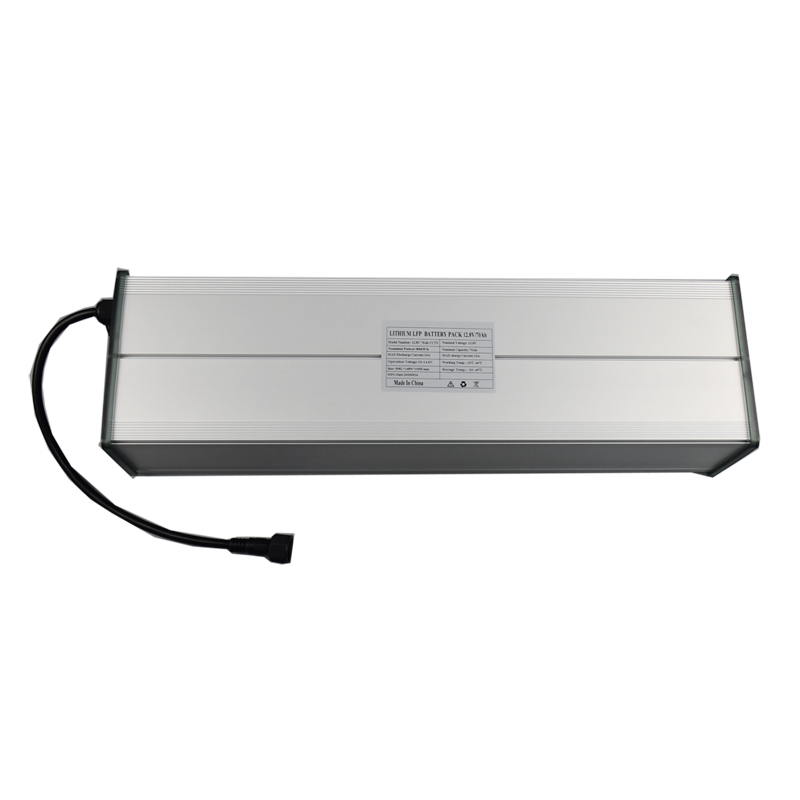

Model: JLS-CCTV1270
Battery Type: 12.8V
Battery Capacity: 70Ah
Cycle LiFe: 2000times ~ 3000times
Application: CCTV Solar Street Light
| Parameter | |||
| ITEMS | 12.8V 70Ah | ||
| Battery Type | LiFePo4 | ||
| Battery Voltage | 12.8V | ||
| Configuration | 4S11P | ||
| cell | 3.2V 6300mAh-32650 | ||
| Cell internal resistance | about 6mΩ or 7mΩ | ||
| System Energy | 887.04WH | ||
| Over Voltage Protection | 15.6±0.1V | ||
| Over Discharge Voltage | 10.8V | ||
| Max.Charge Current | 10A | ||
| Max.discharge current | 10A(Convert to 2A output) | ||
| 50% DOD | 5000 times | ||
| 80% DOD Cycle times | 3000 times | ||
| Working Temp. Range/℃ | -20℃～+65℃ | ||
| Storage Humidity | less than or euqal to 75%RH | ||
| Case Material | Aluminum Alloy | ||
| Case waterproof grade | PI65 | ||
| Battery size | 50*14.2*10 | ||
Feature: Solar Energy, Deep Cycle Life Battery. Environmental Friendly
