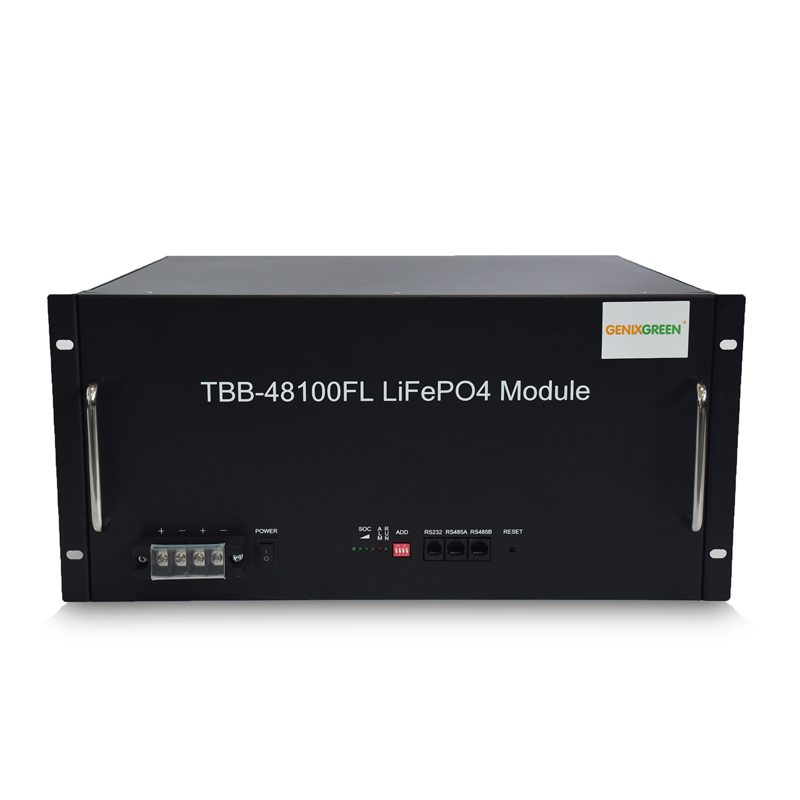

Model: TBB-48100FL
Battery Type: LiFePo4
Battery Voltage: 48V
Battery Capacity: 100Ah
Cycle Life: 3000~5000times

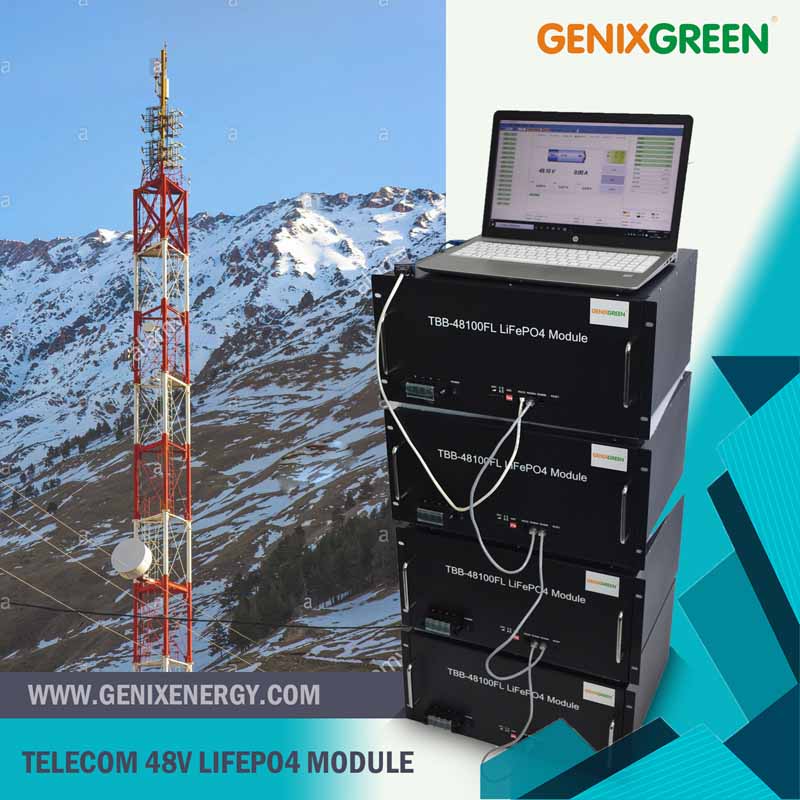

Application: Telecom Base, Solar Energy Storage, Power Backup
| Specification | |
| Model | TBB-48100FL |
| Rated voltage | 48 VDC |
| Nominal capacity | 100 Ah |
| Dimension | 482×400×222（±2）mm 5U |
| Weight | < 48.0kg |
| Battery Cell type | 100Ah LiFePO4 Prismatic Lithium-ion cell |
| Module | 15 pieces 100Ah battery cells in series connection + BMS + standard box |
| Working temperature | Charging : 0 ~ 60℃ Discharging：-20 ~ 60℃ Recommended temperature：0℃～50℃ |
| Storage temperature | -25～70℃ |
| Working relative humidity | 5 ~ 95％ |
| Normal atmospheric | 70kpa-106kpa |
| Noises | 0 db |

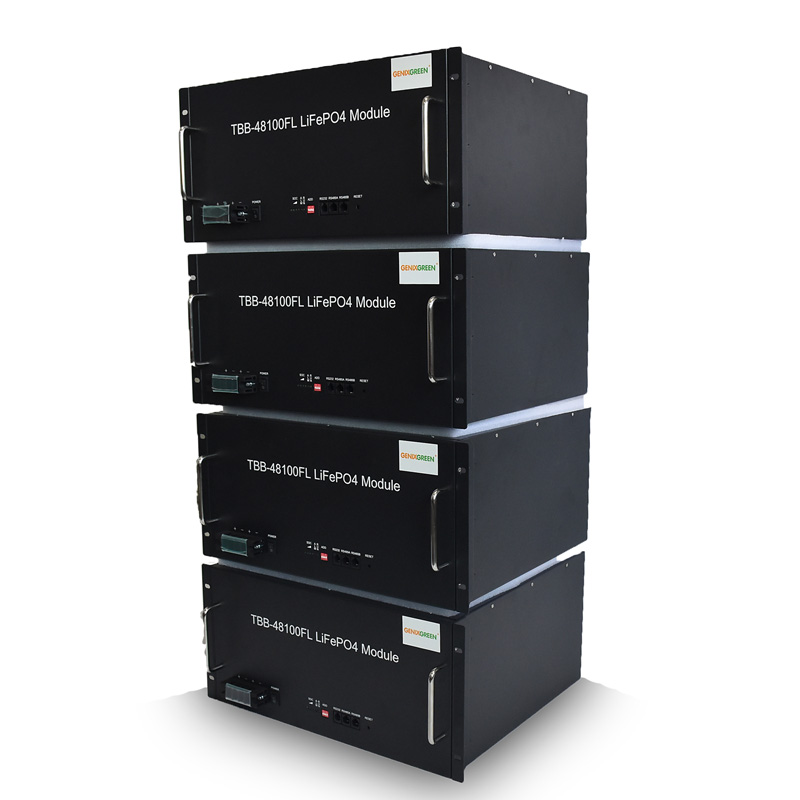

| Special explanation | The product is made up of single cells. If customer needs 48V/400Ah, it can have 4 sets of DPFP48100 in parallel connection. |

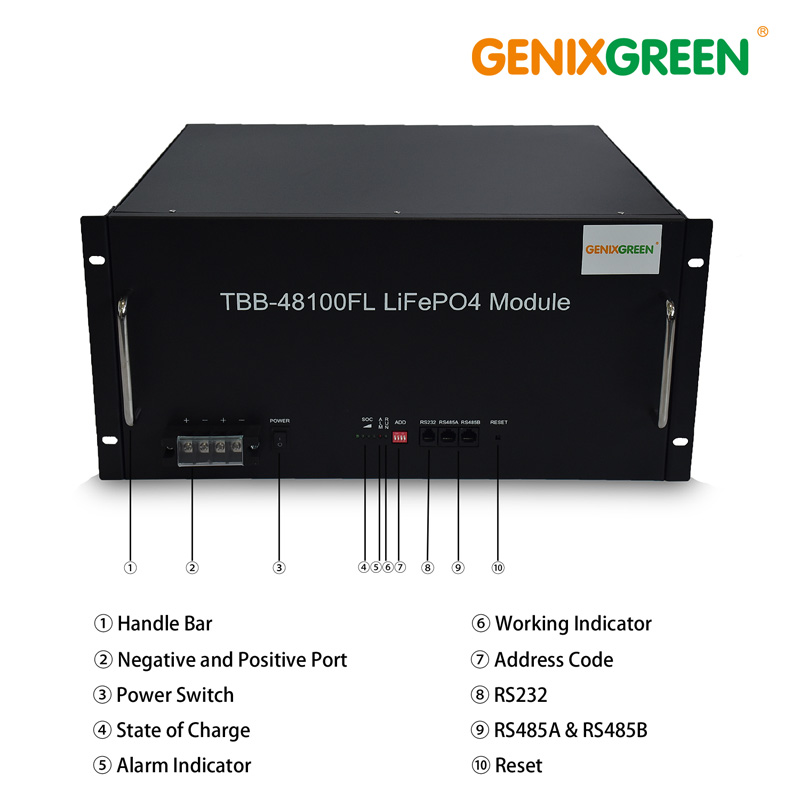

Feature: Long time lifespan, resist high temperature, have communication function to monitor battery operating state
