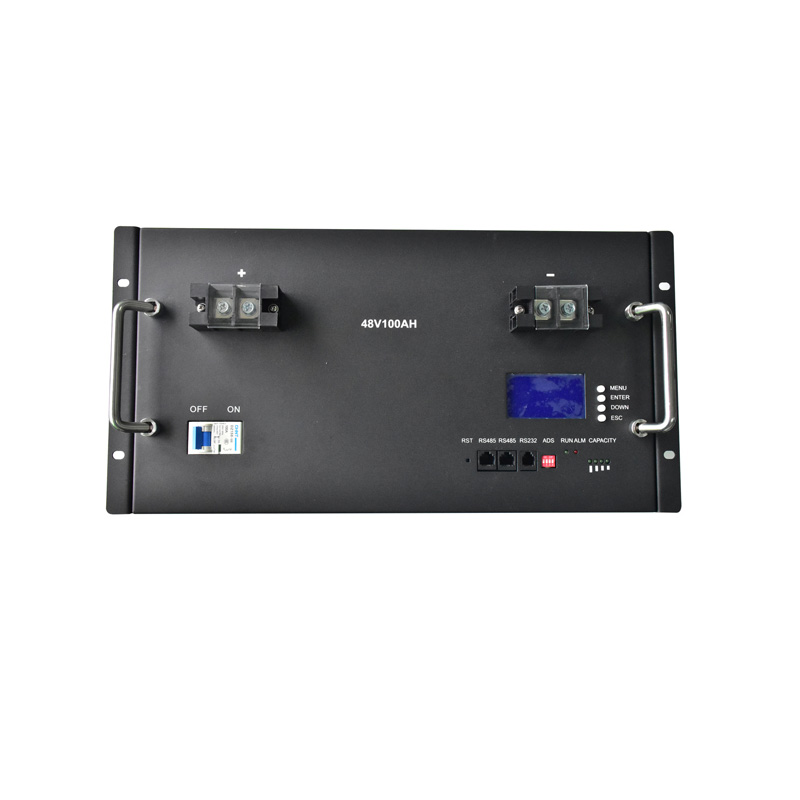

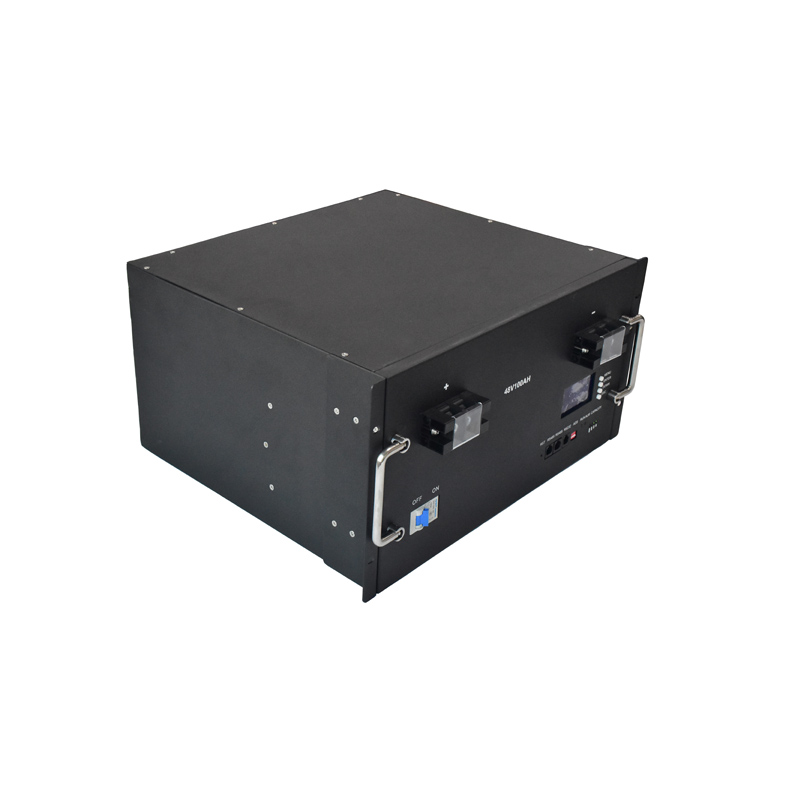

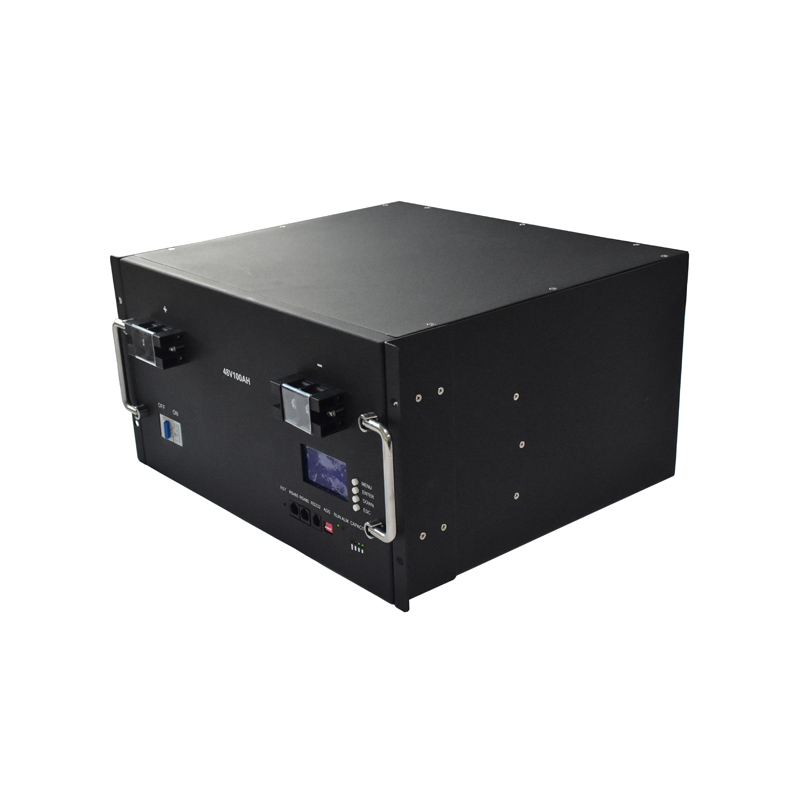

Model: JLS-LFP48100
Battery Type: LiFePo4
Battery Voltage: 48V
Battery Capacity: 100Ah
Cycle Life: 3000 times ~ 5000 times

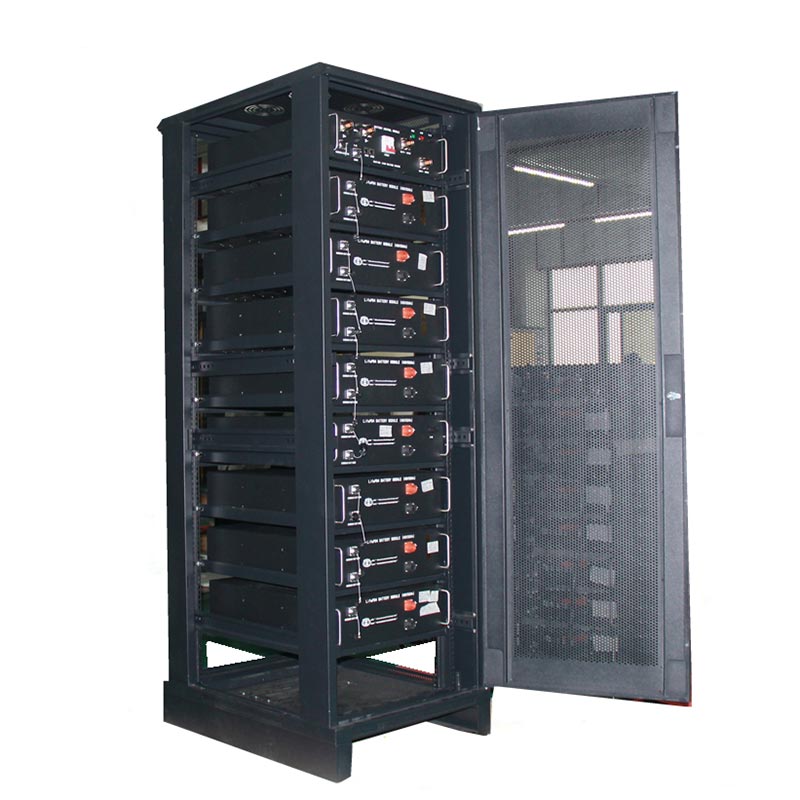

Application: Energy storage system, Telecom base

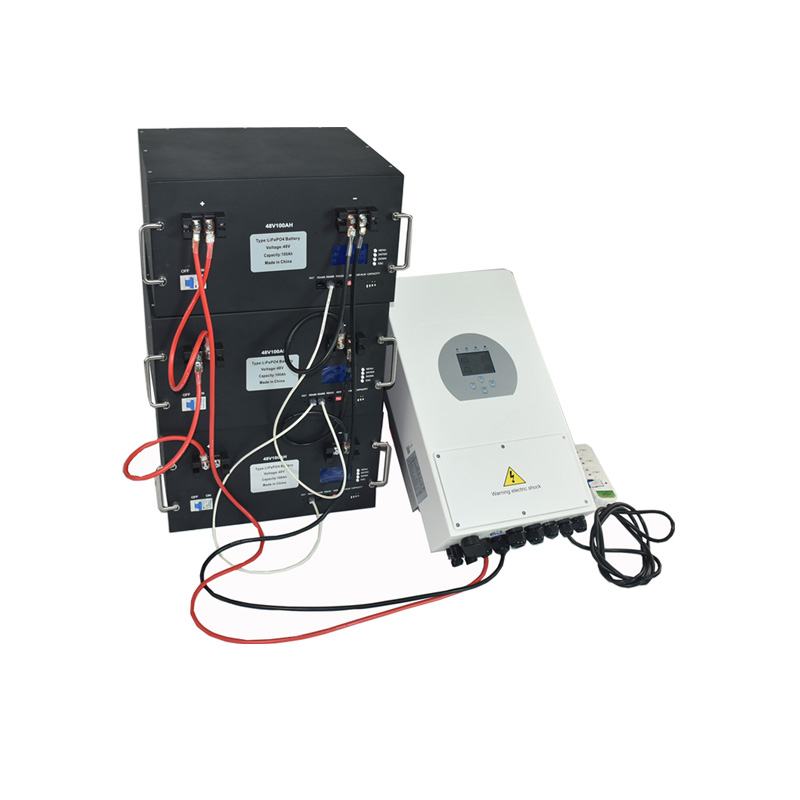

Communication inverter: Deye SMA, Victron, Grottwatt, UZ, Sola-X, Sinxcel, Sungrow etc.
Specification | ||||
No | Item | General Parameter | Remark | |
1 | Combination method | 15S1P | ||
2 | Rated Capacity | Typical | 100Ah | Standard dischargeafter Standard charge (package) |
Minimum | 97Ah | |||
3 | Nominal Voltage | 48V | Mean Operation Voltage | |
4 | Discharge Cut-off Voltage | 40V | Discharge Cut-off Voltage | |
5 | Charging Voltage | 54.6V | ||
6 | Internal Impedance | ≤70mΩ | Internal resistance measured at AC 1KH Z after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times | |
7 | Coherence | The single cell voltage difference when in the end of charging≤300mV | ||
8 | The single cell voltage difference when in the end of discharging≤300mV | |||
9 | Standard charge | Constant Current 0.2C Constant Voltage 54.6V 0.02CAcut-off | Charge time : Approx6 h | |
10 | Standard discharge | Constant current:0.2C end voltage 40V | ||
11 | Maximum Continuous Charge Current | 50A | ||
12 | Maximum Continuous Discharge Current | 100A | ||
13 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. Bare Cell | |
Discharge: -20~60℃ | ||||
14 | Storage Temperature Range | Less than 12 months : -20~25℃ | 60±25%R.H. at the shipment state | |
less than 3 months: -20~40℃ | ||||
Less than 7 day : -20~60℃ | ||||
15 | Dimensions | 442*244*400mm | ||
16 | Weight | Approx 45KG | ||
17 | Delivery SOC | 50%-60% | ||
18 | Package | Paper carton + Wooden Pallet |
