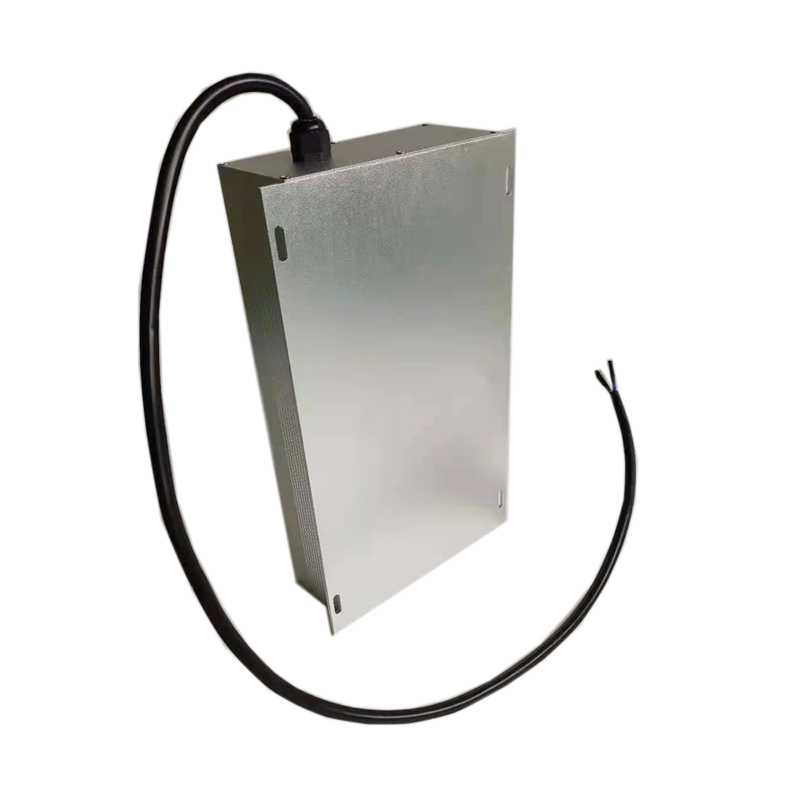

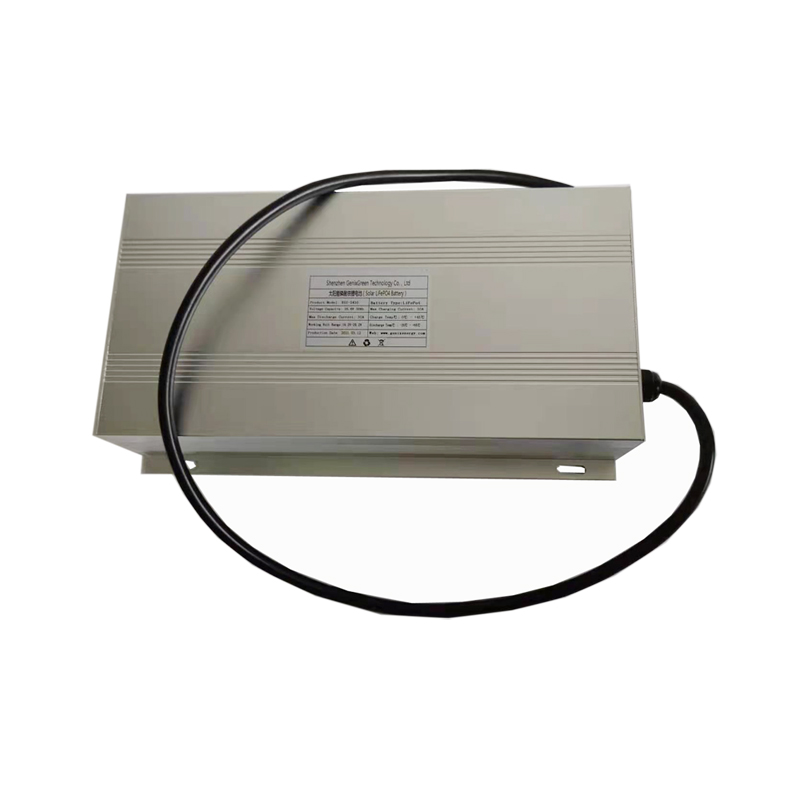

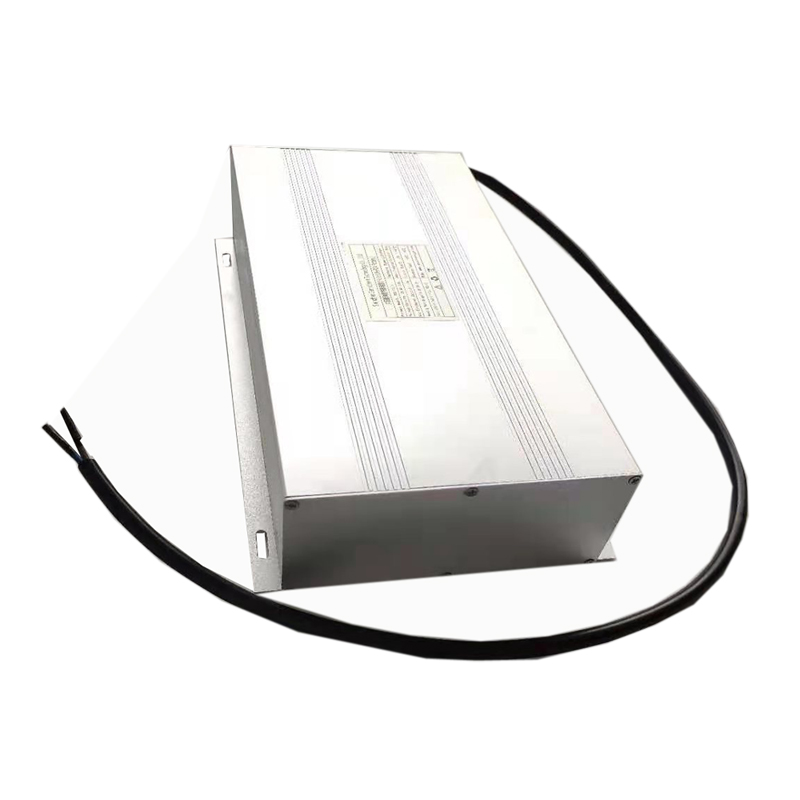

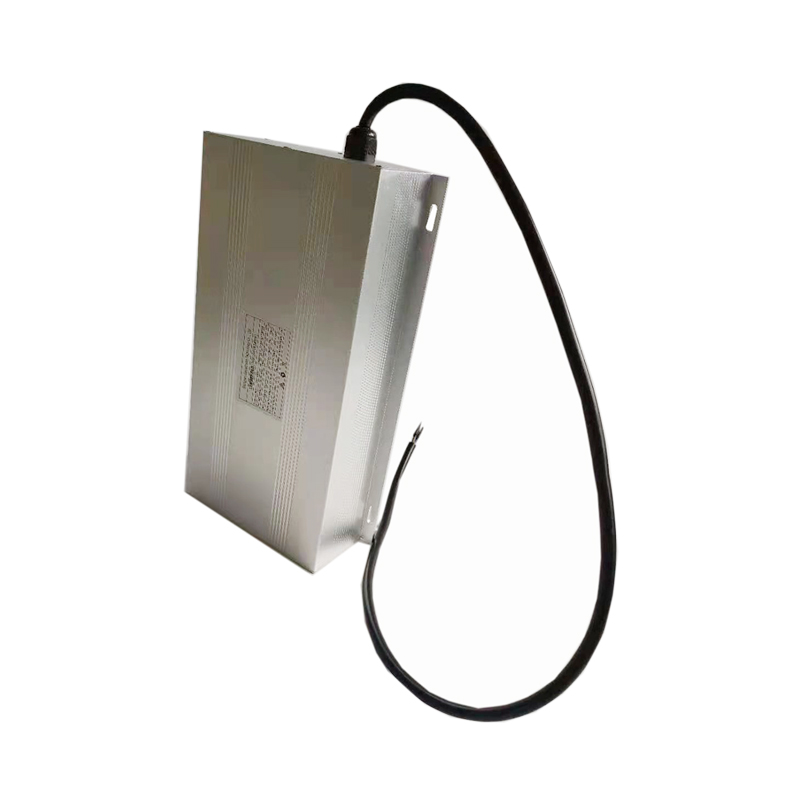

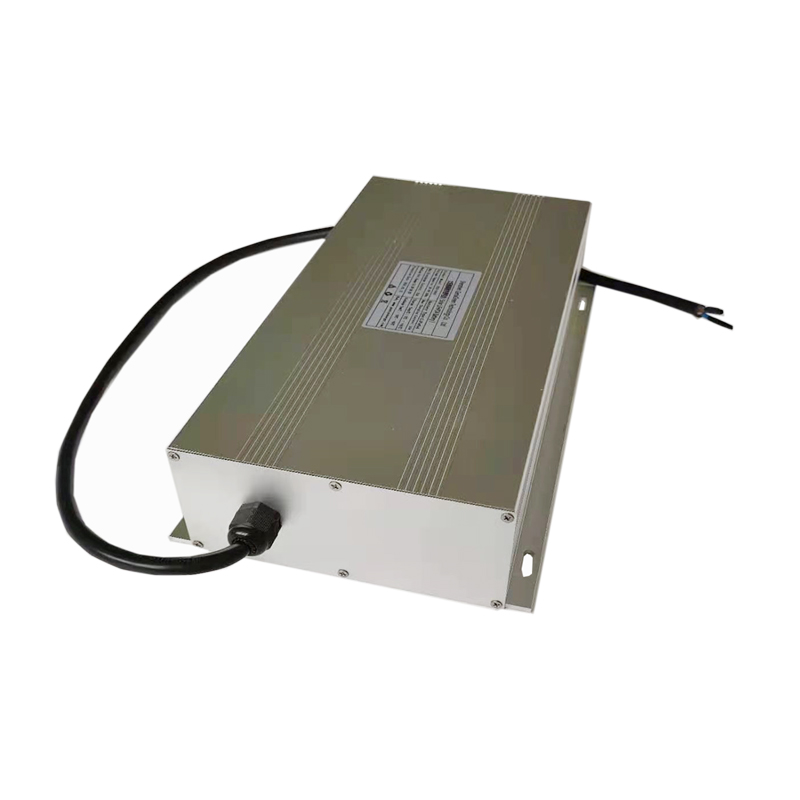

25.6V 30Ah Solar LiFePO4 Battery

Share

Model: ESS-2430

Battery Type: LiFePO4

Battery Voltage: 25.6V

Battery Capacity: 30Ah

Cycle LiFe: 3000~5000times

Application: Rice cooker, solar mill, electric device

Product Description

No.(序号)Item(项目)Parameter(参数)Remark(备注)
1Nominal Voltage
(标称电压)
25.6V单节3.2V
2Rated Capacity
(额定容量)
Typical
(标称容量)
30AhStandard discharge(0.2C) after Standard charge(0.2C)
(0.2C标准充电后0.2C标准放电)
Minimum
(最小容量)
29.4Ah
3Charging Voltage
(充电电压)
29.2V
4Charging Mode
(充电方式)
C.C/C.V.
(恒流/恒压方式)
Constant Current
/Constant Voltage
(恒流/恒压)
5Voltage at end of
Discharge
(放电终止电压)
20VDischarge Cut-off Voltage
(放电截止电压)
6Rated Charge Current
(额定充电电流)
≤25A(根据充电器)Charging Current 25A
(充电电流25A)
7Maximum Continuous Charge Current
(最大持续充电电流)
≤30A
8Internal Impedance
(内阻)
<50mΩ
9Rated Discharge Current(额定放电电流)≤20ADischarging Current 20A
(放电电流20A)
10Maximum Continuous Discharge Current
(最大持续放电电流)
≤30ANot more then 1 hours
(不超过1小时)
11Overcharge Voltage
(过充电保护电压)
3.75±0.05V单串电压
12Over Discharge Cut Off Voltage
(过放电保护电压)
2.2±0.01V单串电压
13Over Current
(过流保护)
放电过流值:100±20A
14Short Circuit
(短路保护)
Detection condition
(保护条件)
Exterior short circuit
(外部电路短路)
Release condition
(保护解除条件)
Cut short circuit
(断开短路电路)
15Operating Consumption Current
(工作消耗电流)
≤30mA (Max)
16Operation Temperature Range
(工作温度范围)
Charge(充电): 0~55℃60±25%R.H.
Bare Cell
(电池储存湿度范围)
Discharge(放电): -20~65℃
17Storage Temperature Range
(储存温度范围)

Less than 1 year: -20~25℃
(小于一年:-20~25℃)
60±25%R.H.
at the shipment state
(出货状态时的湿度范围)
less than 3 months: -20~40℃
(小于3个月:-20~40℃)
Less than 7 day : -20~65℃
(小于7天:-20~65℃)

18Cells(电芯)32700/ 6000Mah
19Connection Type
(组合方式)
8S5P
20The factory voltage
(出货电压)
26V-28V

Fearture: Solar energy, save city main, portable, deep cycle life
