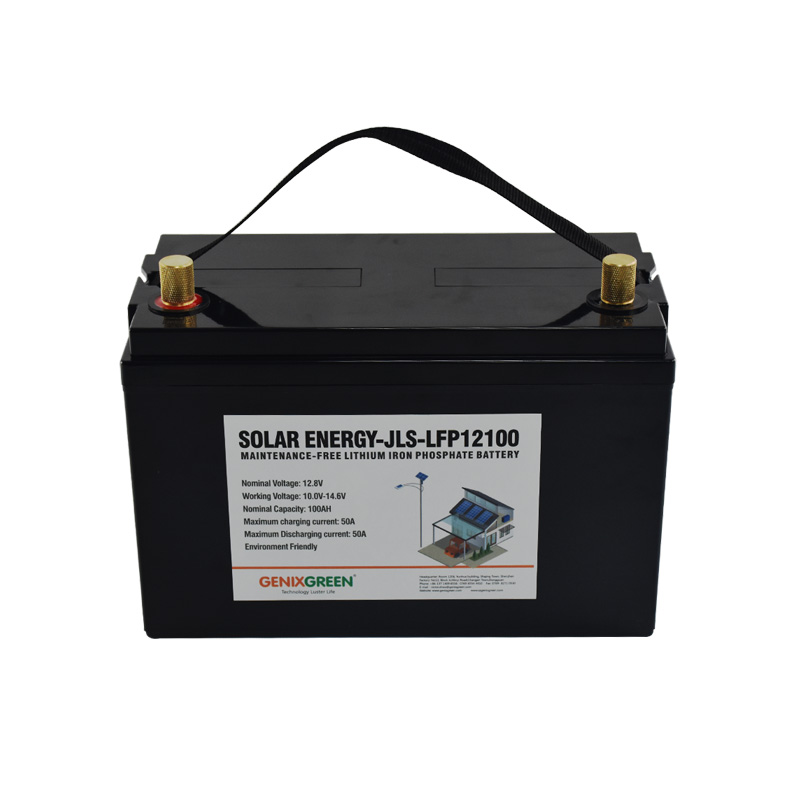

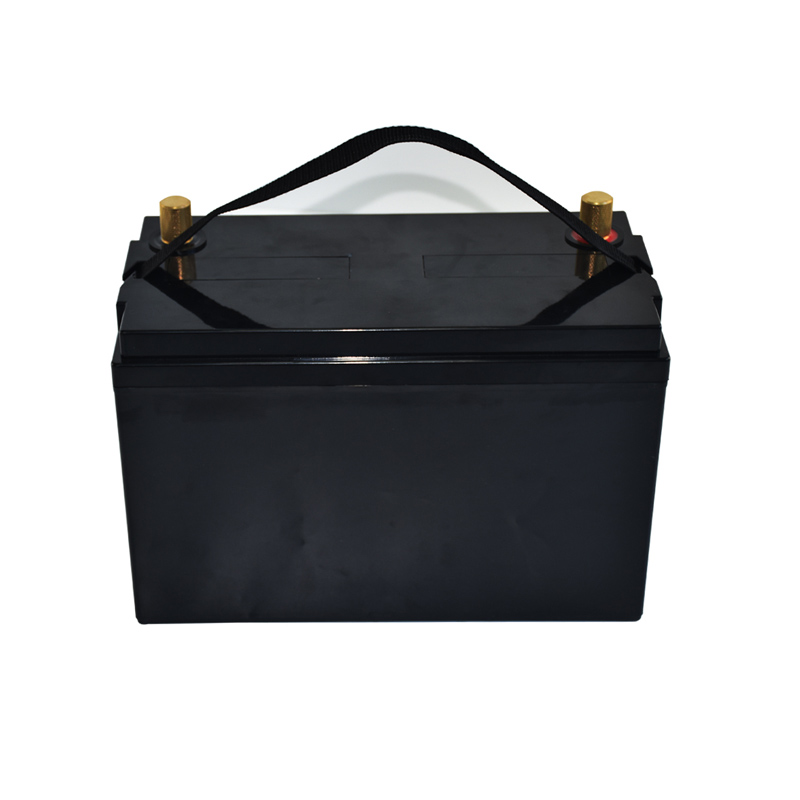

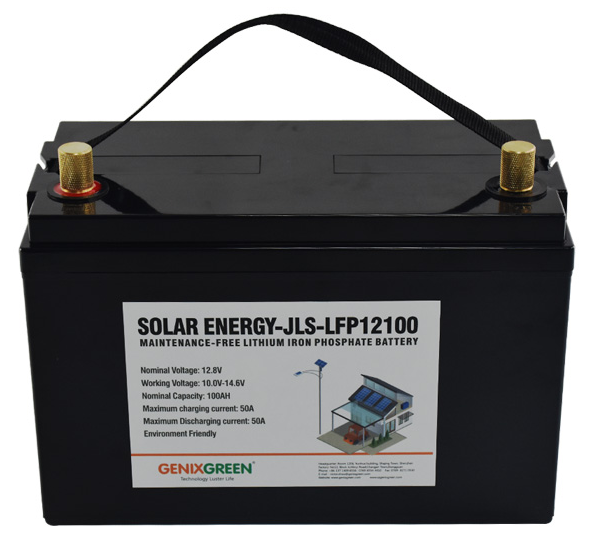

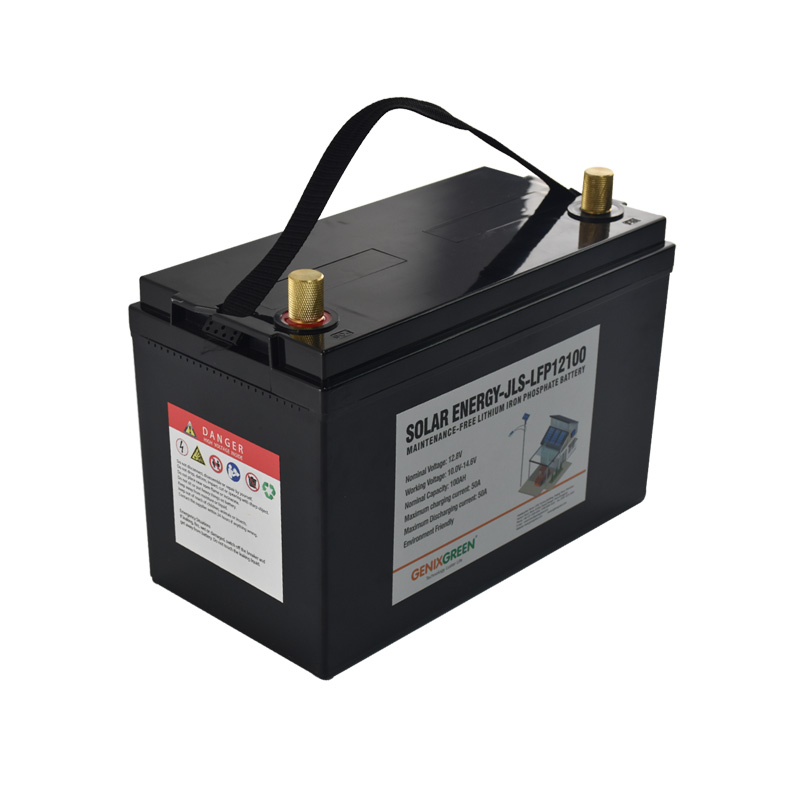

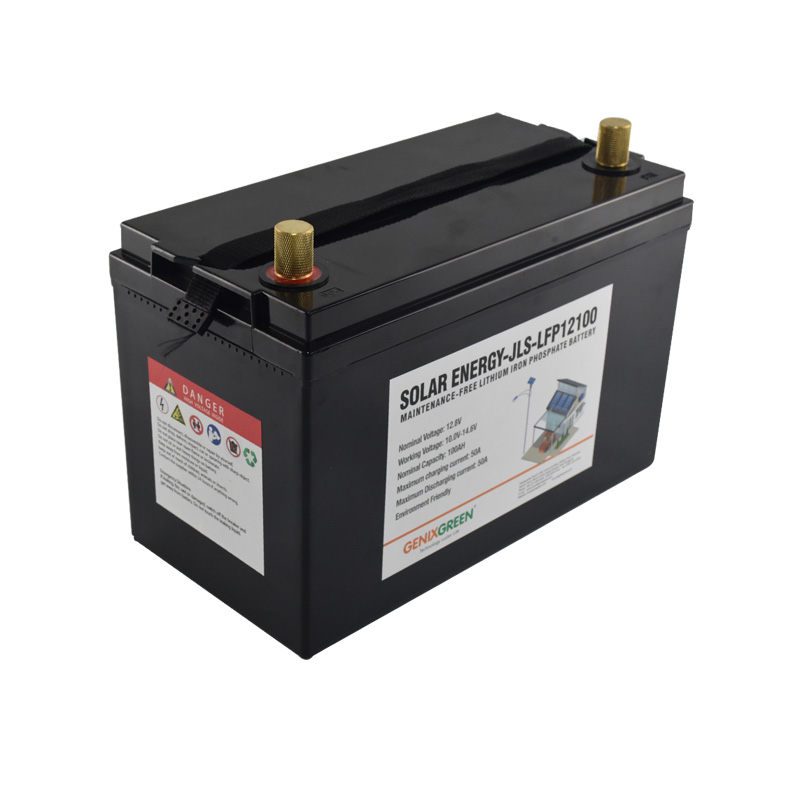

Model: JLS-12100
Battery Type: LiFePo4
Battery Voltage: 12.8V
Battery Capacity: 100Ah
Cycle Life: 3000~5000 times
Application: Energy Storage, Power Supply etc
Specification | |
Casing material | Battery Pack PC+ABS shel |
Nominal capacity | 100Ah |
Minimum Capacity | 99.5Ah |
Nominal Voltage | 12.8V |
Discharge cut-off voltage | 8V |
Standard charge current | 40A |
Standard discharge current | 40A |
Size | 265*165*210mm |
Battery Weight (Approx.) | 14.6Kg |
Battery binding post(mm) | +14mm*-14mm |
Internal resistance(Max, at 1000Hz.) | ≦80 mΩ |
Charging temp | 0℃~45℃;32oF~113oF |
Discharging temp | -20℃~60℃;-4oF~149oF |
Saving Temp | -20℃~45℃;-4oF~113oF |
Feature: Save energy, environment friendly,recycle product, both solar
power and grid power could supply energy to the battery,
resisit high temperature
