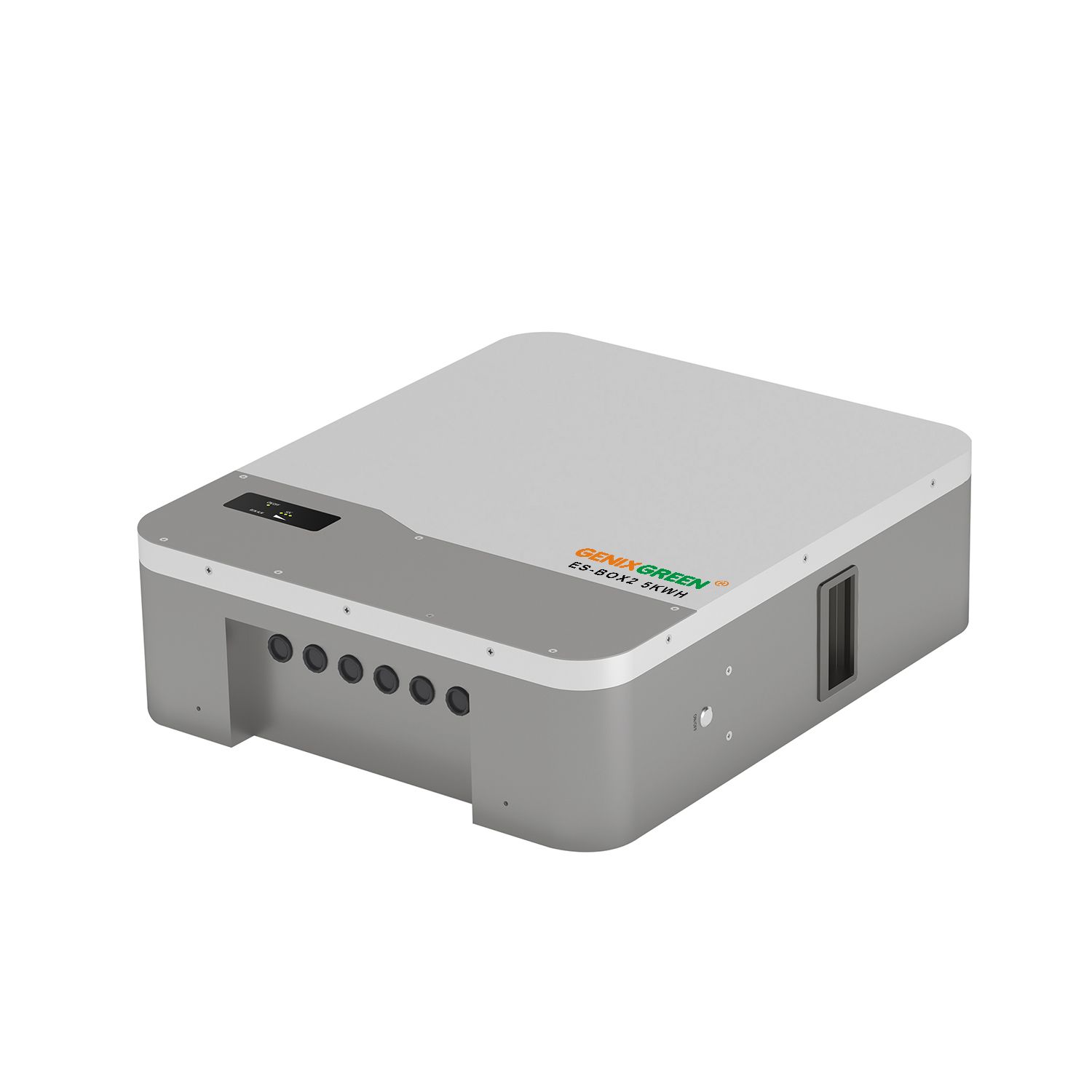

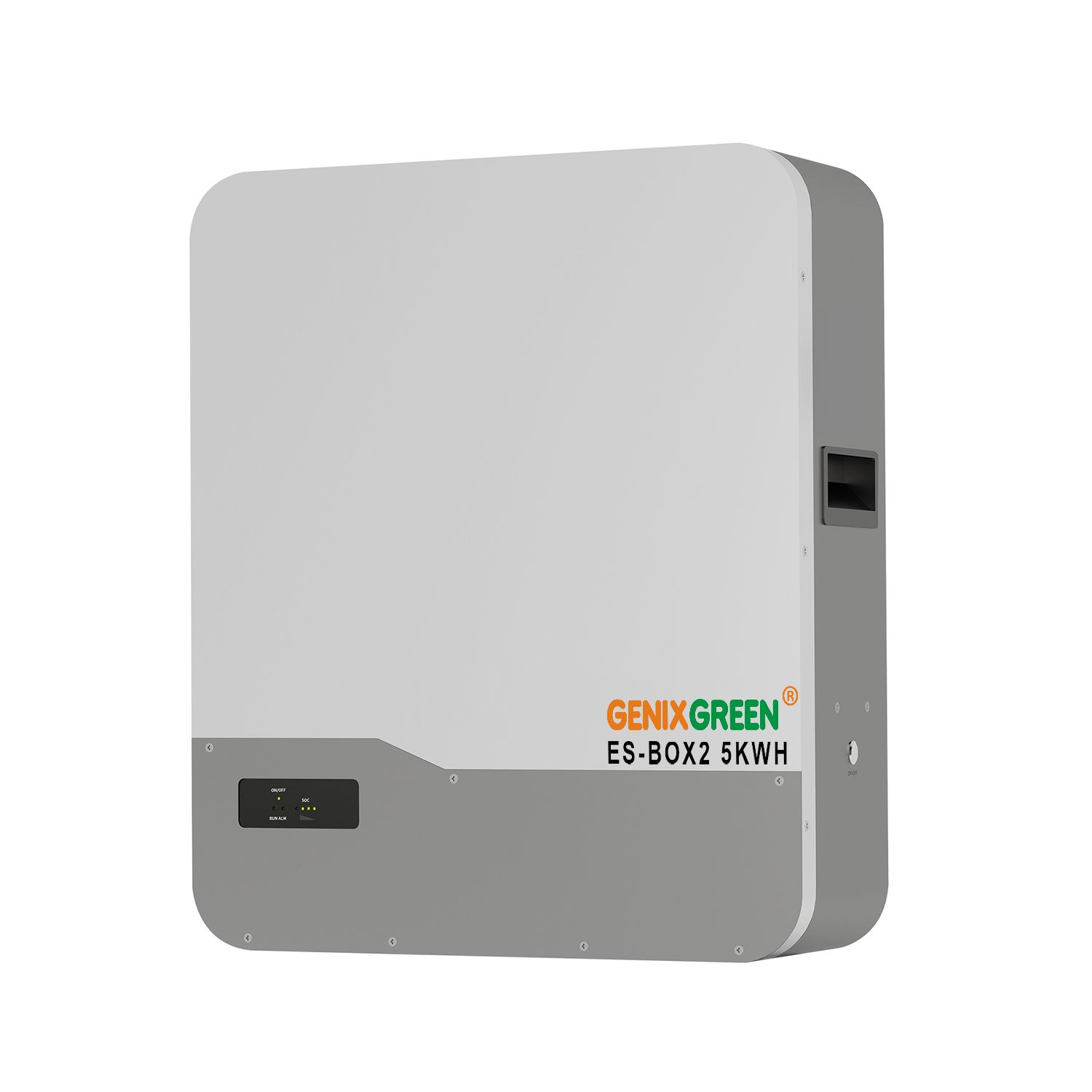

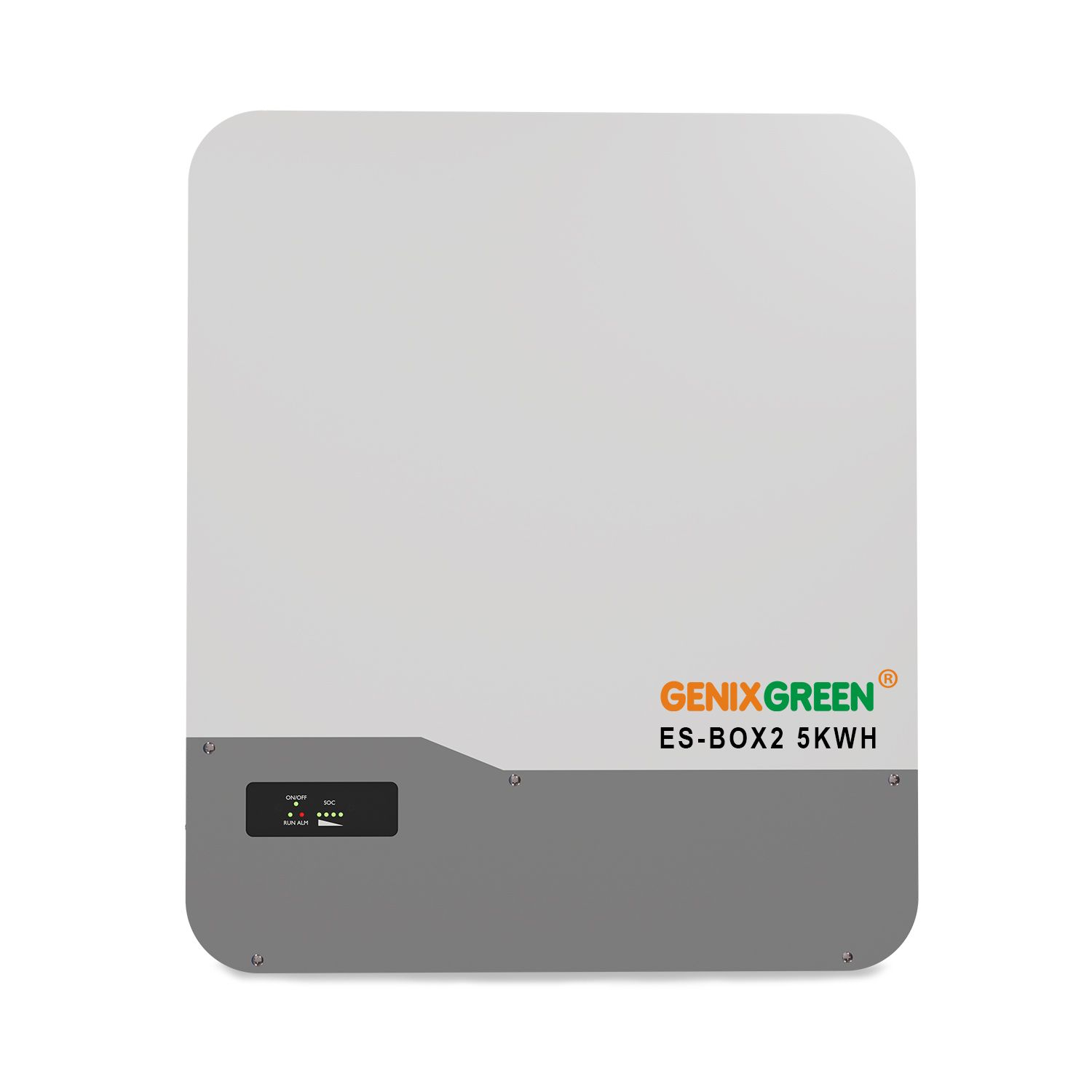

ES BOX2

Share

Model: ES-BOX2

Battery Type: LiFePO4

Battery Voltage: 51.2V

Battery Capacity: 100Ah

Cycle Life:≥6000 Cycle (80%DOD)

Communication: RS485/ RS232/CAN(Optional)

Installation Menthod: Wall Mounted

Application: Solar Household Energy Storage ESS


Product Description

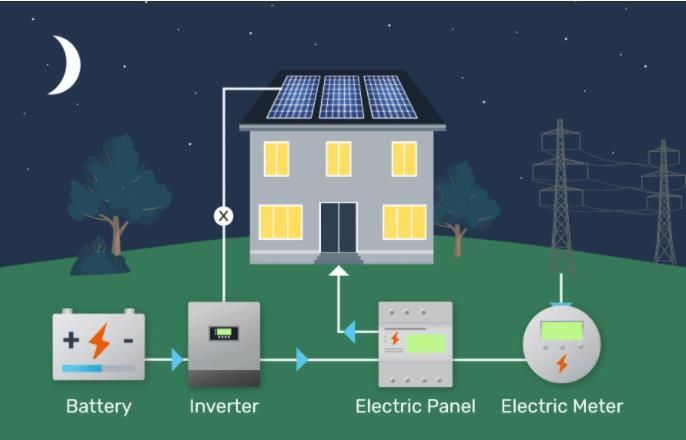

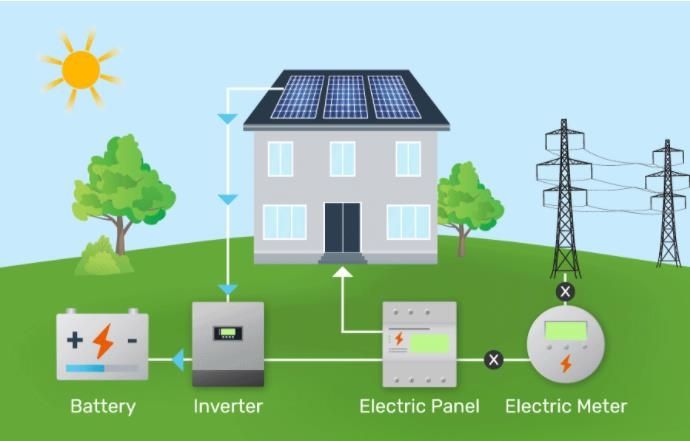

Every solar purchase includes powerwall, a compact home battery that reduce your reliance on the grid by storing your solar energy for use when the sun isn’t shining. You can add additional Powerwall units to your order to further lower your carbon footprint and to prepare your home for power outages. Powerwall is an integrated battery system that stores your solar energy for backup protection when the grid goes down. Your system detects outages and automatically recharges with sunlight to keep your appliances running for days.With easy installation and a minimalist design, Powerwall complements a variety of home styles and solar systems. The compact, all-in-one construction features versatile mounting options for indoor spaces.

ES BOX2

ES BOX2

ES BOX2

ES BOX2

ES BOX2

ES BOX2

ES BOX2

ES BOX2



ModelES-BOX2
Battery TypeLiFePO4
Nominal Energy5kWh
Nominal Capacity100Ah
Nominal Voltage51.2V

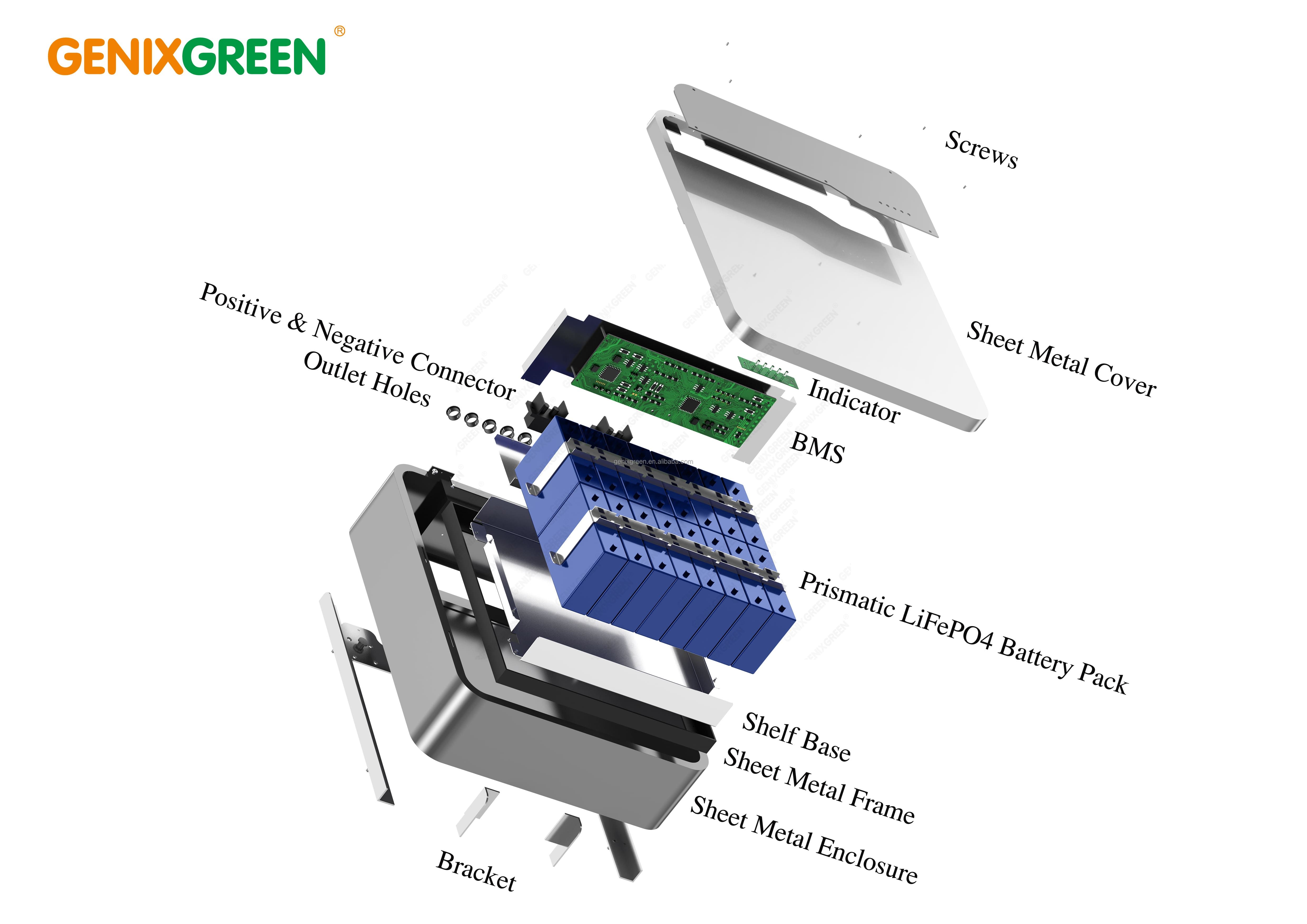

Battery Cell3.2V 100Ah Prismatic Battery Cell
Configuration (*S*P)16S1P
Discharge Cut-off  Protect Voltage40V(adjustable
Charge Cut-off Protect Voltage58.4Vadjustable
Max. Charge Current100A
Max. Discharge Current100A
Communication PortRS485/ RS232/CAN(Optional
Compatible Inverter BrandSMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc.

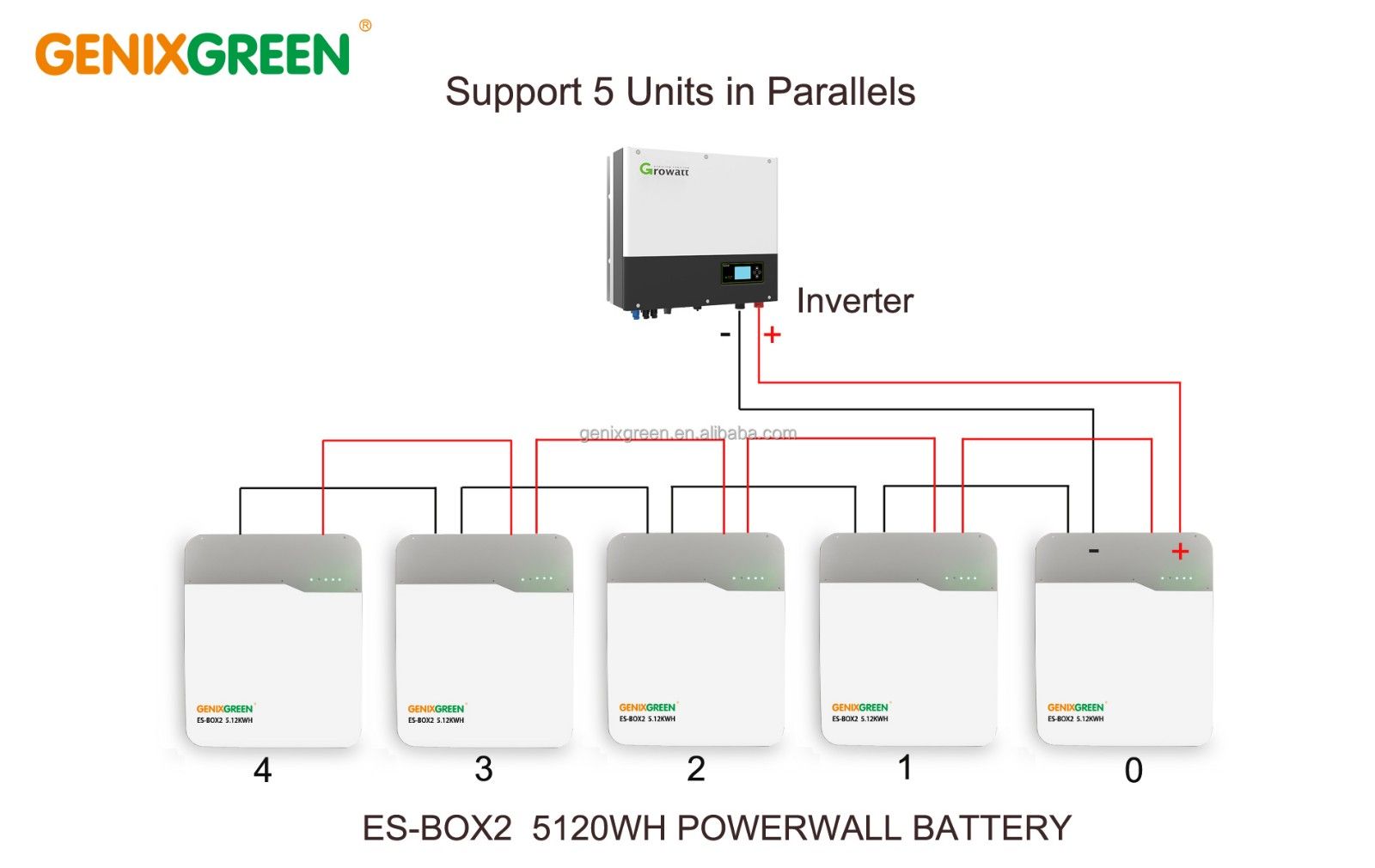

ParallelMax. 10 units in Parallels to get 51.20kWh.
Cycle Life≥6000 Cycle(80% DOD
L*W*H (mm)600*510*173mm
Weight (KG)47Kg
CoolingNatural cooling
EnvironmentIndoor
Discharge Temperature (℃)-20℃~+65℃
Charge Temperature (℃)0℃~+65℃
Storage Conditions–20°C to 30°C (–4°F to 86°F)Up to 95% RH, non-condensingState of Energy (SoE): 25% initial
Maximum Elevation3000 m (9843 ft)
Installation Methodwall mounted
