Model: ES-BOX5
Battery Type: LiFePO4
Battery Voltage: 51.2V
Battery Capacity: 200Ah
Cycle Life:≥6000 Cycle (80%DOD)
Communication: RS485/ RS232/CAN(Optional)
Installation Menthod: Wall Mounted
Application: Solar Household Energy Storage Battery

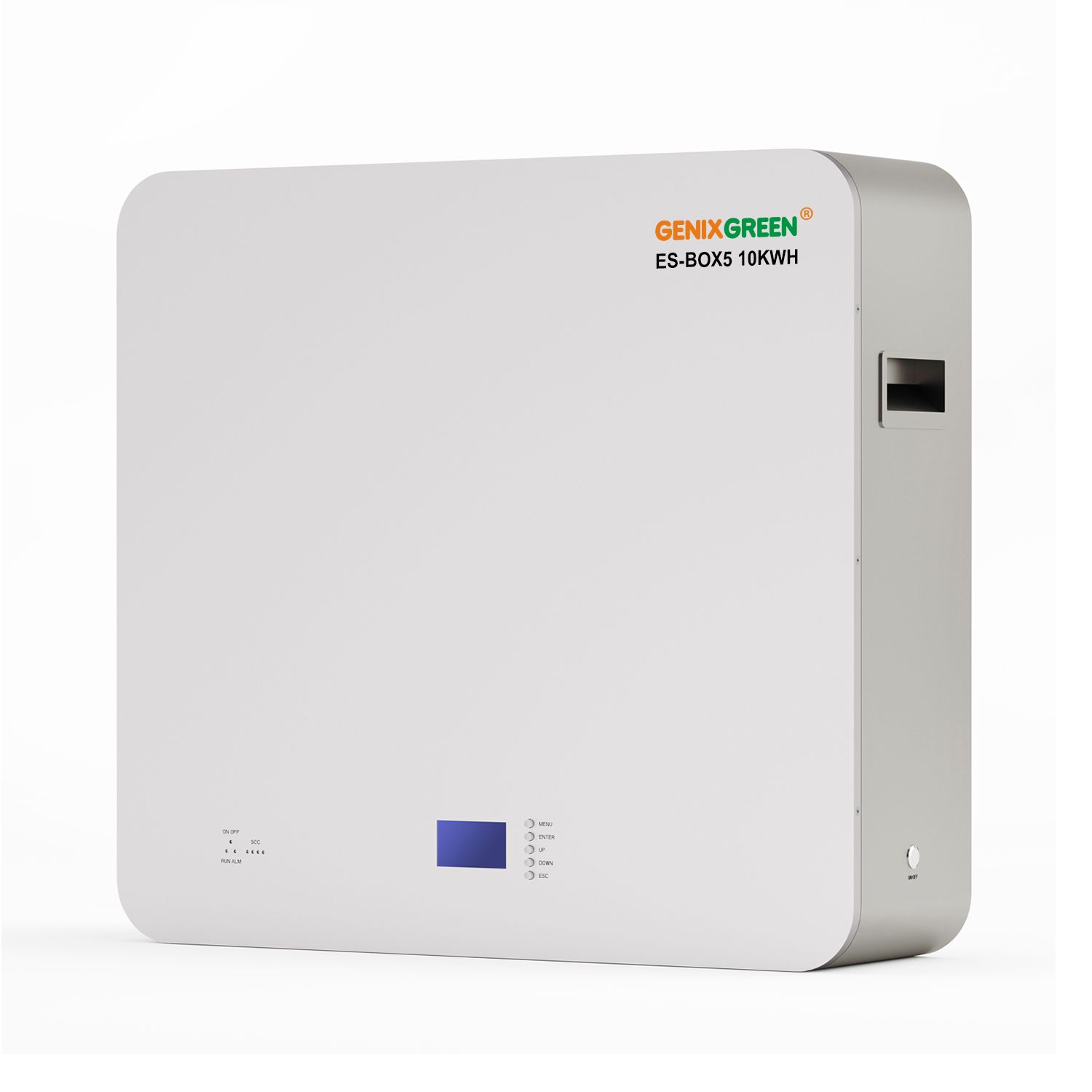

ES BOX5 Home energy storage systems provide the ability to become independent from the traditional power grid, reducing reliance on utility companies.Unleash the Power of Energy Independence with Our Revolutionary Home Energy Storage Solution!
| Model | ES-BOX5 |
| Battery Type | LiFePO4 |
| Nominal Energy | 10kWh |
| Nominal Capacity | 200Ah |
| Nominal Voltage | 51.2V |
| Battery Cell | 3.2V 200Ah Prismatic Battery Cell |
| Configuration (*S*P) | 16S1P |
| Discharge Cut-off Protect Voltage | 40V（adjustable） |
| Charge Cut-off Protect Voltage | 58.4V（adjustable） |
| Max. Charge Current | 150A |
| Max. Discharge Current | 150A |
| Communication Port | RS485/ RS232/CAN（Optional） |
| Compatible Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. |
| Parallel | Max. 15 units in Parallels to get 150kWh. |
| Cycle Life | ≥6000 Cycle （80% DOD） |
| L*W*H (mm) | 673*618*193mm |
| Weight (KG) | 89Kg |
| Cooling | Natural cooling |
| Environment | Indoor |
| Discharge Temperature (℃) | -20℃~+65℃ |
| Charge Temperature (℃) | 0℃~+65℃ |

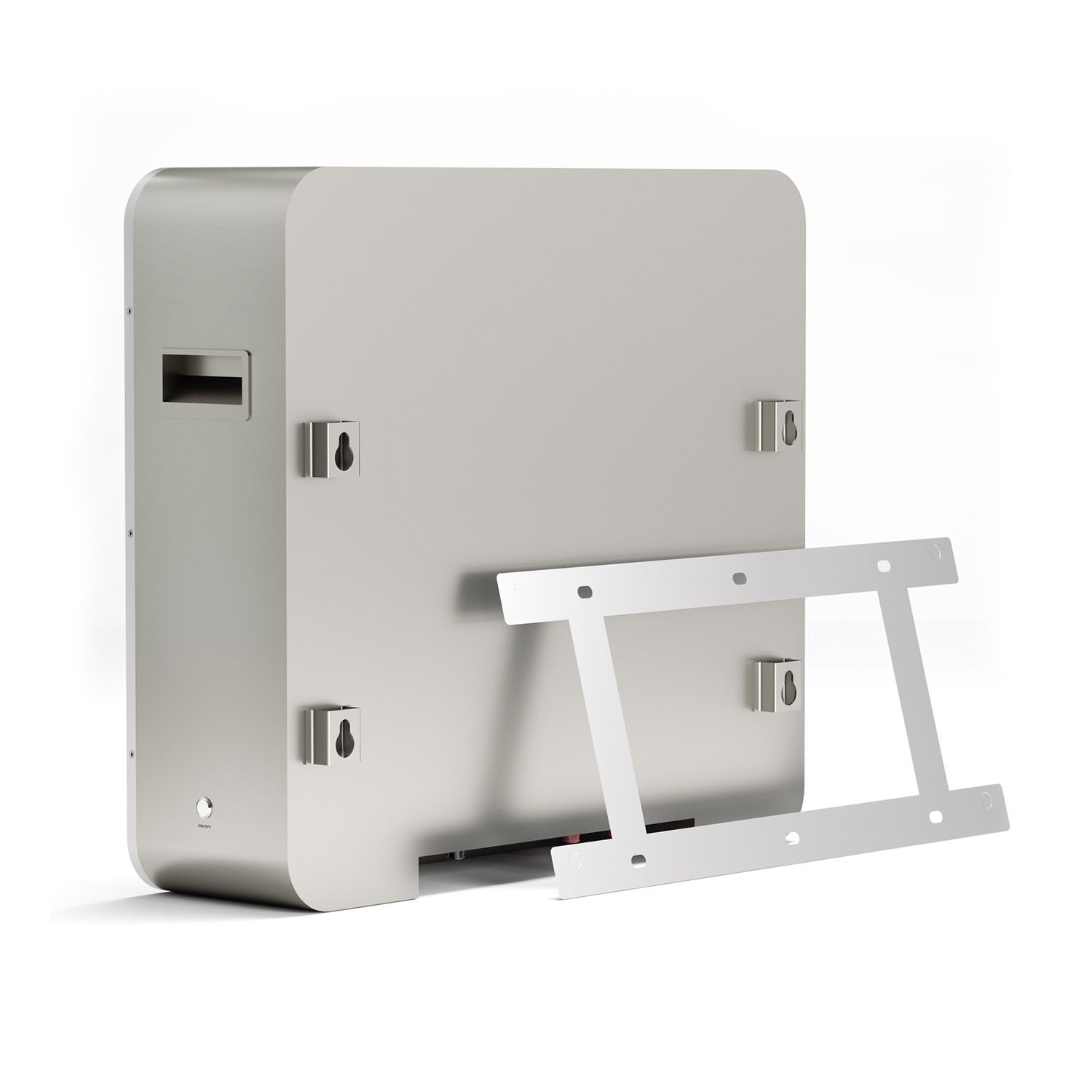

| Installation Method | Wall Mounted |
