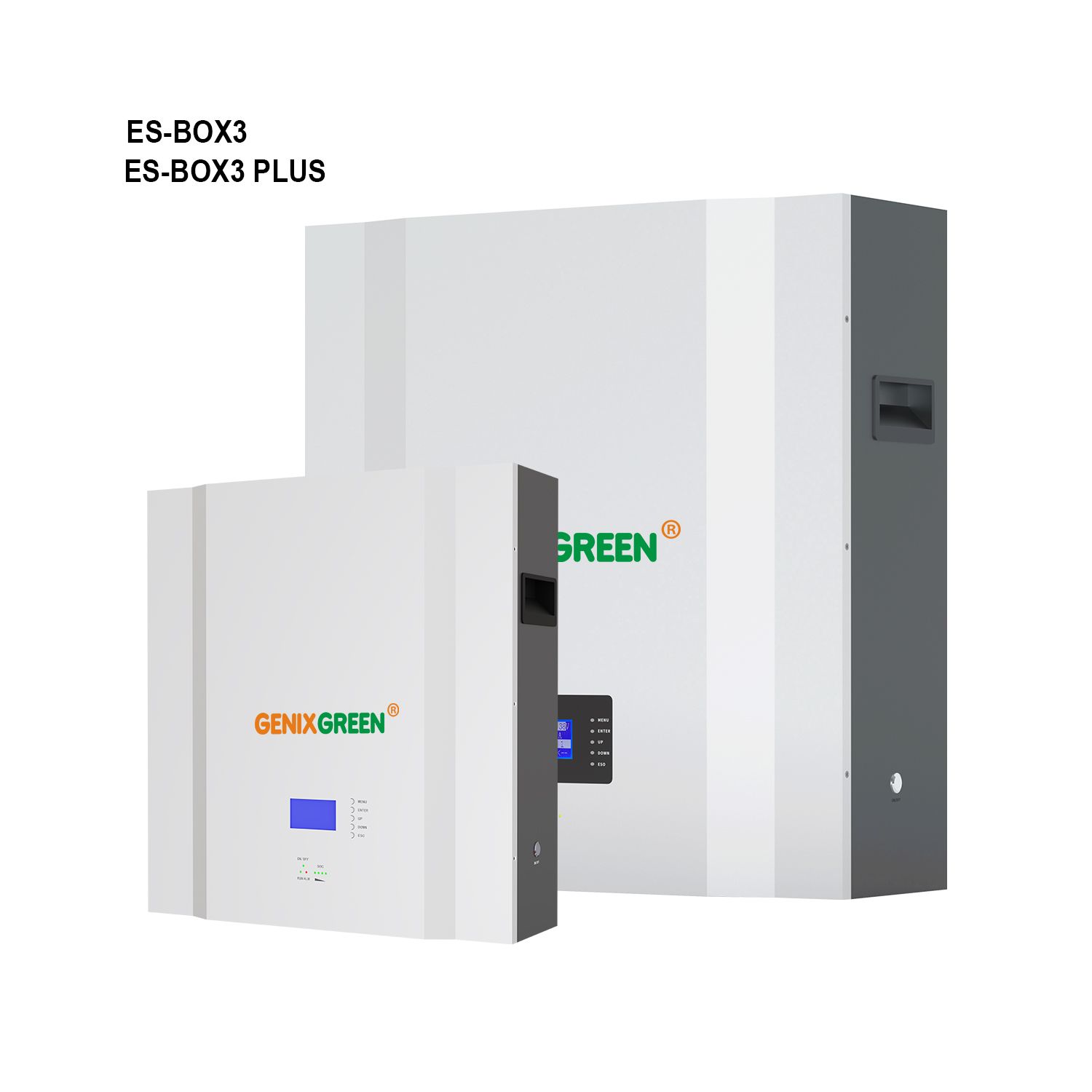

Model: ES-BOX3/ES-BOX3 PLUS
Battery Type: LiFePO4
Battery Voltage: 51.2V
Battery Capacity: 100Ah/200Ah
Cycle Life:≥6000 Cycle (80%DOD)
Communication: RS485/ RS232/CAN(Optional)
Installation Menthod: Wall Mounted
Application: Solar Household Energy Storage Battery

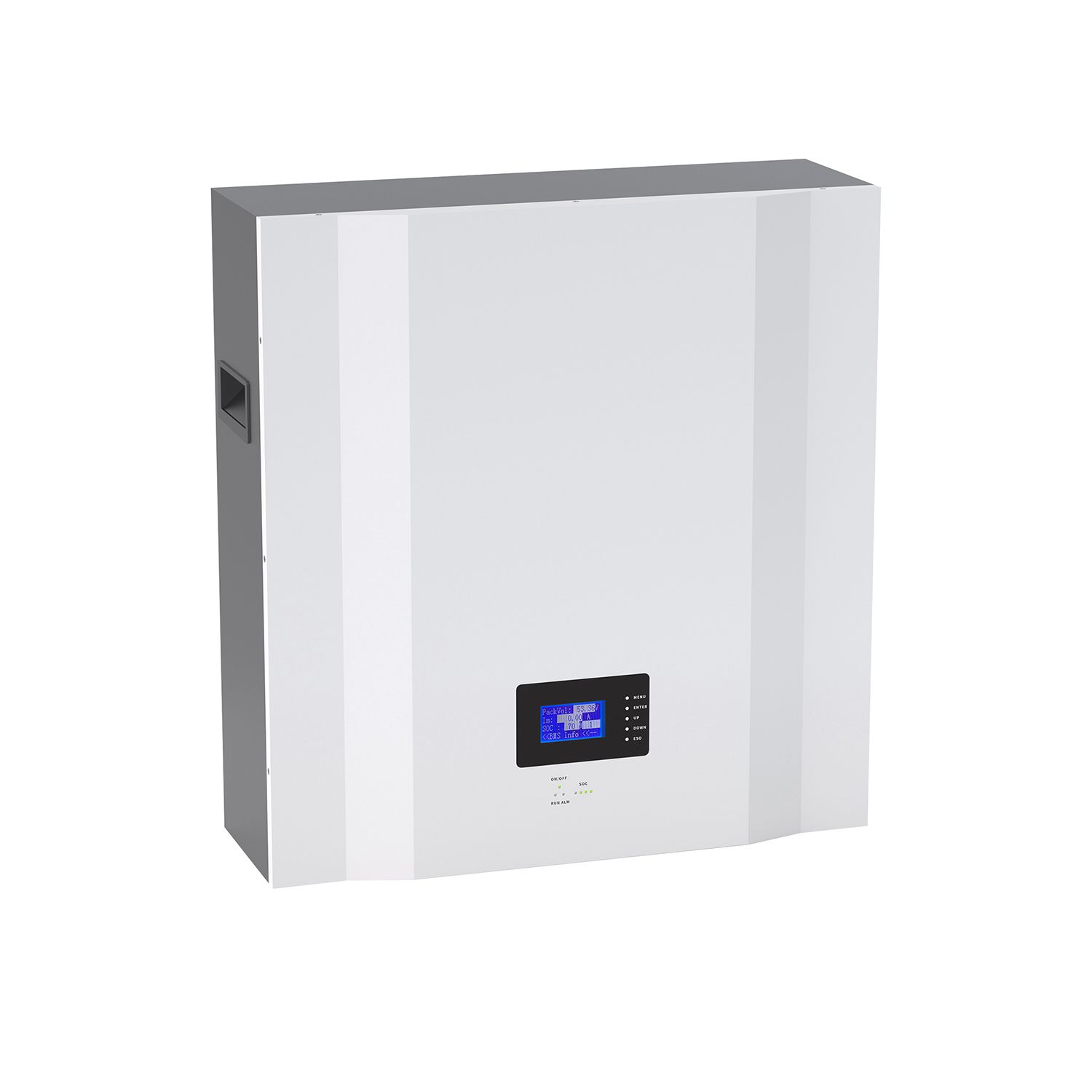

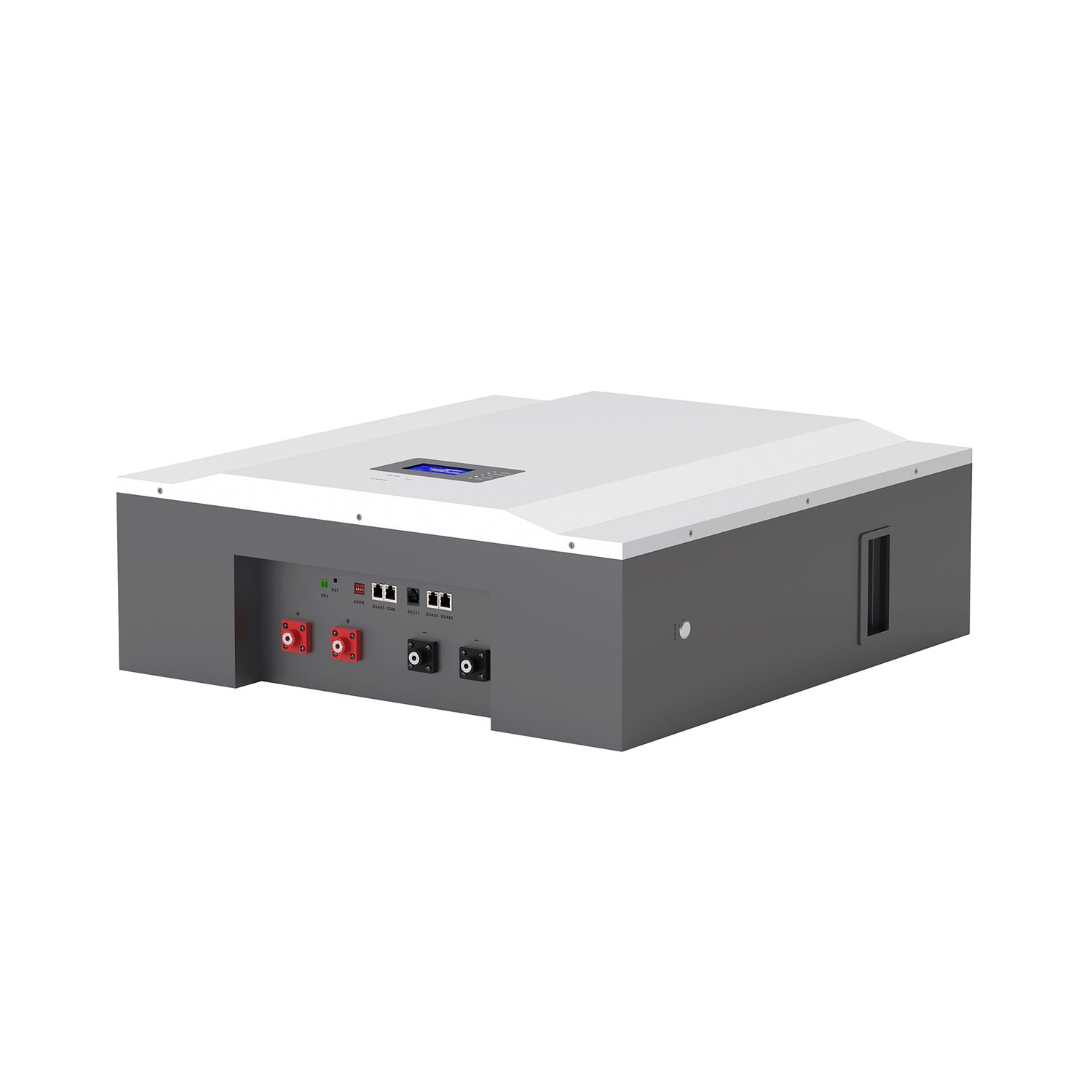

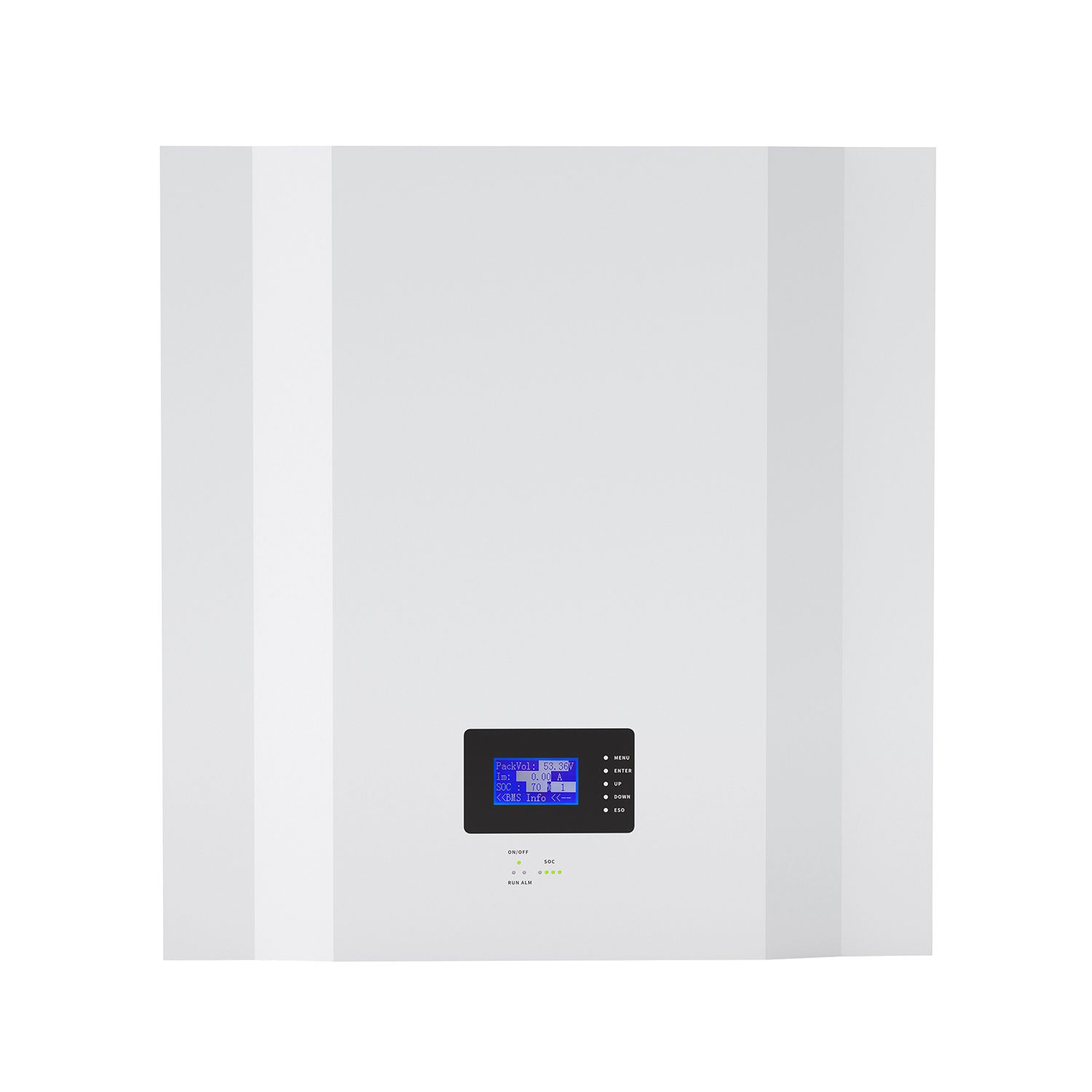

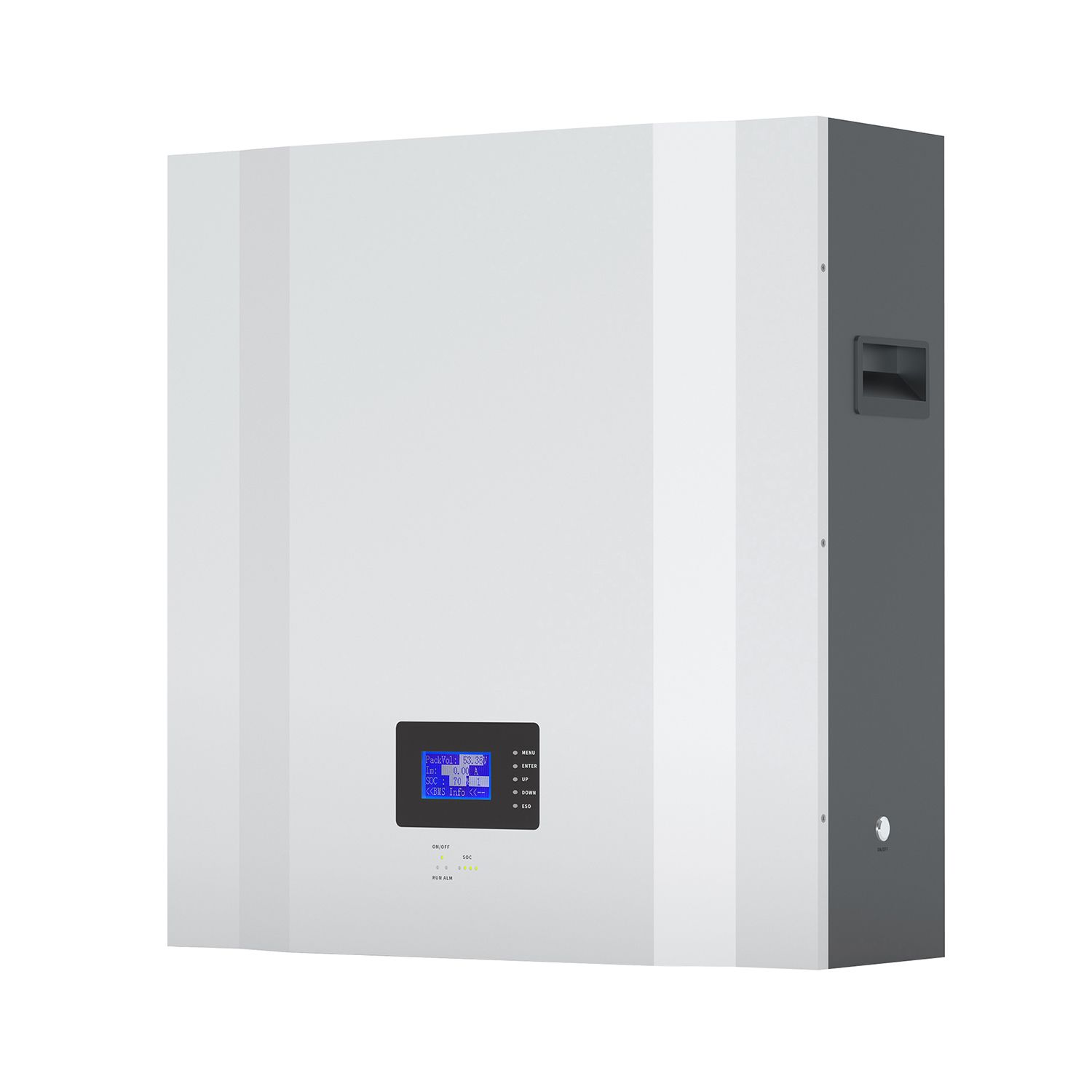

ES-BOX3/ES-BOX3 PLUS Home energy storage systems provide the ability to become independent from the traditional power grid, reducing reliance on utility companies.
Product Parameters | ||
Product model | ES-BOX3 | ES-BOX3 PLUS |
Product specification | 51.2V 100Ah | 51.2V 200Ah |
Nominal voltage | 51.2V | |
Nominal capacity | 100Ah | 200Ah |
Cell type | LFP | |
Standard charge voltage | 58.4V(adjustable) | |
Max charge current | 100A | |
Discharge cut-off voltage | 40V(adjustable) | |
Max discharge current | 100A | |
Display | LCD(Optiomal) | |
Communication interface | RS485,RS232,CAN(Optiomal) | |
Cycle life | ≥6000Cycles(80%DOD) | |
Charge temperature range | 0~65℃ | |
Discharge temperature range | -20~65℃ | |
Colour | Black and white, Support OEM | |
Dimensions | 600x400x223mm | 710x670x188mm |
Weight | ±46Kg | 85Kg |
Installation method | Wall mounted |
