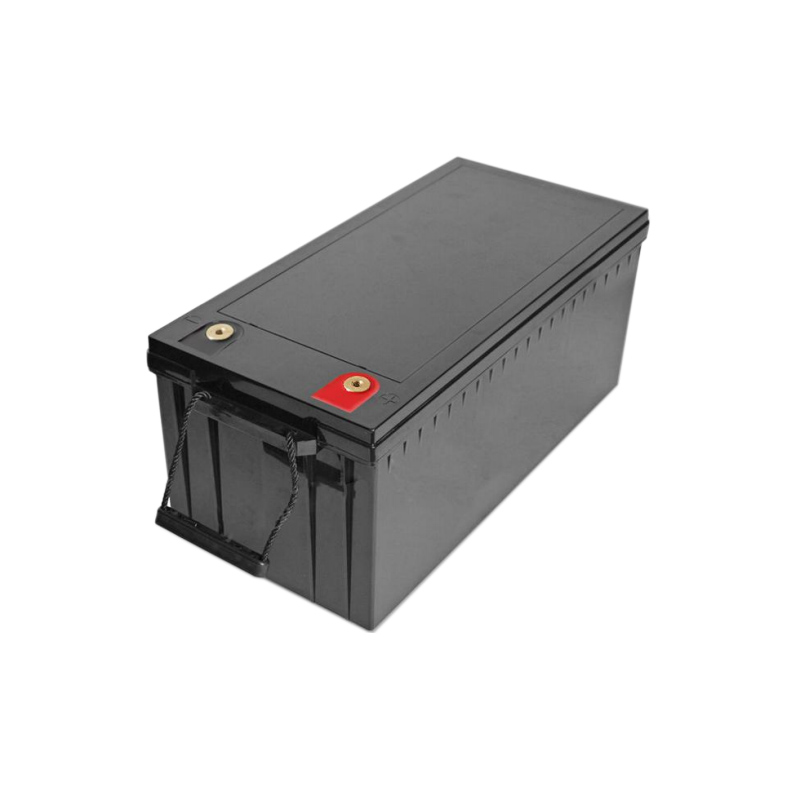

Model: WN-24120A
Battery Type: LiFePO4
Battery Voltage: 25.6V
Battery Capacity: 120Ah
Cycle Life: 5000~7000times
Application: Home Energy Storage System
Communication Inverter: DeYe, SMA, Victron, Growatt, Sola-X, Sinxcel, Sungrow, etc.
| Model | WN-24120A |
| Enclosure Material | ABS |
| Nominal Capacity | 120Ah |
| Nominal Voltage | 25.6V |
| Max. Charge Voltage | 28.4V |
| Discharge Cut-off Voltage | 20V |
| Max. Charge Current | 80A |
| Max. Discharge Current | 80A |
| Size | 522*240*218mm |
| Weight | About 28kgs |
| Internal Resistance | ≤80 mΩ |
| Charge Temp | 0 - +55℃ |
| Discharge Temp | -20℃ - +60℃ |
| Storage Temp | 0 - +45℃ |
Feature: Long lifespan, Environmental Friendly, High efficiency
