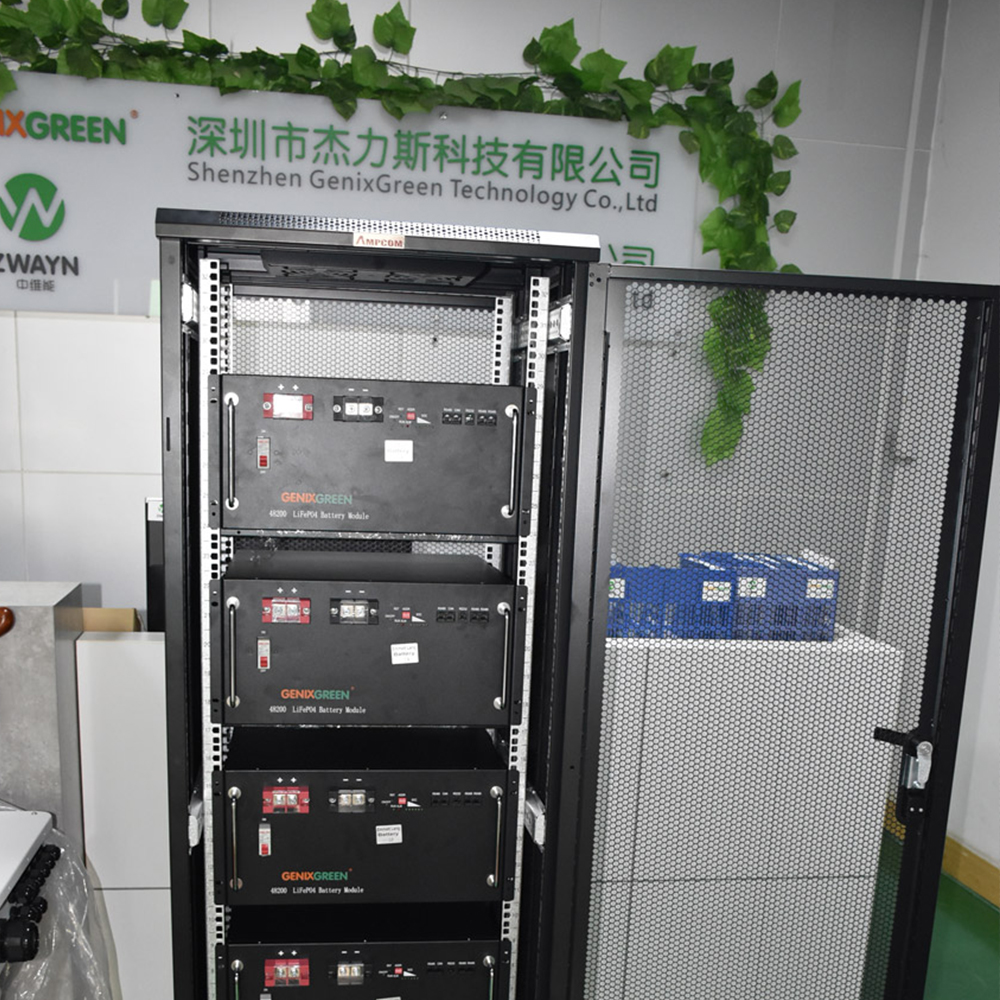

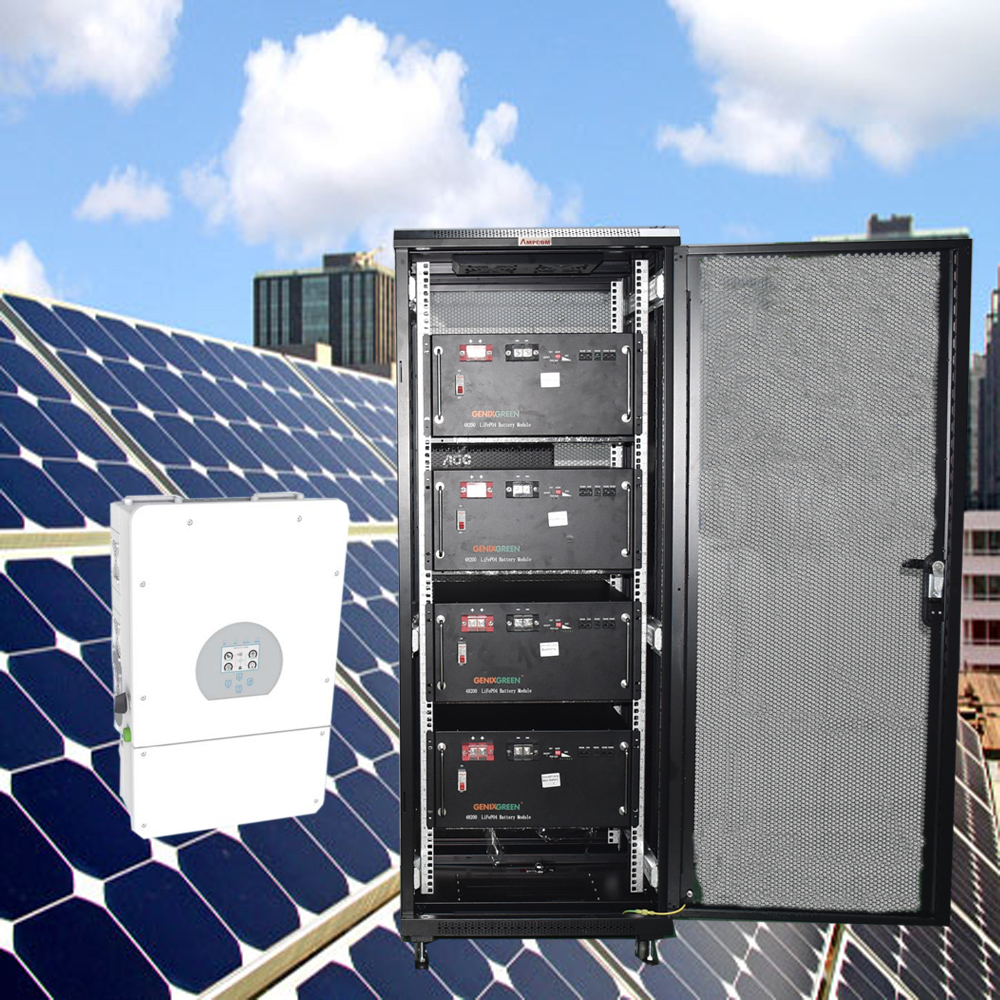

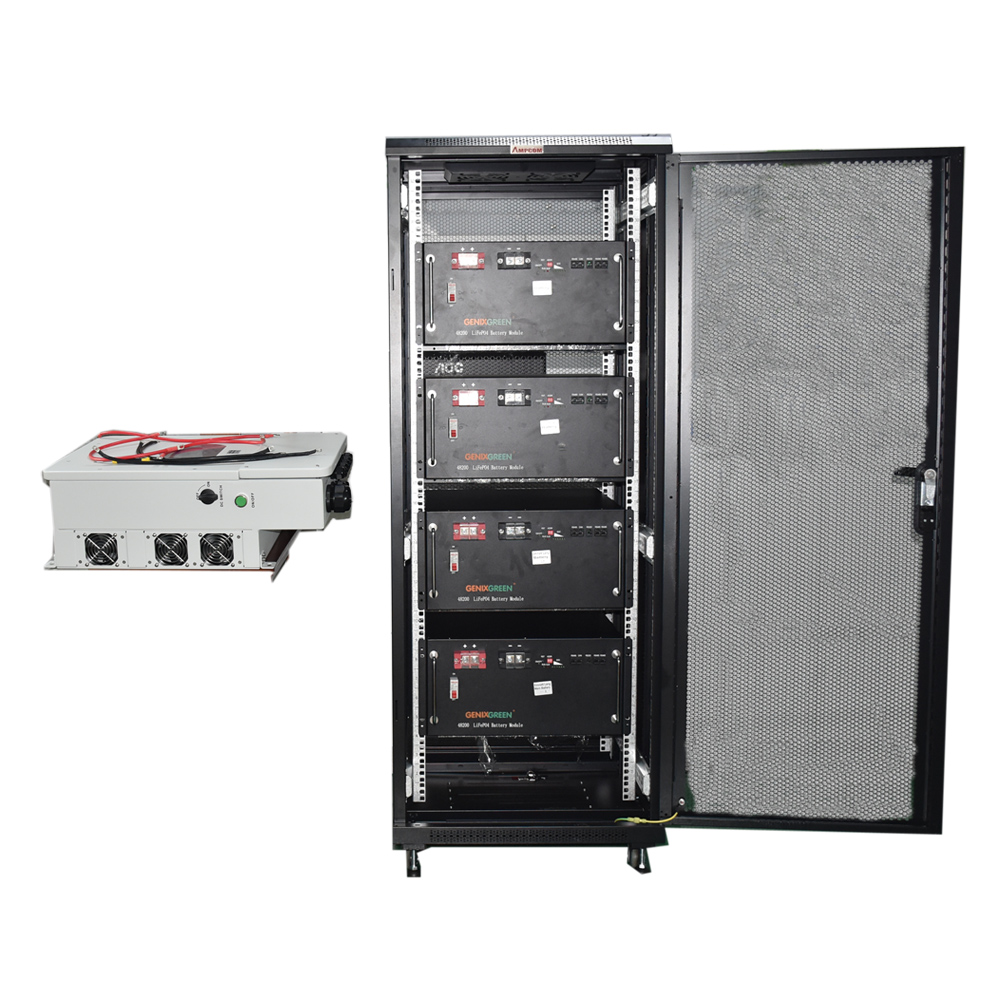

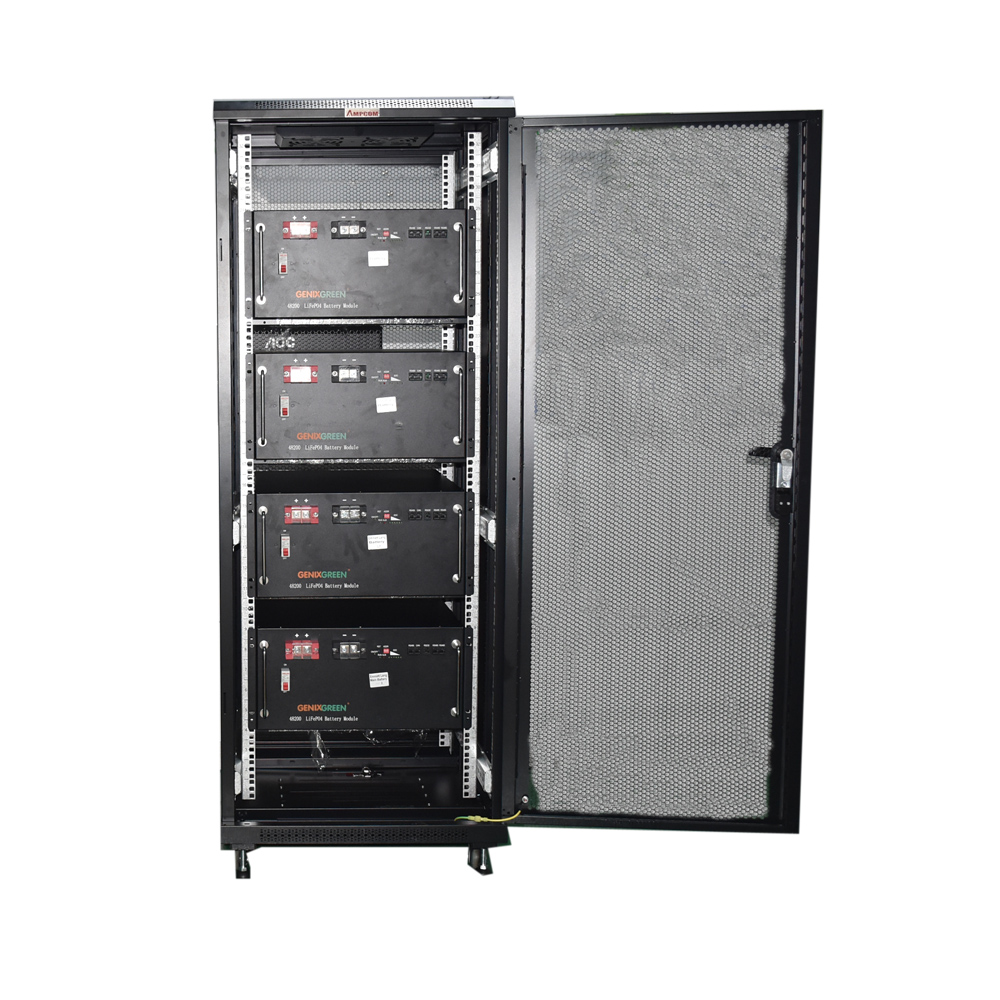

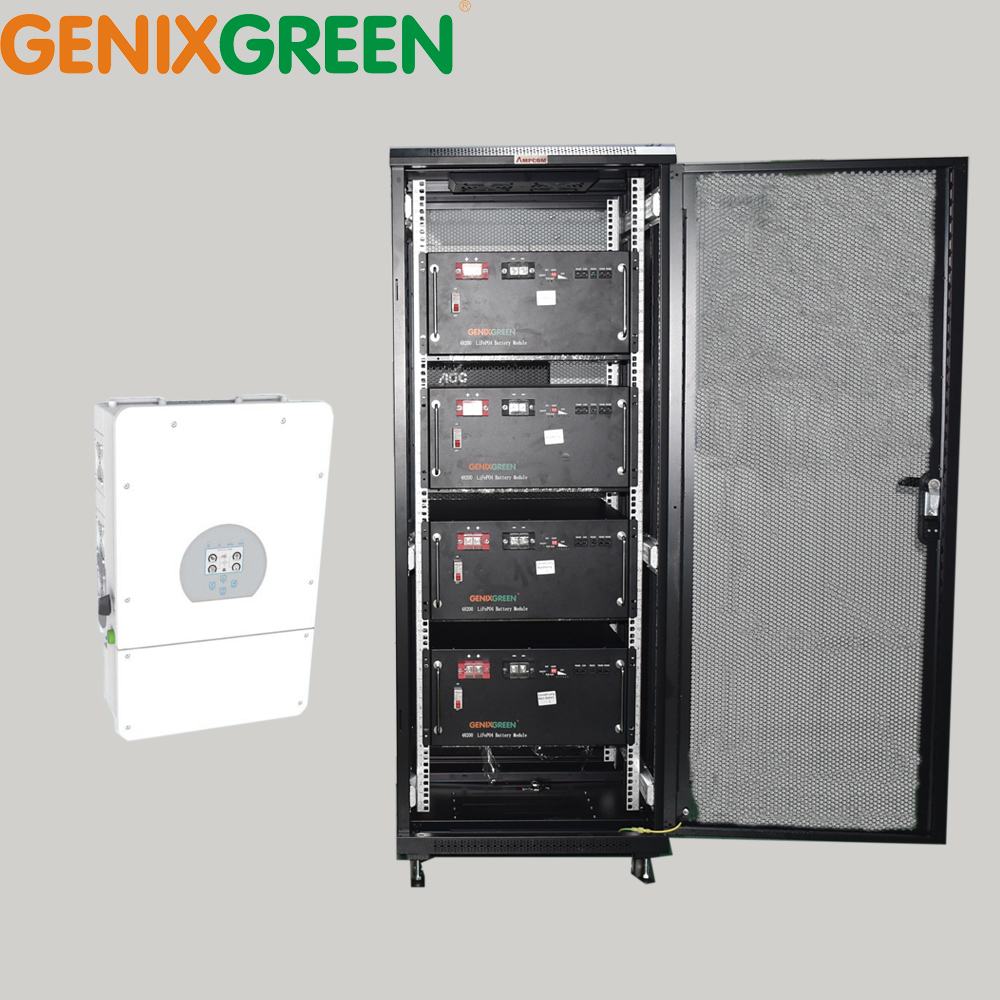

51.2V 200Ah Lifepo4 Energy Storage System Power Generator Battery

ITEMS

STANDARD

REMARKS

Nominal voltage (V)

51.2

Energy (Wh)

10240

Nominal capacity (Ah)

200Ah

0.2 C discharge

Charging cut-off voltage (V)

57

Standard charging current

40

Recommended at 0.2 C

Maximum charging current (A)

100

Charging cut-off current (A)

1

Discharge cut-off voltage (V)

40

Standard continuous discharge current (A)

40

Recommended at 0.2 C

Maximum discharge current (A)

100

Internal resistance (mΩ)

≤100

Test discharge port is between positive and negative pole ears

Battery module  size (mm)

445*430*222mm

Without  hangers

Weight (kg)

Around 80kg

Discharge temperature range (℃)

-10～55

Charging temperature range (℃)

0~45

Storage temperature range (℃)

-20～45

Storage ambient humidity (RH)

5%～95%

Working environment humidity (RH)

≤85%

Positive and negative lead wire

DT38-100A-2P 38mm2 Terminal

Air Switch

Delixi DBG9

Case material

SPCC  1.5mm
