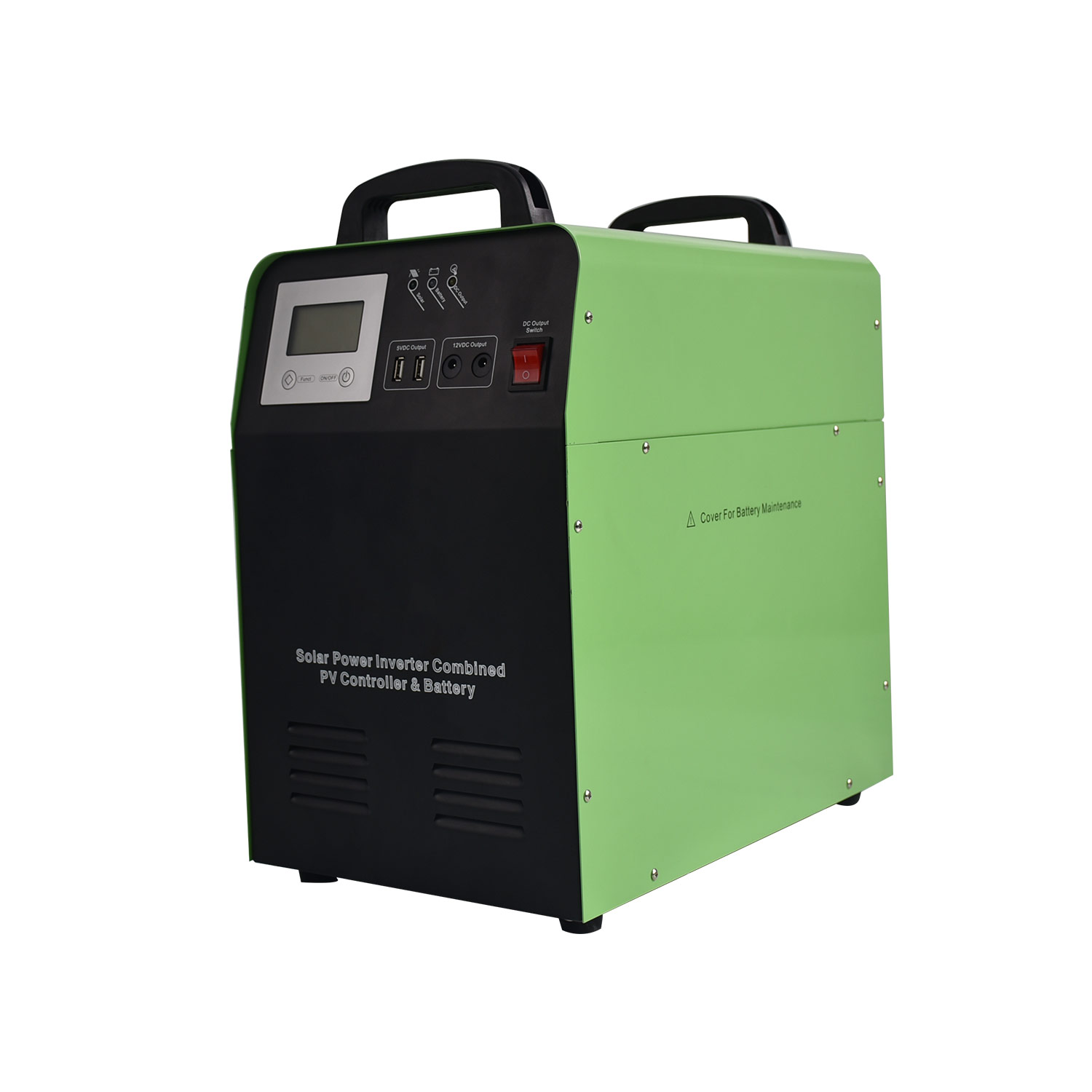

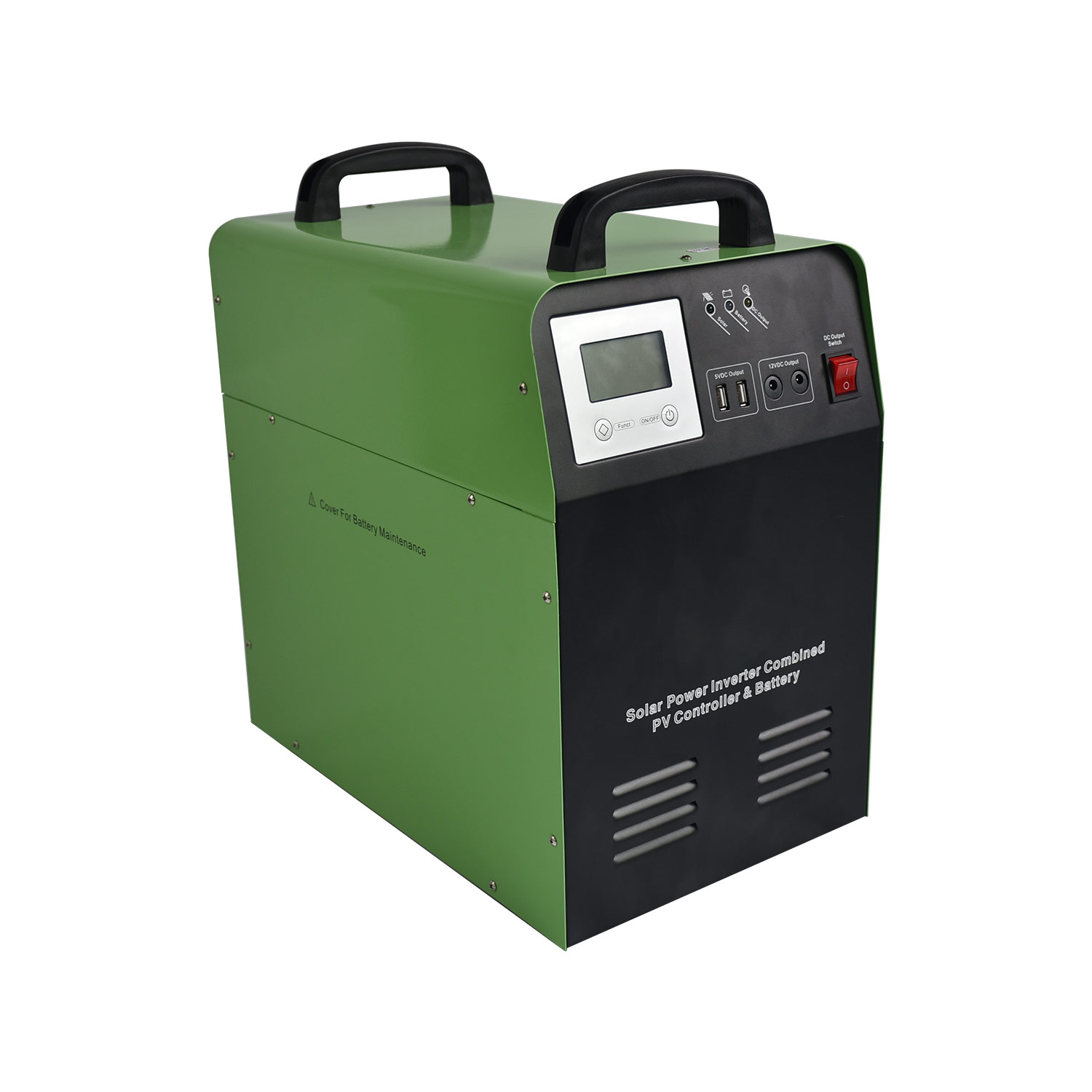

Model：JLS-ESS2-2KWH
Battery rated voltage（VDC）：24
Output frequency（Hz）：50/60
Input voltage range（VAC）：160-275VAC
Heat dissipation/Cooling：Temperature control by intelligent exhaust fan
Specification of built-in battery：25.6V 78Ah
External size：W*D*H（mm）：423×260×453
Package size：W*D*H（mm）：505×355×485
N.W/ G.W. (kg)：33KG/35KG

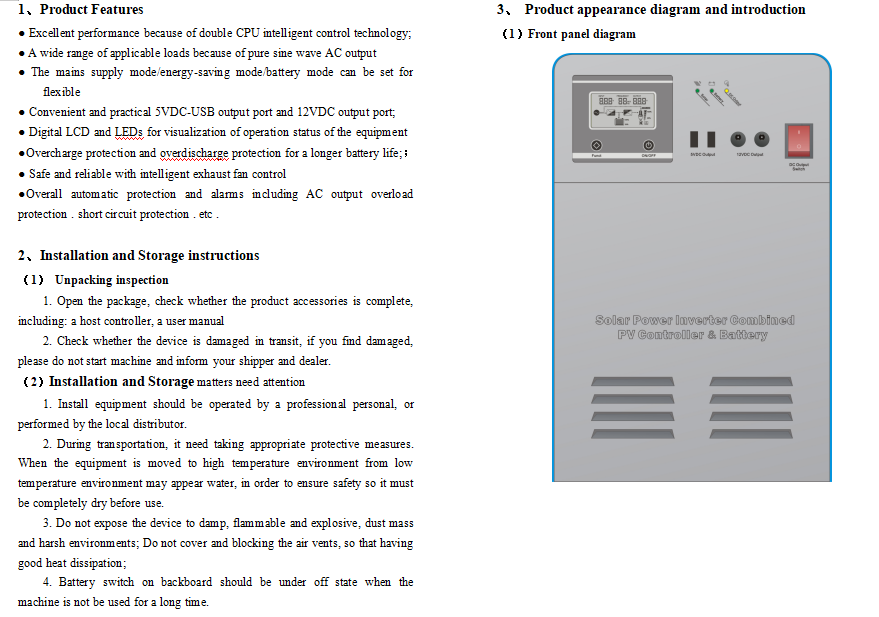

Excellent performance because of double CPU intelligent control technology;
A wide range of applicable loads because of pure sine wave AC output

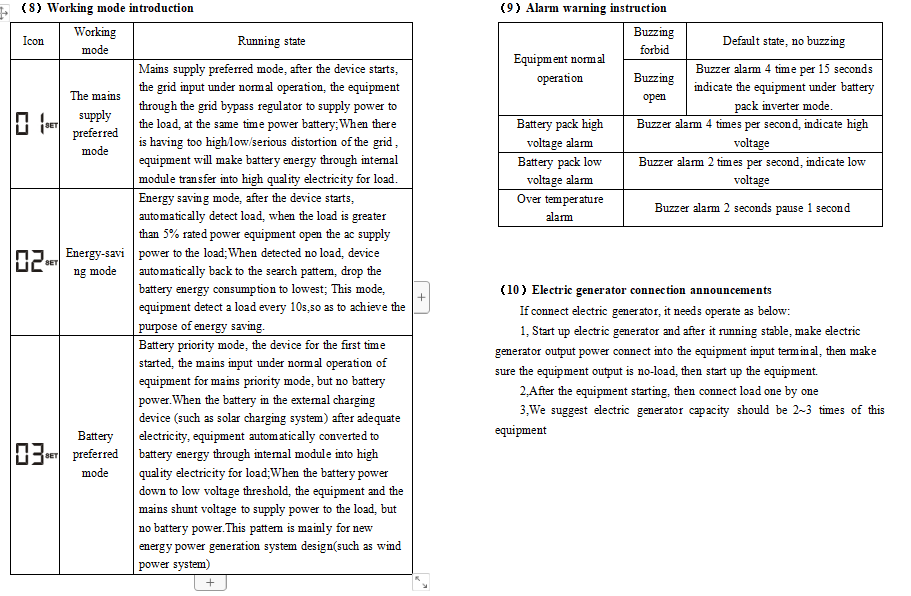

The mains supply mode/energy-saving mode/battery mode can be set for flexible

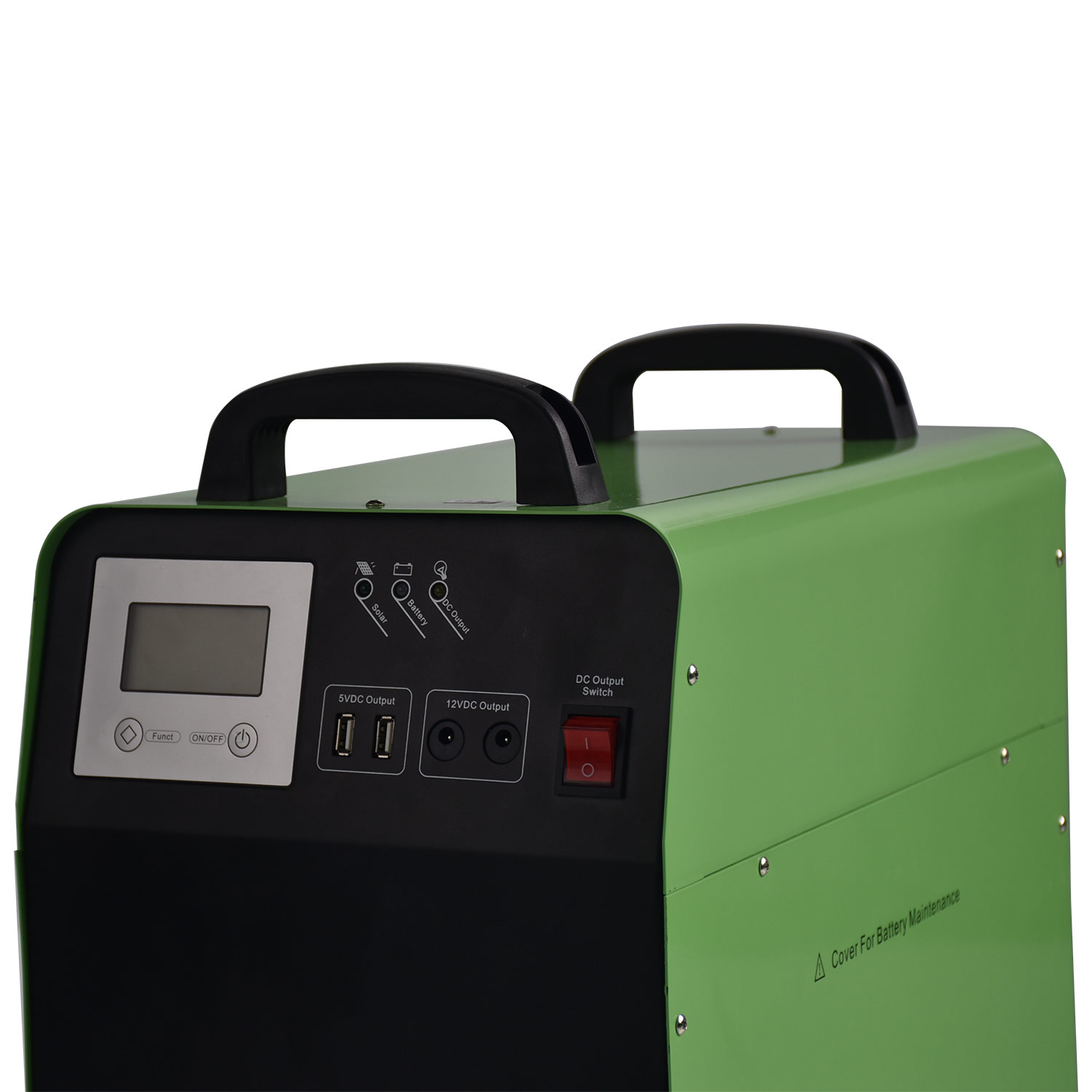

Convenient and practical 5VDC-USB output port and 12VDC output port;

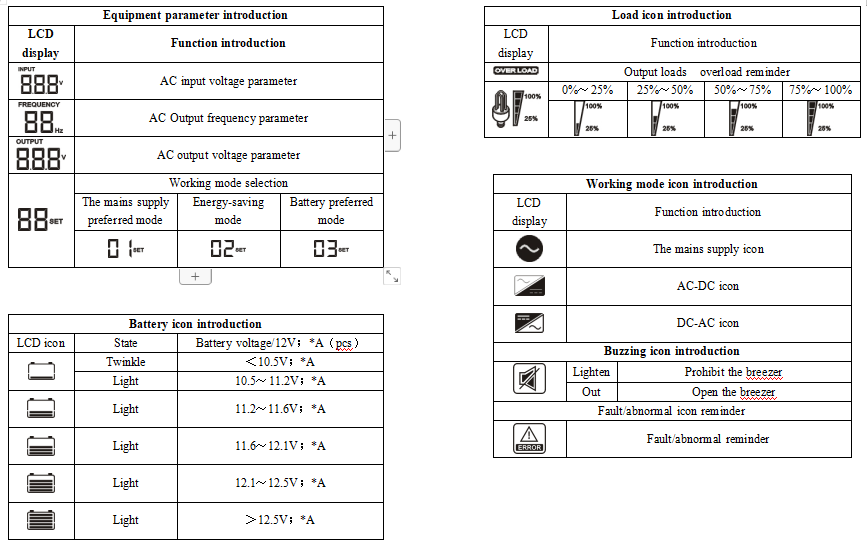

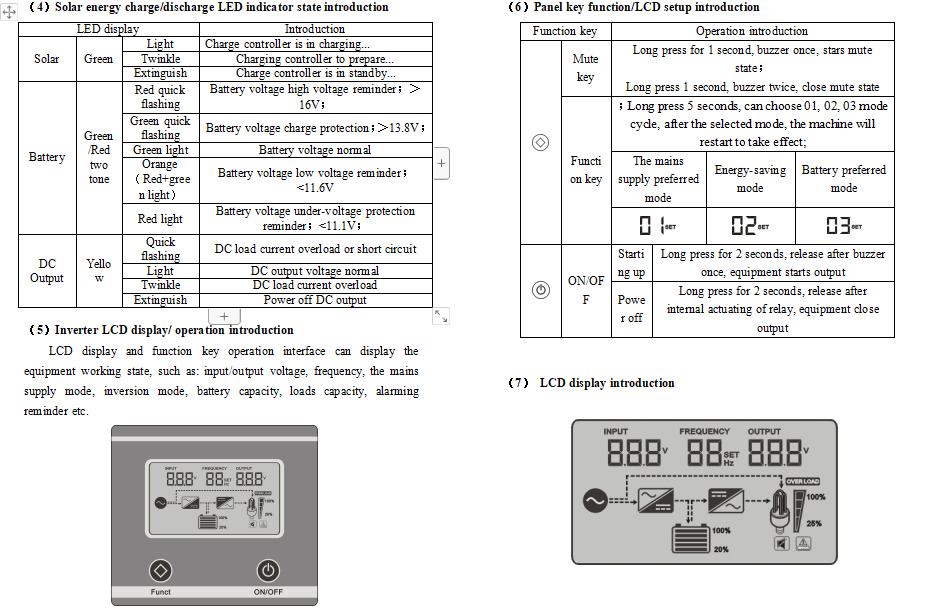

Digital LCD and LEDs for visualization of operation status of the equipment
Overcharge protection and overdischarge protection for a longer battery life;；
Safe and reliable with intelligent exhaust fan control
Overall automatic protection and alarms including AC output overload protection . short circuit protection . etc .
Model | JLS-ESS2-2KWH | |
Battery rated voltage（VDC） | 24 | |
Inverter | Rated power（W） | 1000 |
Input voltage range（VAC） | 160-275VAC | |
Input frequency（Hz） | 45-65 | |
Output voltage（VAC） | 220 | |
Output frequency（Hz） | 50/60 | |
Output wave | Pure Sine Wave | |
Specification of built-in battery | 25.6V 78Ah | |
Solar input | Max. PV voltage（VDC） | ≤50 |
Range of charging voltage（VDC） | 20-50 | |
Rated charge current（A） | 30 | |
Voltage for overcharge protection（VDC） | 28.4 | |
Voltage for overcharge recovery（VDC） | 28.0 | |
Voltage for floating charge（VDC） | 27.4 | |
DC output | Voltage for high voltage protection（VDC） | 32V |
High voltage recovery voltage（VDC） | 30.4 | |
Low voltage recovery voltage（VDC） | 25.2 | |
Low voltage protection voltage（VDC） | 22 | |
5VDC USB output | 2pcs/MAX 2A | |
12VDC output ports | 2pcs /MAX 2A | |
Heat dissipation/Cooling | Temperature control by intelligent exhaust fan | |
Operating ambient temperature | -20 - +50℃ | |
Storage ambient temperature | -25 - +55℃ | |
Operating/Storage ambient | 0-90% No condensation | |
External size：W*D*H（mm） | 423×260×453 | |
Package size：W*D*H（mm） | 505×355×485 | |
N.W/ G.W. (kg) | 33KG/35KG | |
