All In One 5kw Solar Inversion Power Supply System

Share

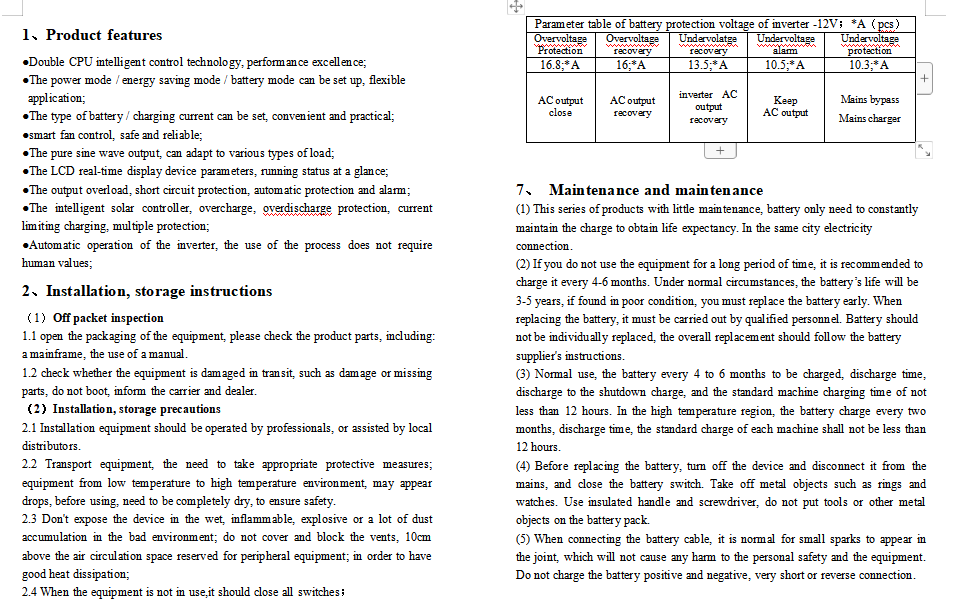

●Double CPU intelligent control technology, performance excellence;

●The power mode / energy saving mode / battery mode can be set up, flexible

 application;

●The type of battery / charging current can be set, convenient and practical;

●smart fan control, safe and reliable;

●The pure sine wave output, can adapt to various types of load;

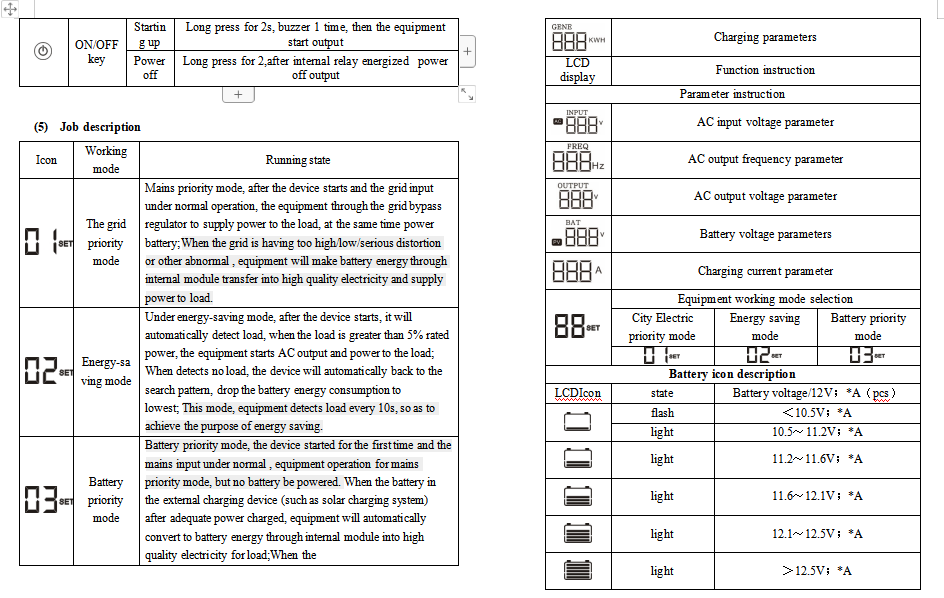

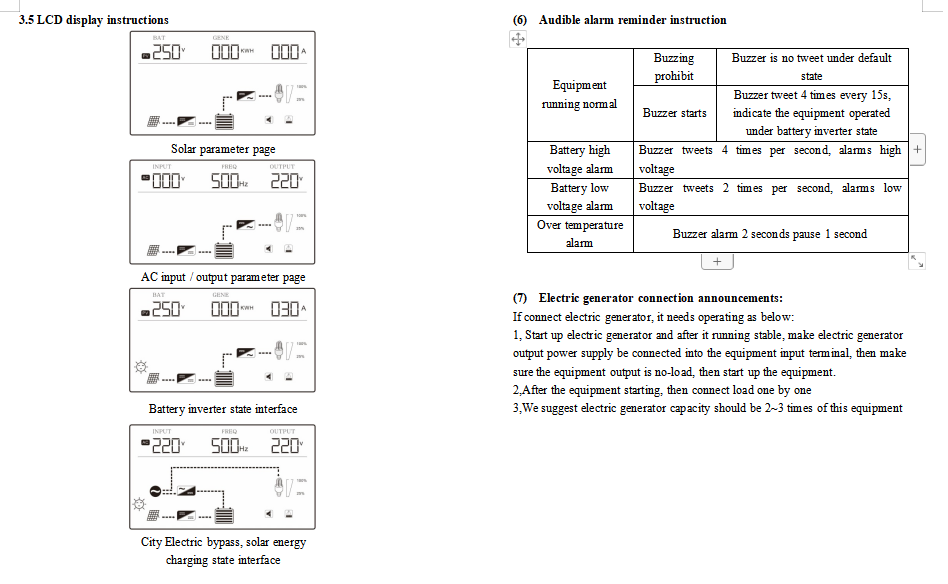

●The LCD real-time display device parameters, running status at a glance;

●The output overload, short circuit protection, automatic protection and alarm;

●The intelligent solar controller, overcharge, overdischarge protection, current limiting charging, multiple protection;

●Automatic operation of the inverter, the use of the process does not require human values;


Product Description

All In One 5kw Solar Inversion Power Supply System


Model : FT

SDN2000-5KWH

power rating

2000W

Battery

rated voltage

48VDC

24VDC

24VDC


Charge Current

50A


Battery Type

Lithium iron phosphate battery


Capacity

105Ah

Input

Voltage Range

170-275VAC


frequency

45-65Hz

Output

voltage range

220VAC±5%( Inverter mode)


frequency

50/60Hz±1%( Inverter mode)




Output wave

Pure Sine Wave


Change time

10ms(Typical load)


frequency

85%80% Resistive load


overcharge

110-120%/30S;>160%/300ms


Protection function

Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection

Solar Controller

Battery voltage

48VDC


Max Voltage

100(VDC);


Charge Voltage range

60-100(VDC);


Rated charge current

50AMax


Max Power

2200(W)


Overcharge Voltage

30VDC


Overcharge recovery voltage reovery voltage

53.25(VDC);


Floating charge voltage

51.75(VDC);

Operating ambient temperature

0-40℃

Storage ambient temperature

-15 - +50℃

Operating / storage environment

0-90%  No Condensation

Dimensions: L * W * H (mm)

555*515*540

Packing size: L * W * H (mm)
