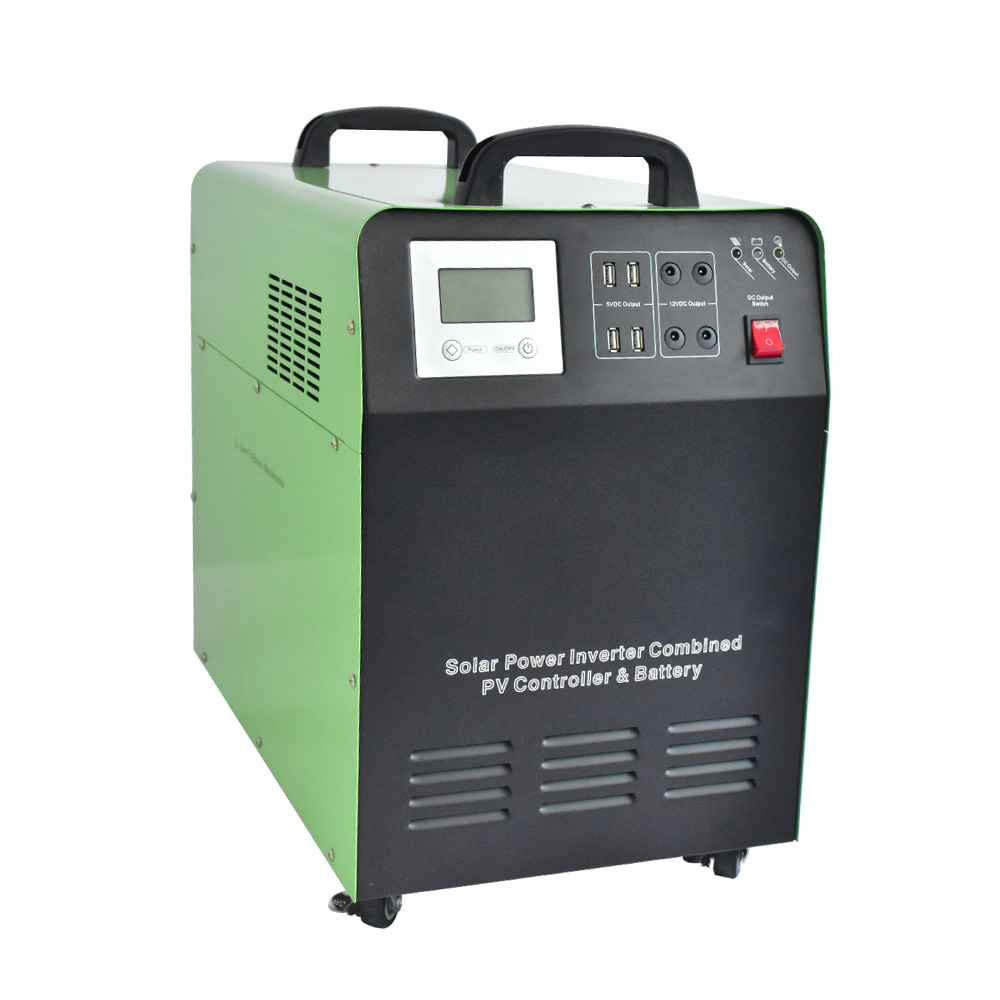

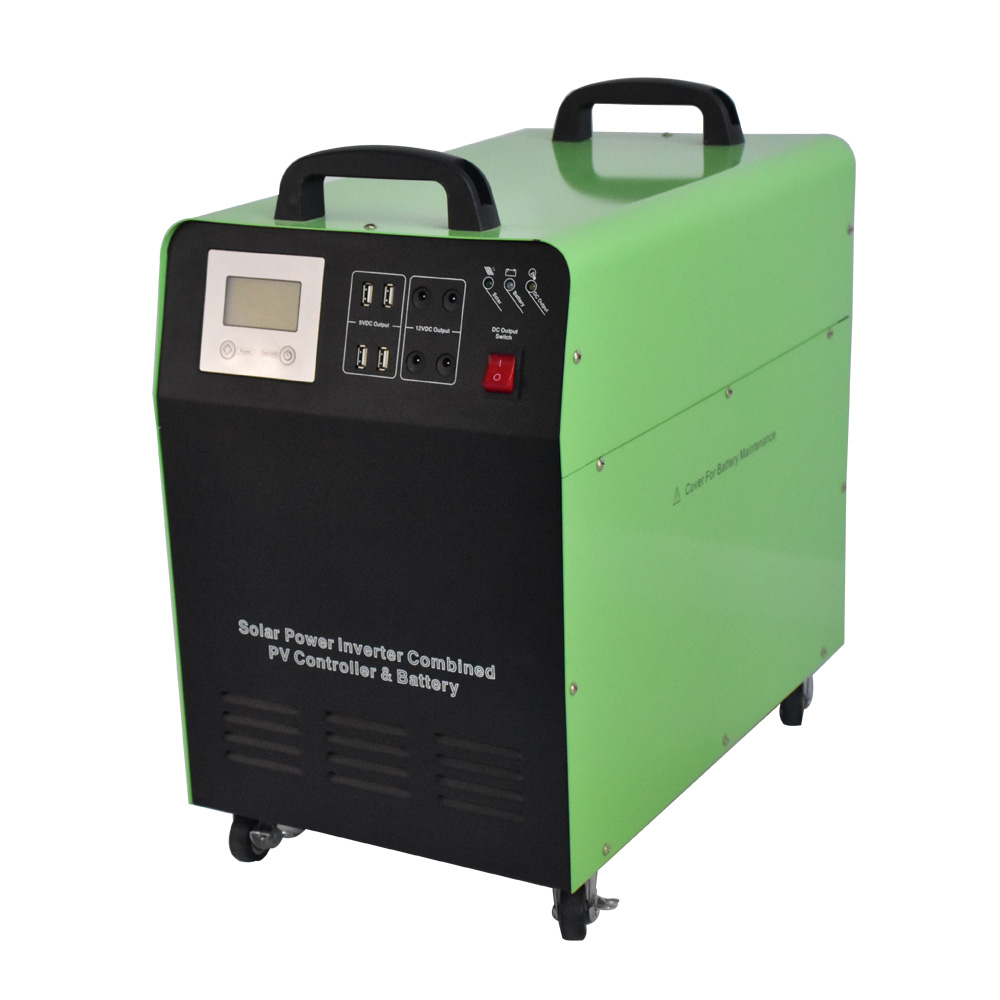

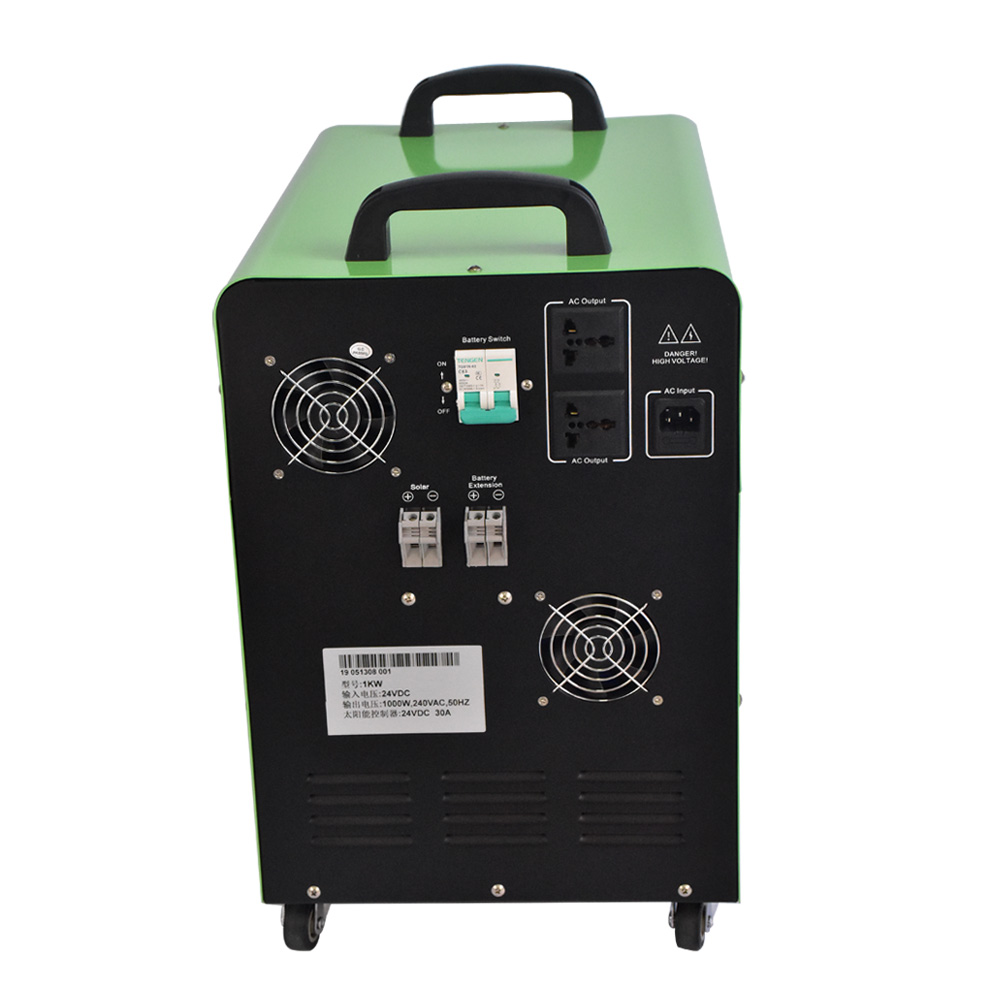

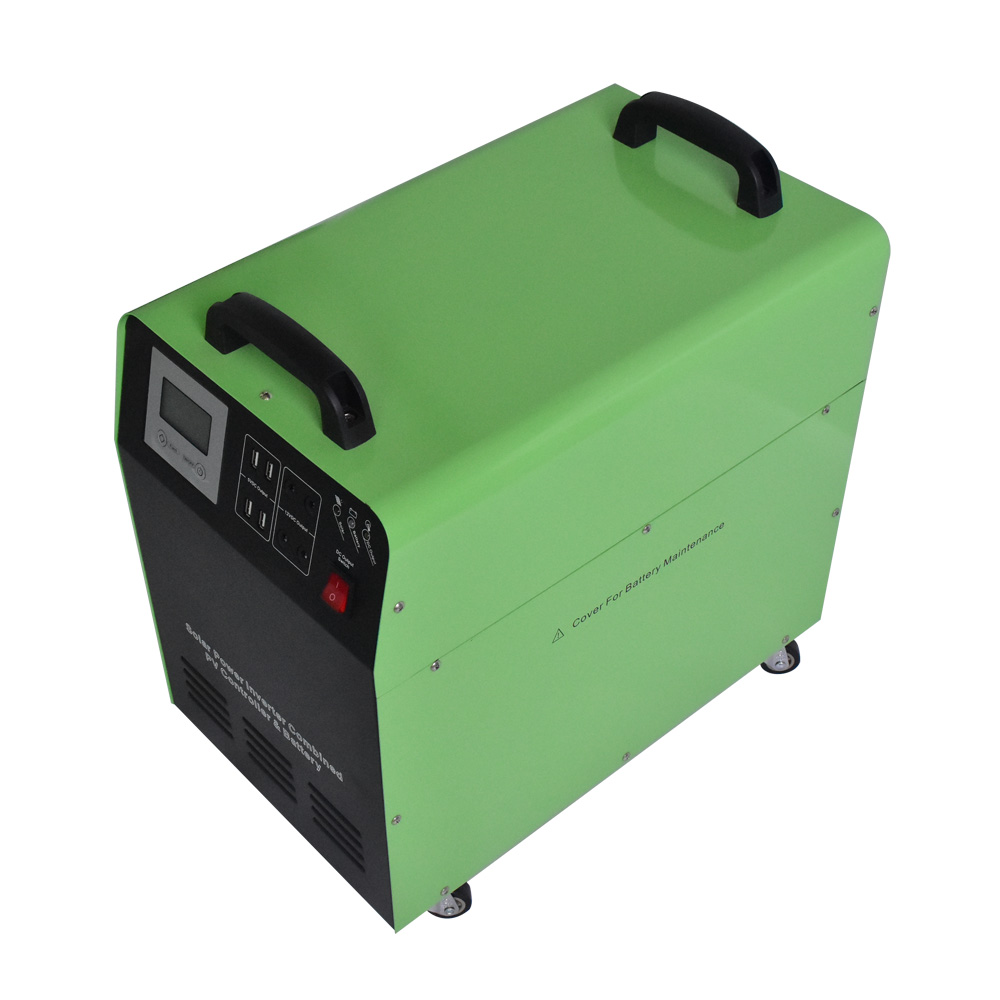

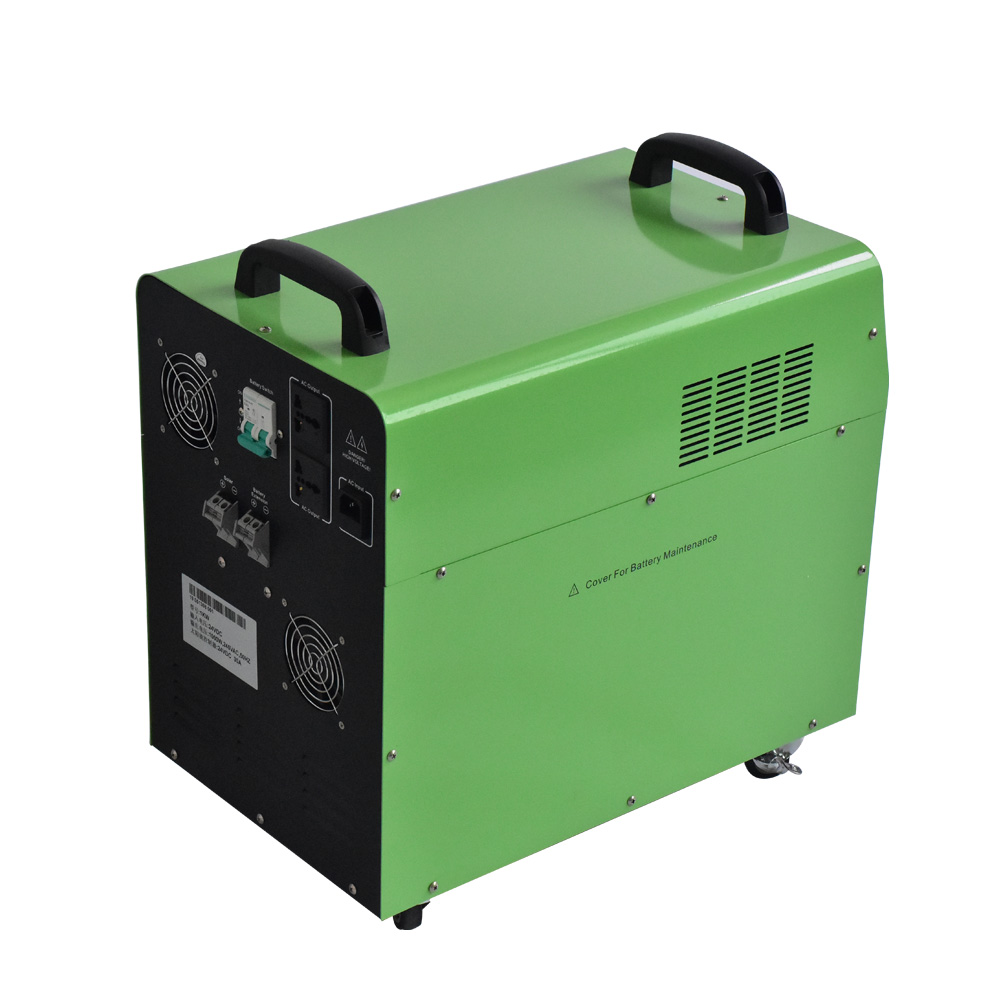

All In One 3kw Solar Inversion Power Supply System

● Excellent performance because of double CPU intelligent control technology;

● A wide range of applicable loads because of pure sine wave AC output

● The mains supply mode/energy-saving mode/battery mode can be set for flexible

● Convenient and practical 5VDC-USB output port and 12VDC output port;

● Digital LCD and LEDs for visualization of operation status of the equipment

●Overcharge protection and over discharge protection for a longer battery life;；

● Safe and reliable with intelligent exhaust fan control

●Overall automatic protection and alarms including AC output overload protection. short circuit protection. etc.

Inquire Now Next Product Download

Product Description

Model		BT-1000W					BT-1000S	BT-1500W
Battery rated voltage（VDC）		12	24				24	24
Inverter	Rated power（W）	1000W					1000W	1500W
	Input voltage range（VAC）	160-275VAC
	Input frequency（Hz）	45Hz-65Hz
	Output voltage（VAC）	110VAC/220VAC
	Output frequency（Hz）	50Hz/60Hz
	Output wave	Pure Sine Wave
	Specification of built-in battery	1*100AH/12V			2*55AH/12V		2*100AH/12V	2*100AH/12V
	Communication	RS232
Solar input	Max. PV voltage（VDC）	≤25		≤50
	Range of charging voltage（VDC）	10-25		20-50
	Controller rated charge current（A）	PWM 30A
	Voltage for overcharge protection（VDC）	14.2		14.2				28.4
	Voltage for overcharge recovery（VDC）	14.0		14.0				28.0
	Solar input power range	150W/180W two pcs in parallel		270W/300W two pcs in parallel				270W/300W two pcs in parallel
DC output	Voltage for high voltage protection（VDC）	16V		32V				32V
	High voltage recovery voltage（VDC）	15.2V		30.4				30.4
	Low voltage recovery voltage（VDC）	12.6V		25.2				25.2
	Low voltage protection voltage（VDC）	11		22				22
	5VDC USB output	2units /MAX 2A
	12VDC output ports	2units/MAX 2A
Heat dissipation/Cooling		Temperature control by intelligent exhaust fan
Operating ambient temperature		-20 - +50℃
Storage ambient temperature		-25 - +55℃
Operating/Storage ambient		0-90% No condensation
External size：WDH（mm）		423×260×453				513×310×493
Package size：WDH（mm）		520×370×520				610×420×550
