High Efficiency 97.6%
With cooling system ensures higher efficiency and longer battery cvcle life
EasyInstallation

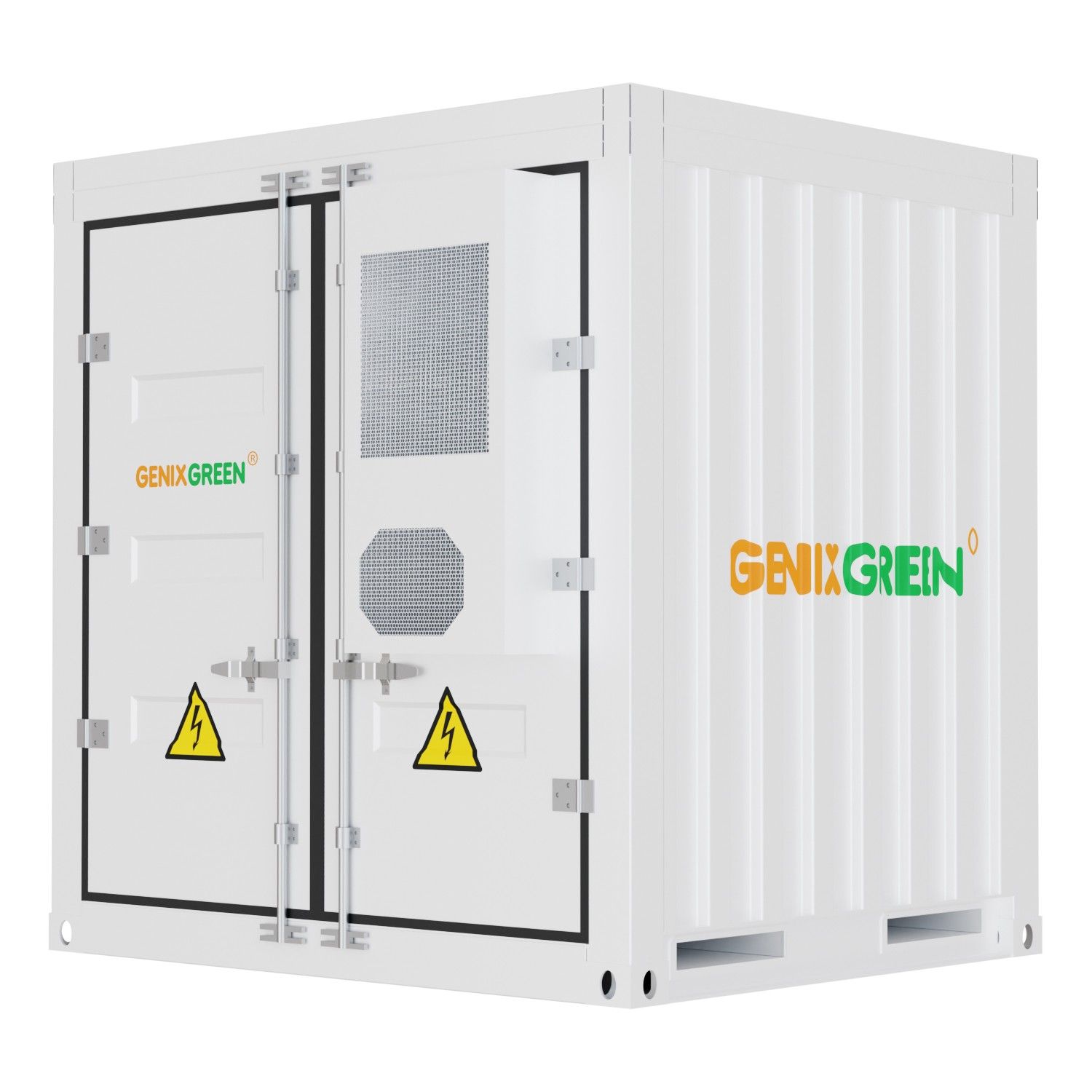

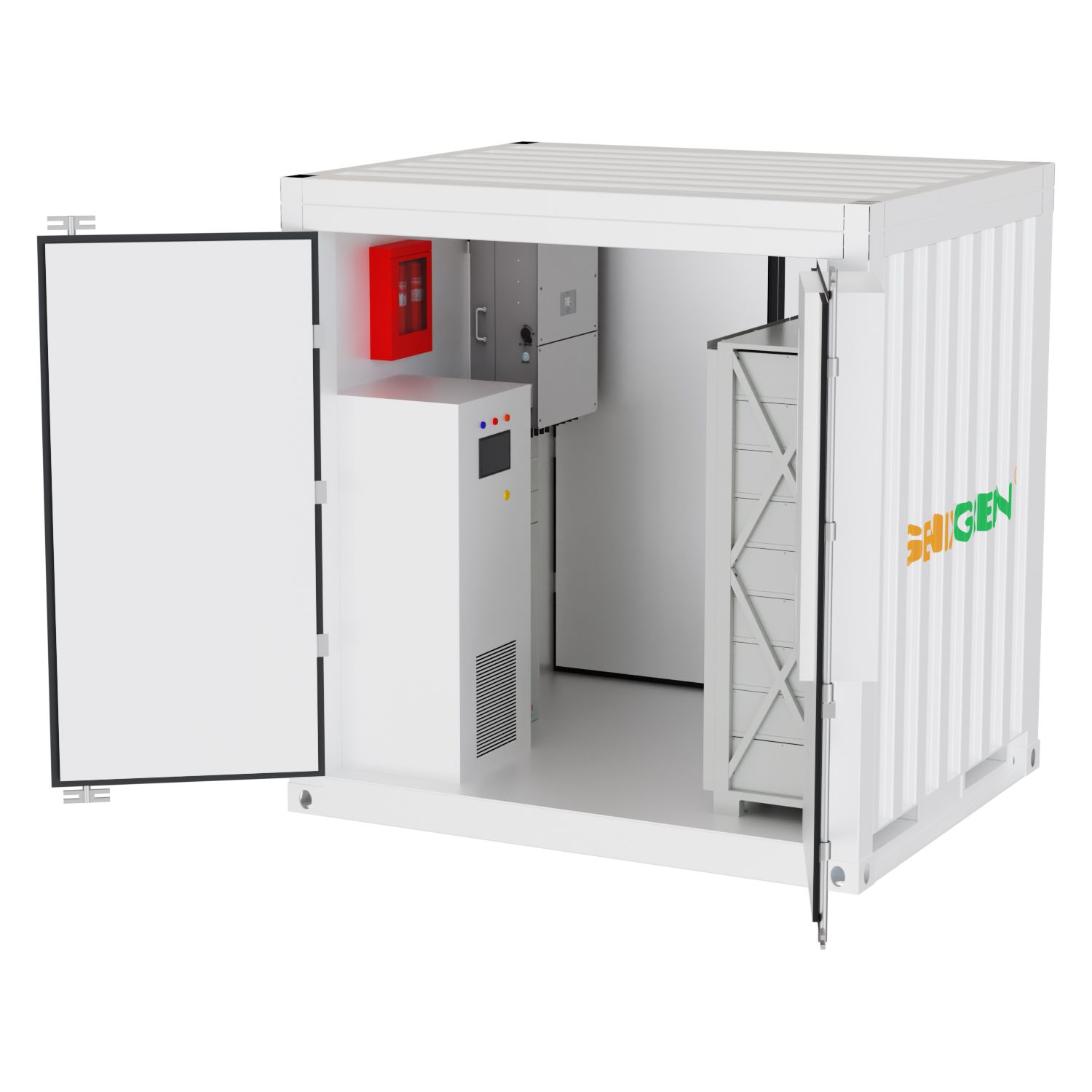

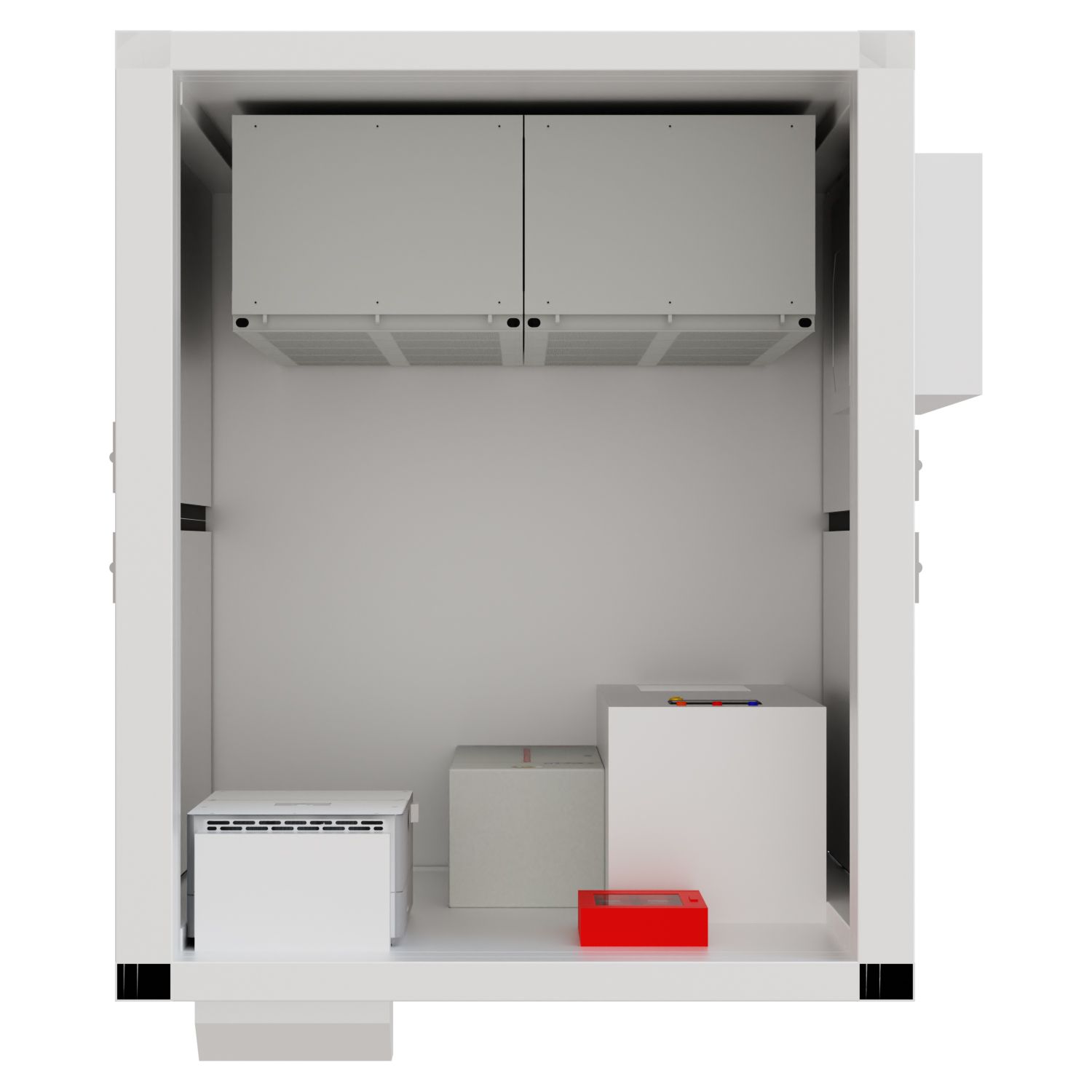

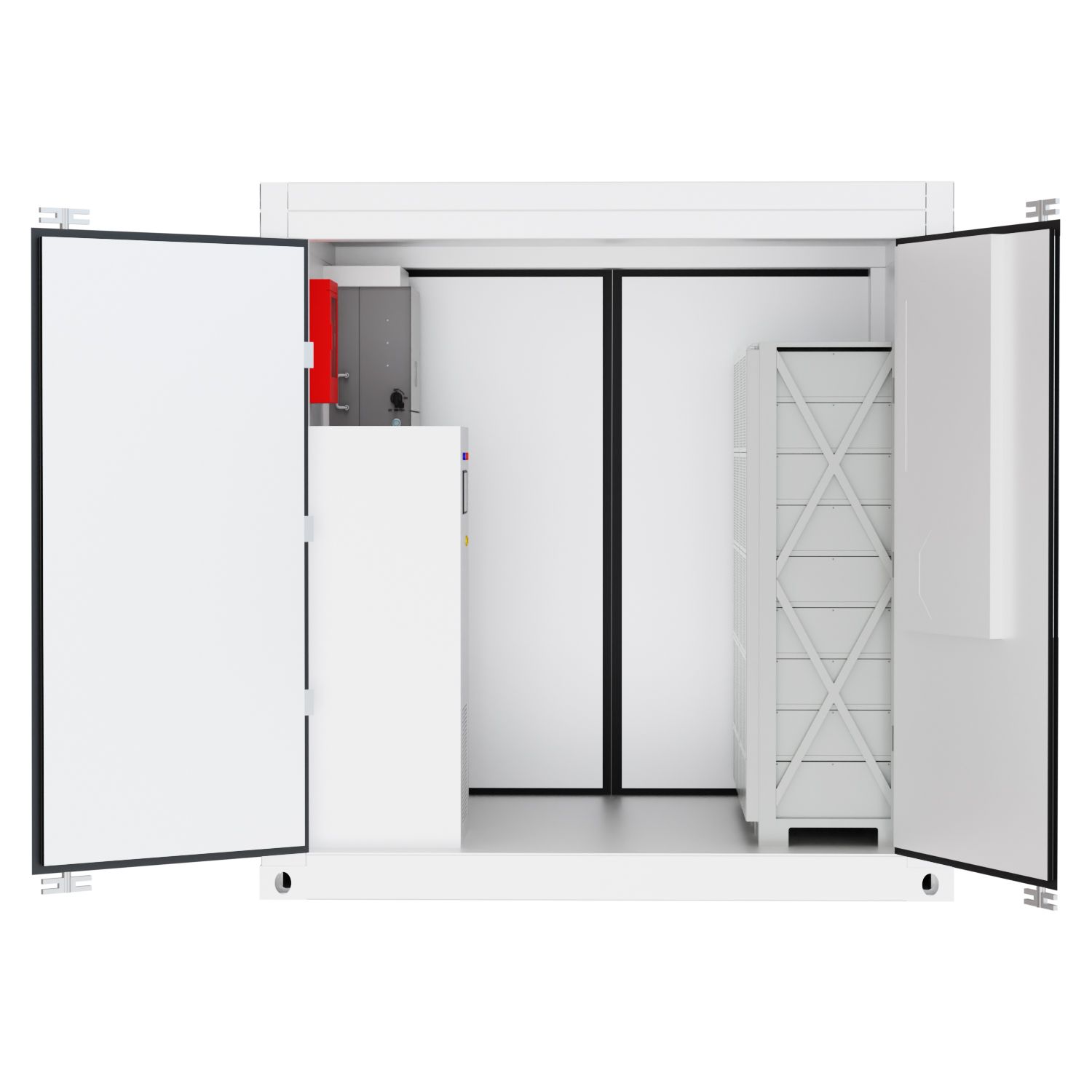

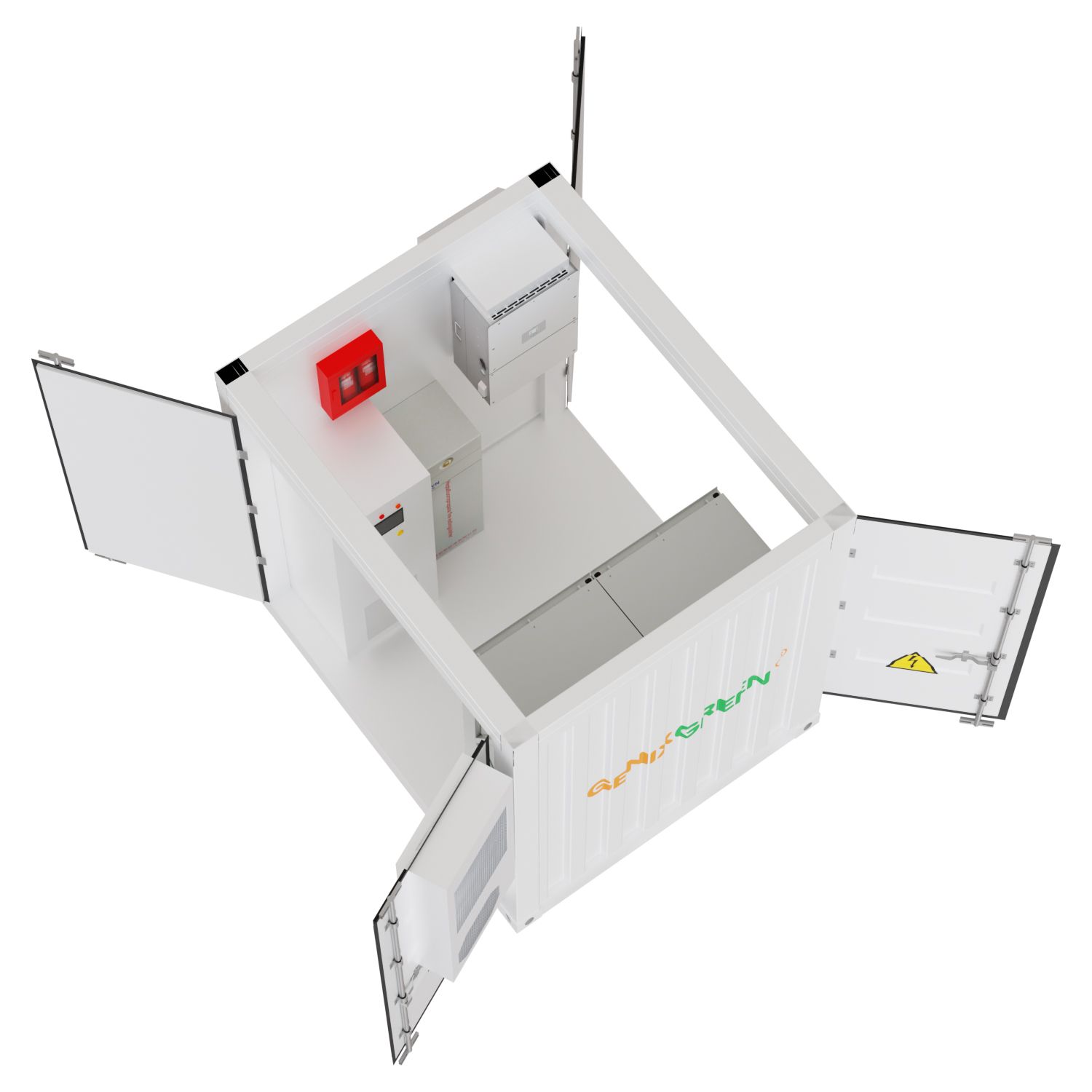

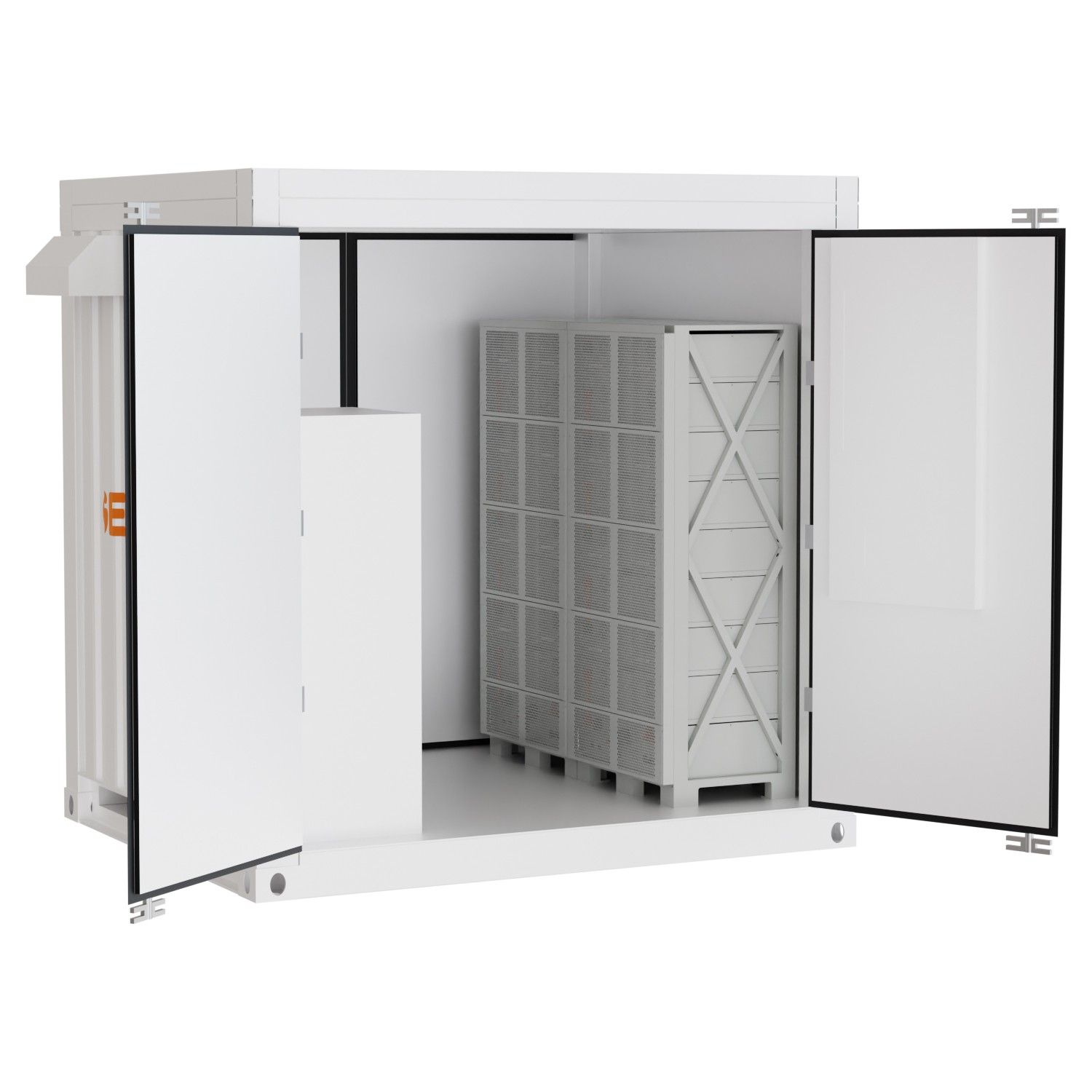

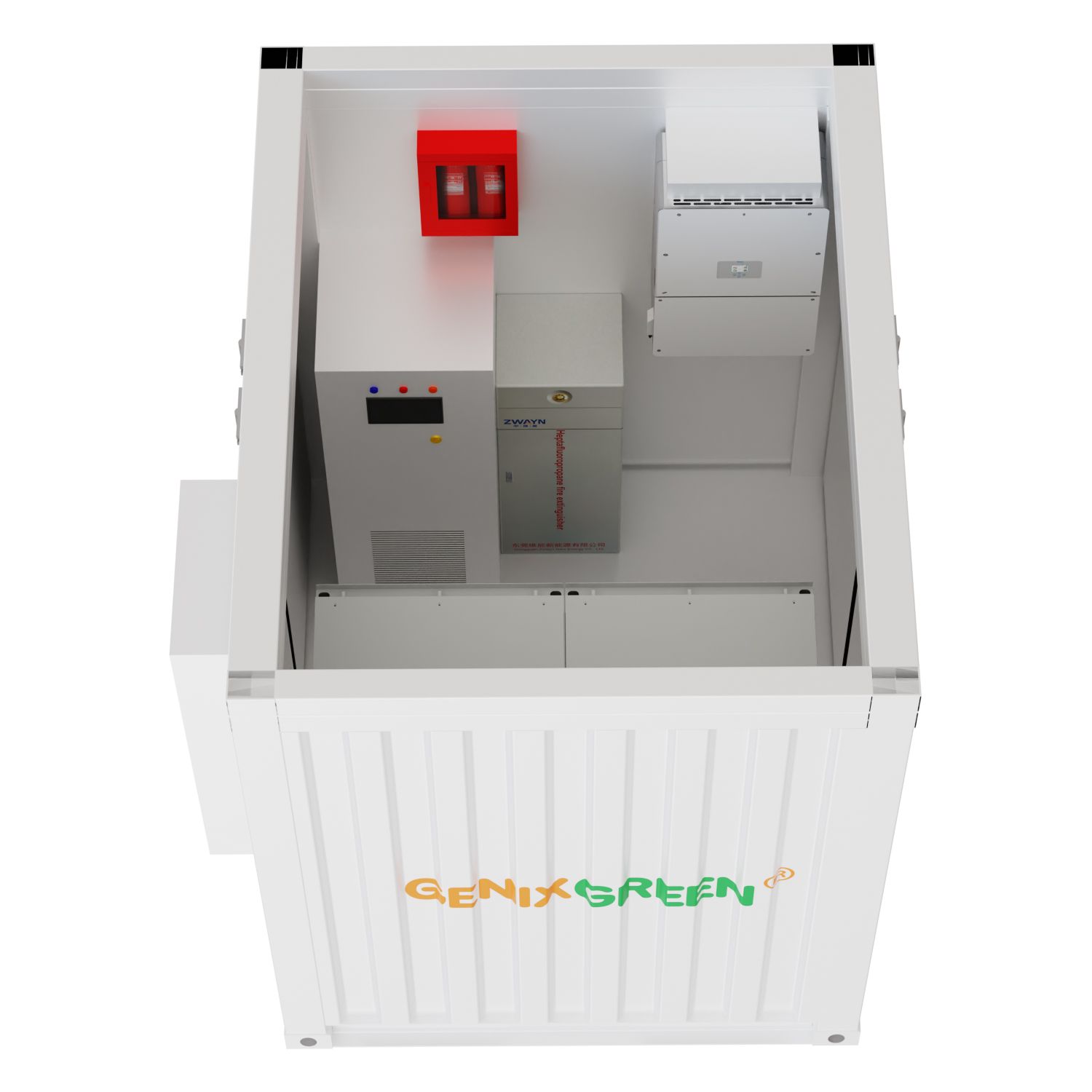

Highly integrated ESS for easy transportation and O&M All pre-assembled,no battery module handling on site
Various Application Solutions
Variety of applications are supported such as peak-shift,peak-cut, frequency requlation,etc
Safety and Reliable
Multi level battery protection layers formed by discreet standalone systems offer impeccable safety
| Battery System Side | ||
| Model | HV-614.4V 100AG*2P | |
| Rated voltage | 614.4V | |
| Rated capacity | 200ah(O.2C) | |
| Charge voltage | 681.6VDC(adjustable) | |
| Discharge voltage | 537.6VDC | |
| Rated working current | 100A(0.5C) | |
| Max working current | 160A(0.8C) | |
| Rated power | 61KW | |
| Max output power | 10OKW | |
| Recommended DoD | 90% | |
| Range of working temp. | -10~50°c | |
| Working humidity range | 5-85%RH | |
| Communication method | two way CAN2.0/RS485 | |
| Working indicator | Blue:Power;Green:Running:Red:Alarm protection | |
| Cycle life | 25士2°C,0.2C/0.2C,EOL70% ≥ 6000 | |
| Display method | 10 inch (LCD)/PC Software | |
| Protective function | Voltage protection | Over charge and over discharge |
| Temperature protection | over temperature range protection | |
| Current / Leakage protec | YES | |
| Dielectric withstand volta 1000vDc(not less than 1Go2) | ||
| Dimension | 2000*2500*2500MM | |
| Protection level | IP65 | |
| Product packaging | Container | |
| PCS DC Input Side | ||
| Voltage | 150-800VDC(614.4v) | |
| Max. charge power | 50+50A | |
| Max.discharge current | ||
| PCS pVInput side | ||
| Max. photovoltaic power | 65000W | |
| Max. photovoltaic voltage | 1000v | |
| Starting voltage | 150v | |
| MPPT range | 250-850vDC | |
| Full load Dc voltage | 450-850VDC | |
| Rated DC input | 600v | |
| pVinput current | 36A+36A+36A+36A | |
| pV input channels | 4 ways | |
| communication method | two way CAN2.0/RS485 | |
| PCs-AC output side | ||
| Rated ACpower | 5oKW | |
| Max.output power | 55KW | |
| output rated current | 75.8A | |
| Max.output current | 83.3A | |
| off-grid peak power | 1.5 times the rated power,10S | |
| Generator input/smart load/AC coupling current (A) | 75.8A | |
| 150A | ||
| 75.8A | ||
| power factor | 0.8 lead/0.8 lag | |
| Output Frequency/Voltage | 50/60Hz;3L/N/PE 220/380,230/40OVac | |
| AC Phase | Three Phase | |
| Highest efficiency | 0.976 | |
| Rated efficiency | 0.97 | |
| MPPT efficiency | 0.999 | |
| Protective function | PV input lightning protection, anti-islanding protection, PV string input reverse polarity protection, insulation resistance detection, residual current monitoring device,output overcurrent protection, output short circuit protection,surge protection | |
| output voltage protection | Dc Type l1/AC Type lll | |
| Grid certification | CEl0-21,VDE-AR-N4105,NRS 097,IEC 62116,IEC61727,G99,698,VDE 0126-1-1,RD1699,C10-11 | |
| Safety certificate | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | |
| Working temp.range | -40~60°C,>45℃ Power down | |
| Communication method | RS485/CAN | |
