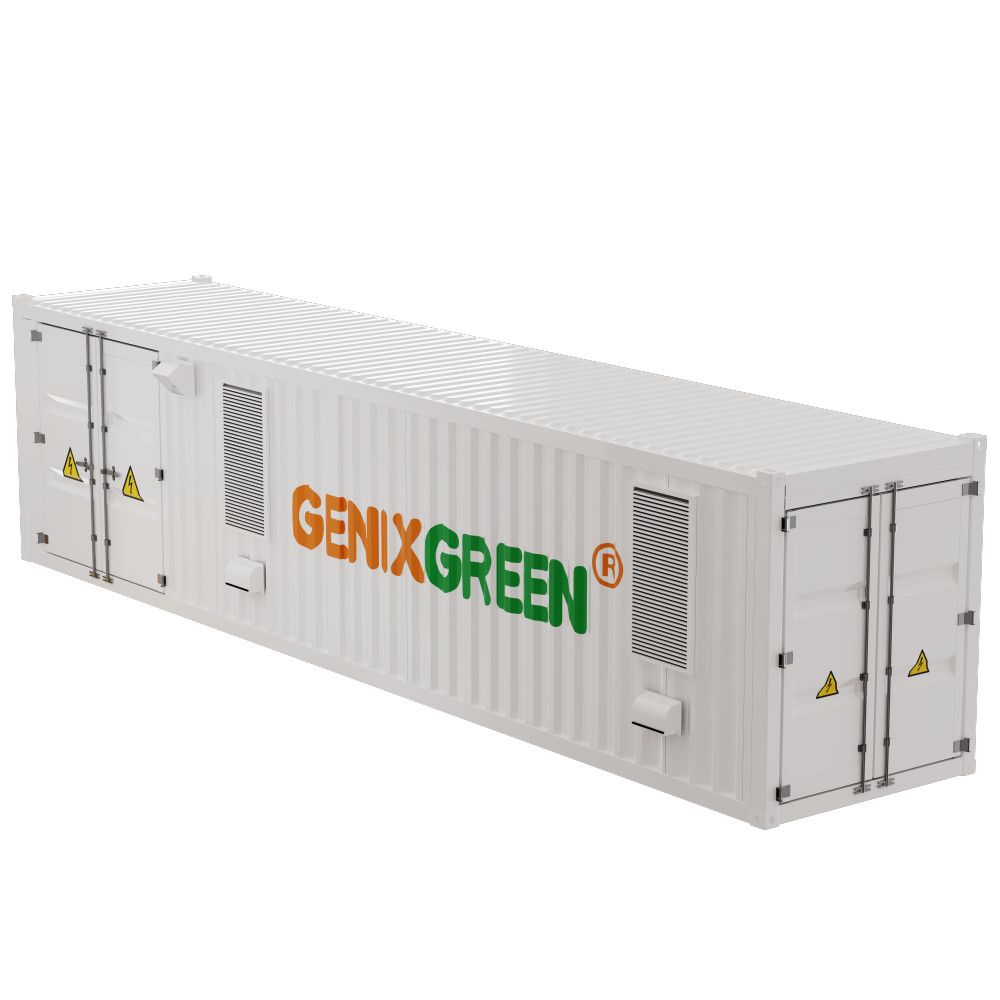

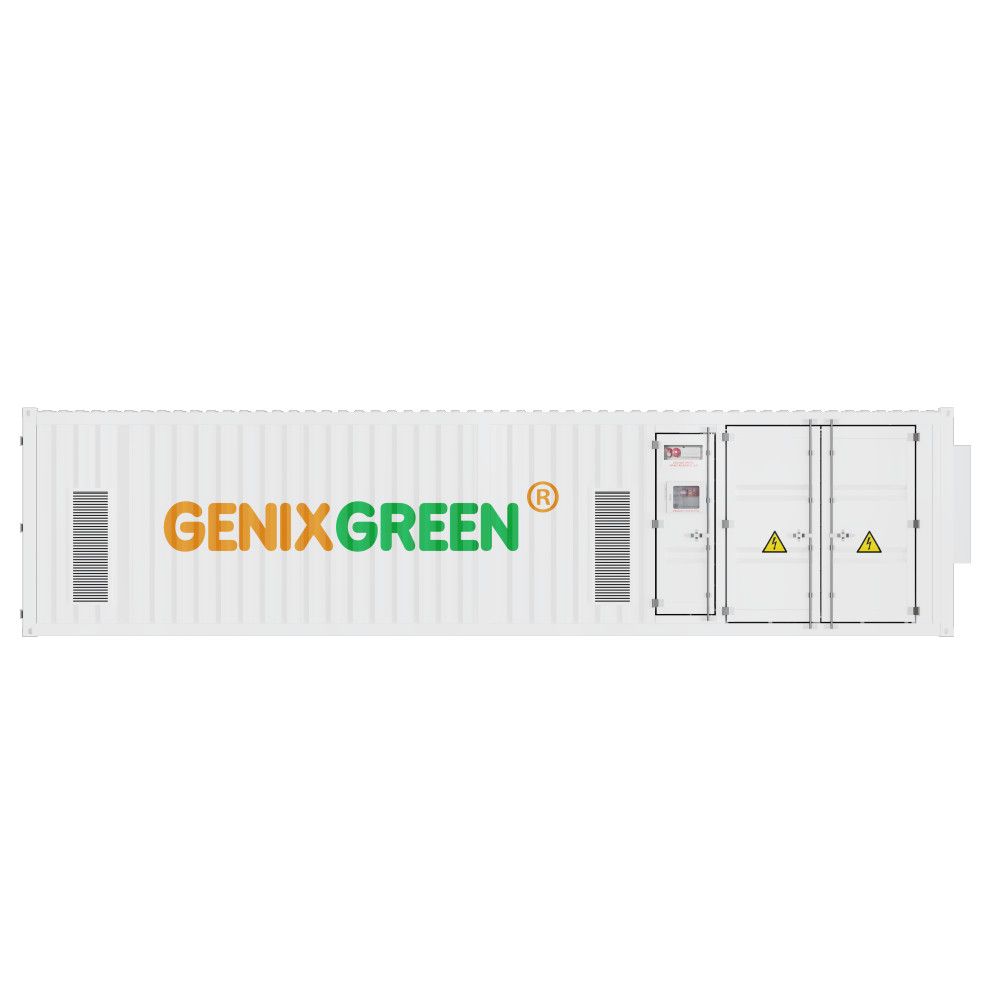

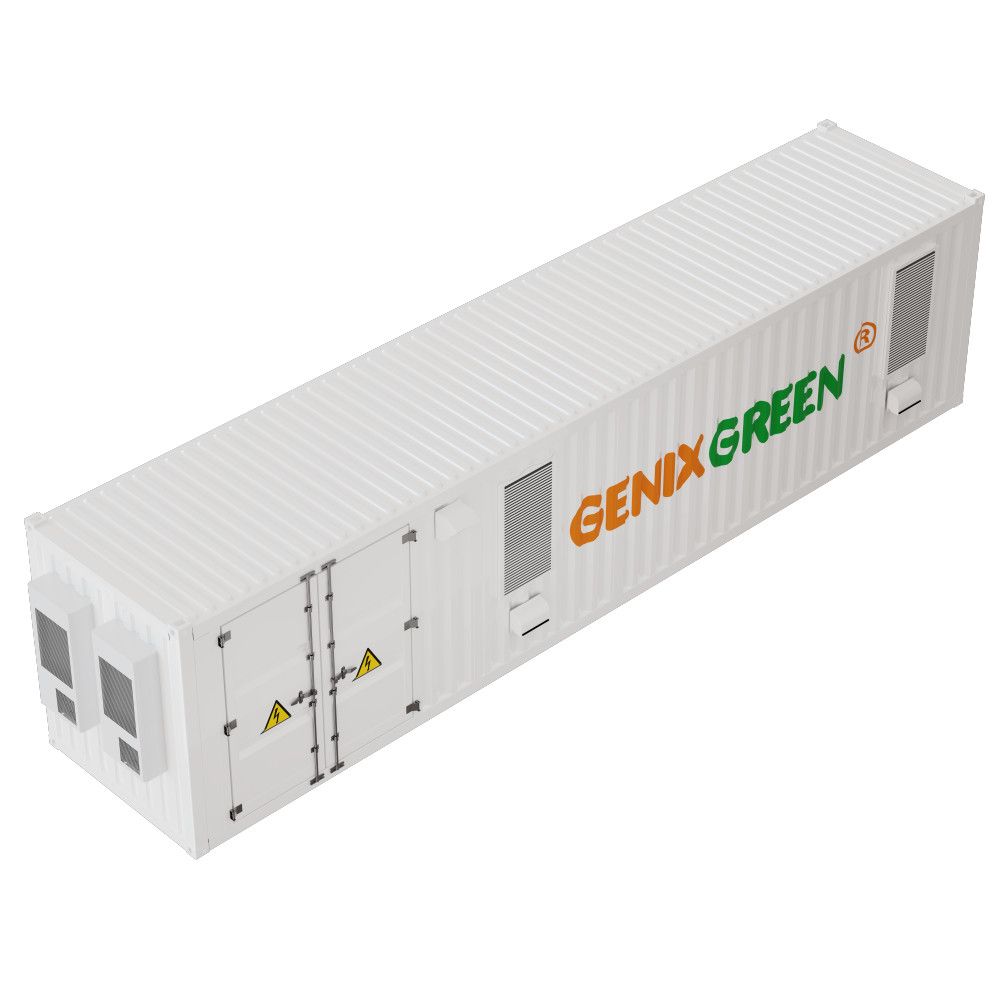

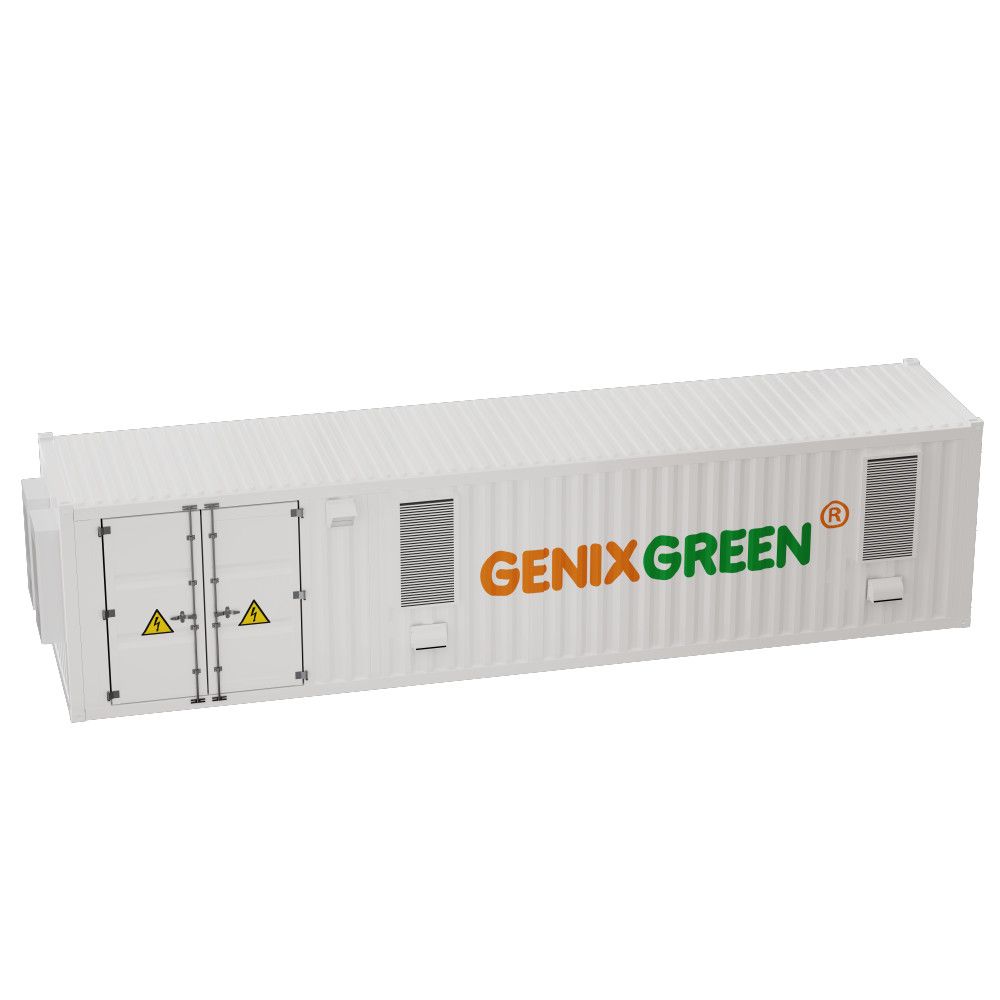

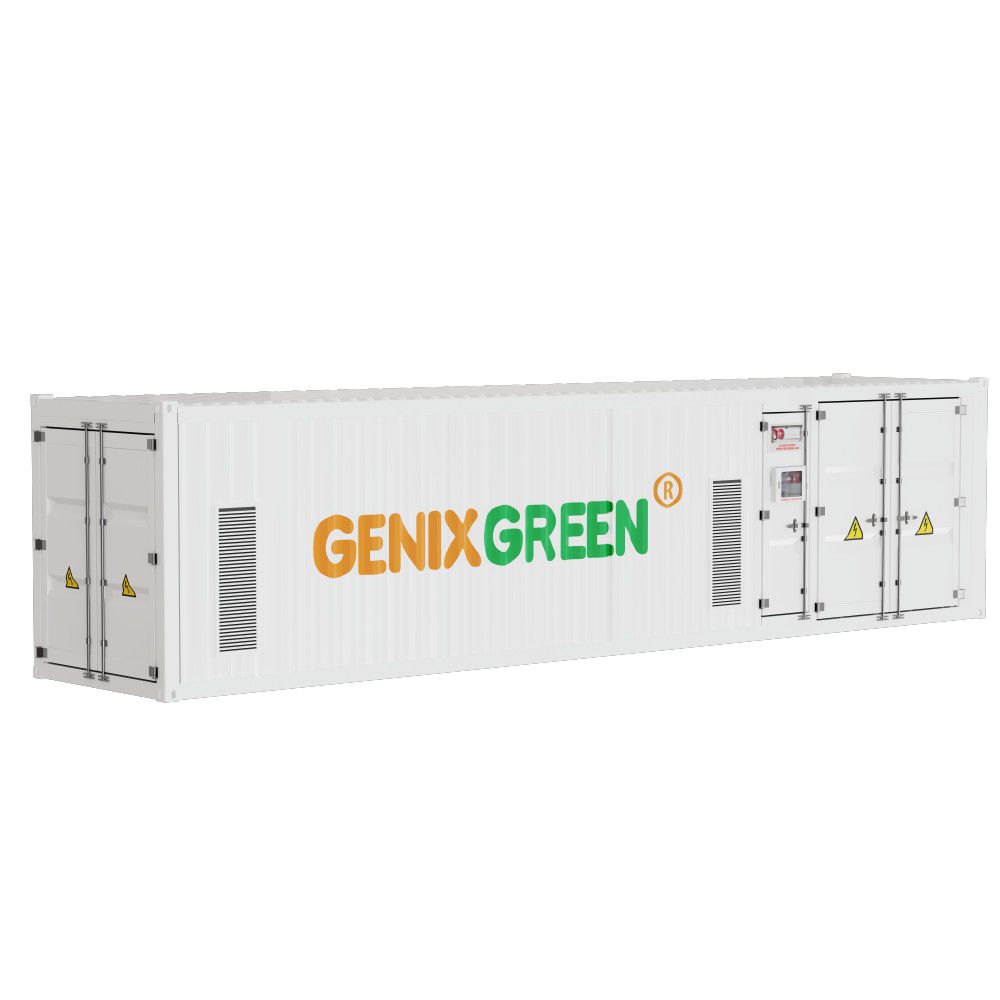

Titan -2.15MWh+1MW 40 Feet Commercial & Industrial BESS

High Efficiency 97.6%

With cooling system ensures higher efficiency

and longer battery cycle life

Easy Installation

Highly integrated ESS for easy transportation and O&M

All pre-assembled, no battery module handling on site

Various Application Solutions

Variety of applications are supported such as

peak-shift, peak-cut, frequency regulation, etc.

Safety and Reliable

Multi level battery protection layers formed by

discreet standalone systems offer impeccable safety

Inquire Now Next Product

Product Description

Titan -2.15MWh+1MW 40 Feet Commercial & Industrial BESS

Model No	Titan-2.15MWh+1MW
Battery Side Parameters
Cell Parameters	3.2V280Ah LFP
Pack Parameters	1P16S
Battery Cluster	1P16S*15
System Combination	251P240S
Rated Energy	2.15mWh
Rated Voltage	768V
Operating Voltage Range	720-850V
Rated Multiplier	0.6P
Photovoltaic Side Parameters
Rated Voltage	600V
Rated Current	100A
Mppt Maximum Range	420-850V
Mppt Rated Power	50KW
Number Of Mppt Channels	2*10 AC Side Parameters
Output Power	1MW
Rated Voltage	380/400V 3W+N+PE
Rated Frequency	50HZ
Response Time	20ms
Conversion Efficiency 98%
System Parameters
Operating Temperature Range Charge:	0~55C / Discharge: -10~60℃C
Operating Humidity Range	5-85%RH
Depth Of Discharge	80-90%
Cycle Life	25±2℃/0.2C/80% DOD≥8000
Protection Class IP55
System Cycle Efficiency	≥90%@AC
Cooling Method Air cooling	Fire-fighting System Perfluorohexanone
Overall Dimension	20FT
Product Certificate	Cell UL1973/IEC62619/UL9540A/TUV/CE
1250A DC Battery Combiner Cabinet
Model No.	1500V DC 1250A*2 PCS
Maximum Working Voltage	1000V
Maximum Charge/discharge Current	1250A
PCS Power	500KW-1000KW
Communication Mode	TCP/485/CAN/232
Operating Temperature Range	Charging: 0~55℃/ Discharging:-10~60℃
Operating Humidity Range	5-85%RH
Protection Class	IP20
Fire Fighting System	Aerosol
Overall Dimension	8006002261mm
