High Efficiency 97.6%
With cooling system ensures higher efficiency and longer battery cvcle life
EasyInstallation

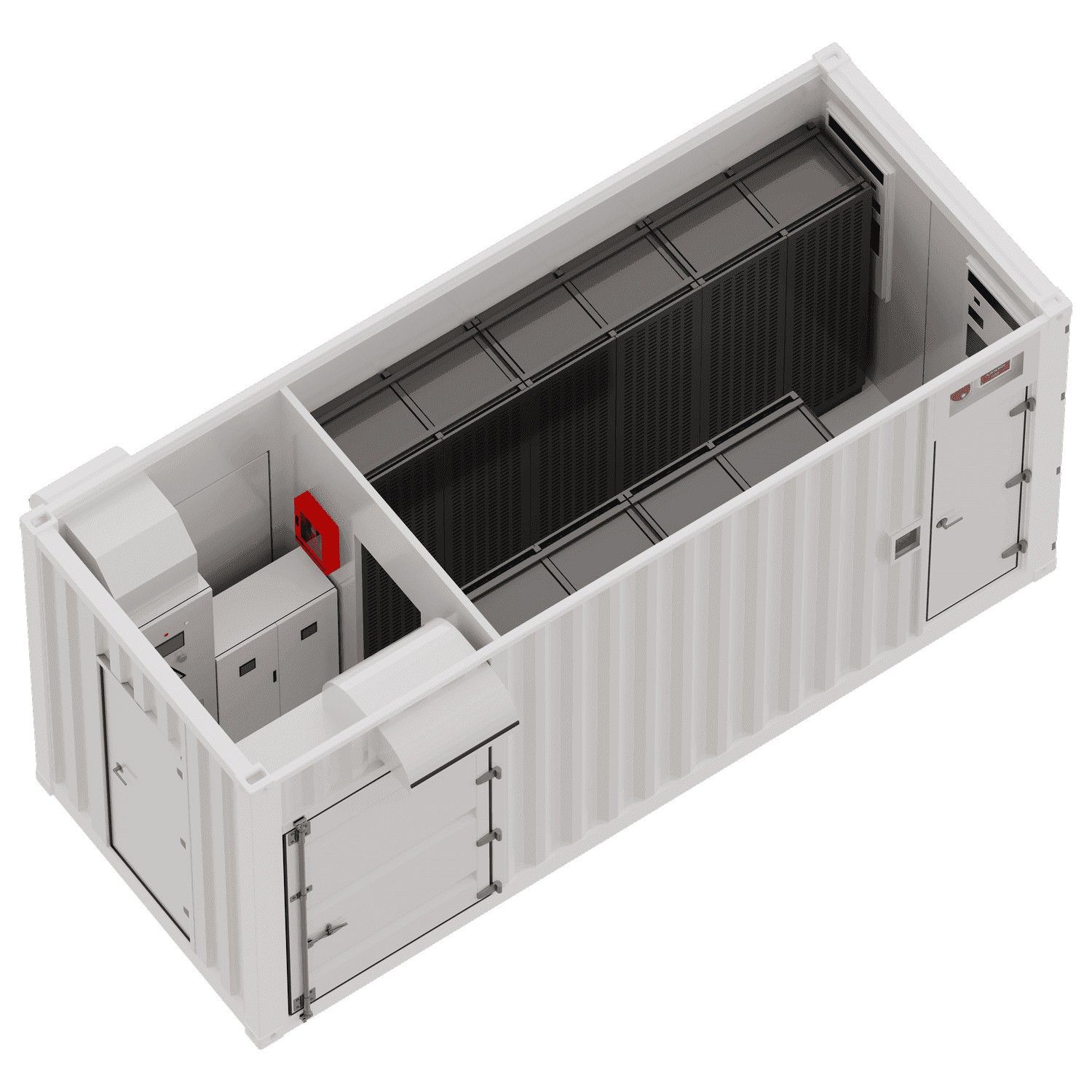

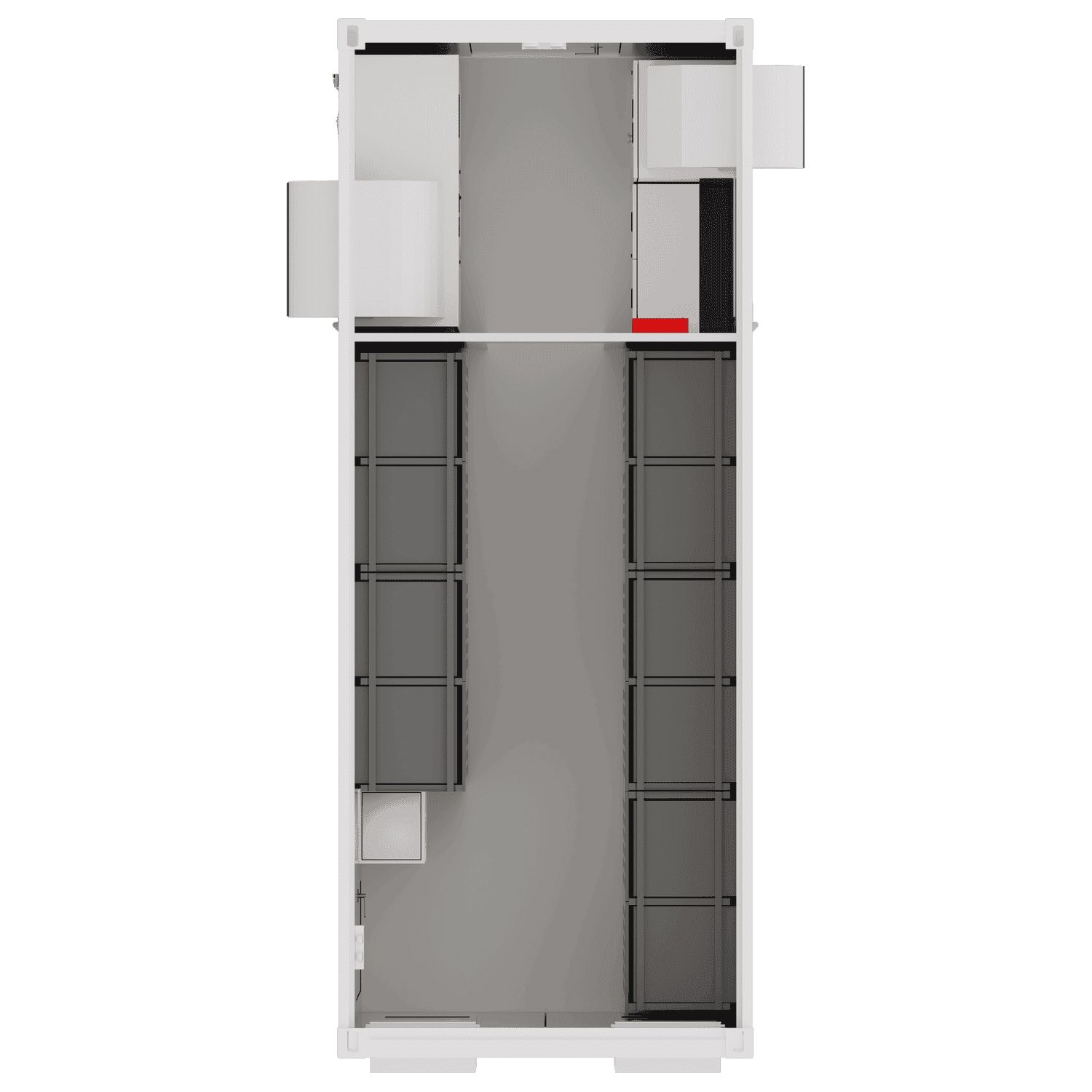

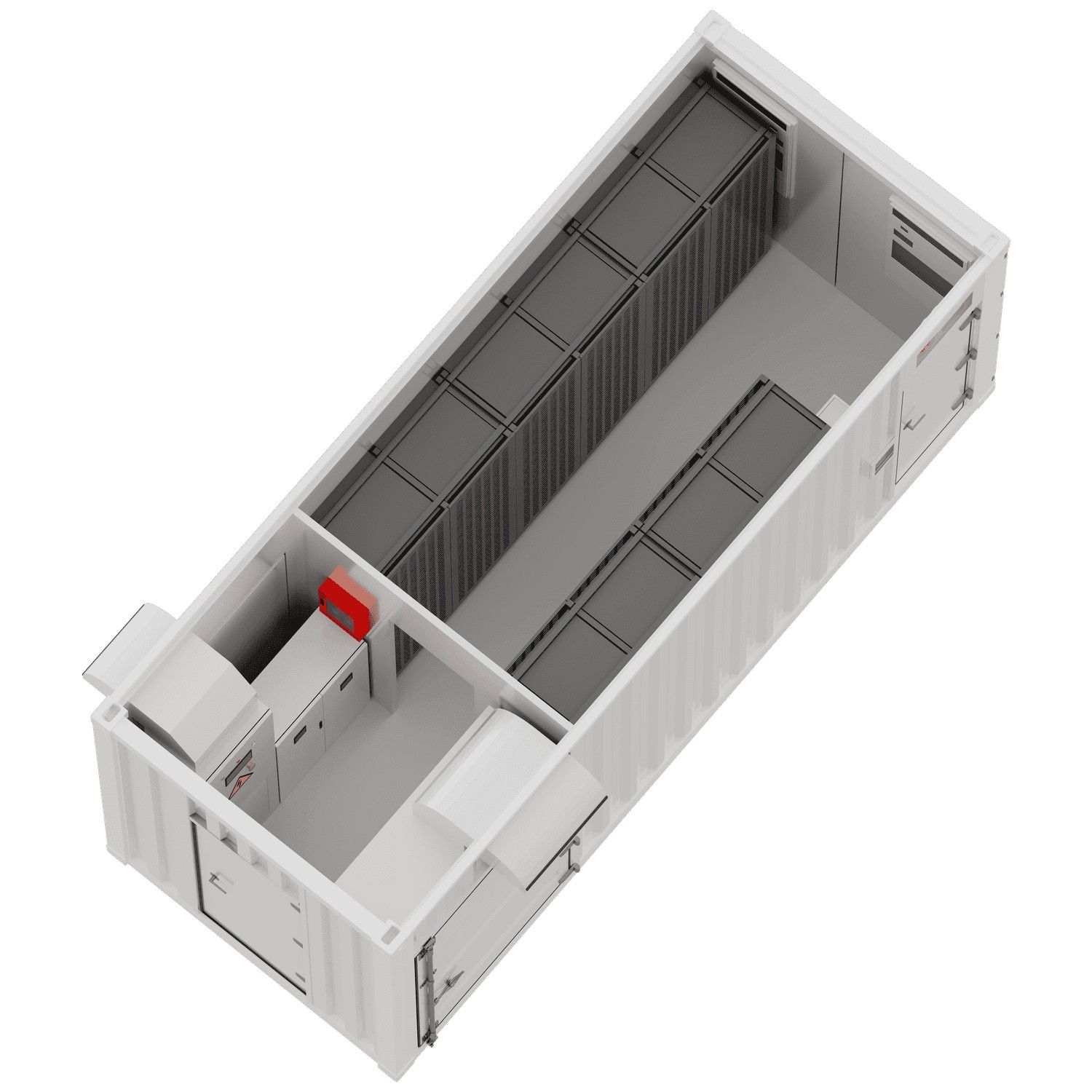

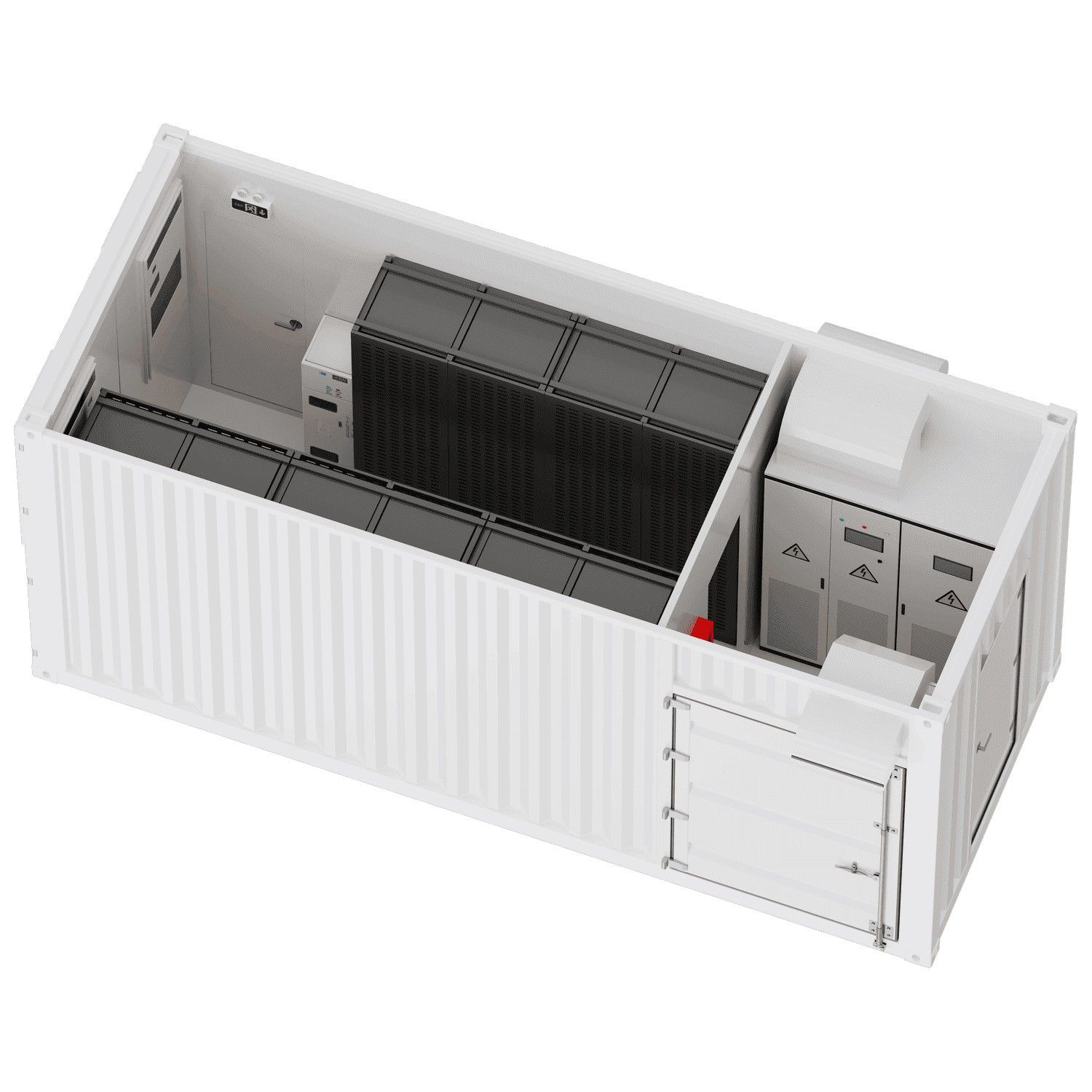

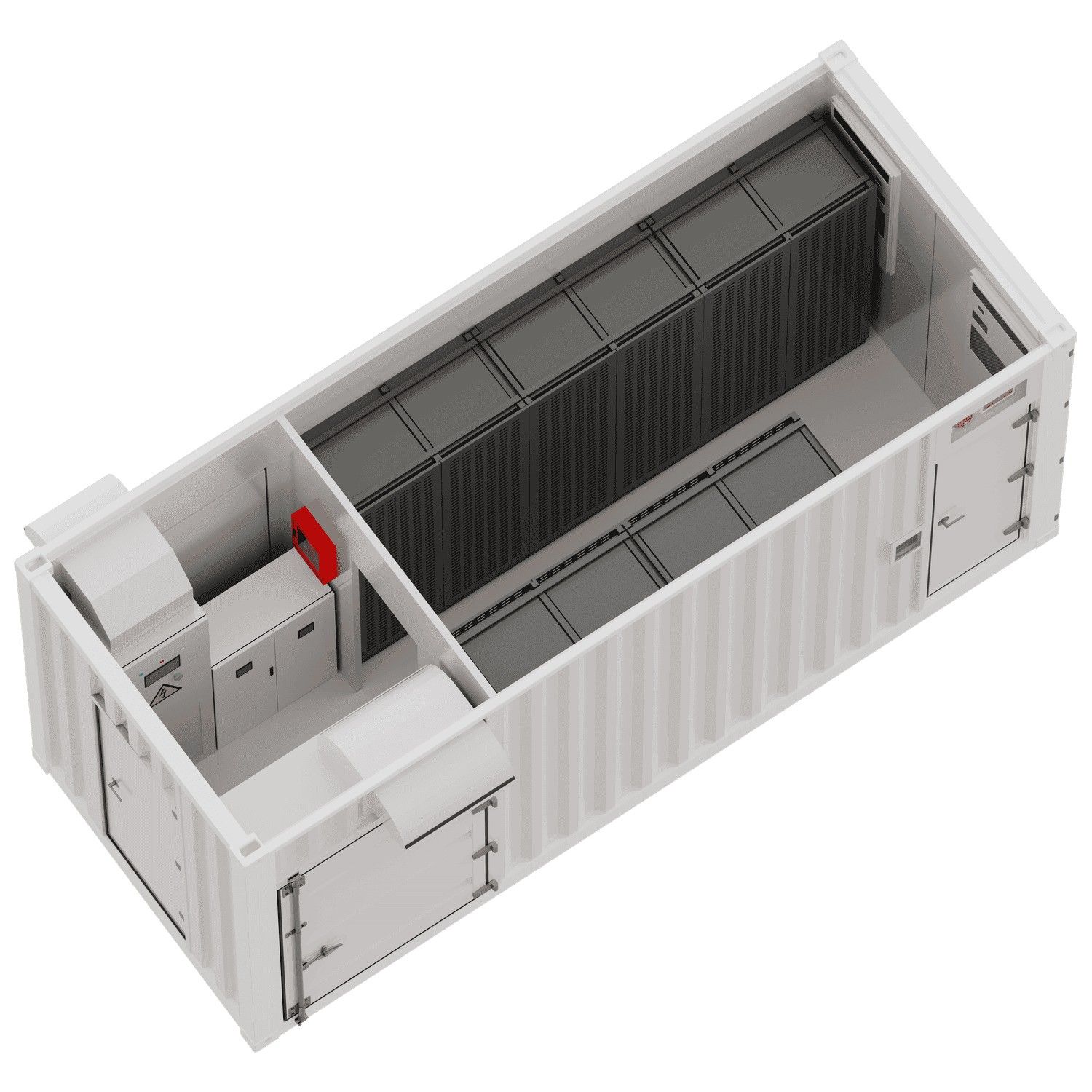

Highly integrated ESS for easy transportation and O&M All pre-assembled,no battery module handling on site
Various Application Solutions
Variety of applications are supported such as peak-shift,peak-cut, frequency requlation,etc
Safety and Reliable
Multi level battery protection layers formed by discreet standalone systems offer impeccable safety
Battery System Side | ||
Model | HV-768V280AH*3P | |
Rated voltage | 768V | |
Rated capacity | 840ah (0.2C) | |
Charge voltage | 852vDC(adjustable) | |
Discharge voltage | 672VDC | |
Rated working current | 300A(0.35C) | |
Max. working current | 420A(0.5C) | |
Rated power | 252KW | |
Max.output power | 322KW | |
Recommended DoD | 90% | |
Range of working temp. | -10~50°C | |
Working humidity range | 5-85%RH | |
Communication method | two way CAN2.0/RS485 | |
Working indicator | Blue:Power;Green:Running, Red:Alarm protection | |
cycle life | 25±2°C,0.2C/0.2C,EOL70% ≥ 6000 | |
Display method | 10 inch (LcD)/PC Software | |
Protective function | Voltage protection | Over charge and over discharge |
Temperature protection | Over temperature range protection | |
current / Leakage protec | YES | |
Dielectric withstand volta | 1000vDC(not less than 1GQ) | |

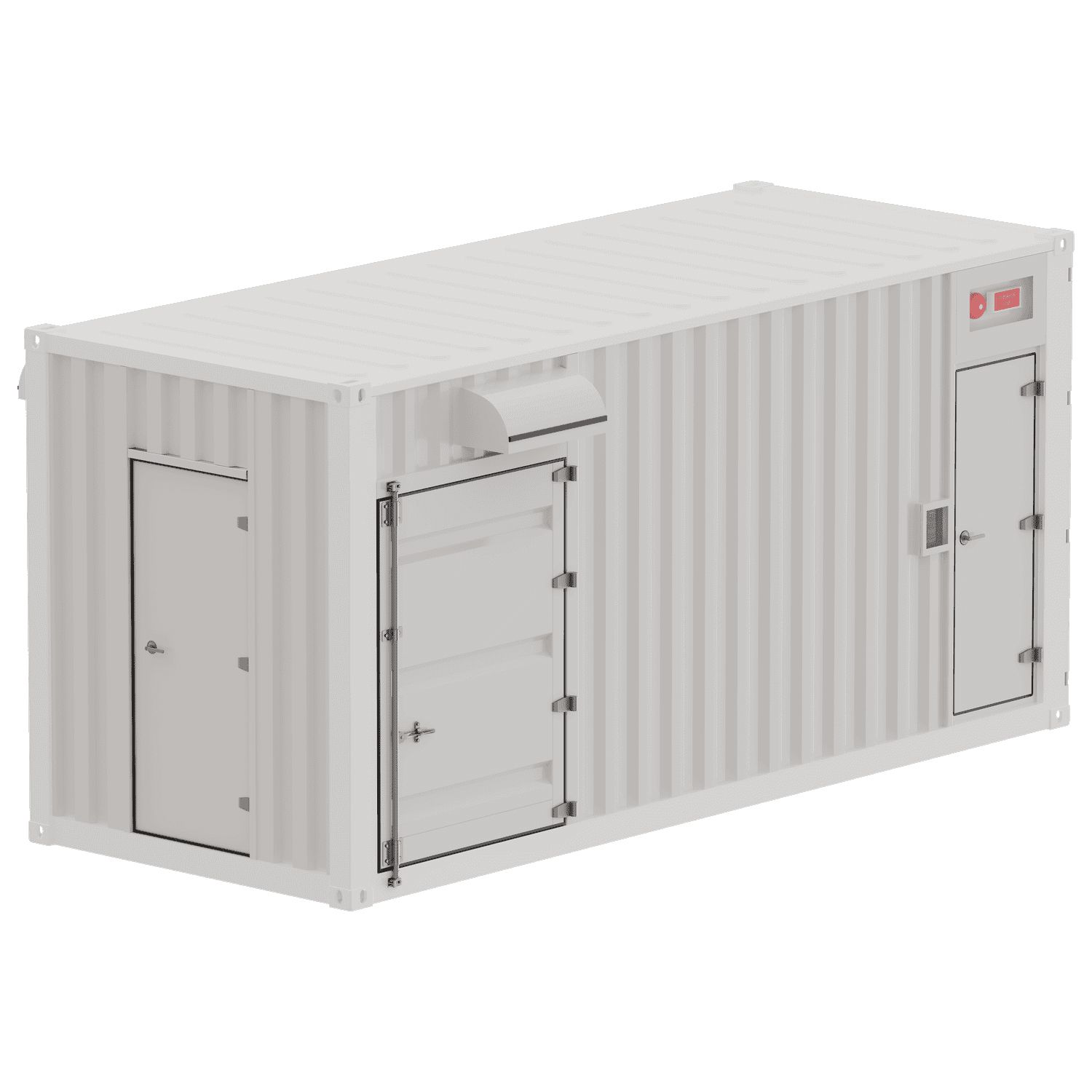

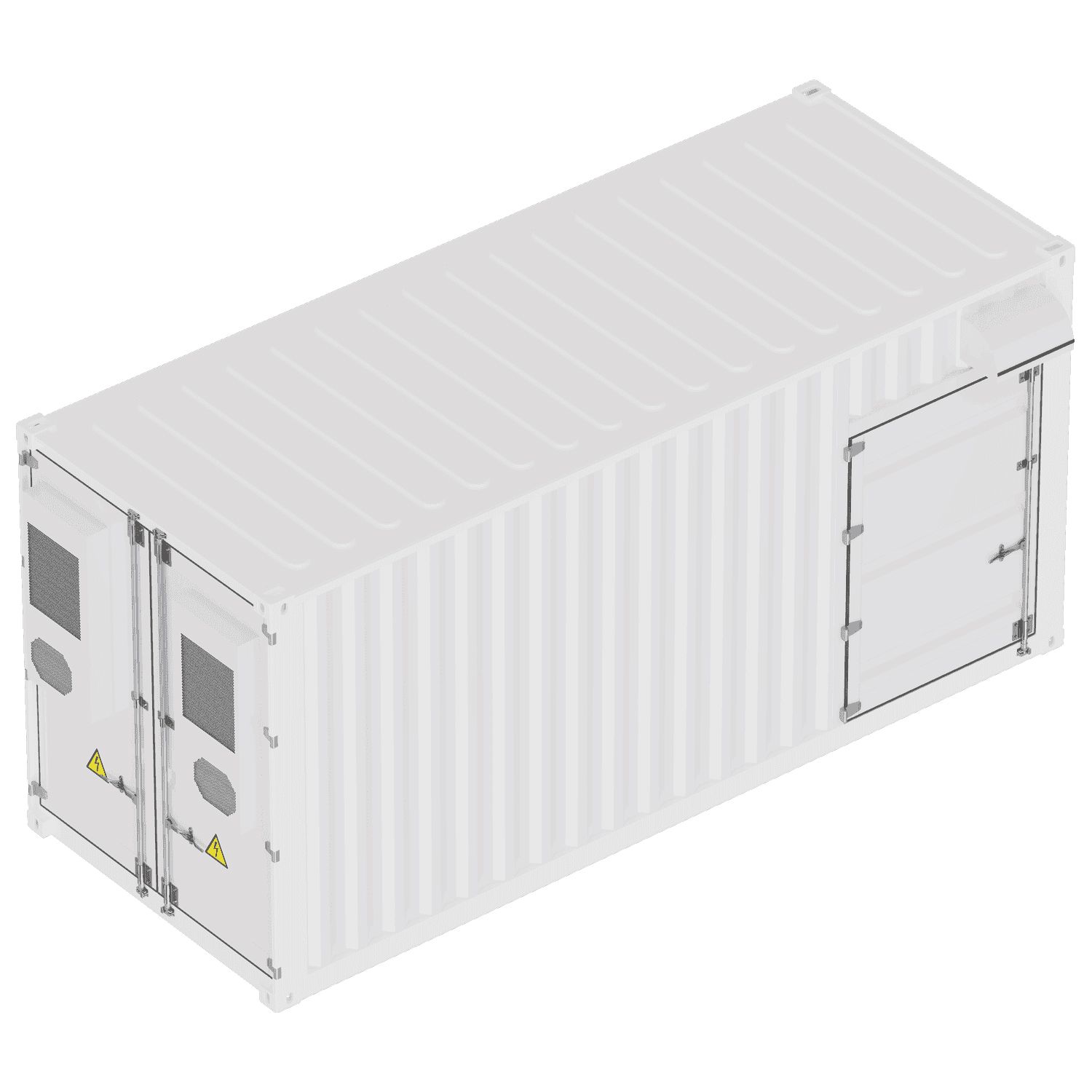

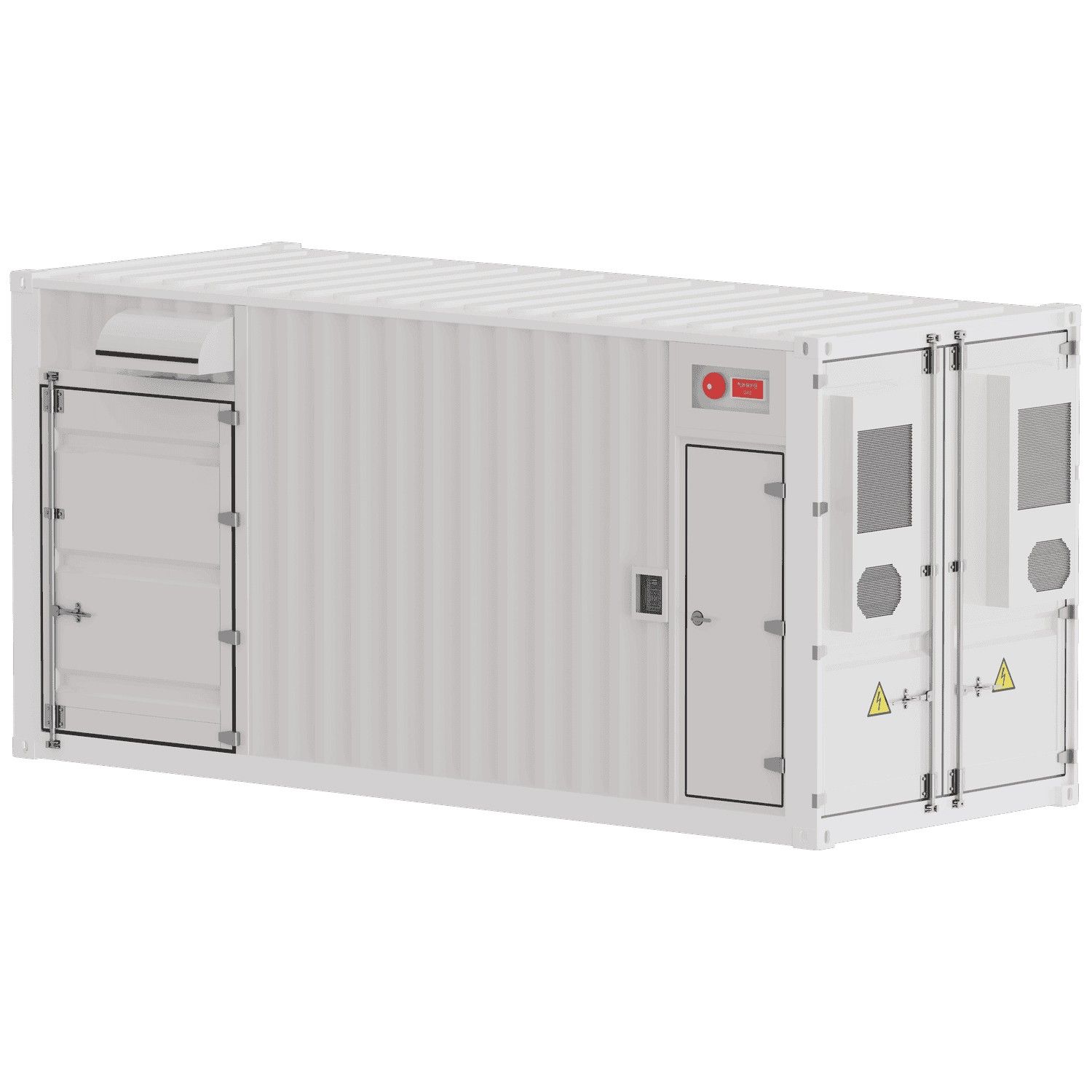

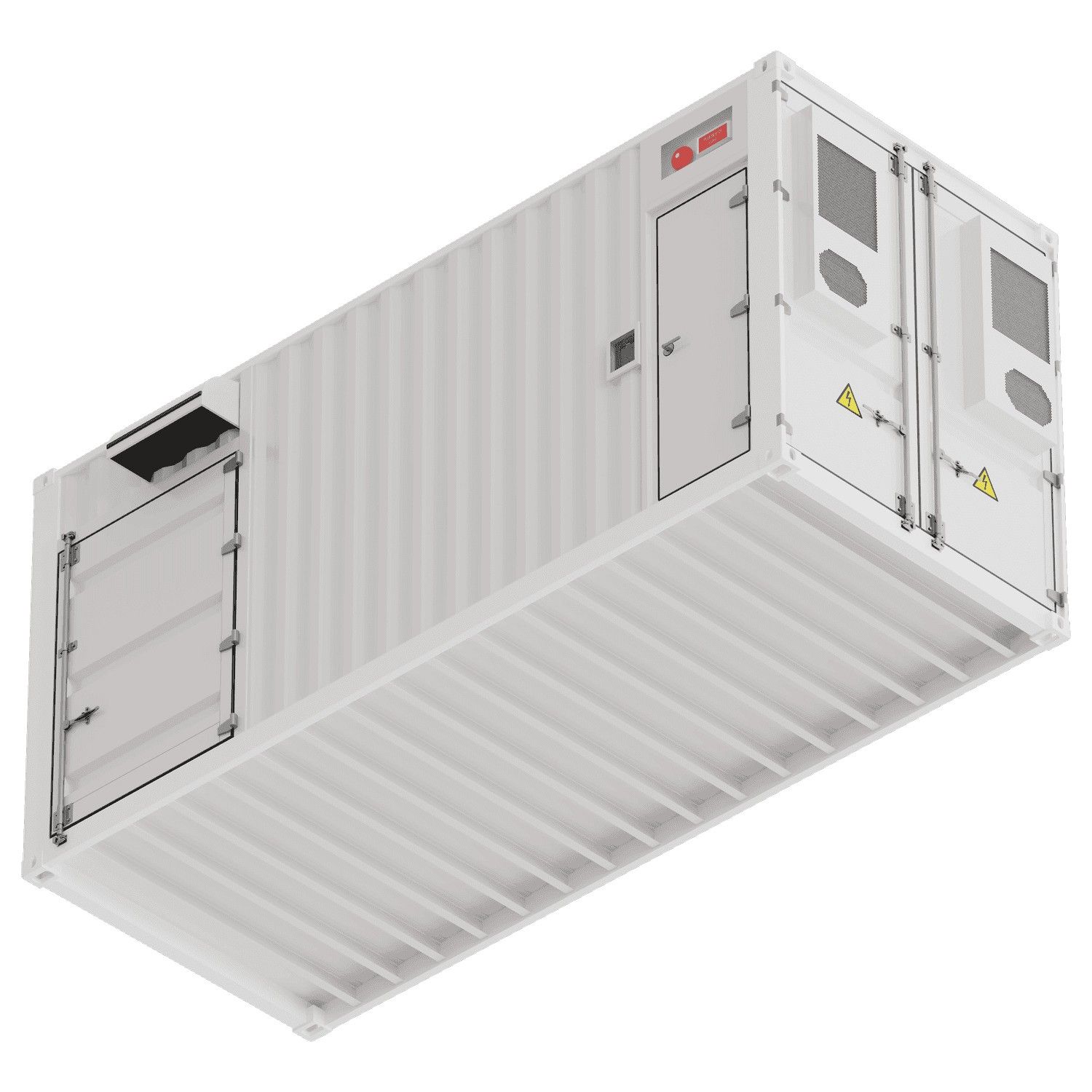

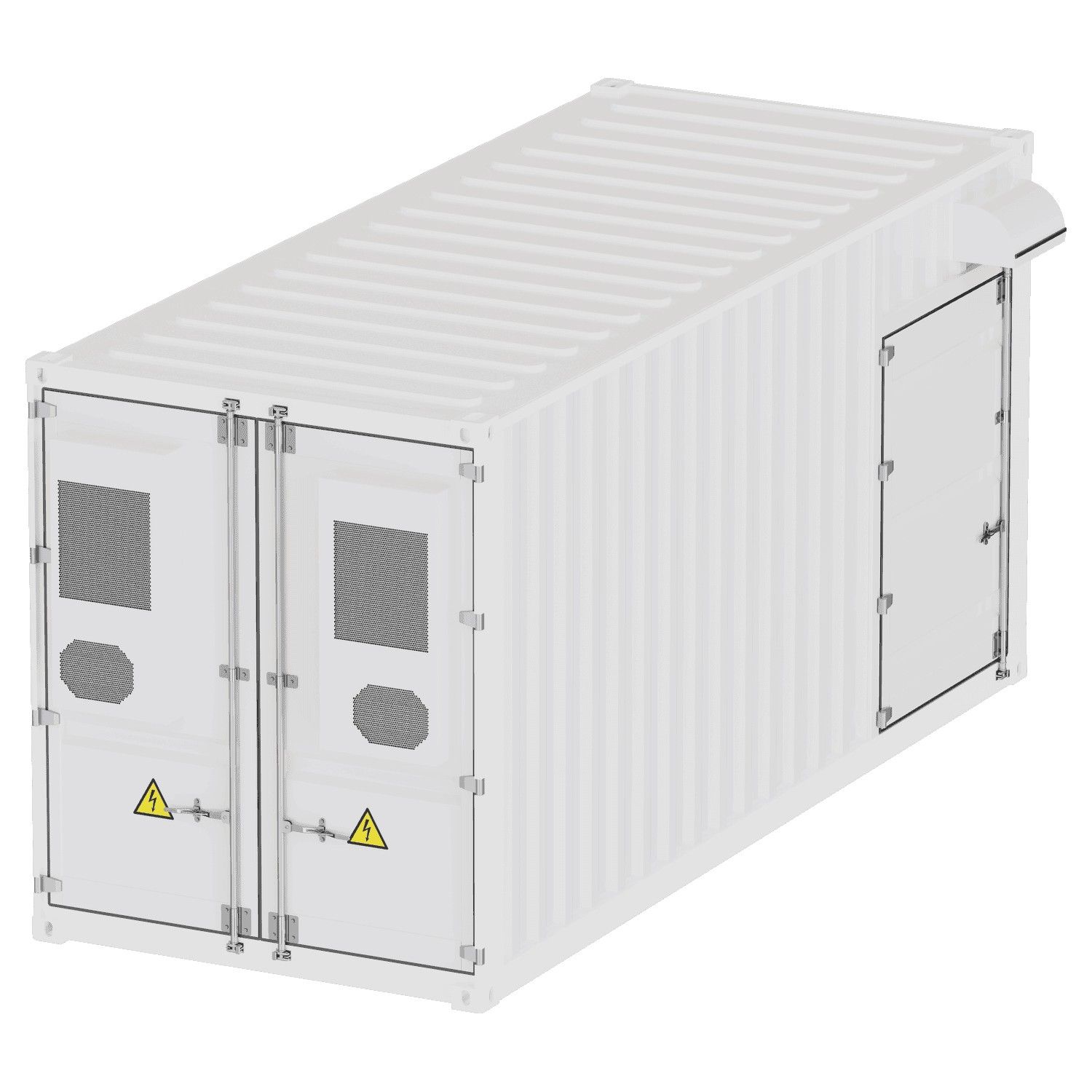

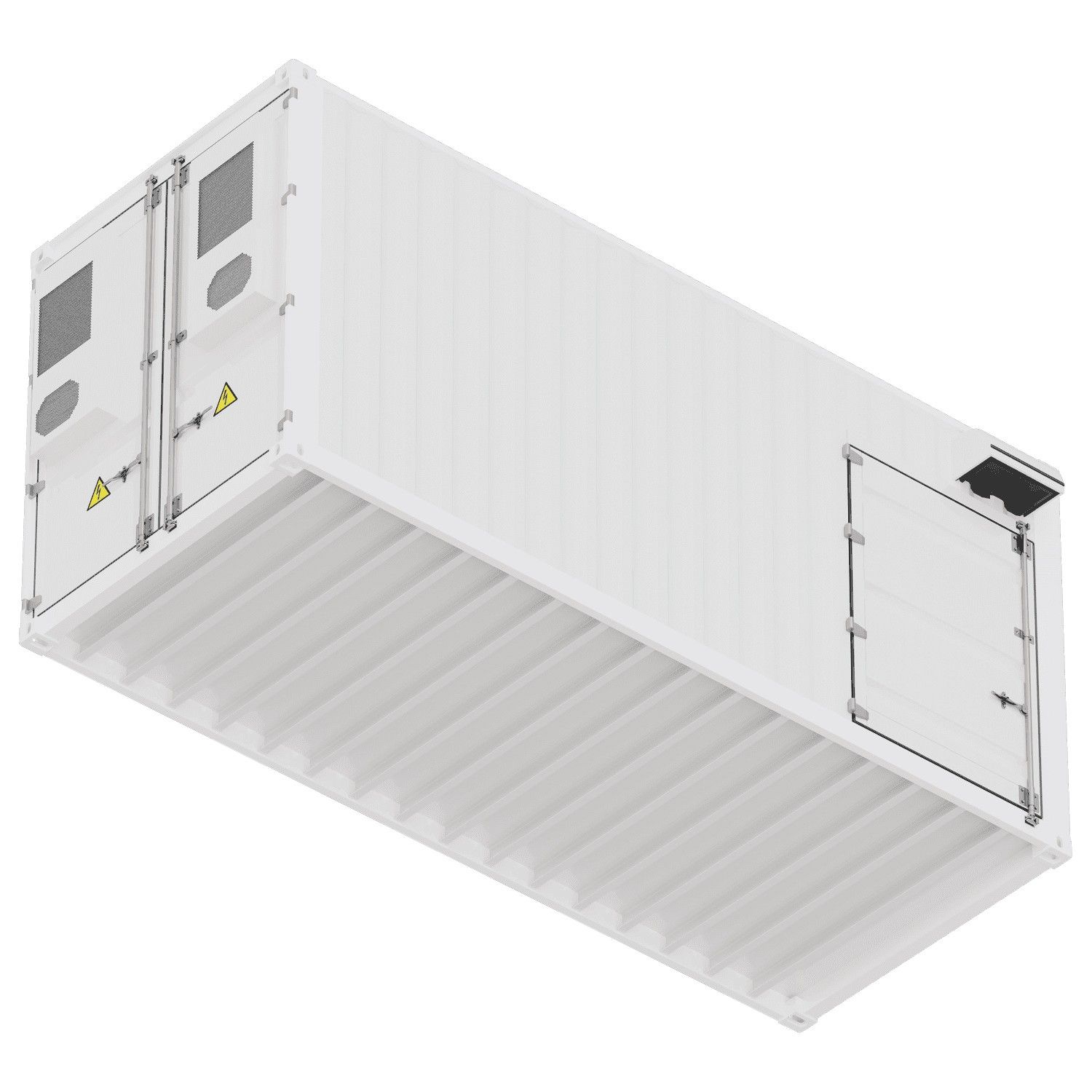

Dimension | 20 feet container | |
Protection level | lP65 | |
Product packaging | Container | |
Pcs DC Input Side | ||
Voltage | 420-850VDc(768Vv) | |
Max.charge power | 250KW | |
Max.discharge current | ||
pCs-pV Input side | ||
Max. photovoltaic power | 360KW | |
Max.photovoltaic voltage | 1000v | |
Starting voltage | 150v | |
MPPT range | 250-850vDc | |
Full load DC voltage | 450-850VDc | |
Rated DC input | 600v | |
PV input current | single way 36A | |
PV input channels | 10 ways | |
communication method | two way CAN2.0/RS485 | |
pcs-AC output side (off-grid) | ||
Rated AC power | 275KVA | |
Active power | 250KW | |
Rated voltage | 400VAC | |
Rated current | 361A | |
THDU | <2% linear | |
Rated frequency | 50/60Hz | |
Overload capacity | 110% long-term | |
pcsAC side (On-grid) | ||
Rated AC power | 275KVA | |
Active power | 100KW | |
Rated voltage | 250KW | |
rated current | 361A | |
voltage range | 320-460VAC | |
rated frequency | 50/60Hz | |
THDU | <3% linear | |
power factor | Standard: 1.0; lead 0.8/lag 0.8 | |
AC Phase | Three- phase four- wire + ground wire (3W+N+PE) | |
isolation transformer | 0.0068 | |
Grid certification | TUV,CE | |
Working temp. range | -40~60°C,>45℃ Power down | |
Communication method | RS485/CAN |
