High Efficiency 97.6%
With cooling system ensures higher efficiency and longer battery cvcle life
EasyInstallation

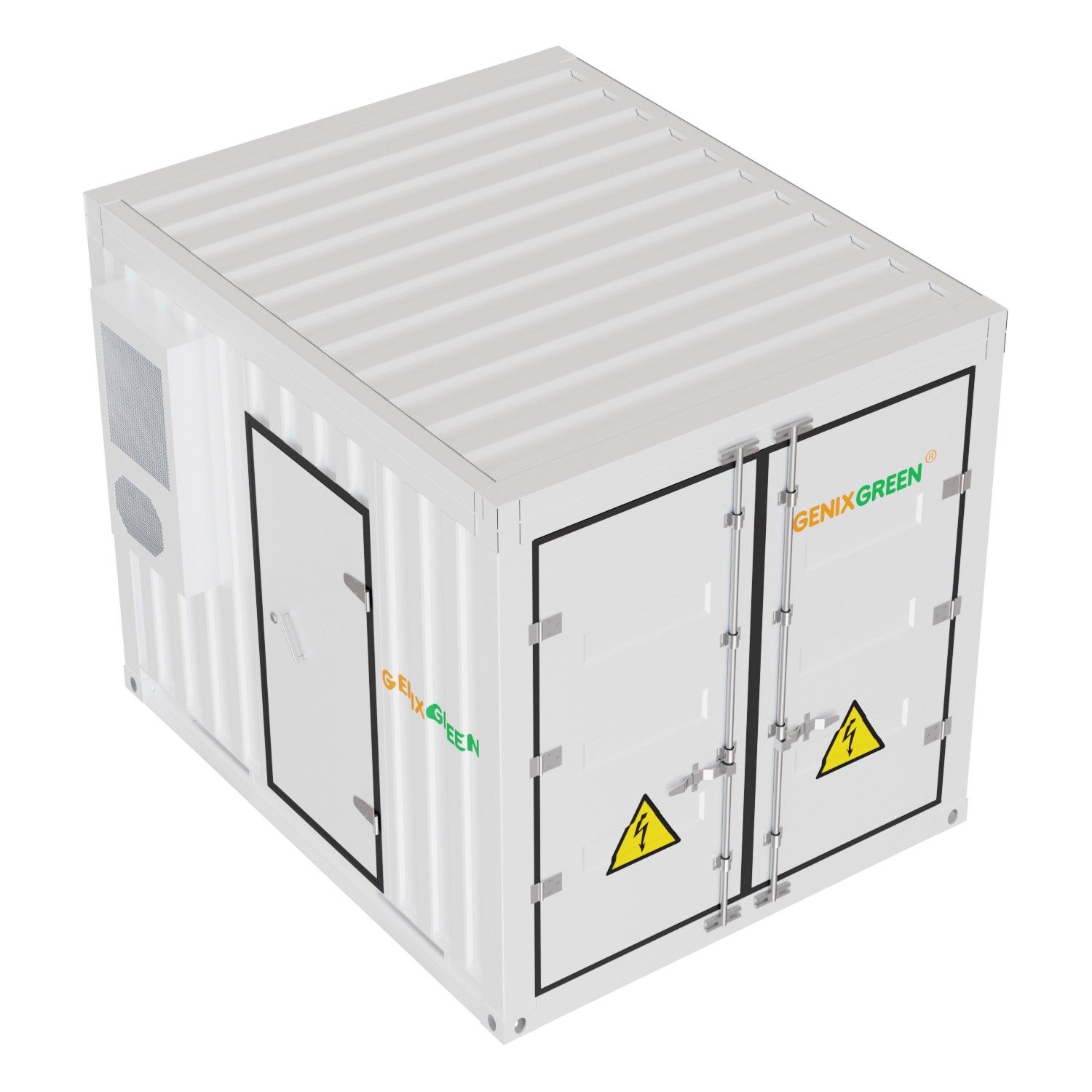

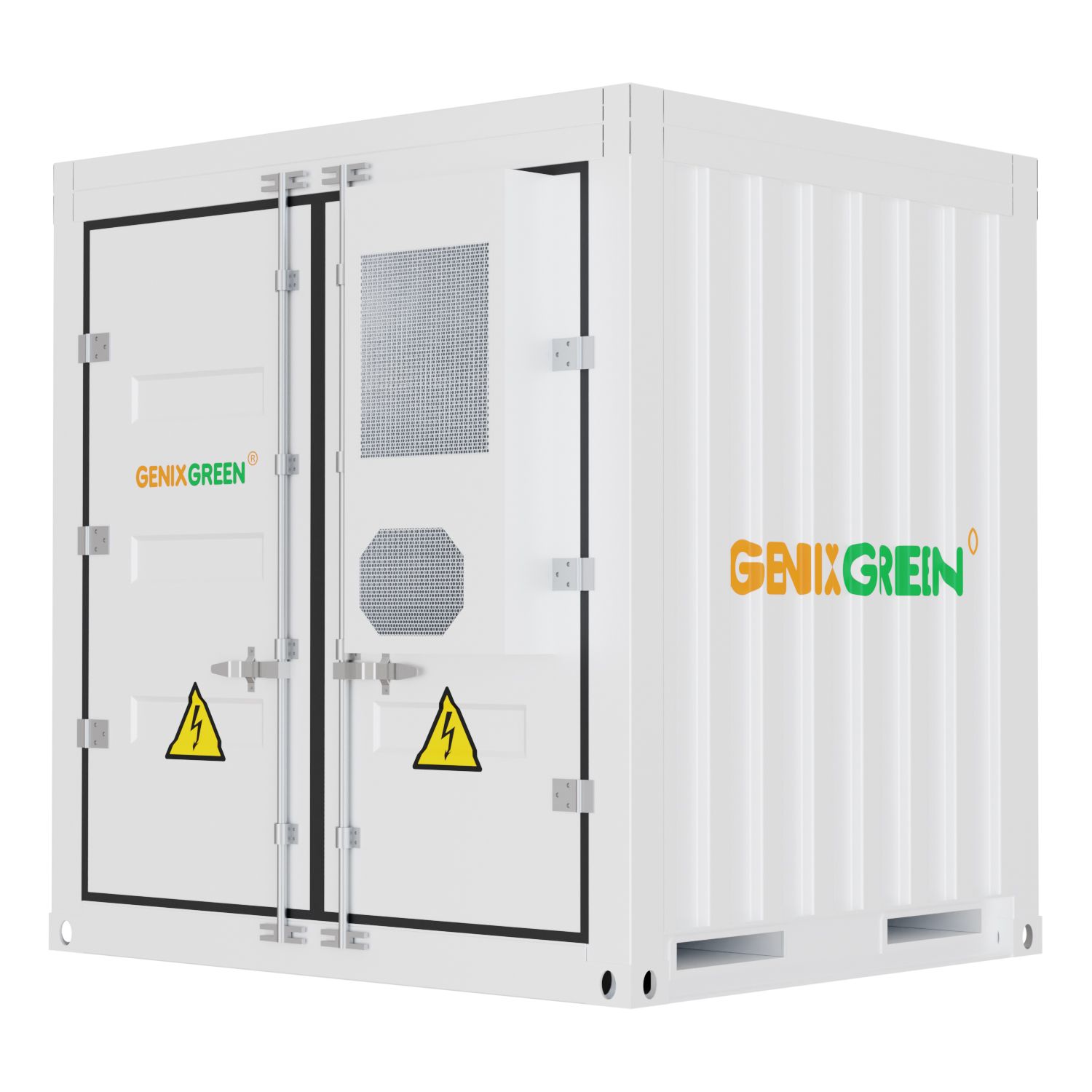

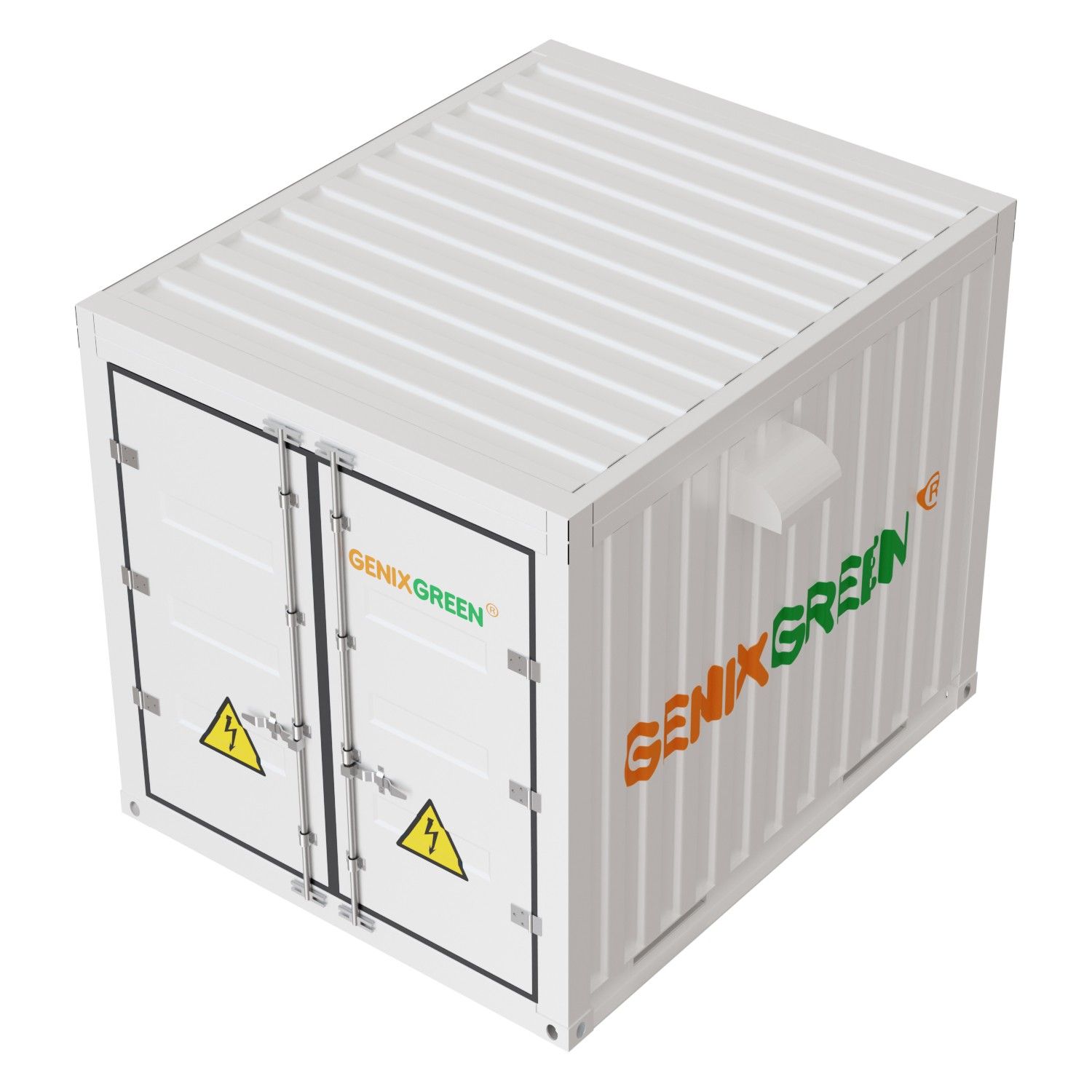

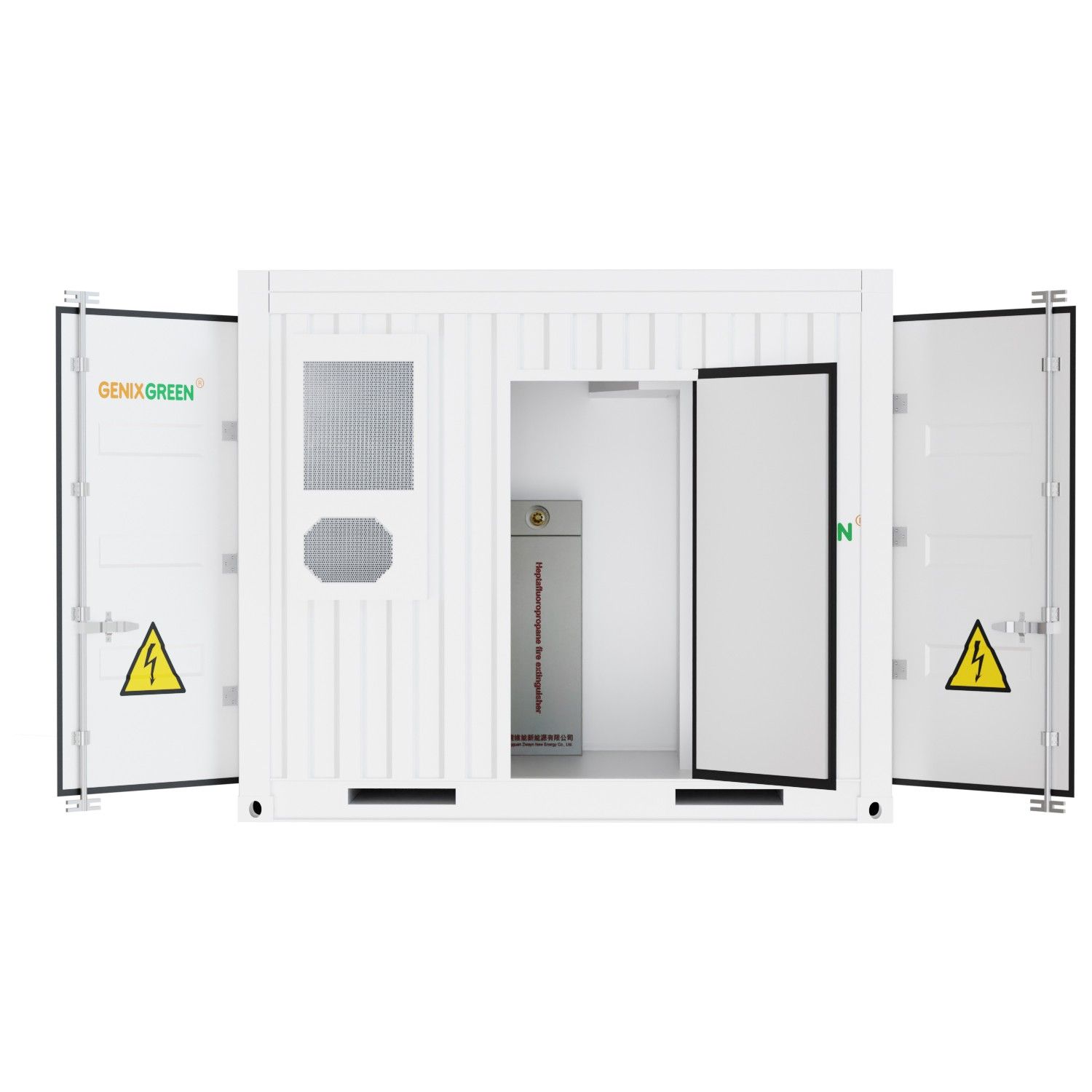

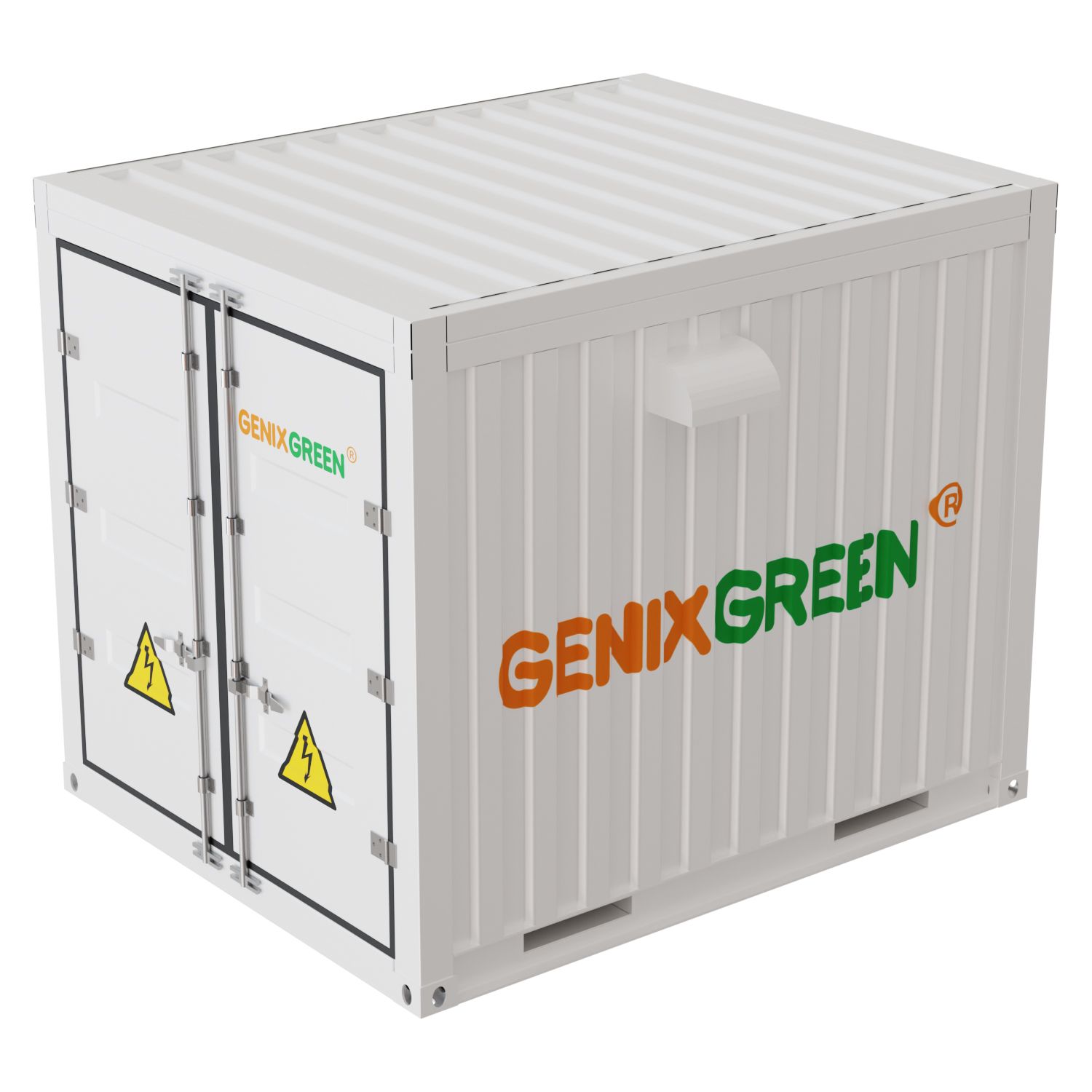

Highly integrated ESS for easy transportation and O&M All pre-assembled,no battery module handling on site
Various Application Solutions
Variety of applications are supported such as peak-shift,peak-cut, frequency requlation,etc
Safety and Reliable
Multi level battery protection layers formed by discreet standalone systems offer impeccable safety
| Battery System Side | ||
| Model | HV-768V280AH | |
| Rated voltage | 768V | |
| Rated capacity | 280ah(O.2C) | |
| Charge voltage | 852vDC(adjustable) | |
| Discharge voltage | 672VDC | |
| Rated working current | 100A(0.35C) | |
| Max working current | 140A(0.5C) | |
| Rated power | 78KW | |
| Max output power | 10OKW | |
| Recommended DoD | 90% | |
| Range of working temp. | -10~50°c | |
| Working humidity range | 5-85%RH | |
| Communication method | two way CAN2.0/RS485 | |
| Working indicator | Blue:Power;Green:Running:Red:Alarm protection | |
| Cycle life | 25士2°C,0.2C/0.2C,EOL70% ≥ 6000 | |
| Display method | 10 inch (LCD)/PC Software | |
| Protective function | Voltage protection | Over charge and over discharge |
| Temperature protection | over temperature range protection | |
| Current / Leakage protec | YES | |
| Dielectric withstand volta 100ovDc(not less than 1Go2) | ||
| Dimension | 2981*2500*2550MM | |
| Protection level | IP65 | |
| Product packaging | Container | |
| PCS DC Input Side | ||
| Voltage | 420-850VDC(768v) | |
| Max. charge power | 120KW | |
| Max.discharge current | ||
| PCS pVInput side | ||
| Max. photovoltaic power | 12000oW | |
| Max. photovoltaic voltage | 1000v | |
| Starting voltage | 15ov | |
| MPPT range | 250-850vDC | |
| Full load Dc voltage | 450-850VDC | |
| Rated DC input | 60ov | |
| pVinput current | 36A+36A+36A+36A | |
| pV input channels | 4 ways | |
| communication method | two way CAN2.0/RS485 | |
| Pcs-AC output side (off-grid) | ||
| Rated AC power | 110KVA | |
| Active power | 100Kw | |
| Rated voltage | 400VAC | |
| Rated current | 144A | |
| THDU | <2% linear | |
| Rated frequency | 50/60Hz | |
| Overload capacity | 110% long-term | |
| PCsAC side (On-grid) | ||
| Rated AC power | 110KVA | |
| Active power | 10OKW | |
| Rated voltage | 40OVAC | |
| rated current | 144A | |
| voltage range | 320-460VAC | |
| rated frequency | 50/60Hz | |
| THDU | <3% linear | |
| power factor | Standard:1.0; lead 0.8 /lag o.8 | |
| AC Phase | Three- phase four- wire + ground wire (3W+N+PE) | |
| isolation transformer | 0.0068 | |
| Grid certification | TUV,CE | |
| Working temp.range | -40~60°C,>45°℃ Power down | |
| Communication method | RS485/CAN | |
