Higher specific energy
Easy to install
Long cycle life
Support parallel operation
Environmental protection and no pollution
Support deep customization
Parameters | |

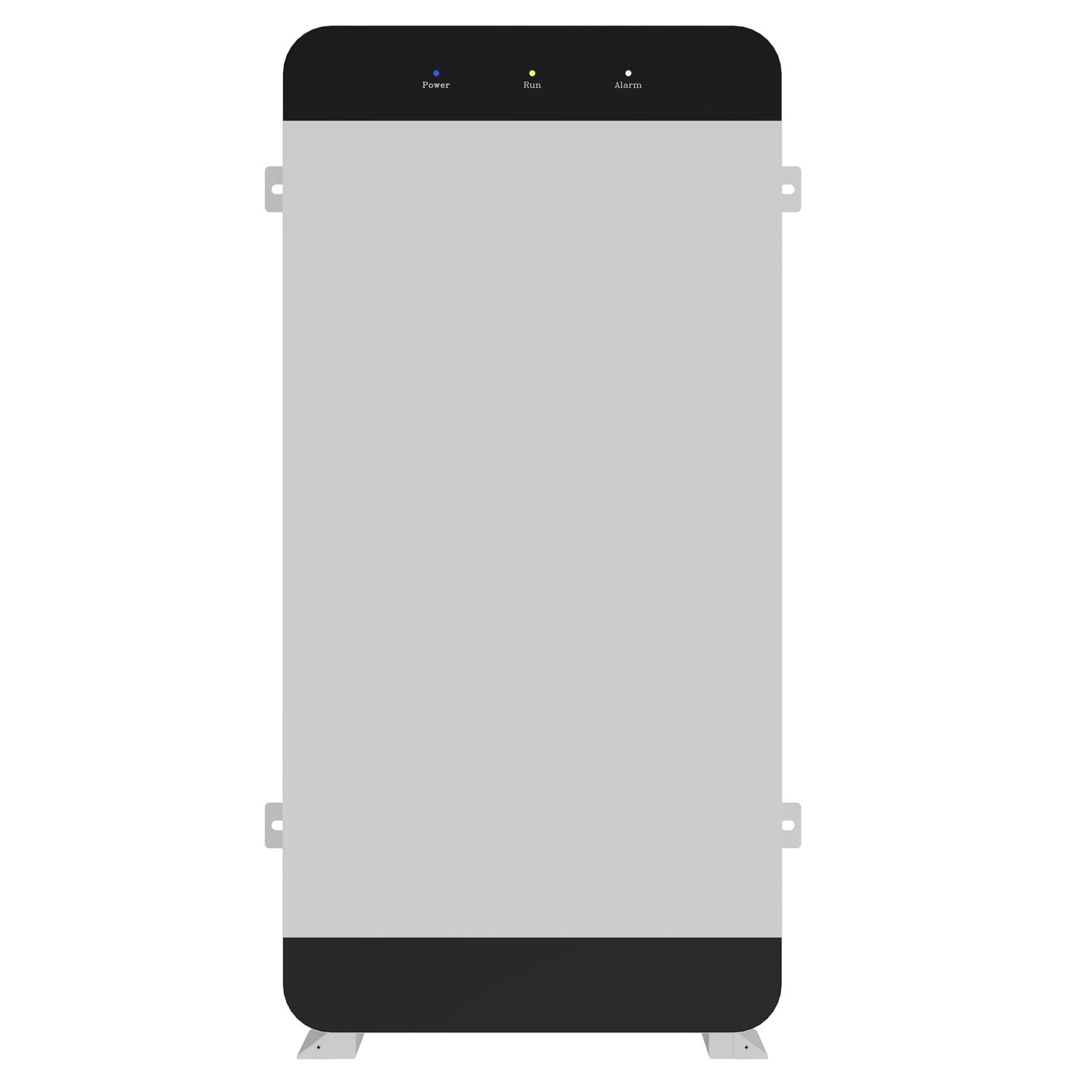

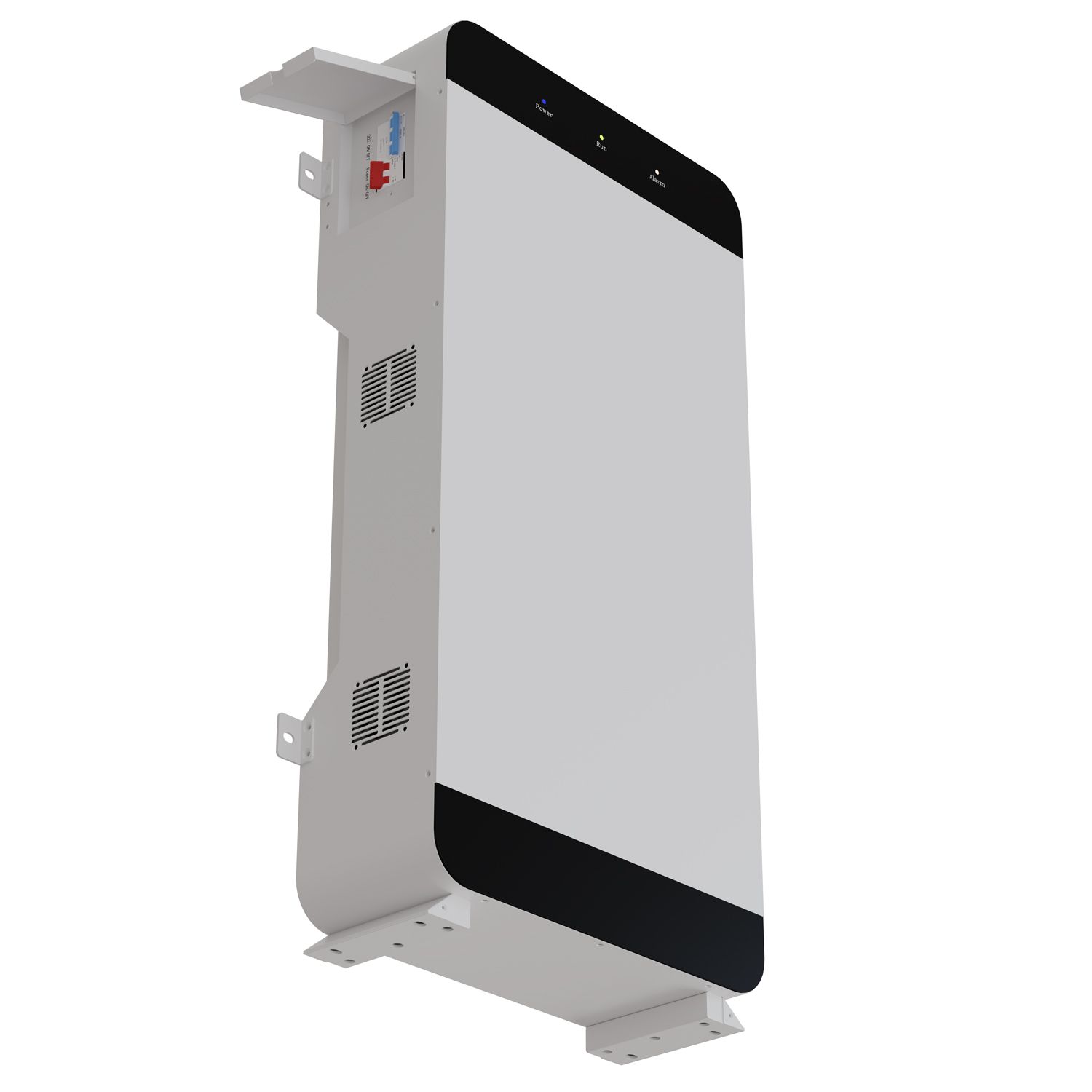

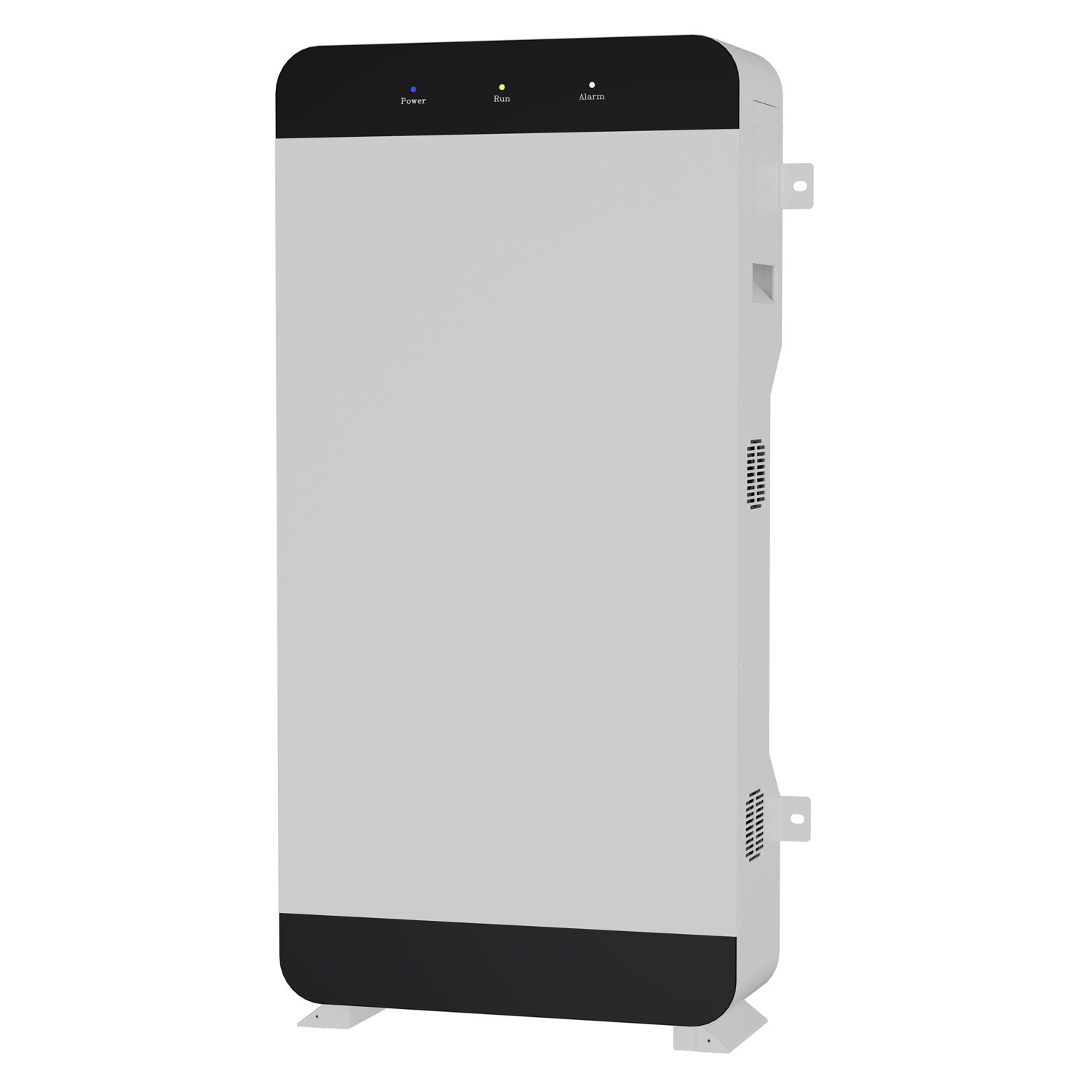

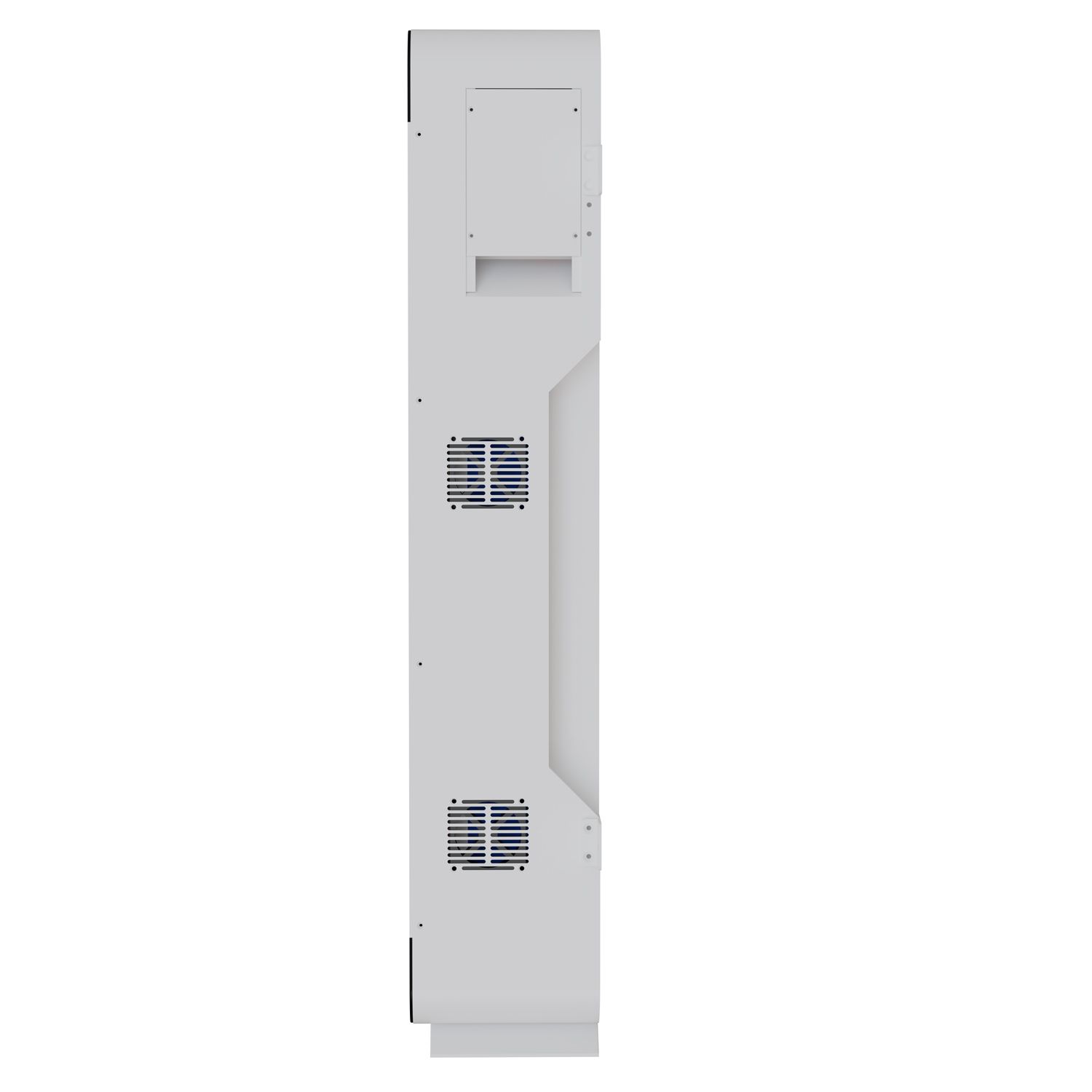

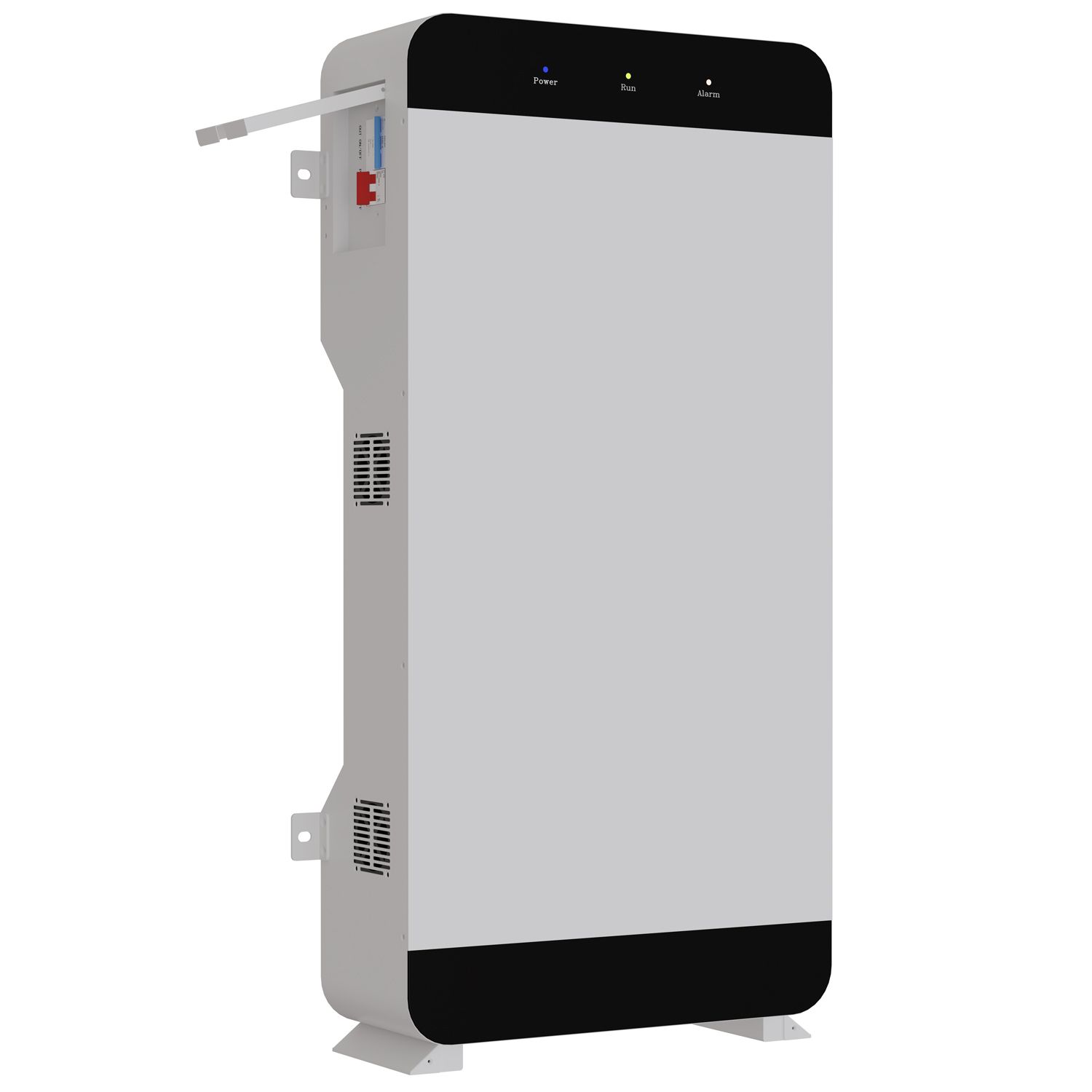

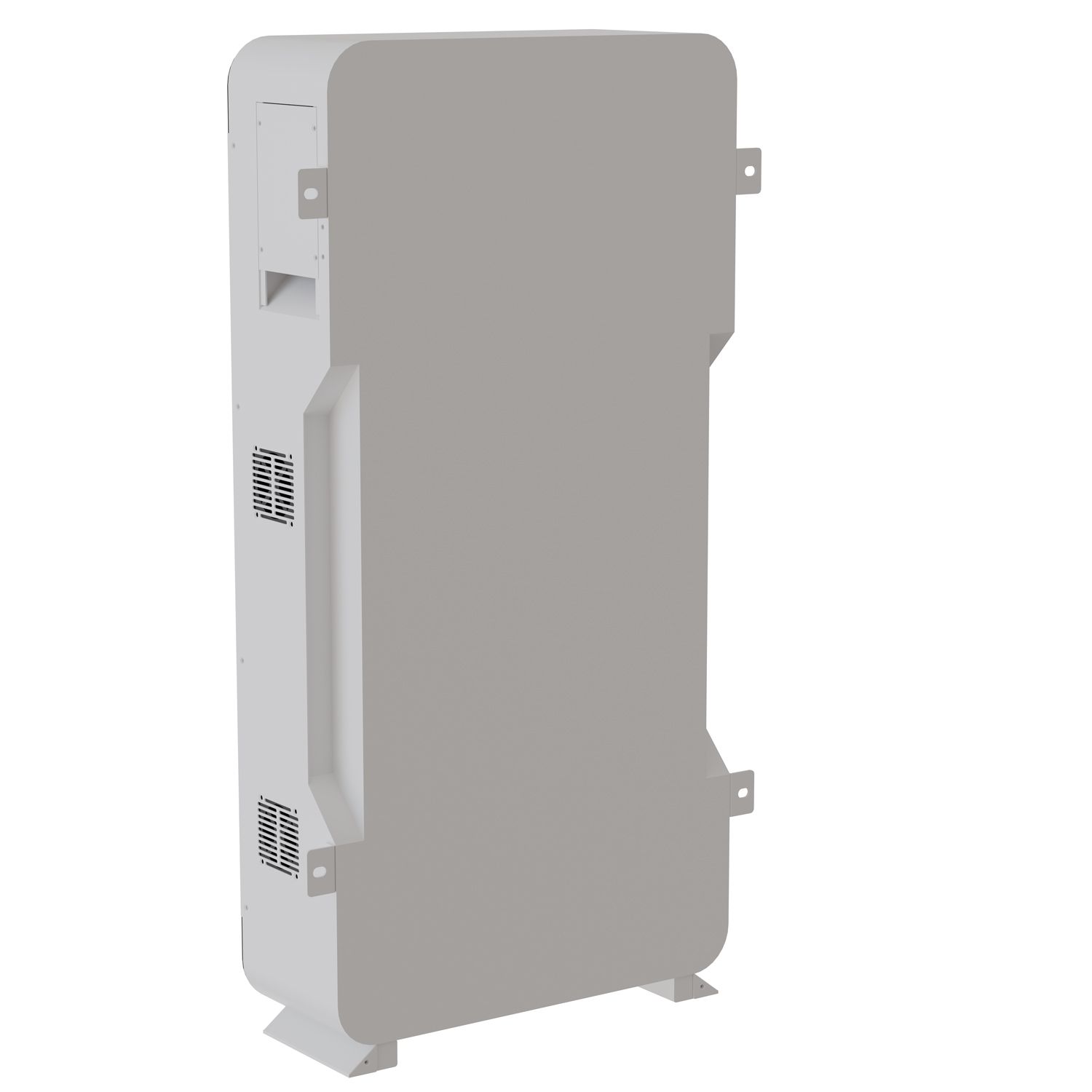

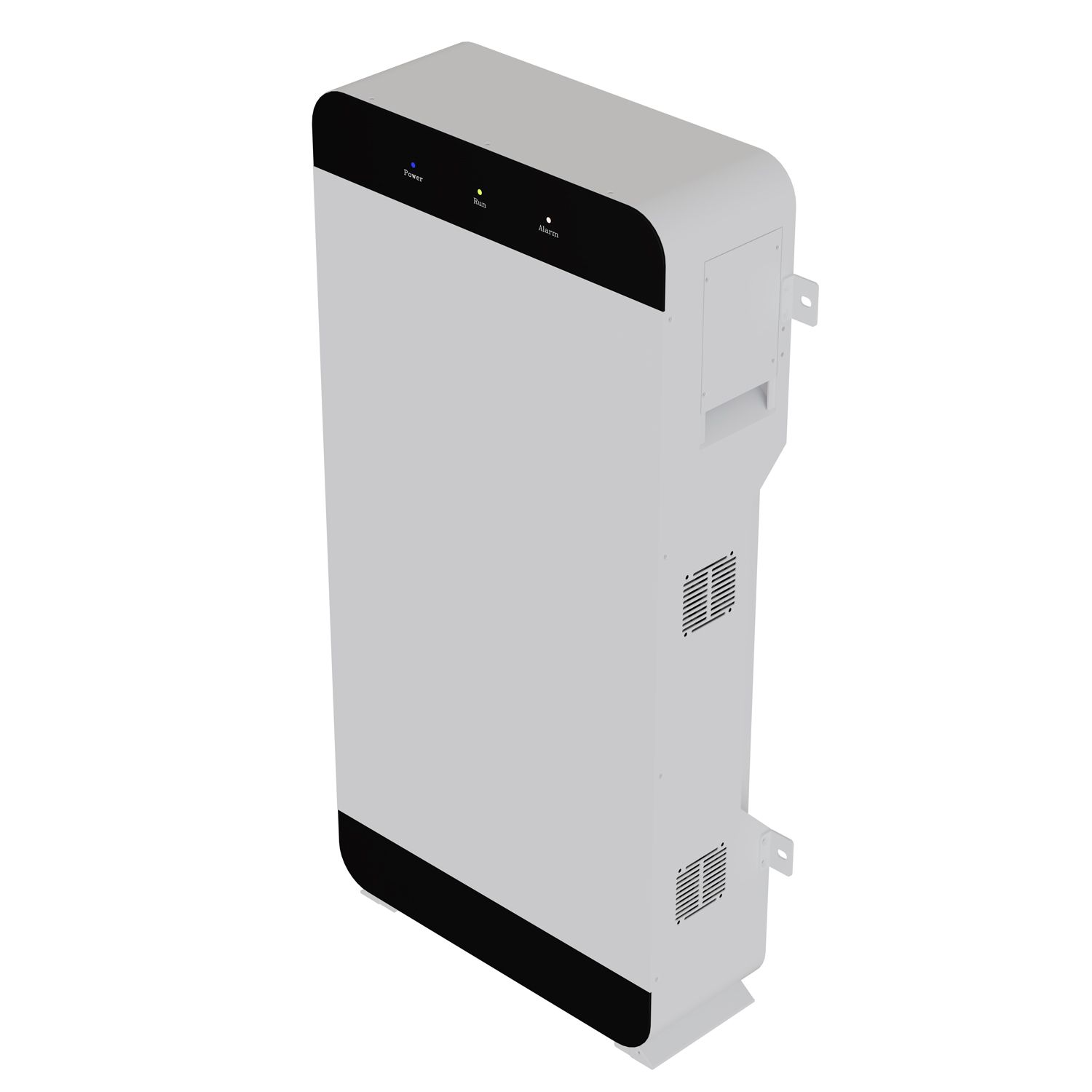

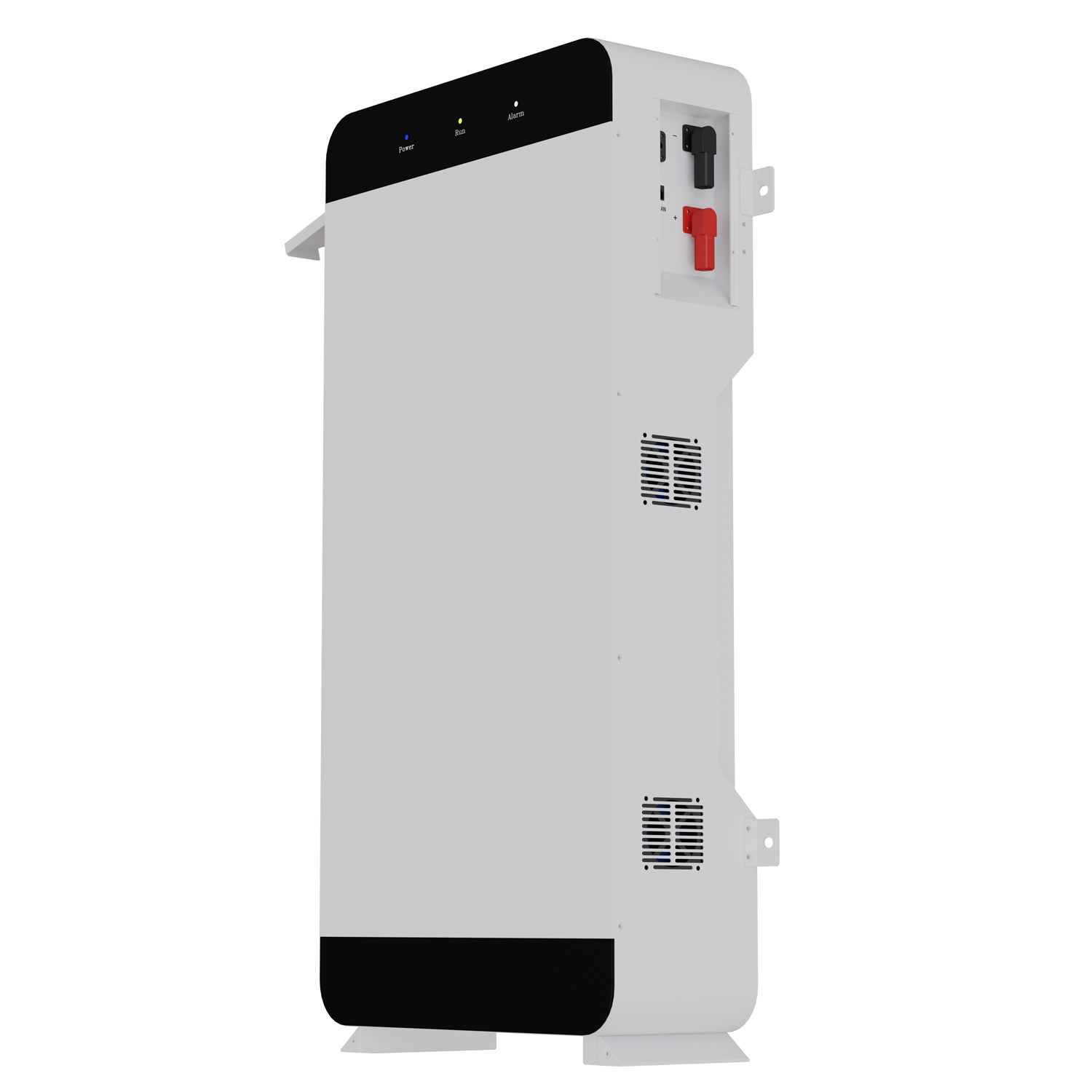

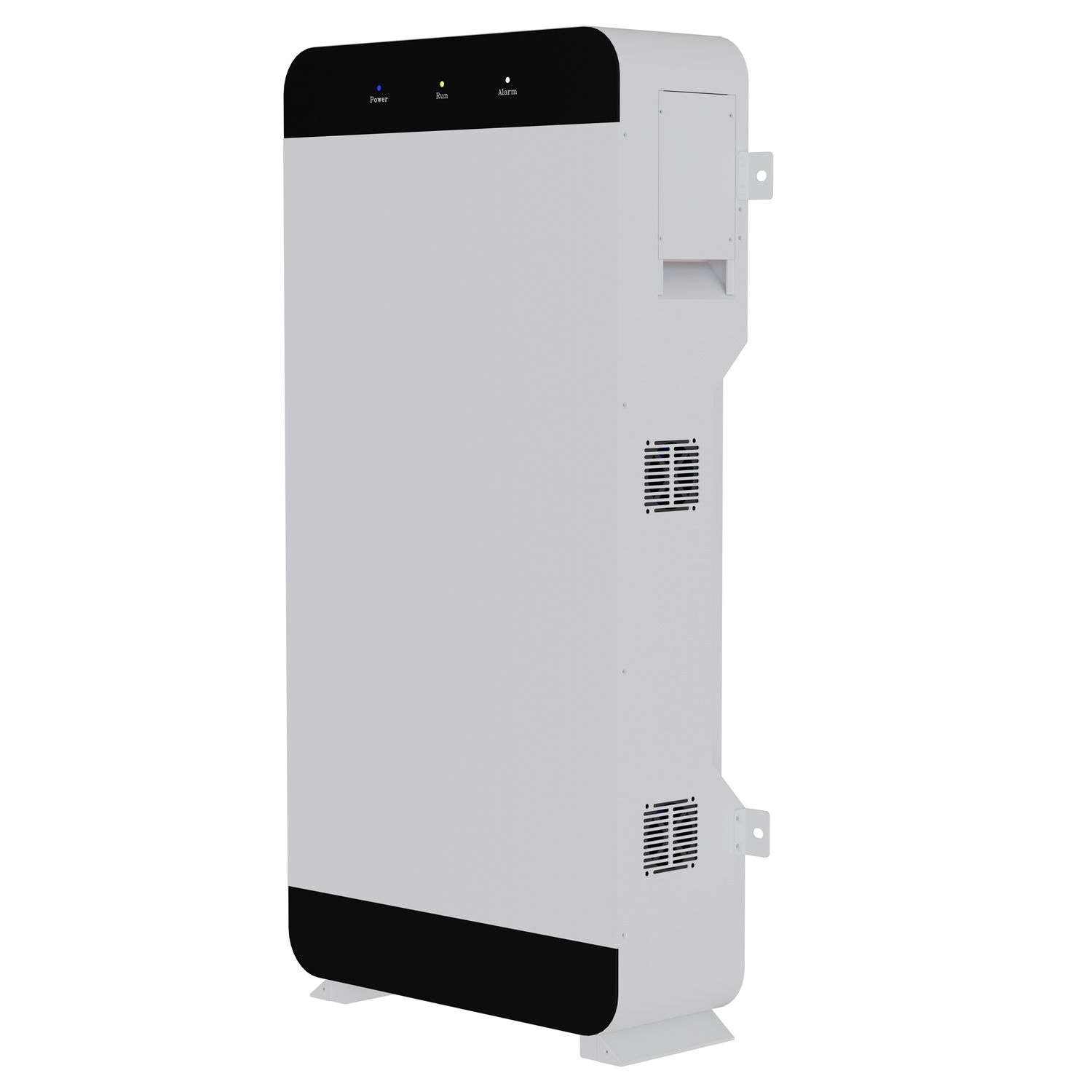

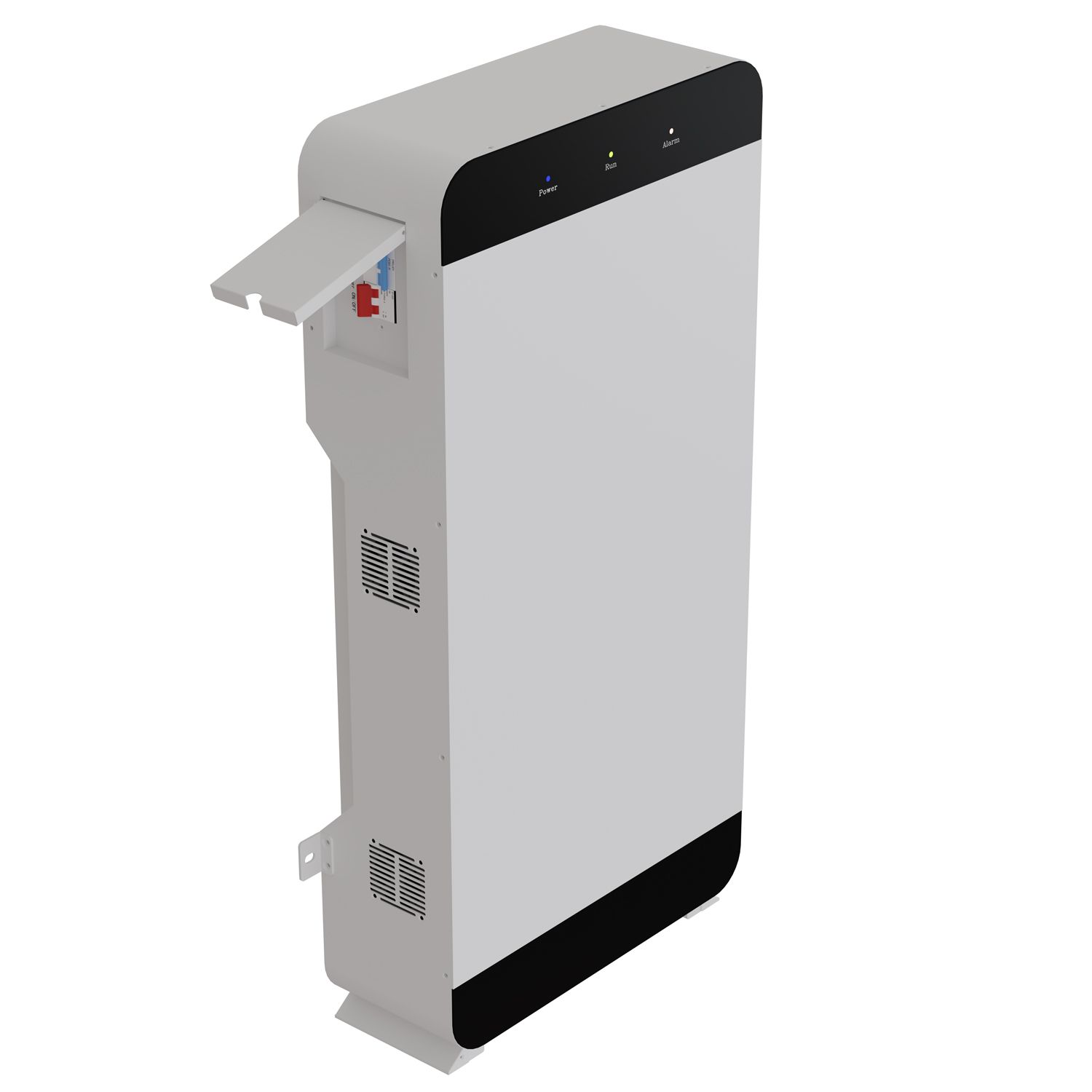

Product Model | HV-BOX2-384 |
Product Specificaton | 384V 10KWH |
Nominal Voltage | 384V |
Nominal Capacity | 27Ah |
Cell Type | (LFP) |
Standard Charge Voltage | 438V |
Max Charge Current | 1C |
Discharge Cut-Off Voltage | 300V |
Max Discharge Current | 1C |
Protection level | 4 levels Battery Management Protection |
Communication Interface | CAN |
Cycle Life * | 26000 Cycles (80%DOD) |
Charge Temperature Range | 0~65°C |
Discharge Temperature Range | -20~65°C |
Parallels Function | Support 10 Units In Parallels |
Dimensions | 980*520*200MM |
Weight | 92Kg |
Installation Method | (Floor Mounted Type) |
*Test Condition: 80% DOD, 0.2C charge & discharge @25C |
