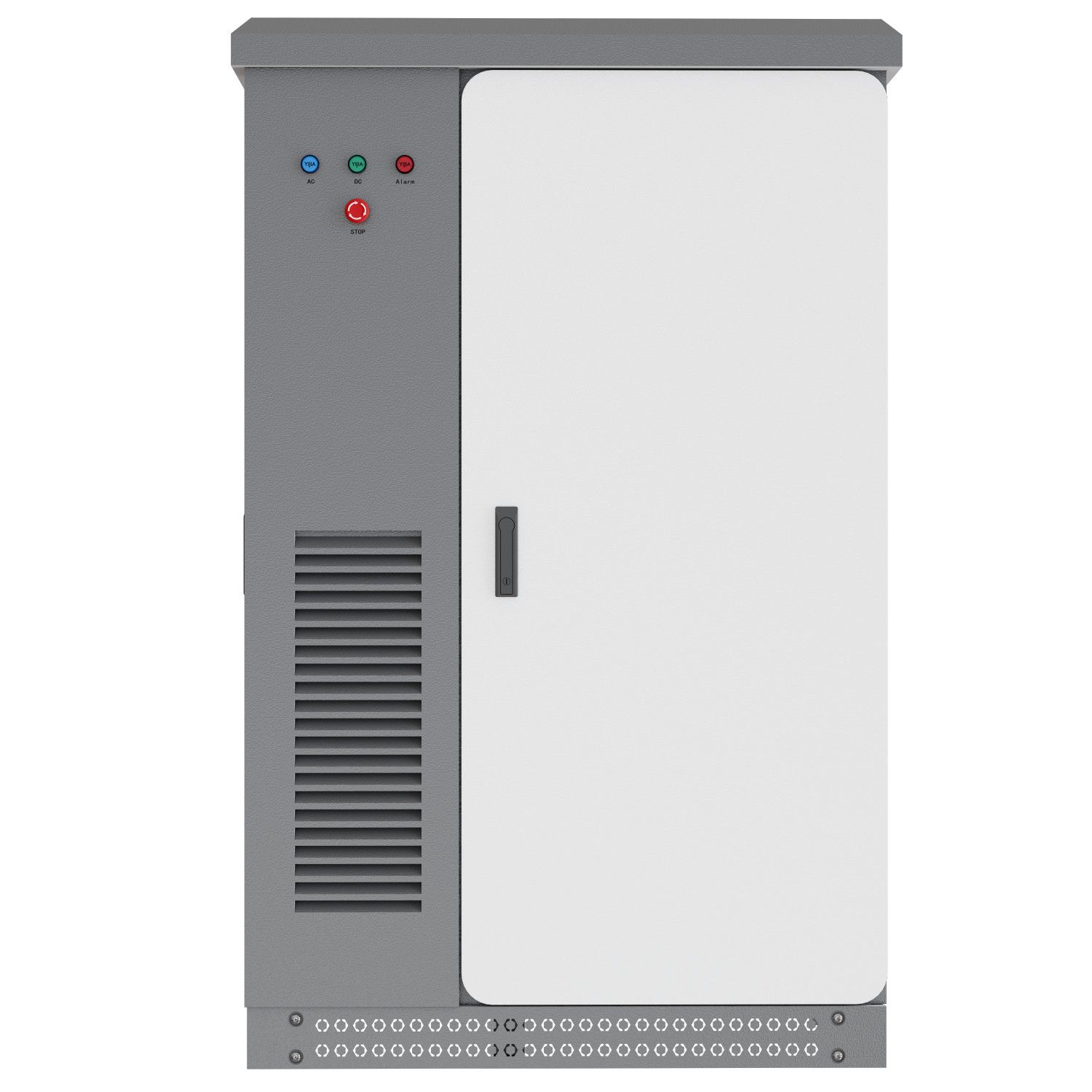

Magic-BOX71-Outdoor energy storage all-in-one 71kWh

Share

Magic-BOX71-Outdoor energy storage all-in-one 71kWh

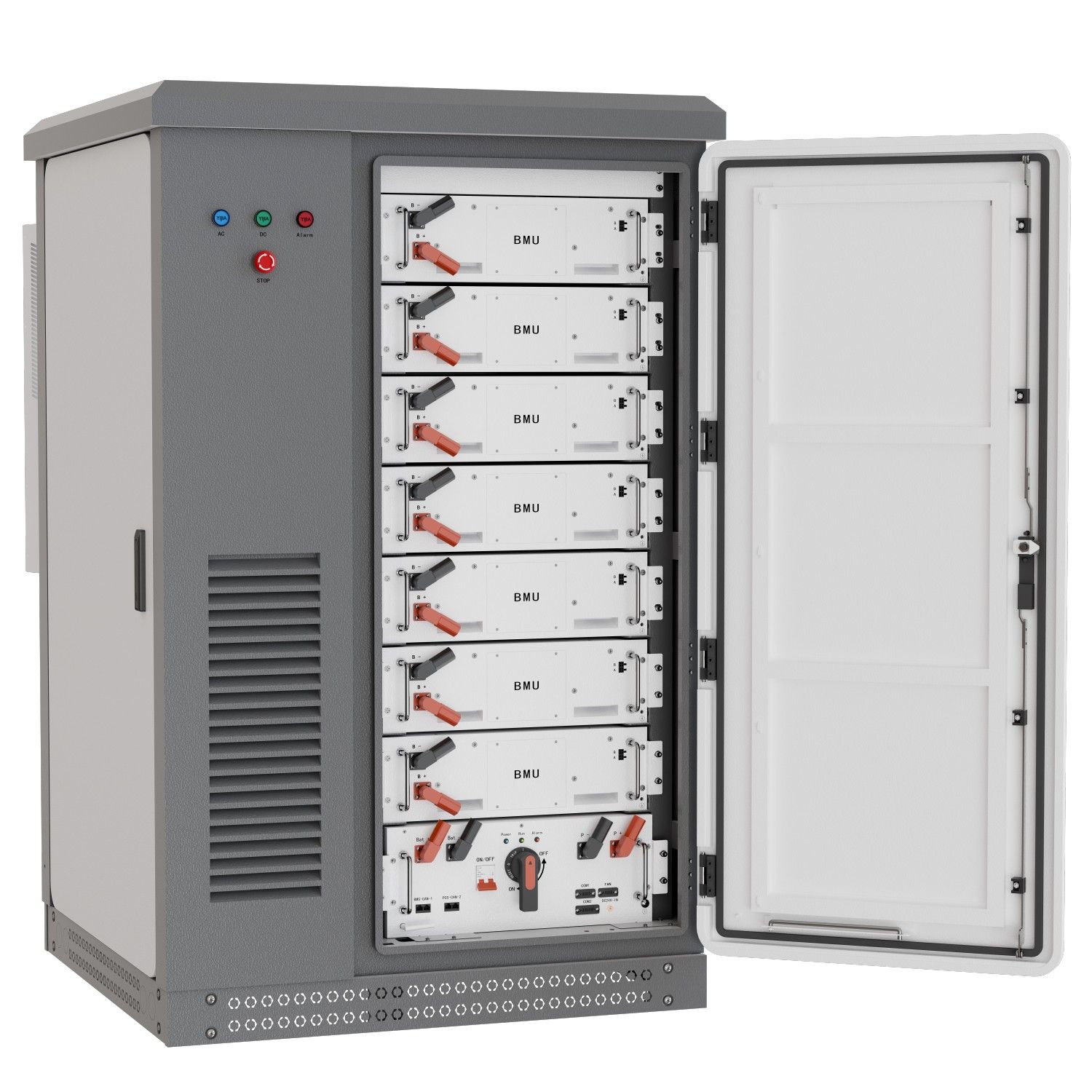

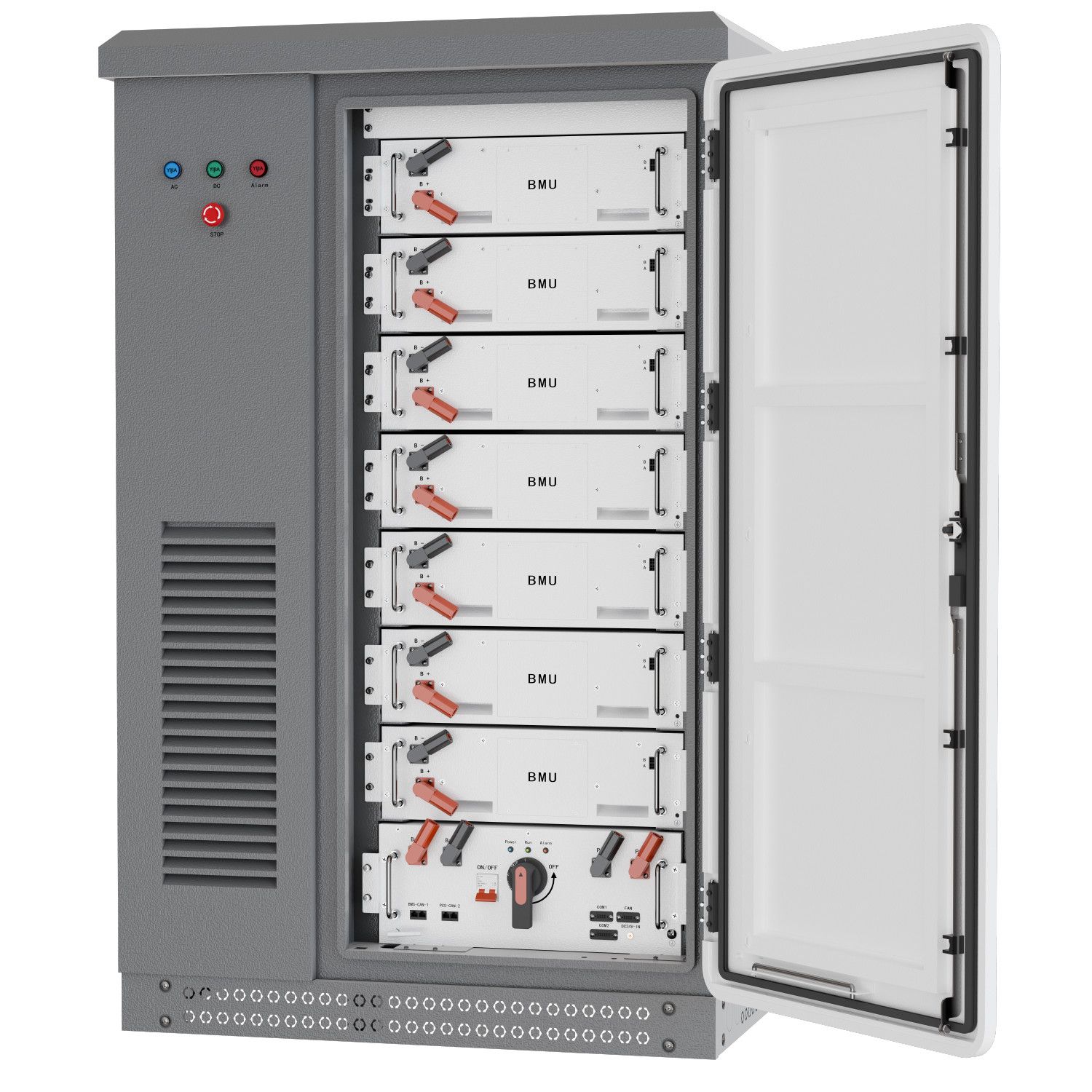

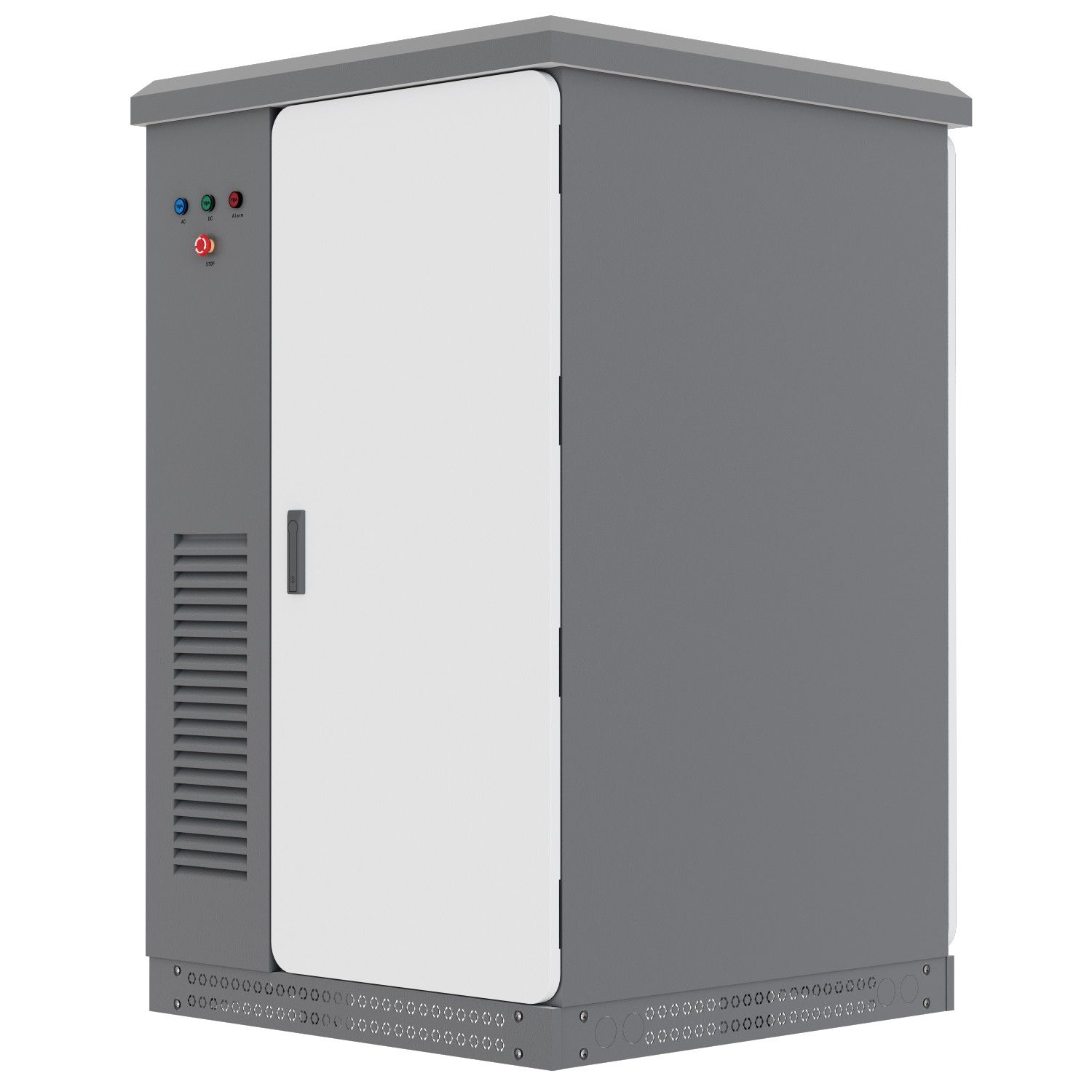

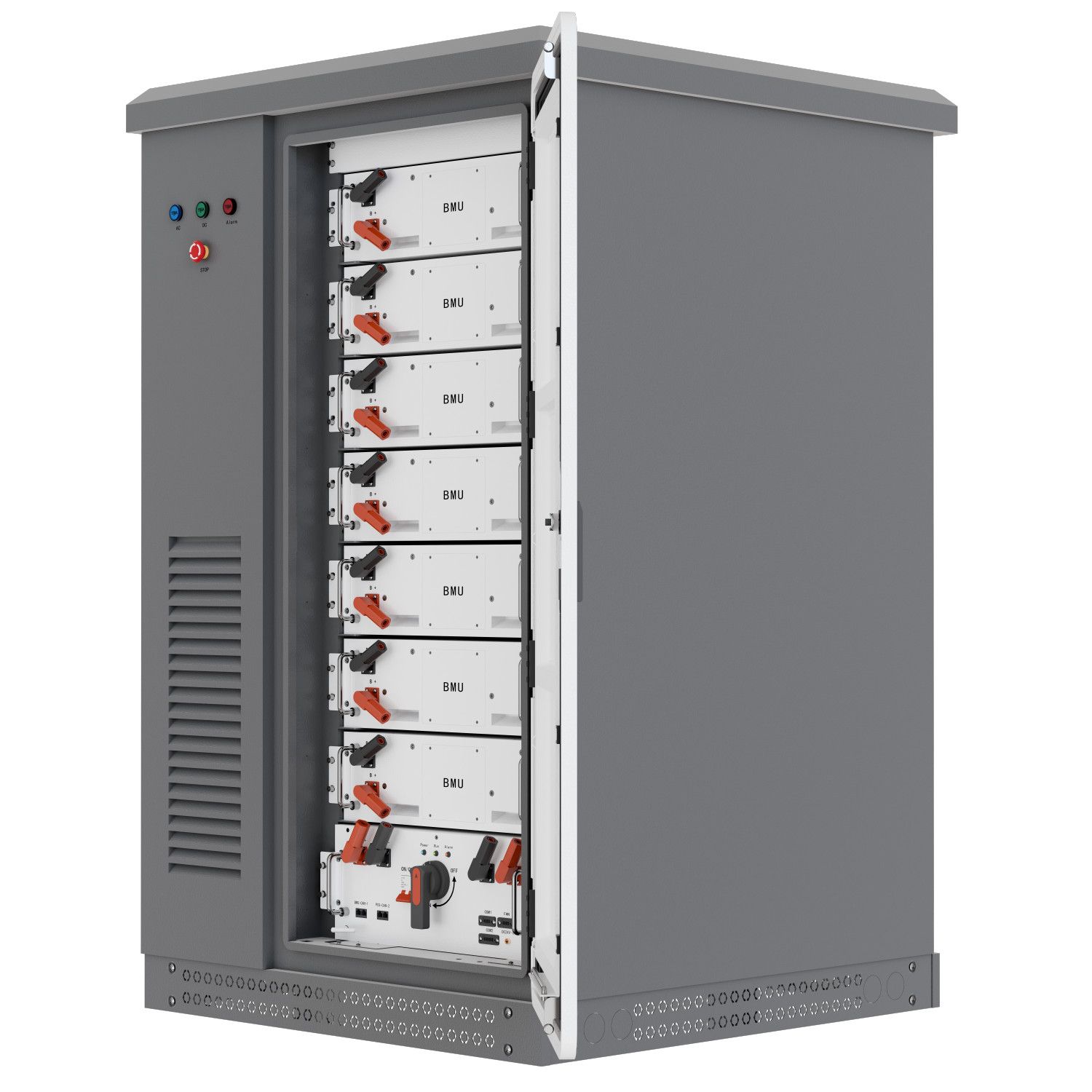

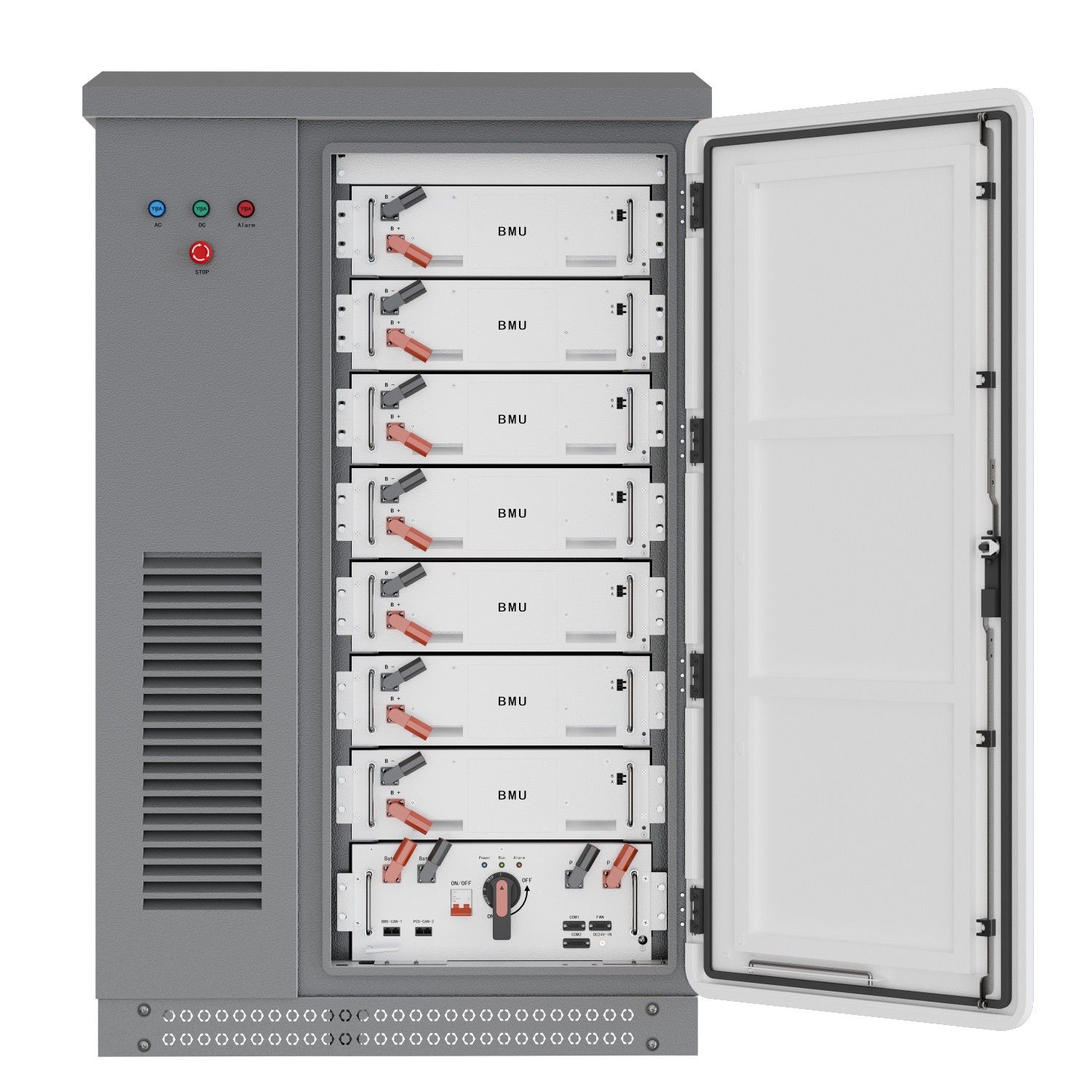

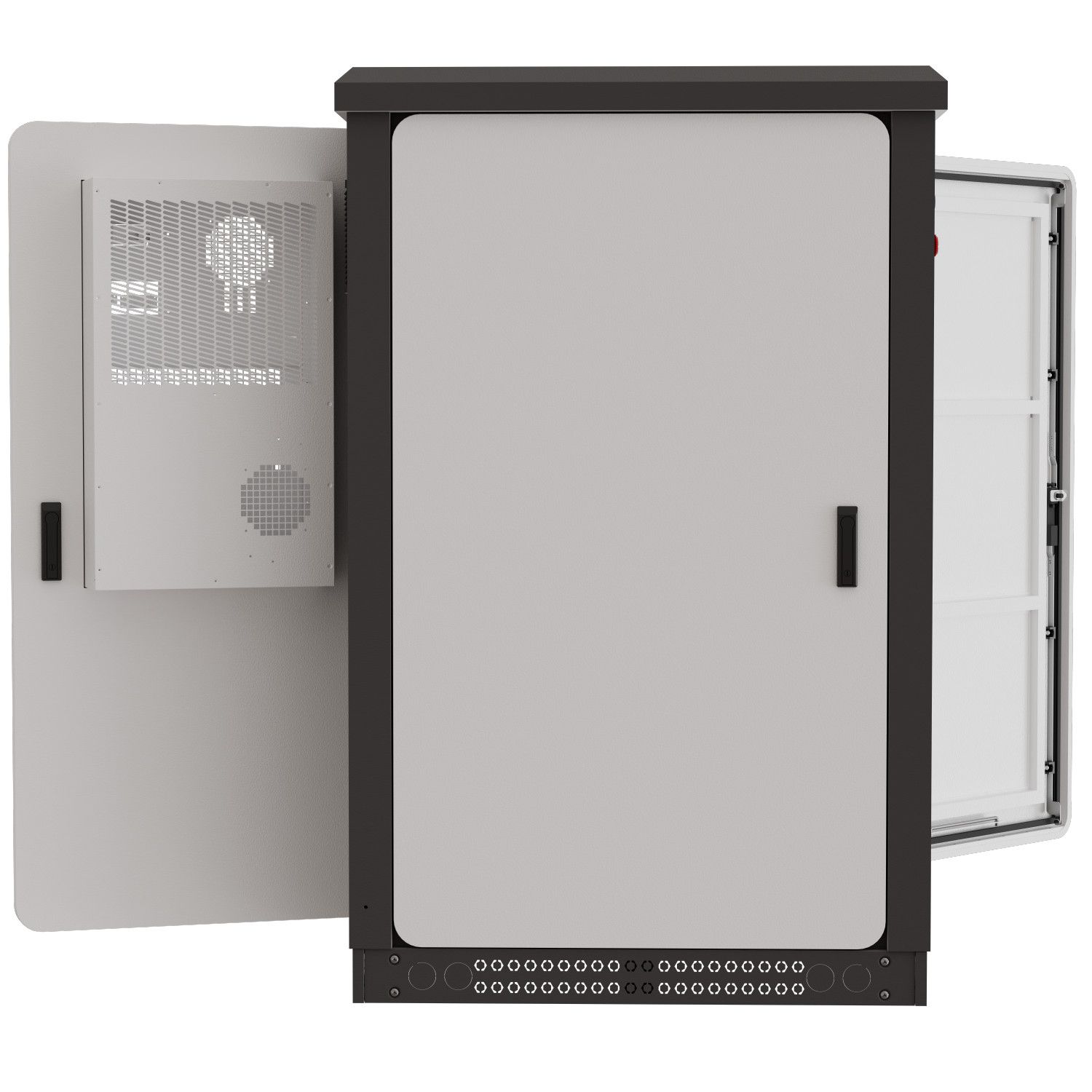

Magic box71kWh features a modular design, combining lithium iron phosphate batteries, racks, BMS, PCS,

air-conditioning, temperature control, fire detection, and automatic extinguishing. It boasts safety, reliability, rapid

deployment, cost-efficiency, high energy efficiency, and intelligent management.


Product Description

Magic-BOX71-Outdoor energy storage all-in-one 71kWh

Magic-BOX71-Outdoor energy storage all-in-one 71kWh

Magic-BOX71-Outdoor energy storage all-in-one 71kWh

Magic-BOX71-Outdoor energy storage all-in-one 71kWh




Function Parameters




Model No.                                                                       Magic box71
Nominal Energy71KWH
Nominal Voltage716.8V
Nominal Capacity100Ah
Cell TypeLFP
Standard Charge Voltage806.4V
Max Charge Current100A
Discharge Cut-Off Voltage645V
Max Discharge Current100A
Altitude (m)<2000m
Humidity5%~95%

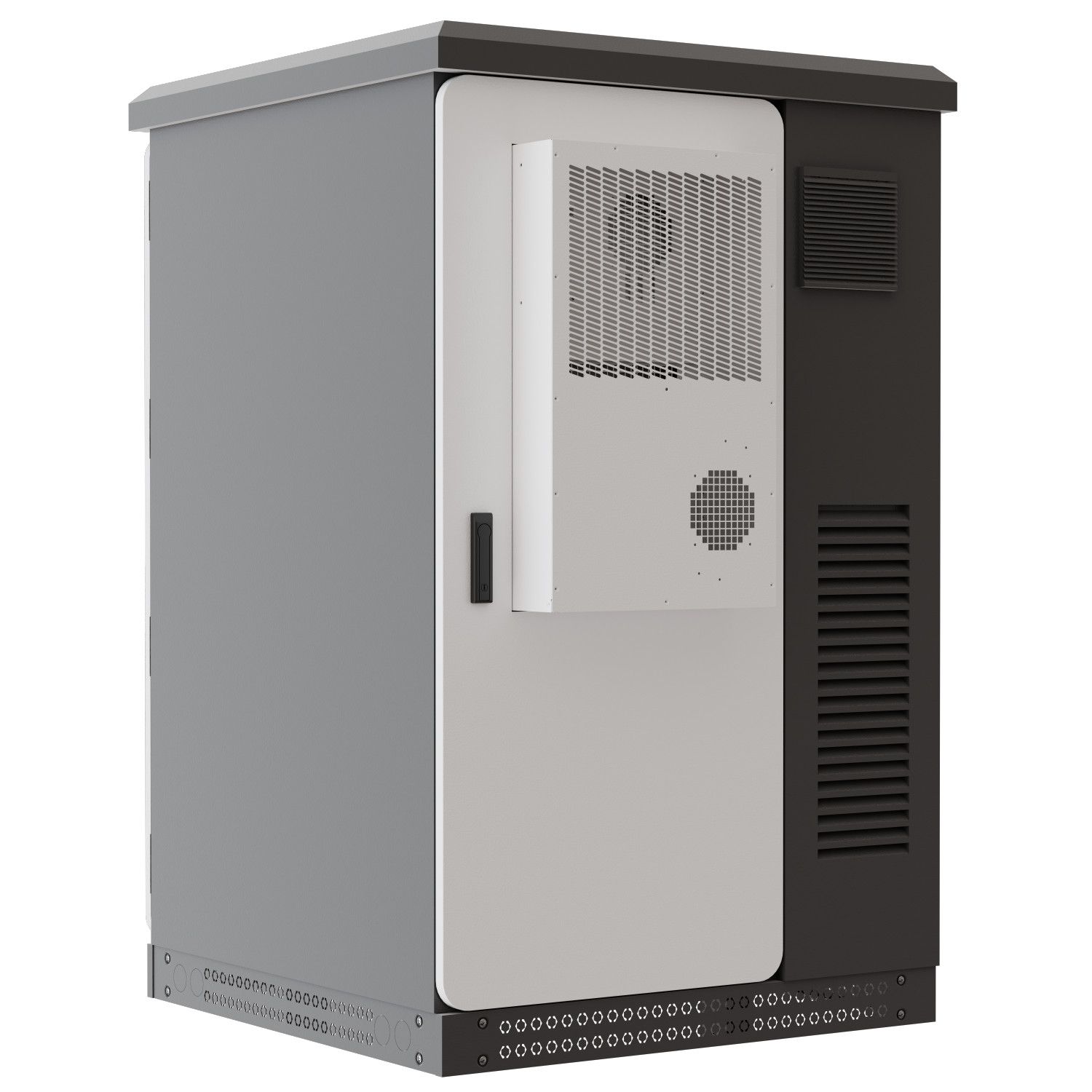

Cooling methodAir-cooled
Cycle Life *25±2℃/0.2C/80%≥6000
Range of working temperature-20 ~ 50℃
Fire Fighting SystemAerosol
CertificationCell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3
Pack: MSDS / UN38.3

Dimensions1066mm*1174mm*1561mm
Weight≈850kg
Warranty10 years

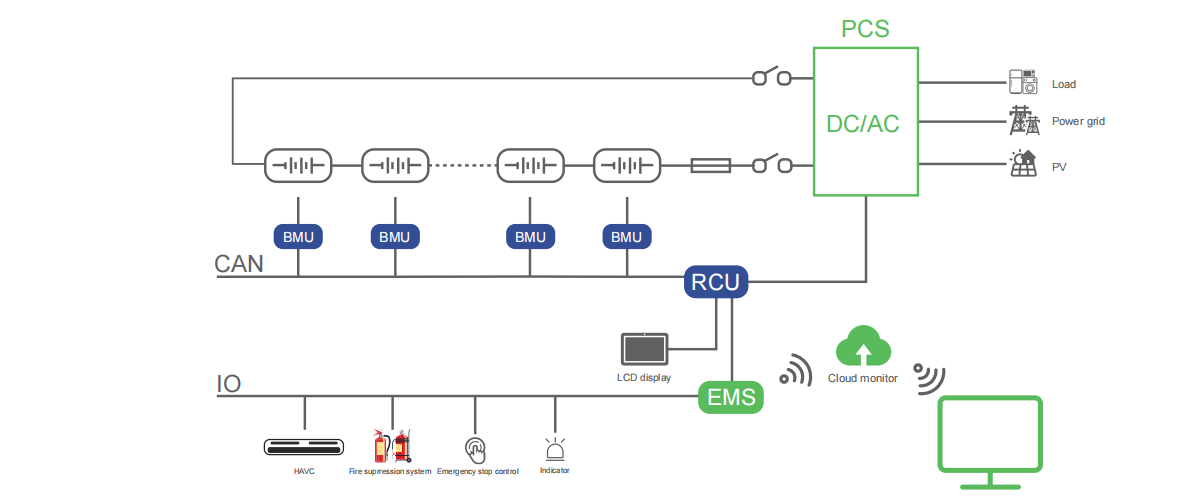

Battery systemBMS management system, fire protection system, air-cooled unit,
cabinet, PCS system

Battery Modules Qty. (Optional )3-7PCS

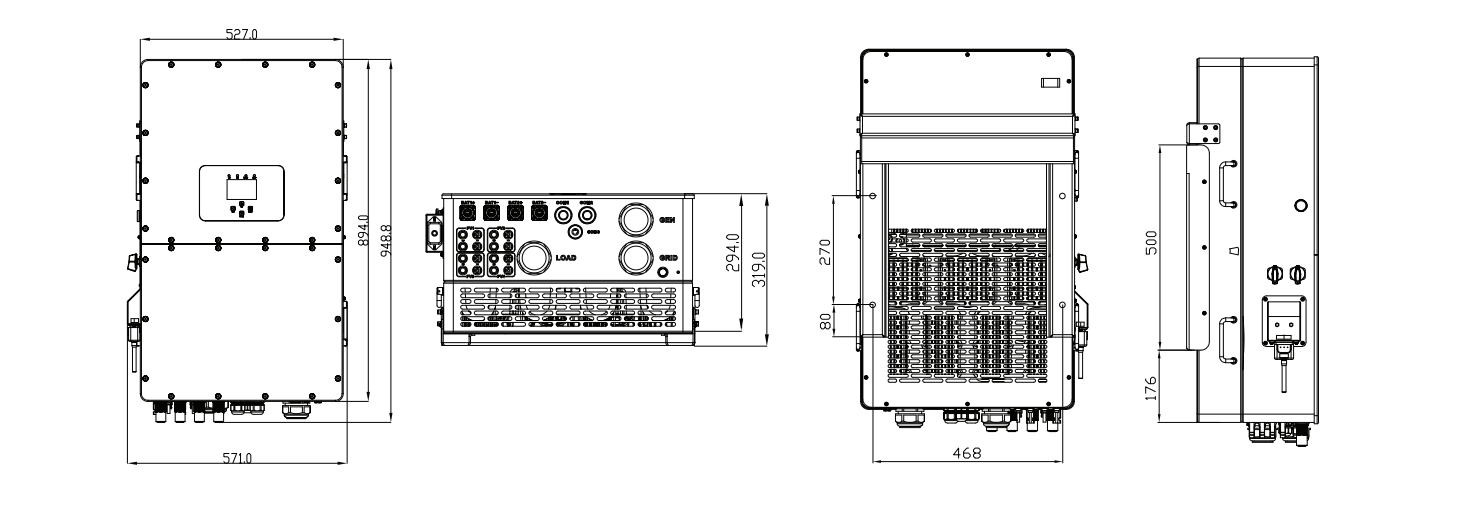

PCS Parameter

Model
   SUN-5OK-SG01HP3-EU-BM4
Battery input Date
Battery Voltage Range(V)160-800
Max. Charging Current(A)50+50
Max. Discharging Current(A)50+50
PV String Input Data
Max. DC Input Power(W)65000
Max. DC Input Voltage (V)1000
MPPT Range(V)150-850
PV Input Current(A)36+36+36+36
AC Output Data
Rated AC Output and UPS Power(W)50000
Max. AC Output Power(W)55000
AC Output Rated Current(A)75.8/72.5
Max. Continuous AC Passthrough(A)200
Output Frequency and Voltage50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid TypeThree Phase
Efficiency
Max. Efficiency97.60%
MPPT Efficiency    >99%
