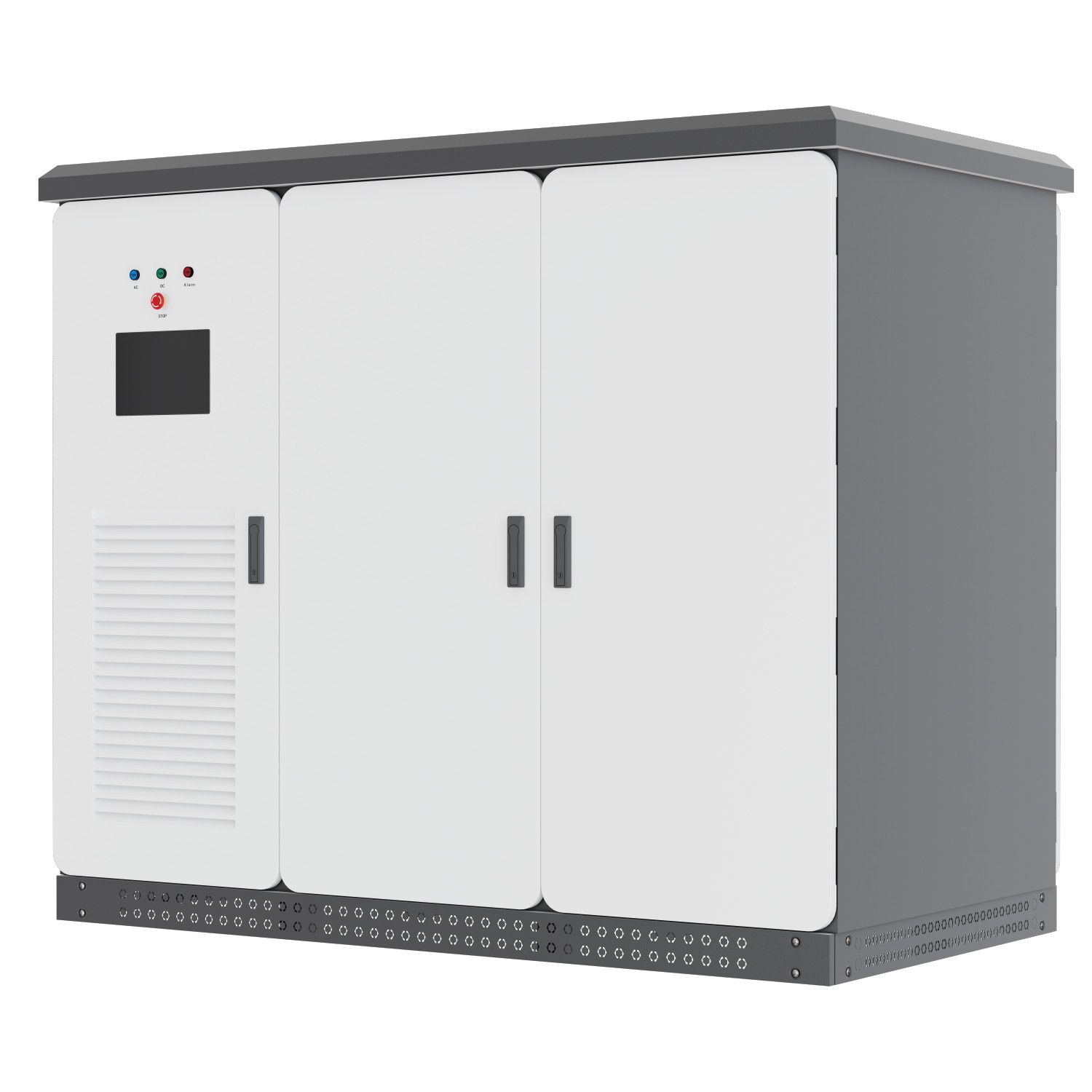

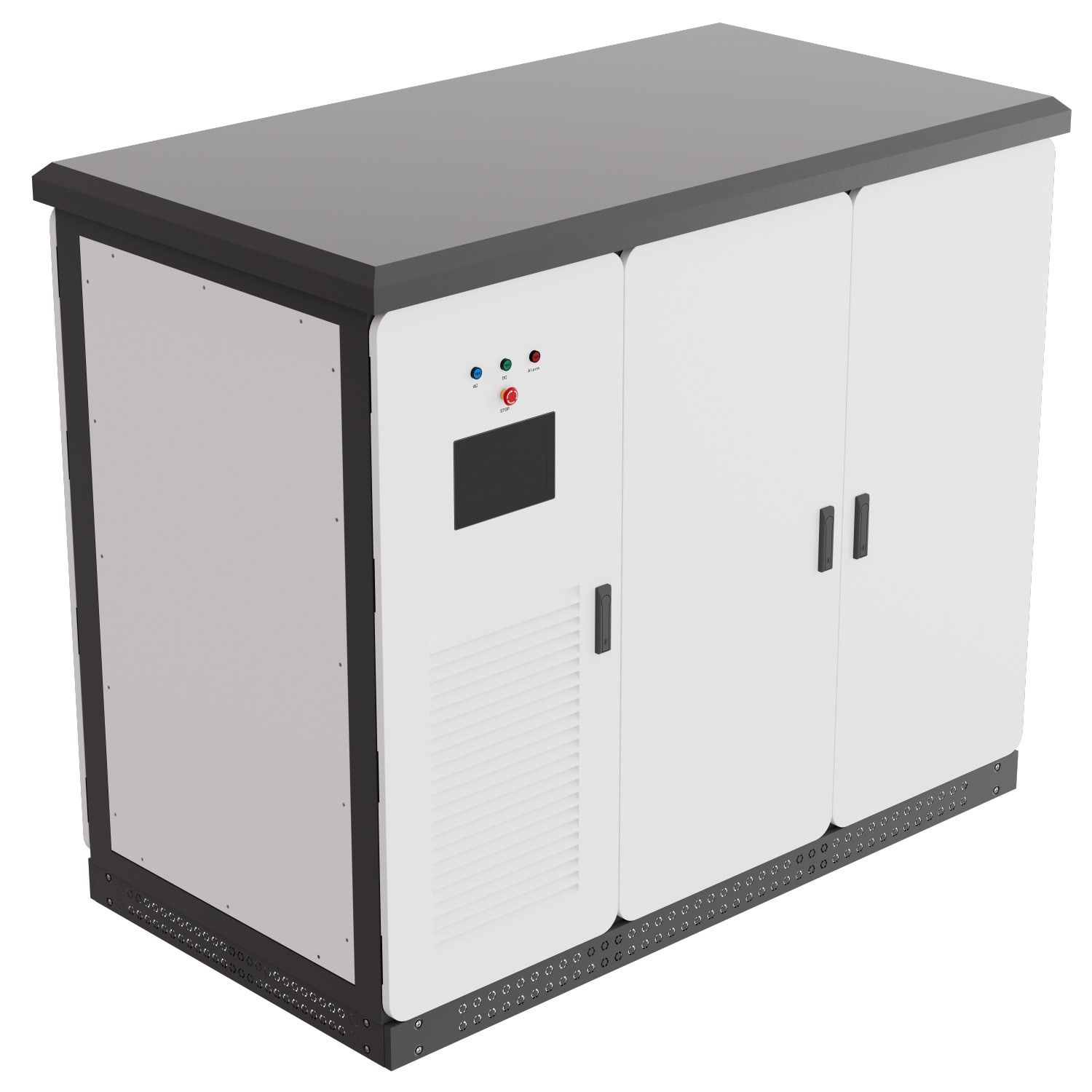

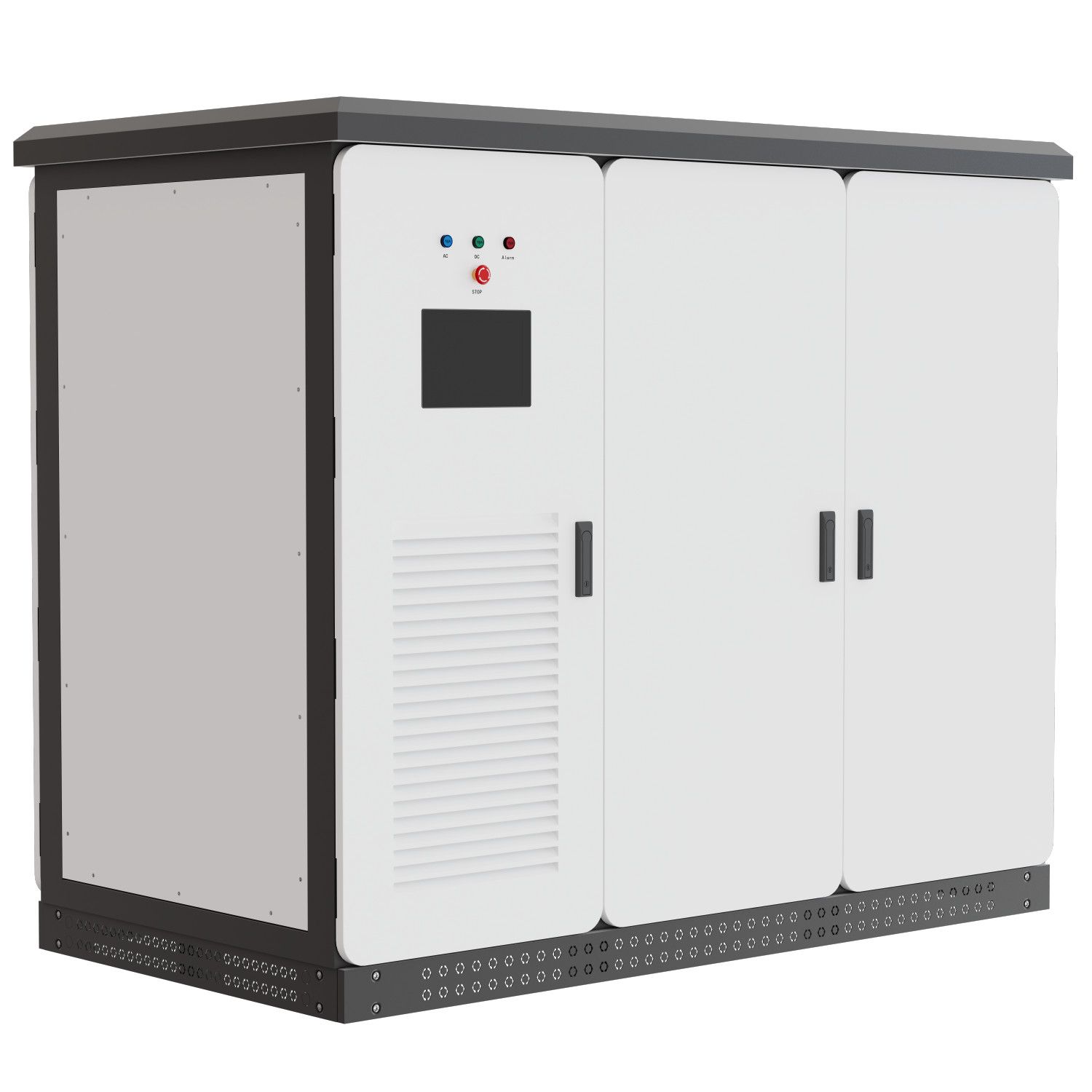

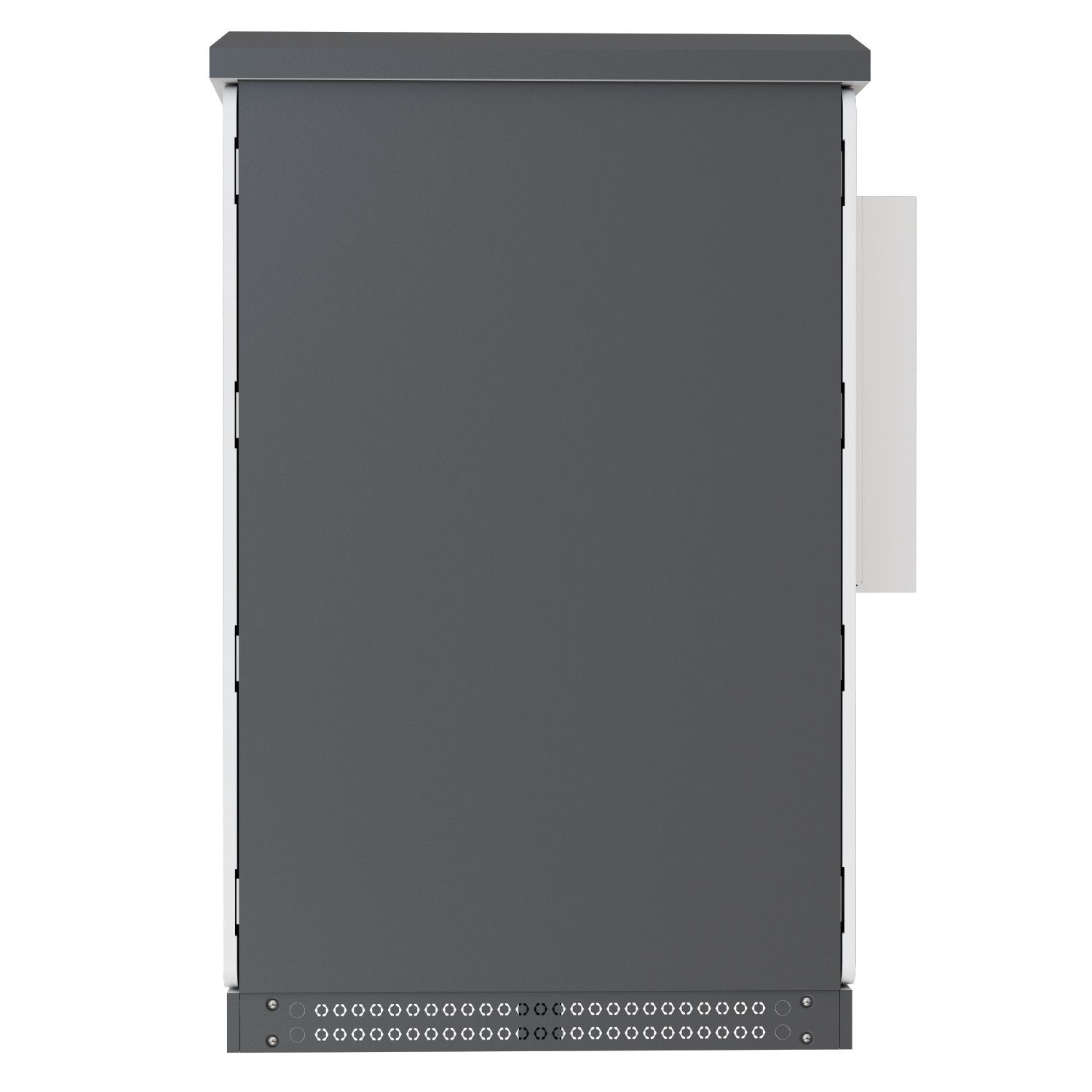

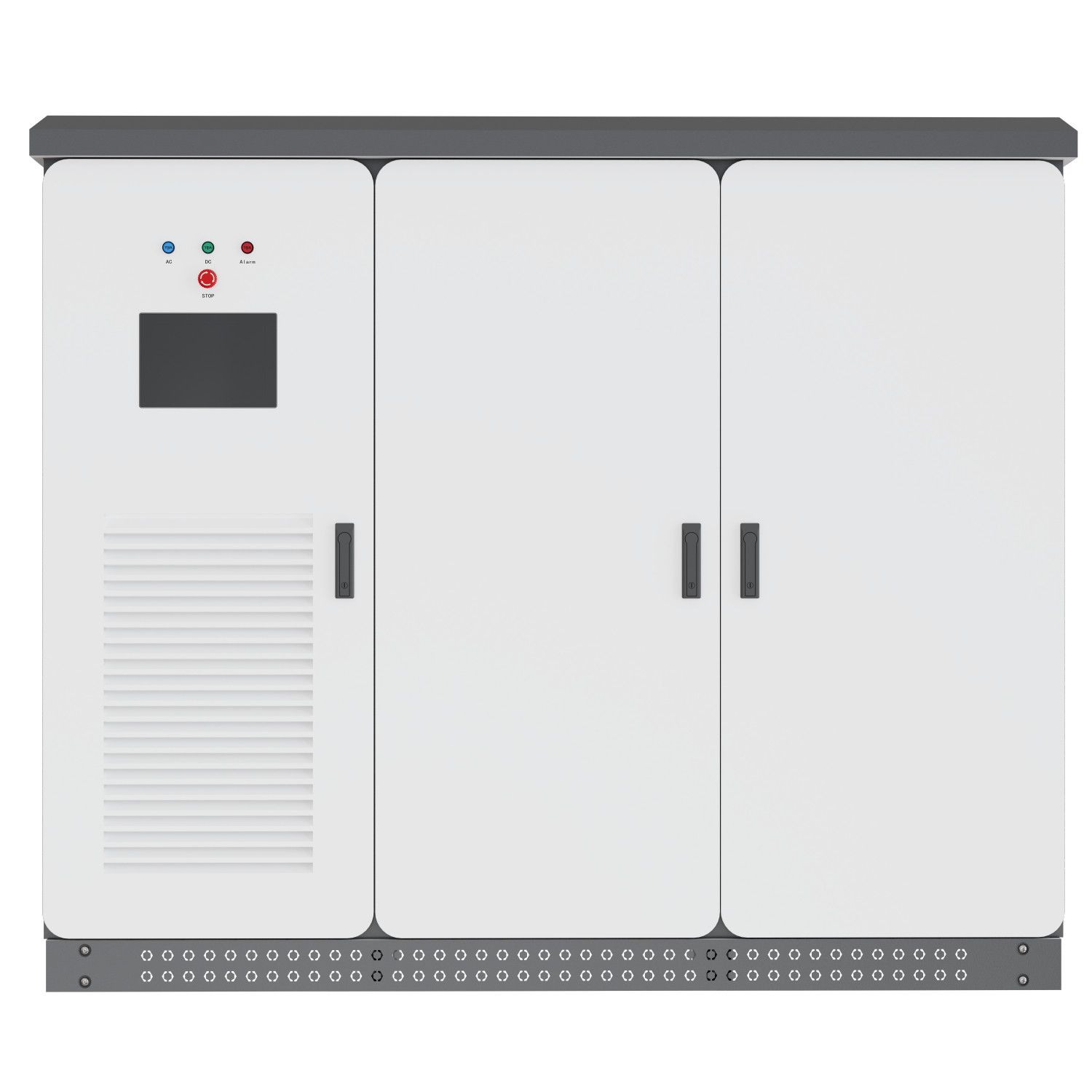

Magic Box143 Energy Storage Battery 140kWh Outdoor energy storage all-in-one machine

Magic Box143 features a modular design, combining lithium iron phosphate batteries, racks, BMS, PCS, air-conditioning,

temperature control, fire detection, and automatic extinguishing. It boasts safety, reliability, rapid deployment, cost-efficiency,

Inquire Now Next Product

Product Description

Function Parameters

Model No.

MAGIC BOX143

Nominal Energy 143.2KWH

Nominal Voltage 716V

Nominal Capacity 200Ah

Cell Type LFP

Standard Charge Voltage 806V

Max Charge Current 200A

Discharge Cut-Off Voltage 627V

Max Discharge Current 200A

Maximum working altitude ≤2000m

Working humidity range 5-85%RH (no condensation)

Cooling method Air-cooled

Cycle Life * 25±2℃/0.2C/80%≥6000

Range of working temperature -10 ~ 60℃

Fire Fighting System Aerosol

Certification

Cell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3
Pack: MSDS / UN38.3

Weight ≈1.4T

Dimensions 2000*1082*1676.5mm

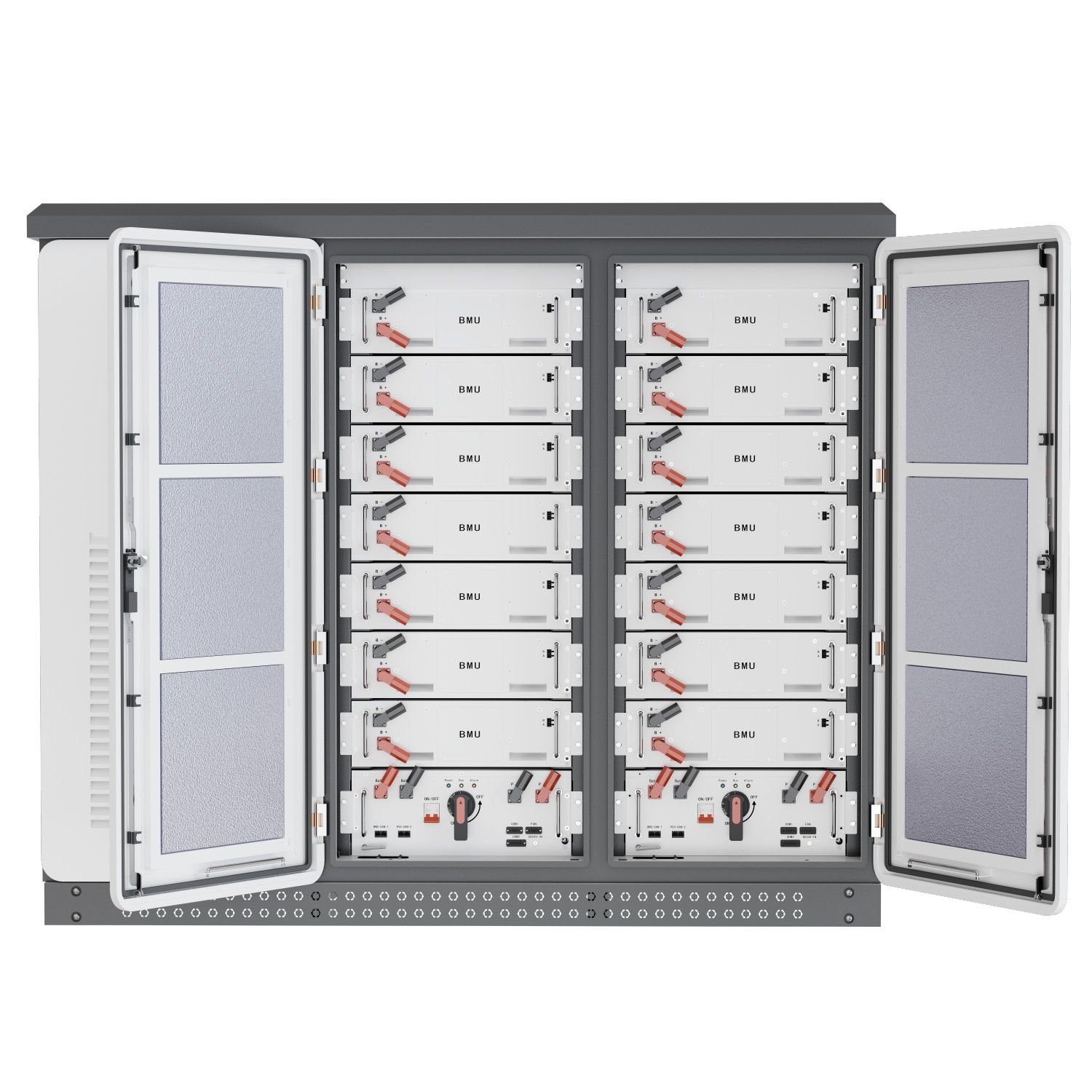

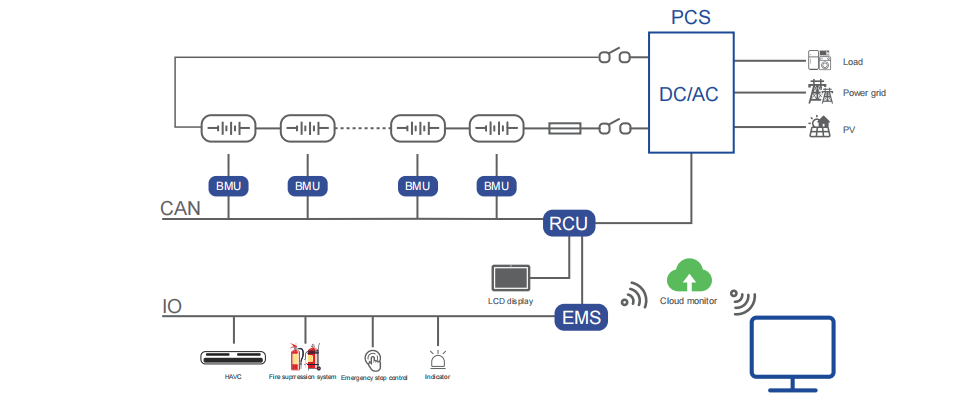

Battery system BMS management system, fire protection system, air-cooled unit,
cabinet, PCS system

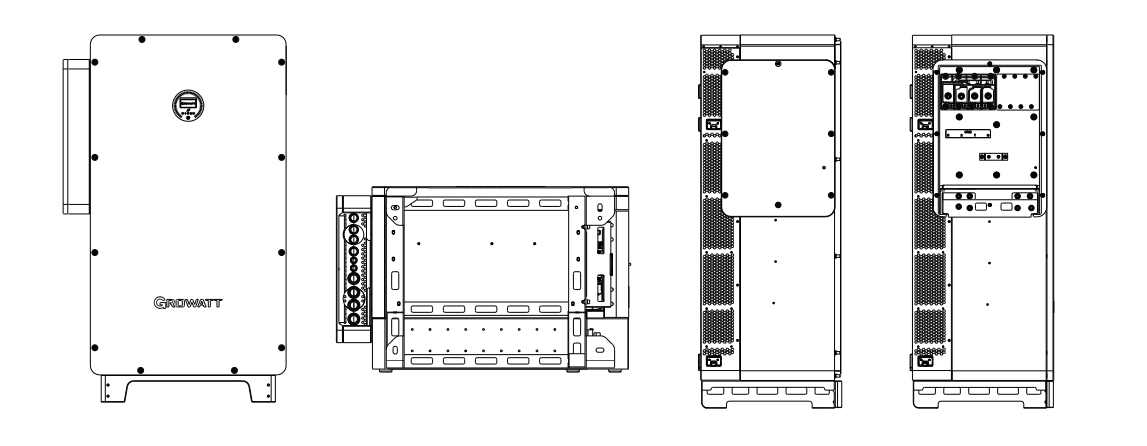

Datasheet

Model

WIT100K-A

Battery data(DC)
Continuous charging/discharging power	113500W
Battery voltage range	600-1000V(for3P3W)/680-1000V(for3P4W)
Max.charging and discharging current)	167A
Output data(AC)
Rated AC output power	100000W
Max.AC apparent power	110000VA
Nominal AC voltage	220V/230V/240V(L-N) 380V/400V/415V(L-L)
AC grid frequency	50/60 Hz
Protection devices
PV reverse polarity protection)		Yes
DC surge protection		Yes (Type ll)
Insulation resistance monitoring		Yes
RCD detection		Yes
AC short-circuit protection		Yes
AC surge protection		Yes (Type ll)
Ground fault monitoring		Yes
Grid monitoring		Yes
*More detailed information please refer to the inverter datasheet. © 2024 Shenzhen GenixGreen Technology Co.,Ltd. All Rights Reserved.			www.genixenergy.com
