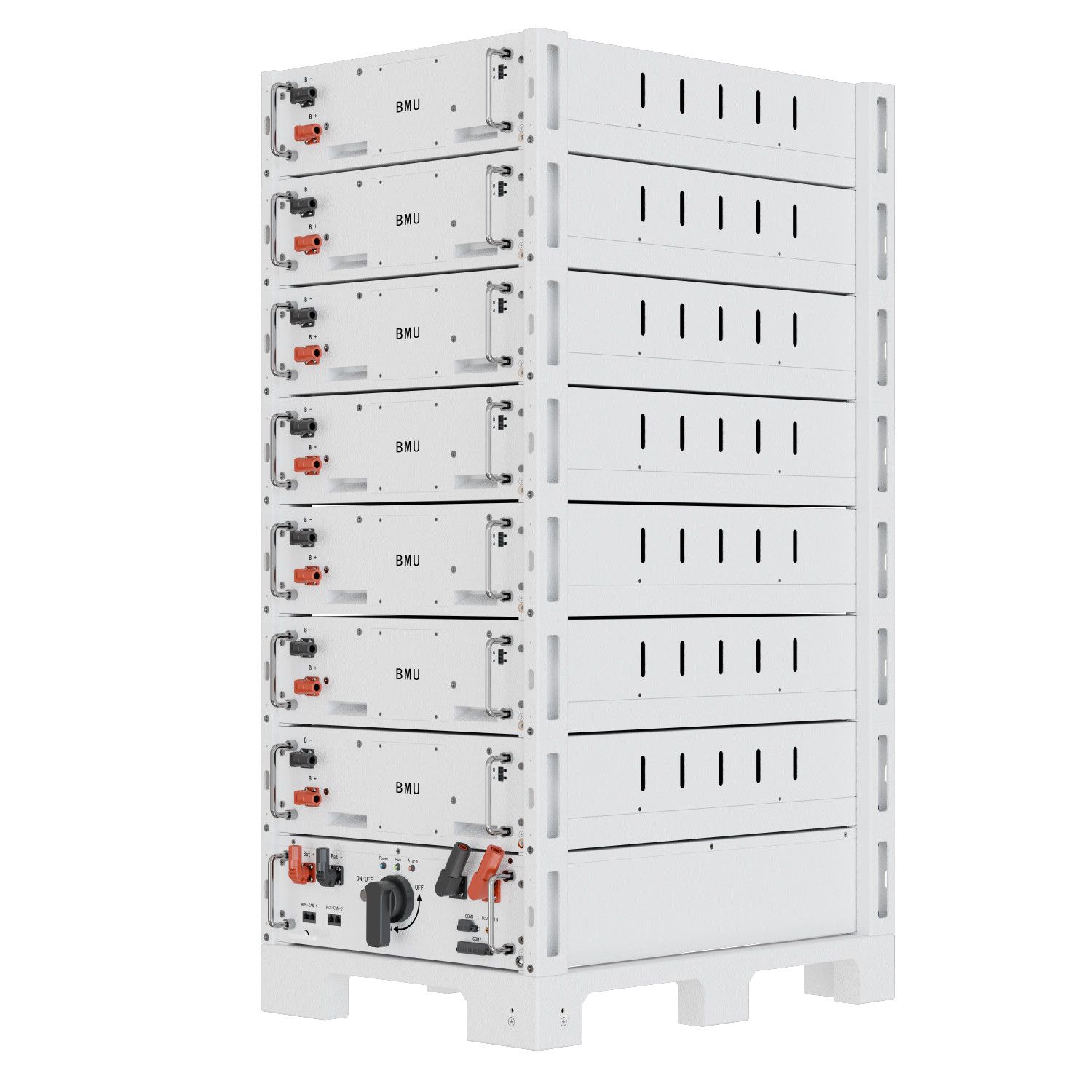

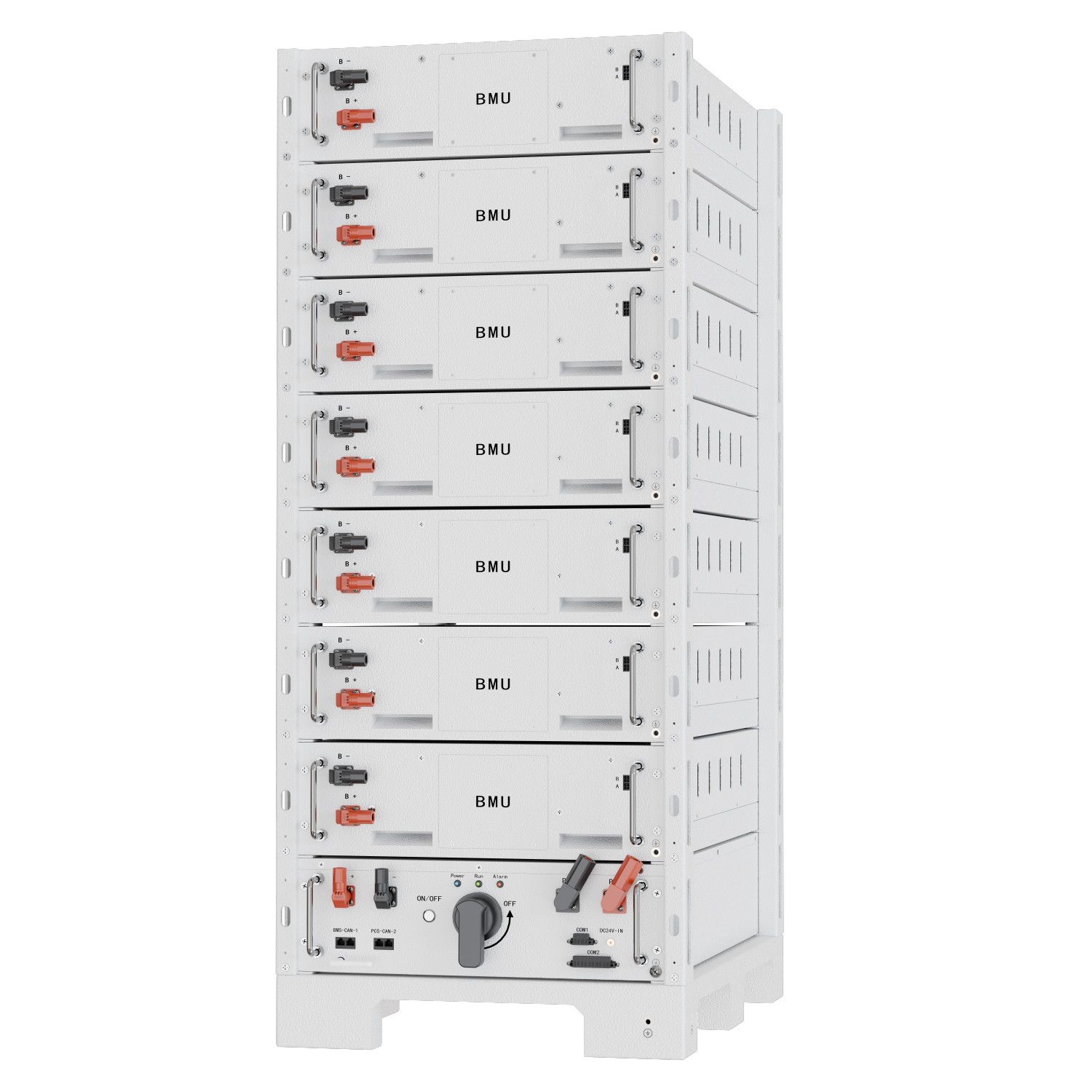

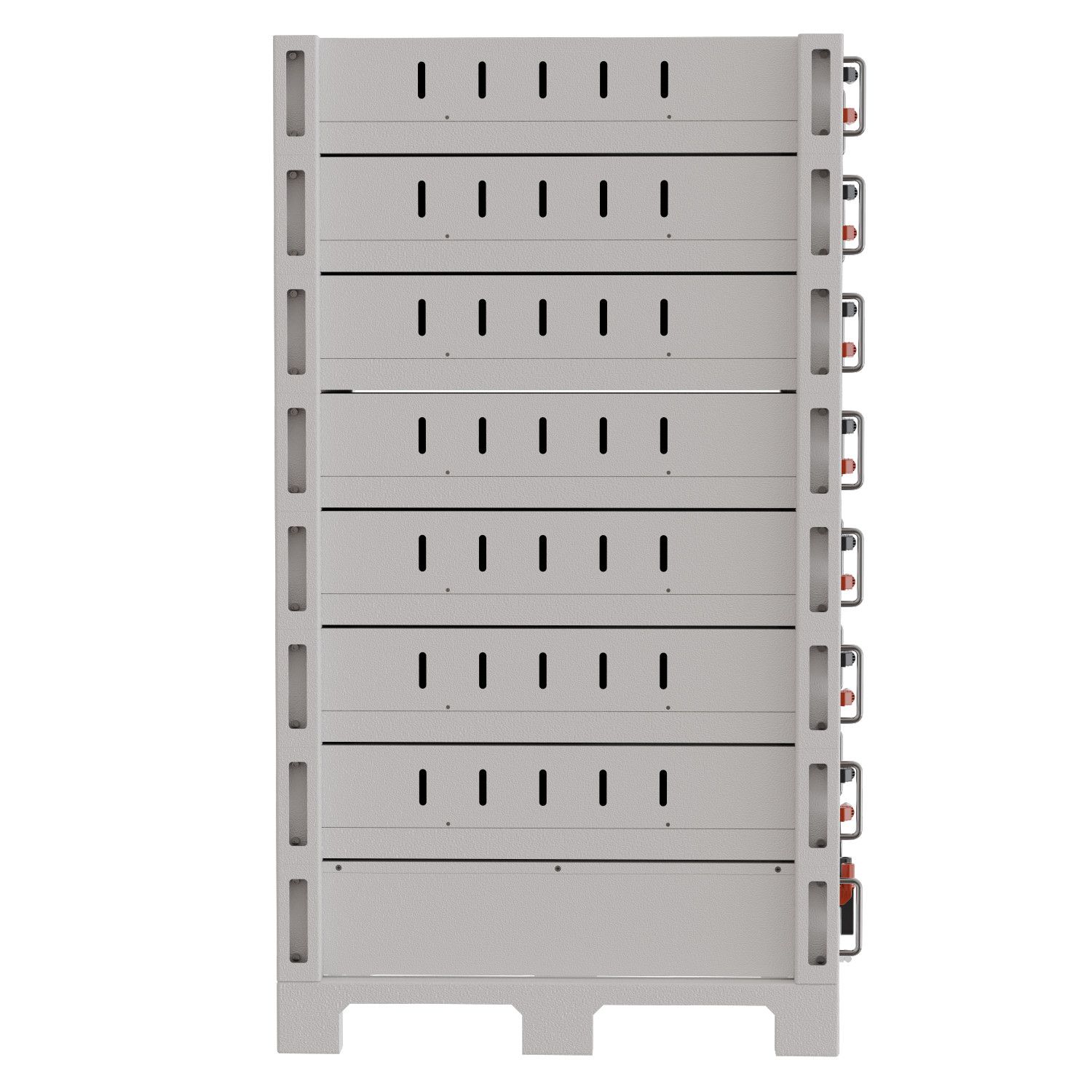

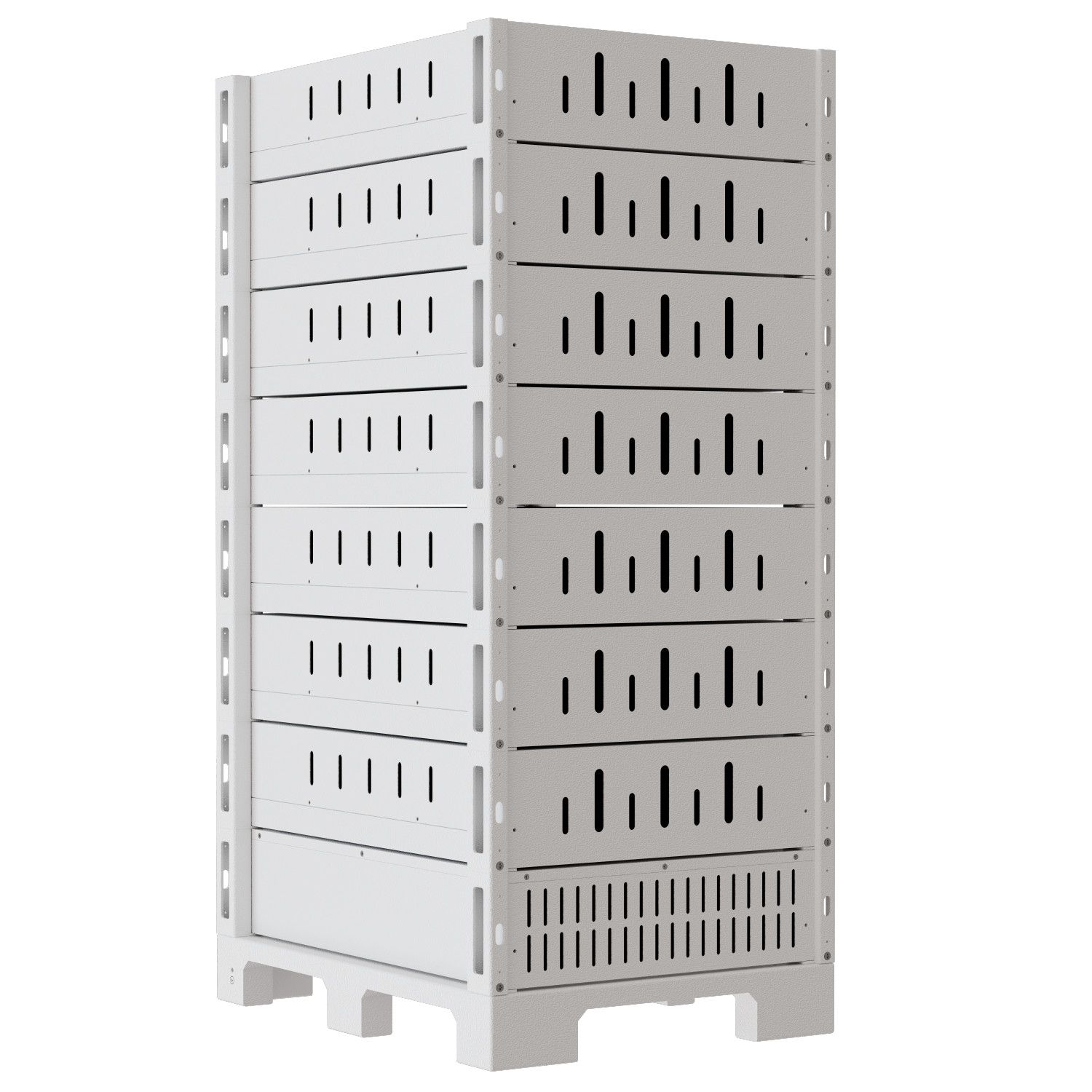

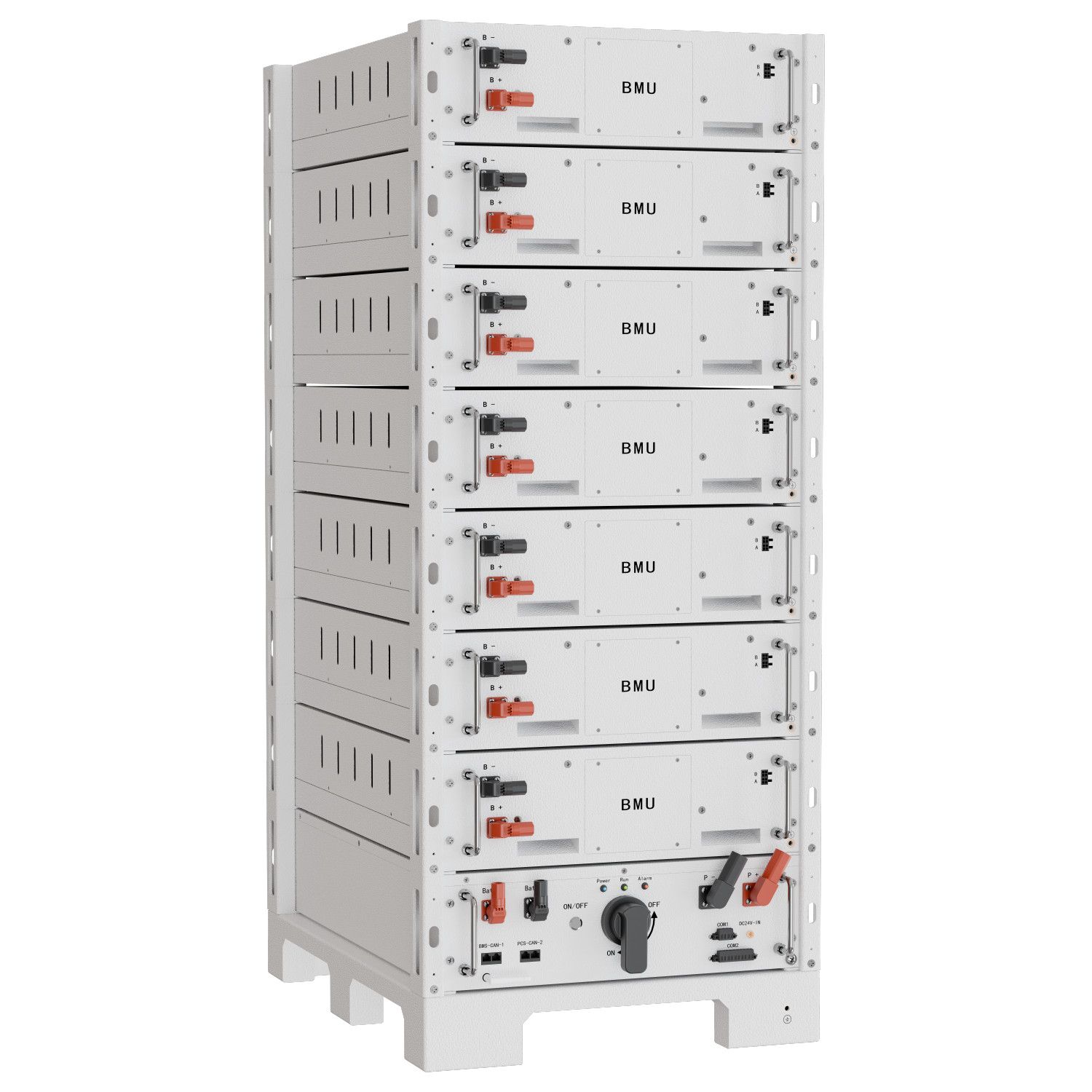

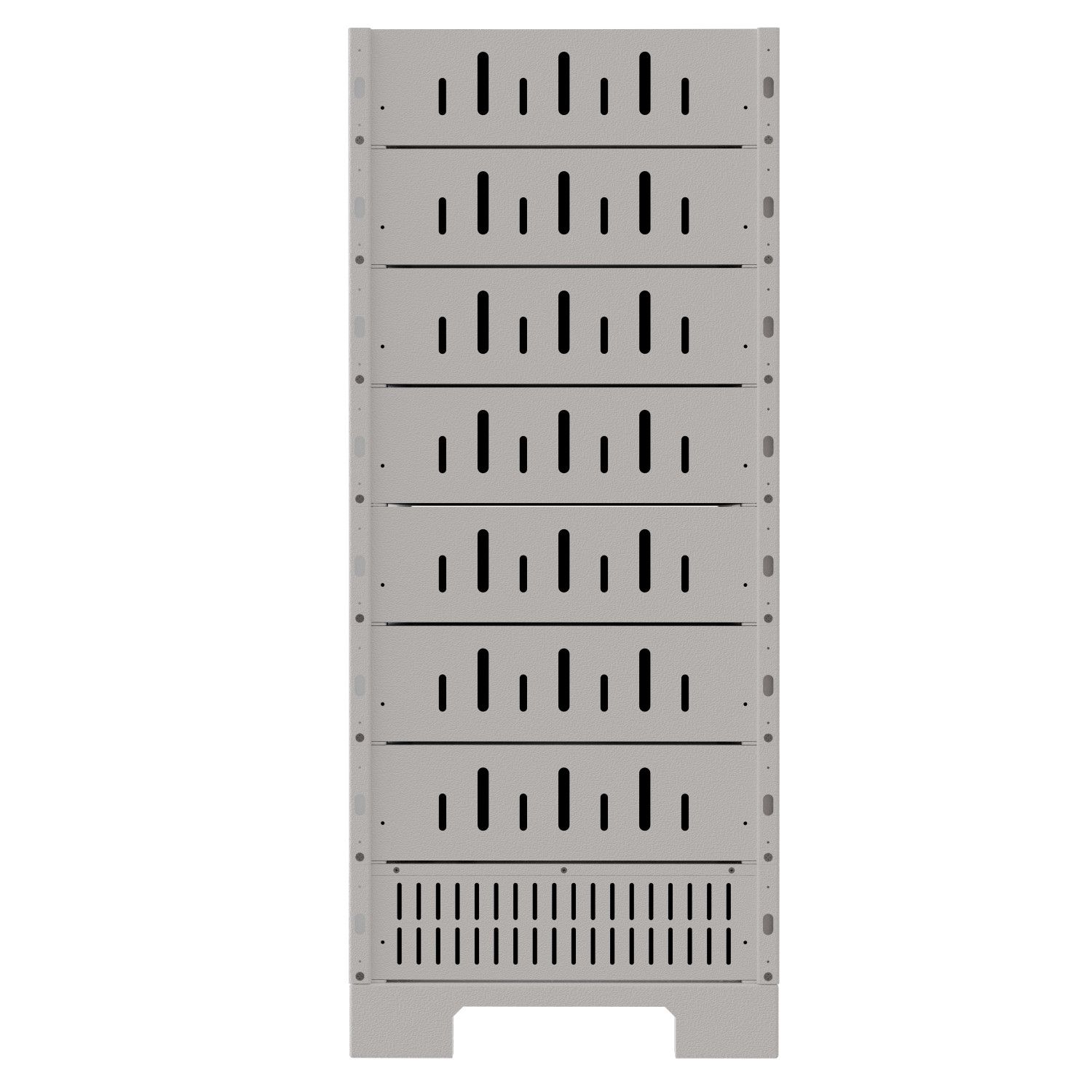

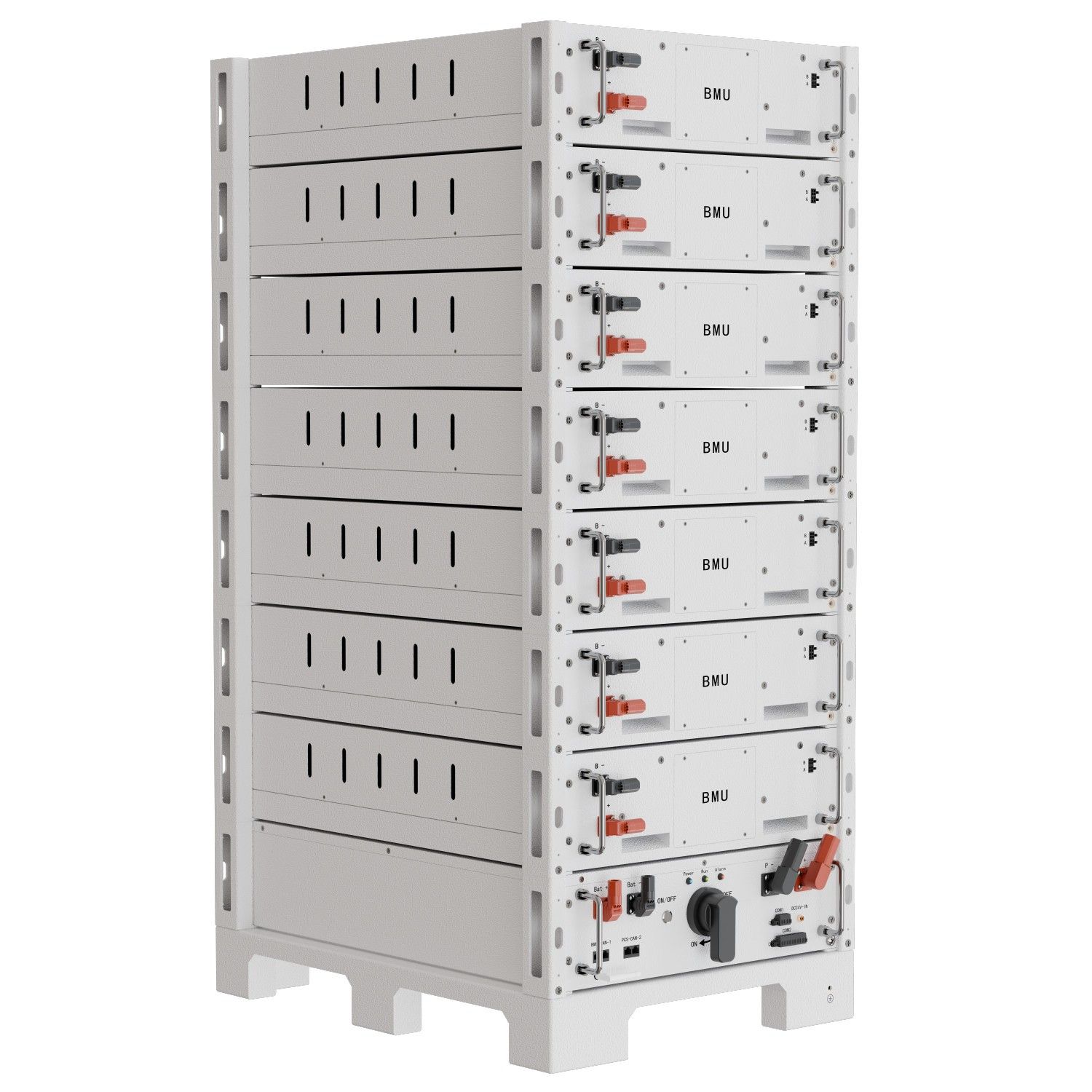

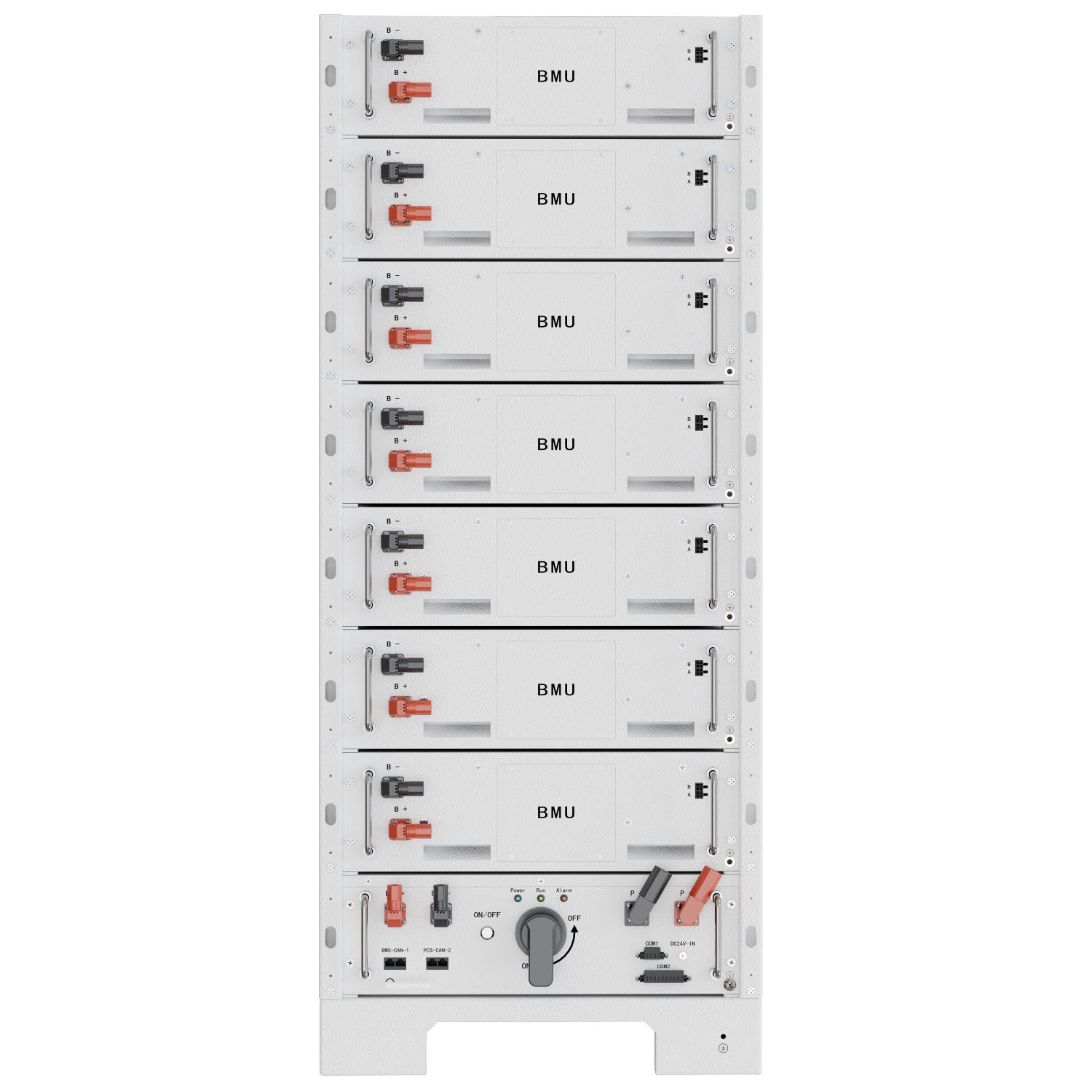

Tower-X-HV-716V100Ah modular construction Energy Systems Bracket model
Rated voltage:716V
The scope of work:627V~806V
Charge cutoff voltage:806V
Discharge cutoff voltage:627V
Rated charge/discharge current:Rated 5A0,MAX 100A
Rated Capacity:100AH
model | Tower-X-HV-716V100Ah | |
Rated voltage | 716V | |
The scope of work | 627V~806V | |
Charge cutoff voltage | 806V | |
Discharge cutoff voltage | 627V | |
Rated charge/discharge current | Rated 5A0,MAX 100A | |
Rated Capacity | 100AH | |
Maximum output power | 70KW | |
Adapt to PCS power | 10-50KW | |
communication method | CAN | |
The system can discharge energy | ≈65kWh | |
range of working temperature | Charging: 0~55℃ / Discharging: -10~60℃ | |
Working humidity range | 5-85%RH | |
Discharge depth | 80-90% | |
cycle life | 25±2℃/0.2C/80%≥5000 | |
Protection level | IP55 | |
System cycle efficiency | ≥90%@AC | |
cooling method | Air conditioning air cooling | |
Fire Fighting System | aerosol | |
Overall dimensions | 577mm (width)*799mm (depth)*1380mm(height) | |
weight | ≈700KG |
