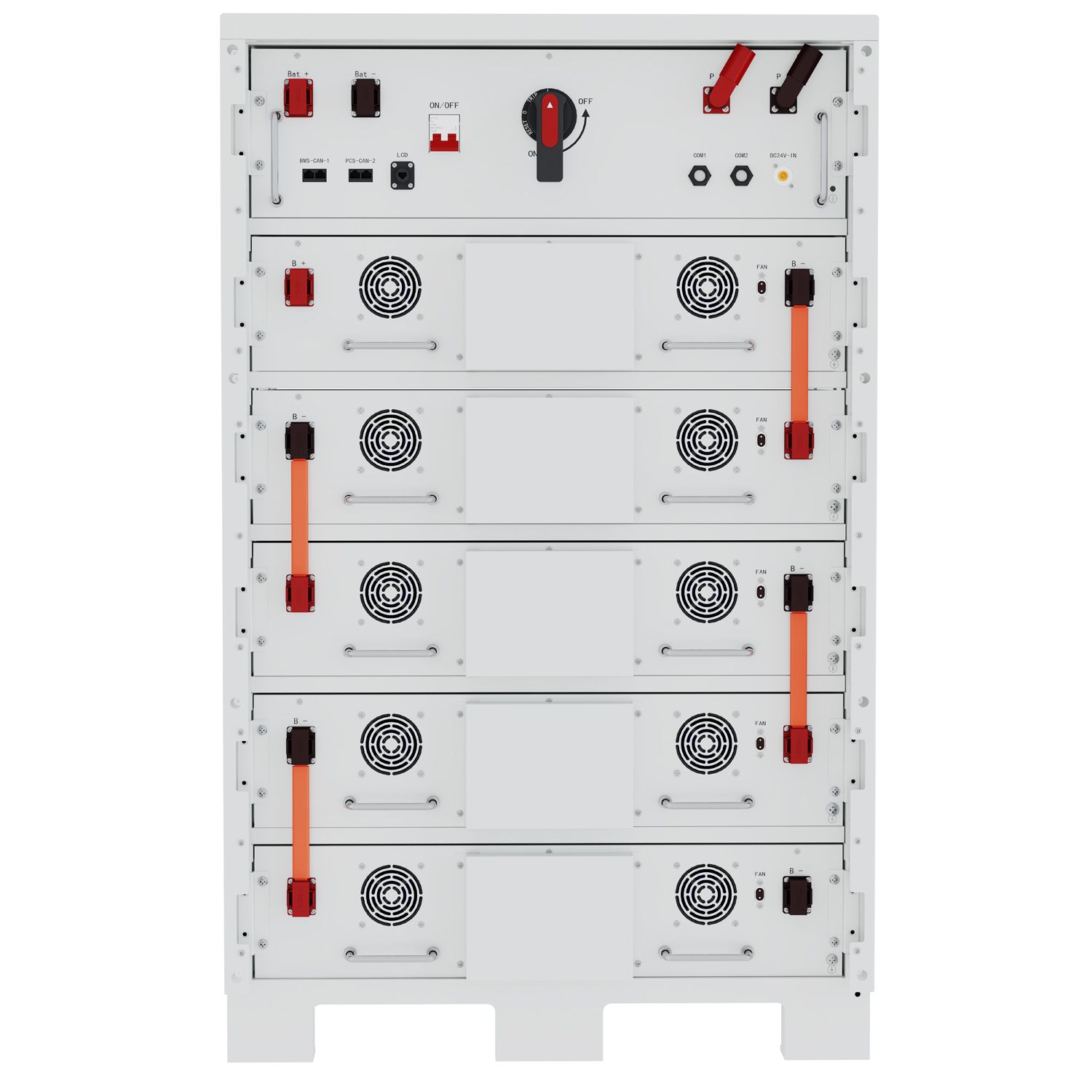

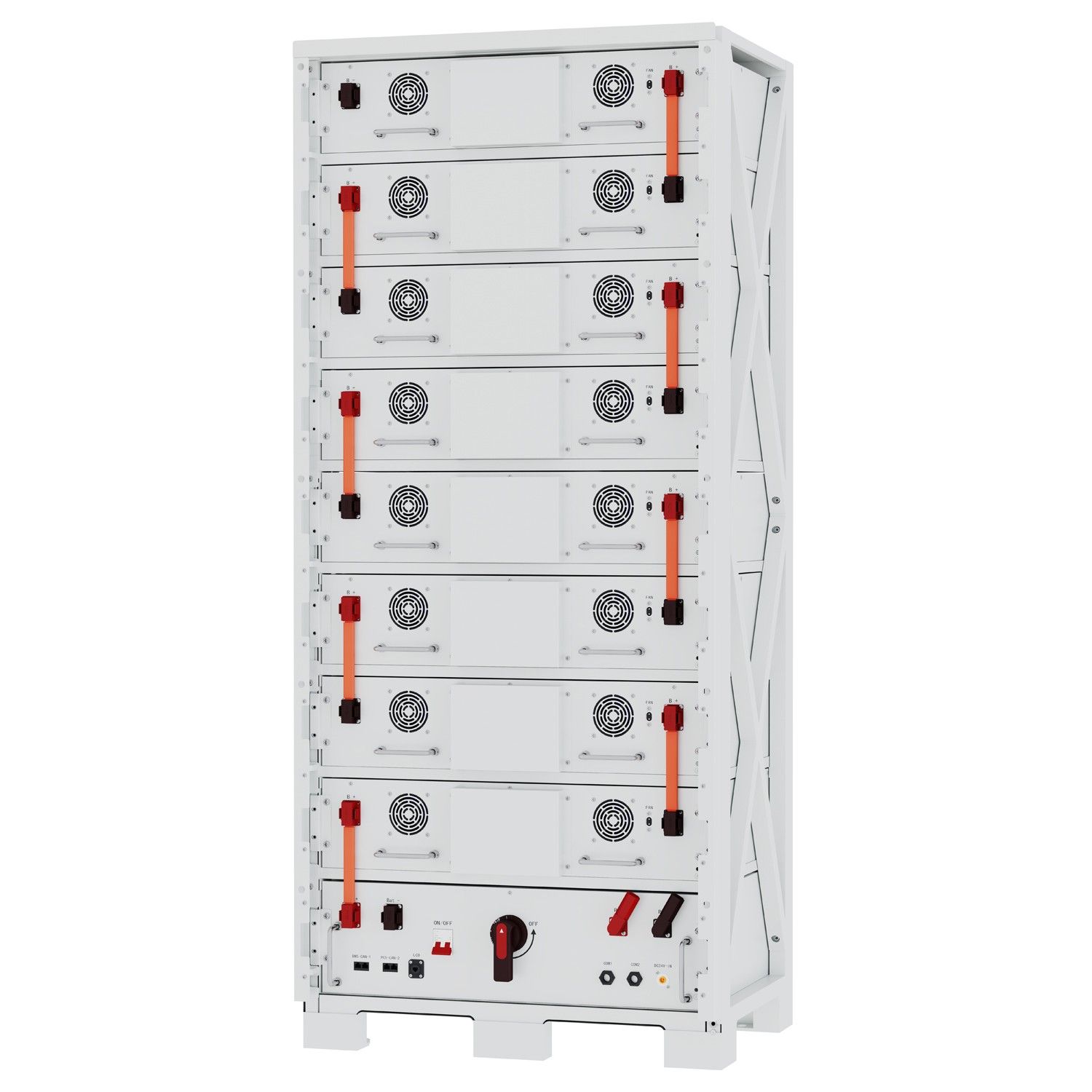

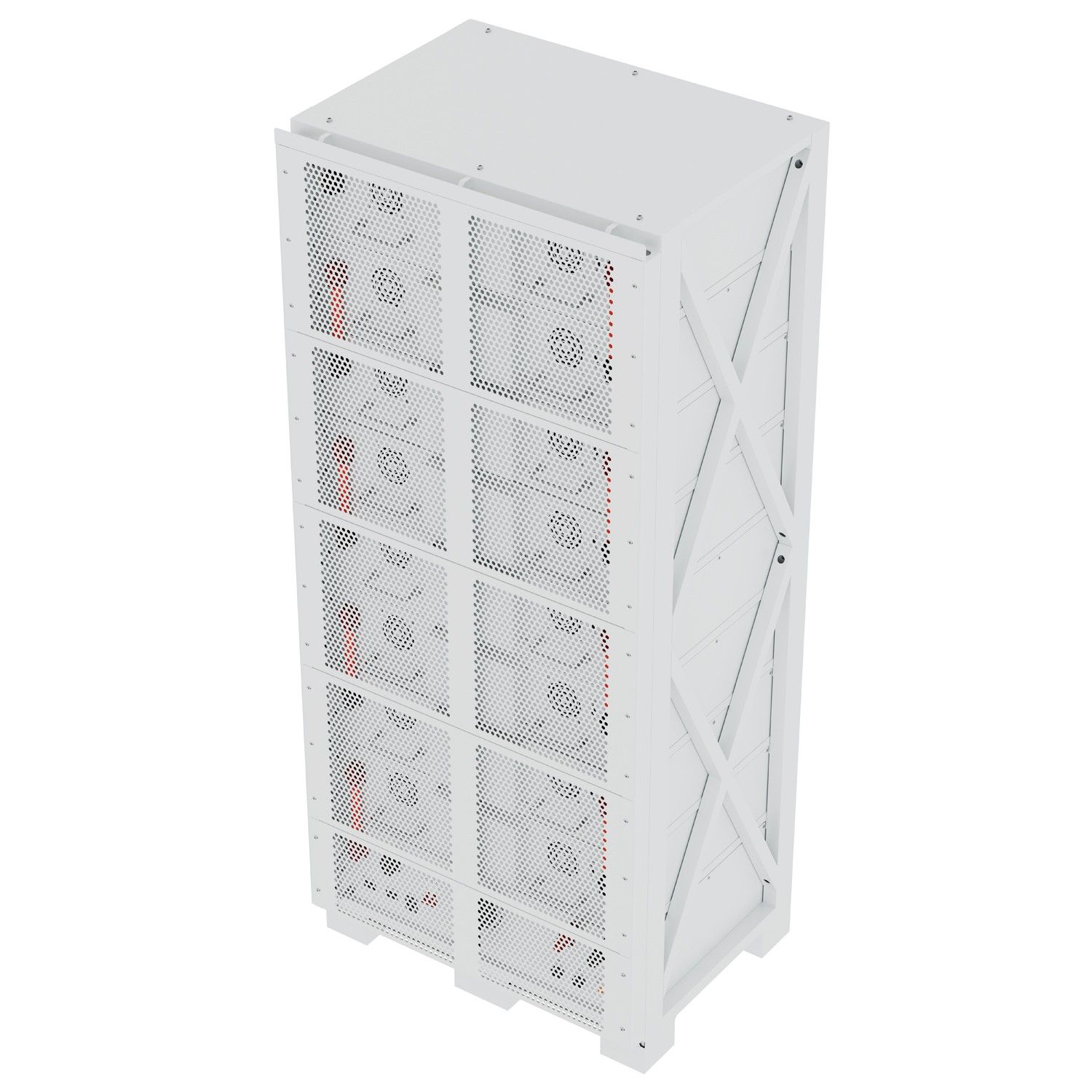

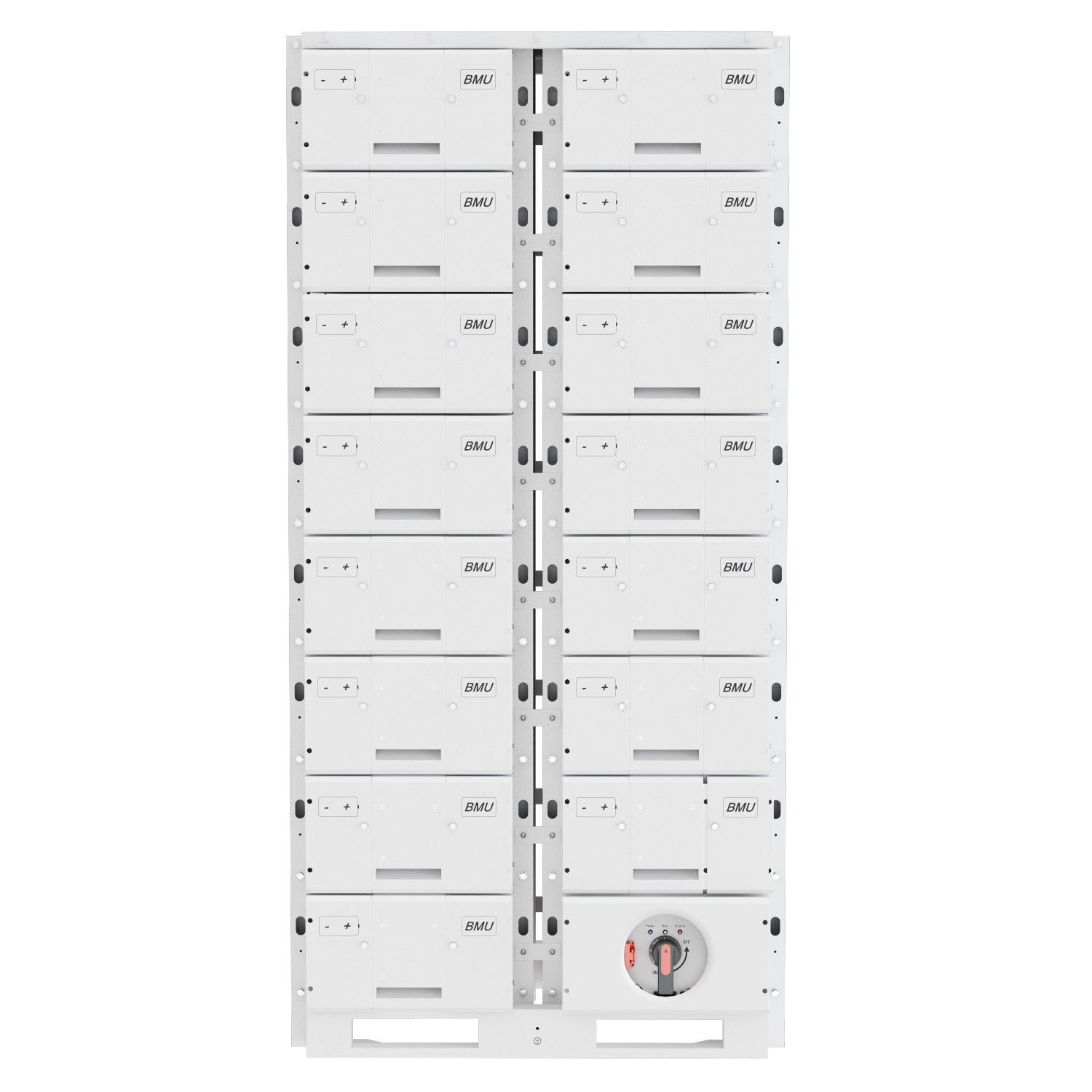

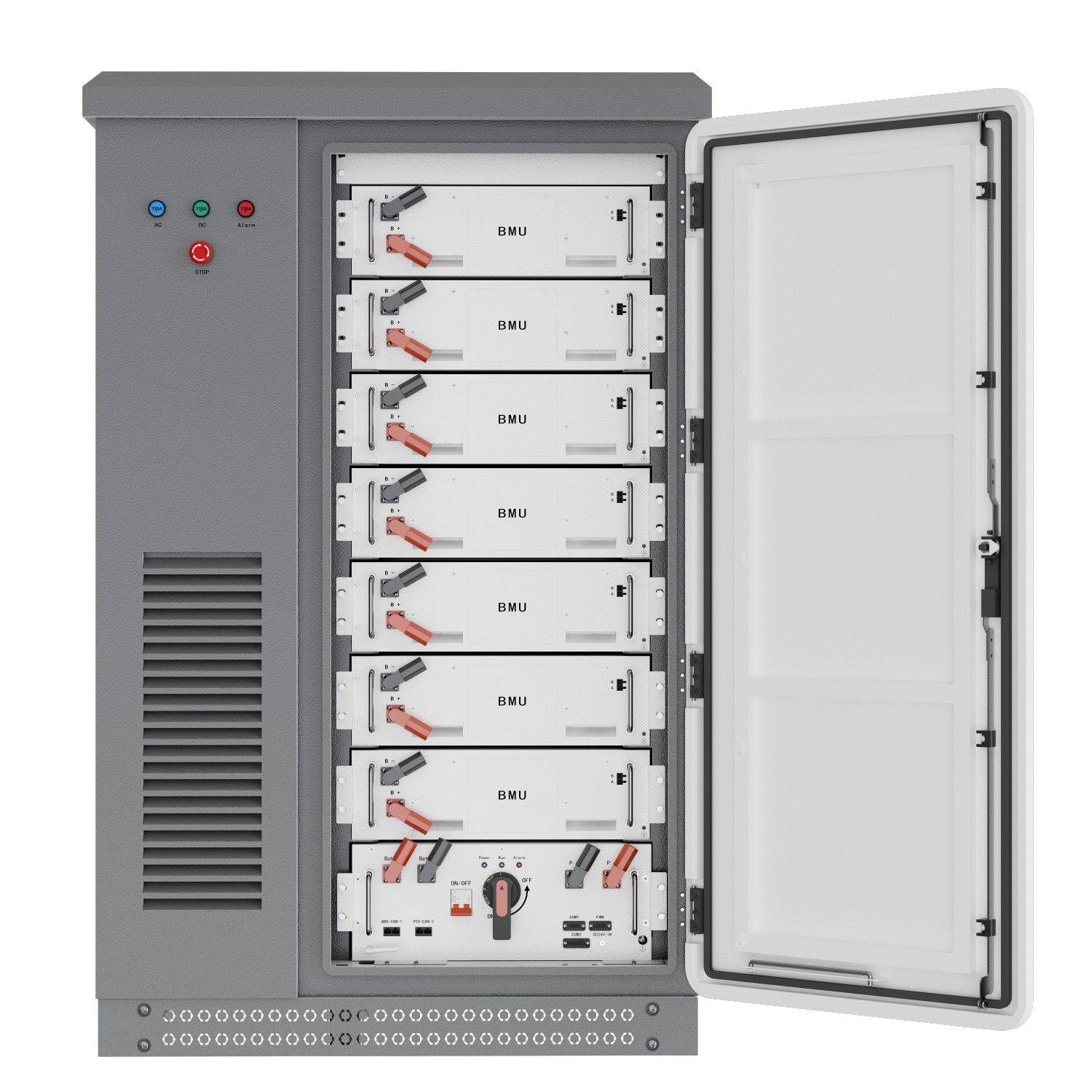

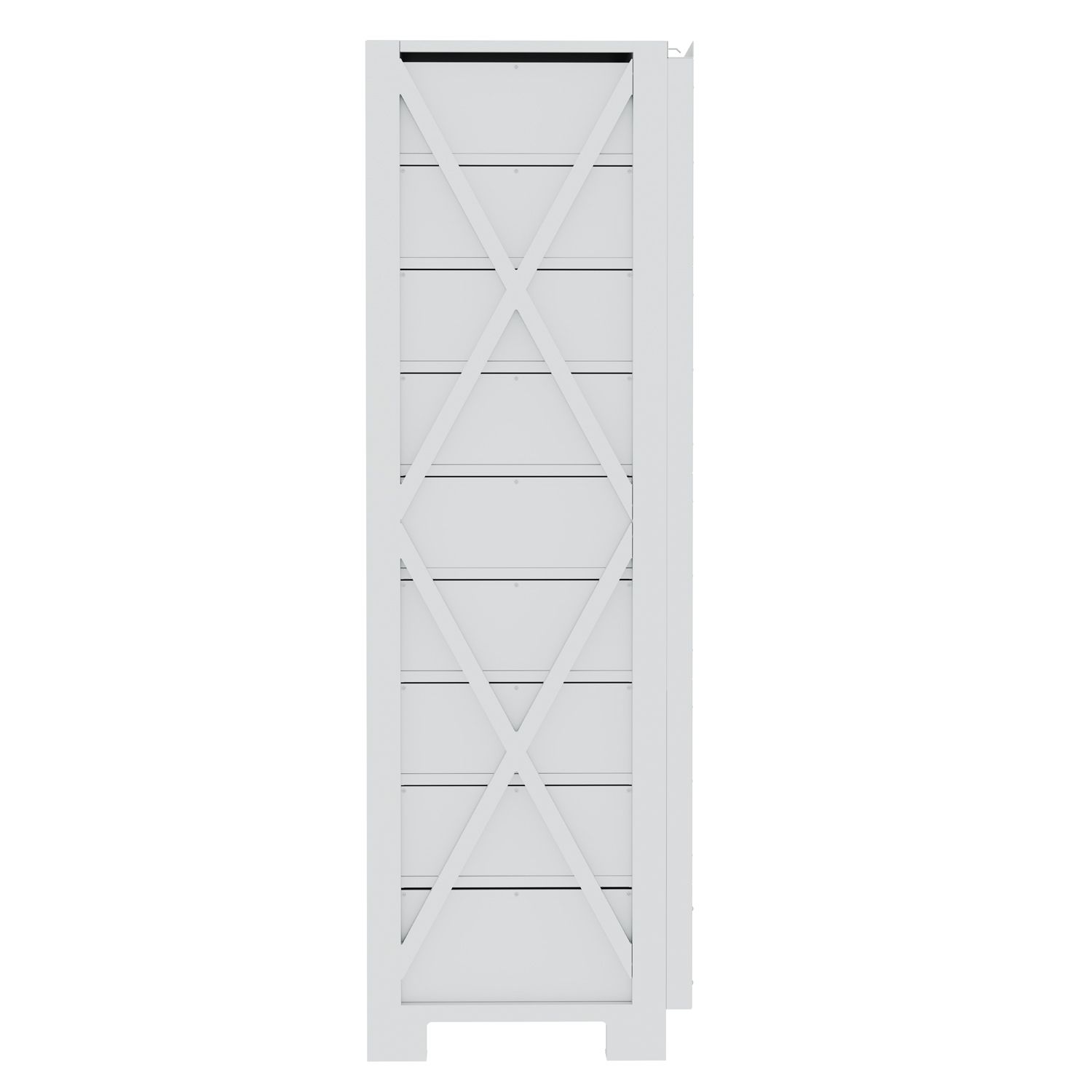

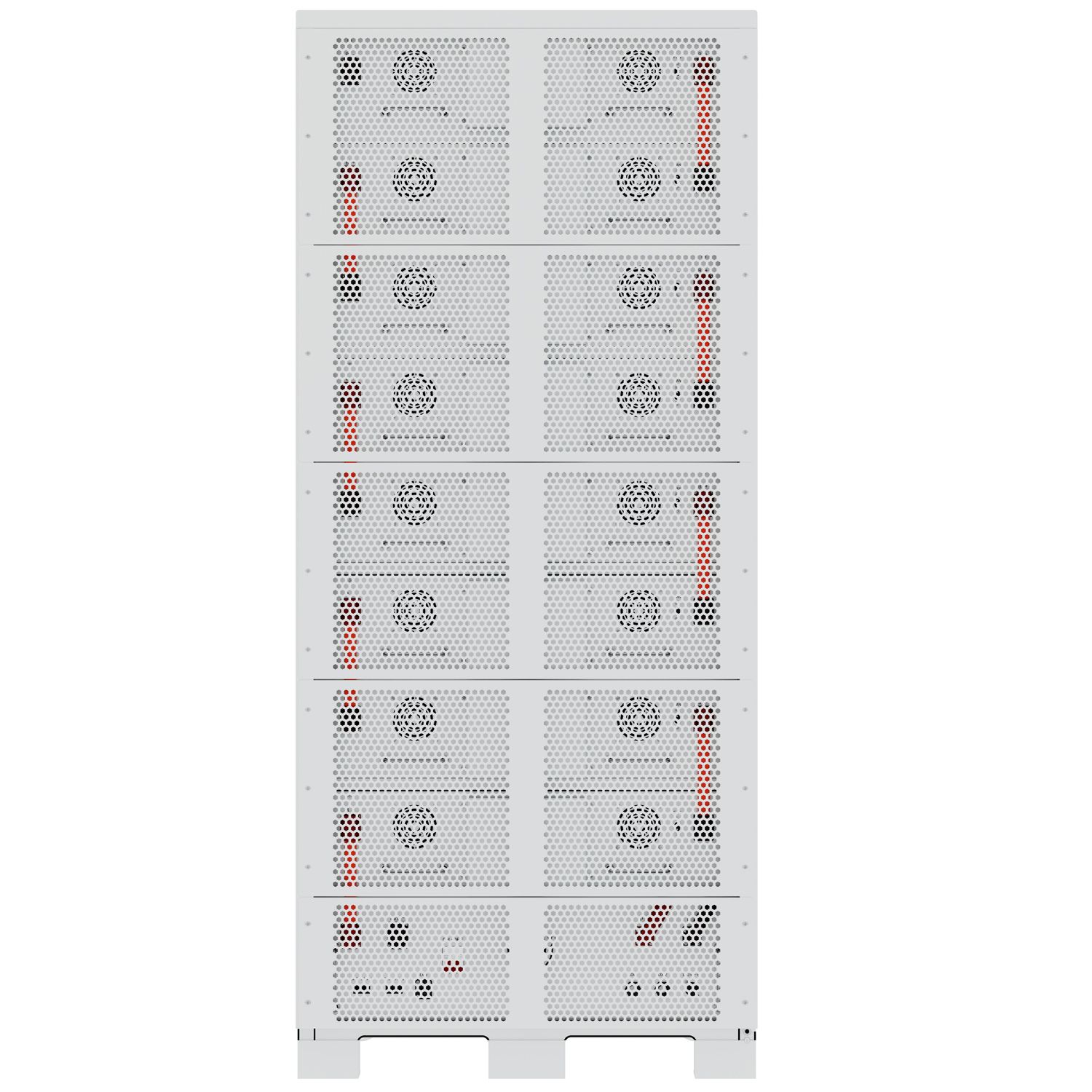

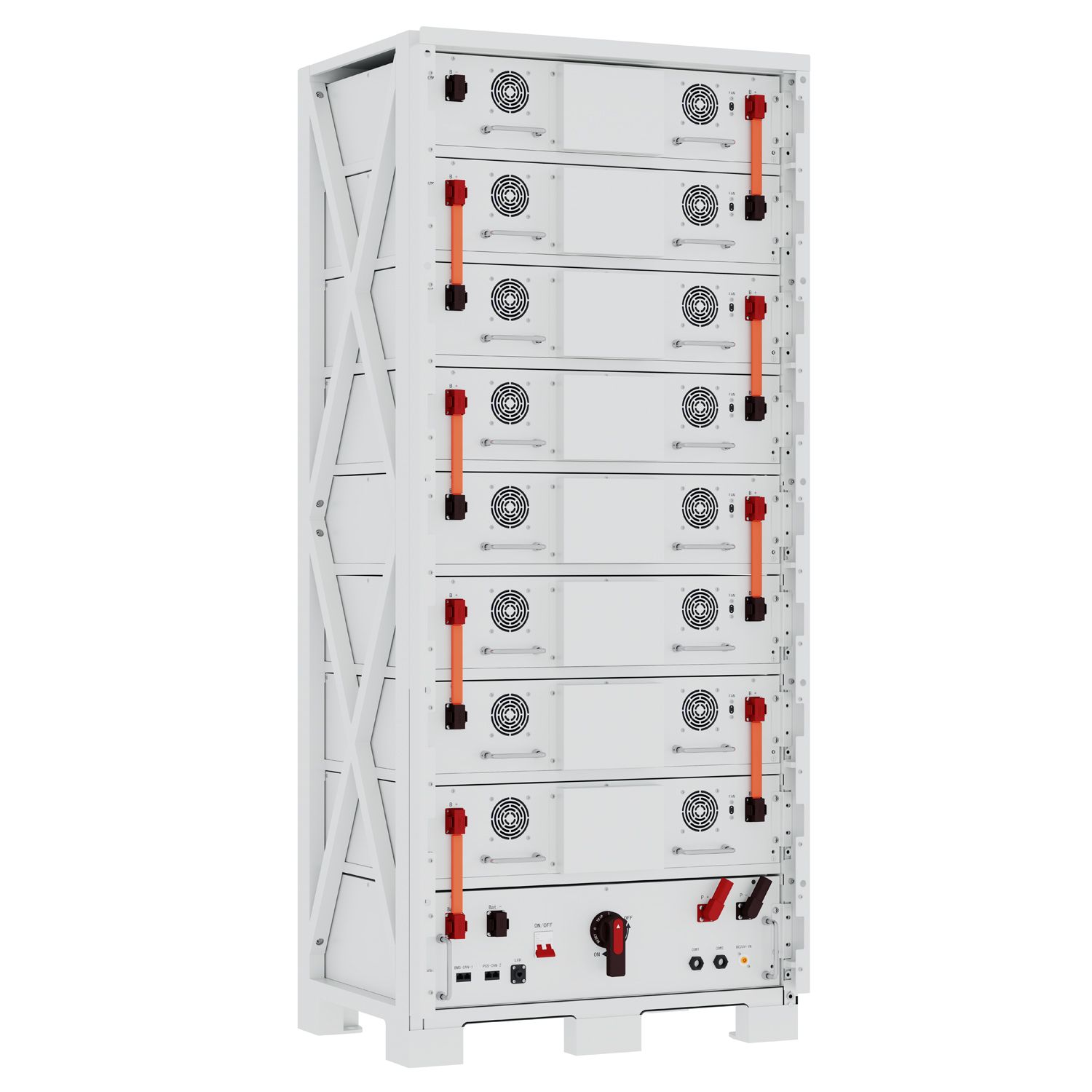

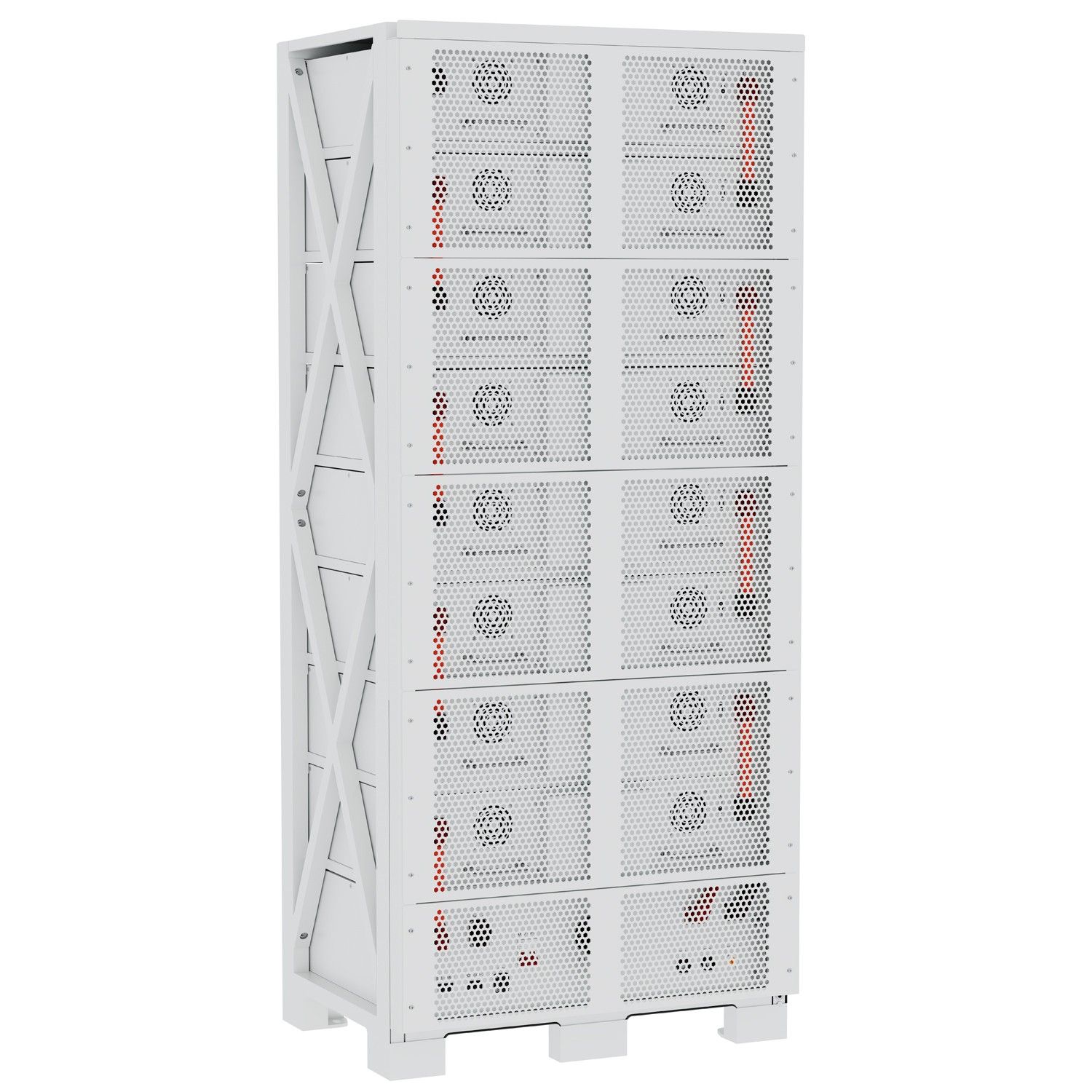

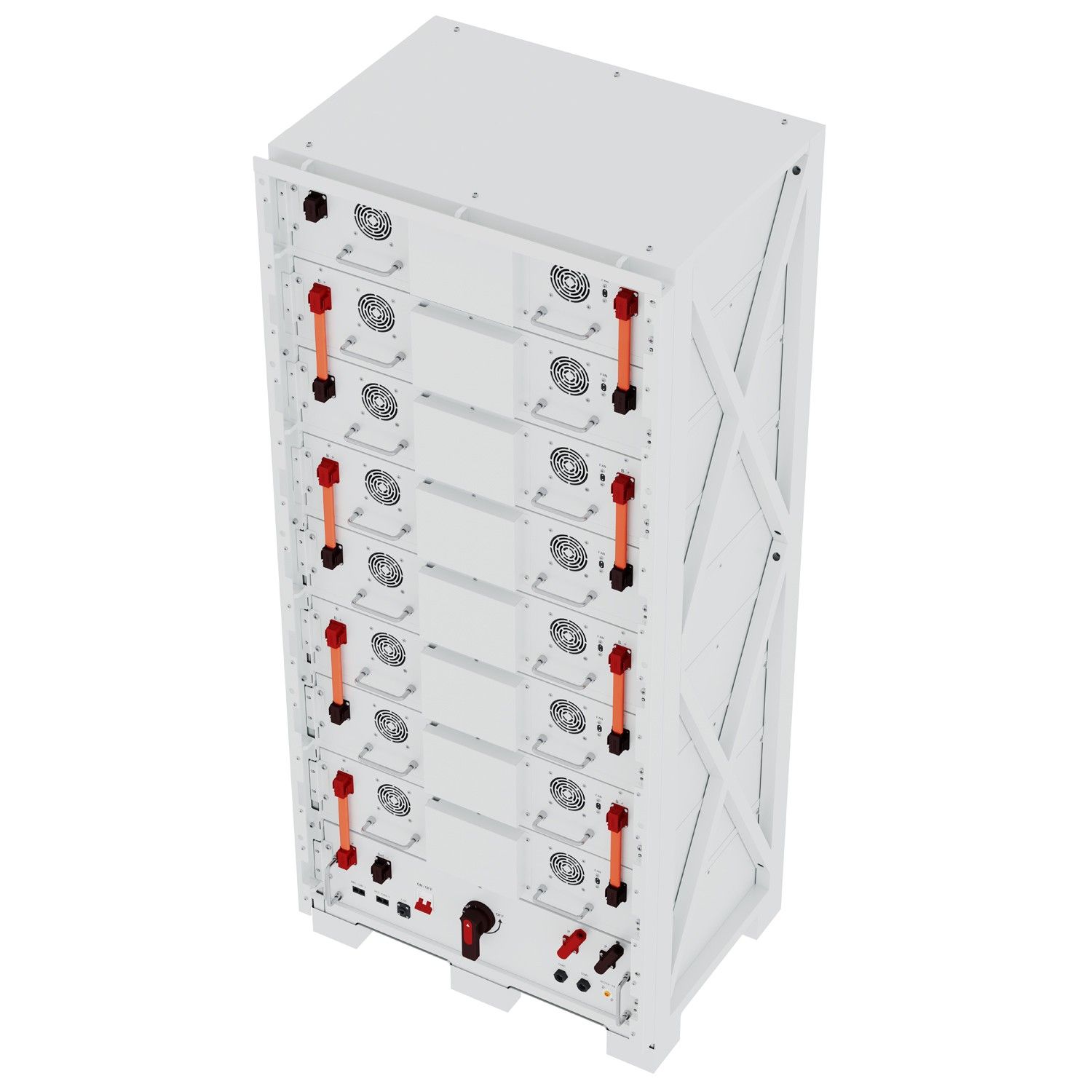

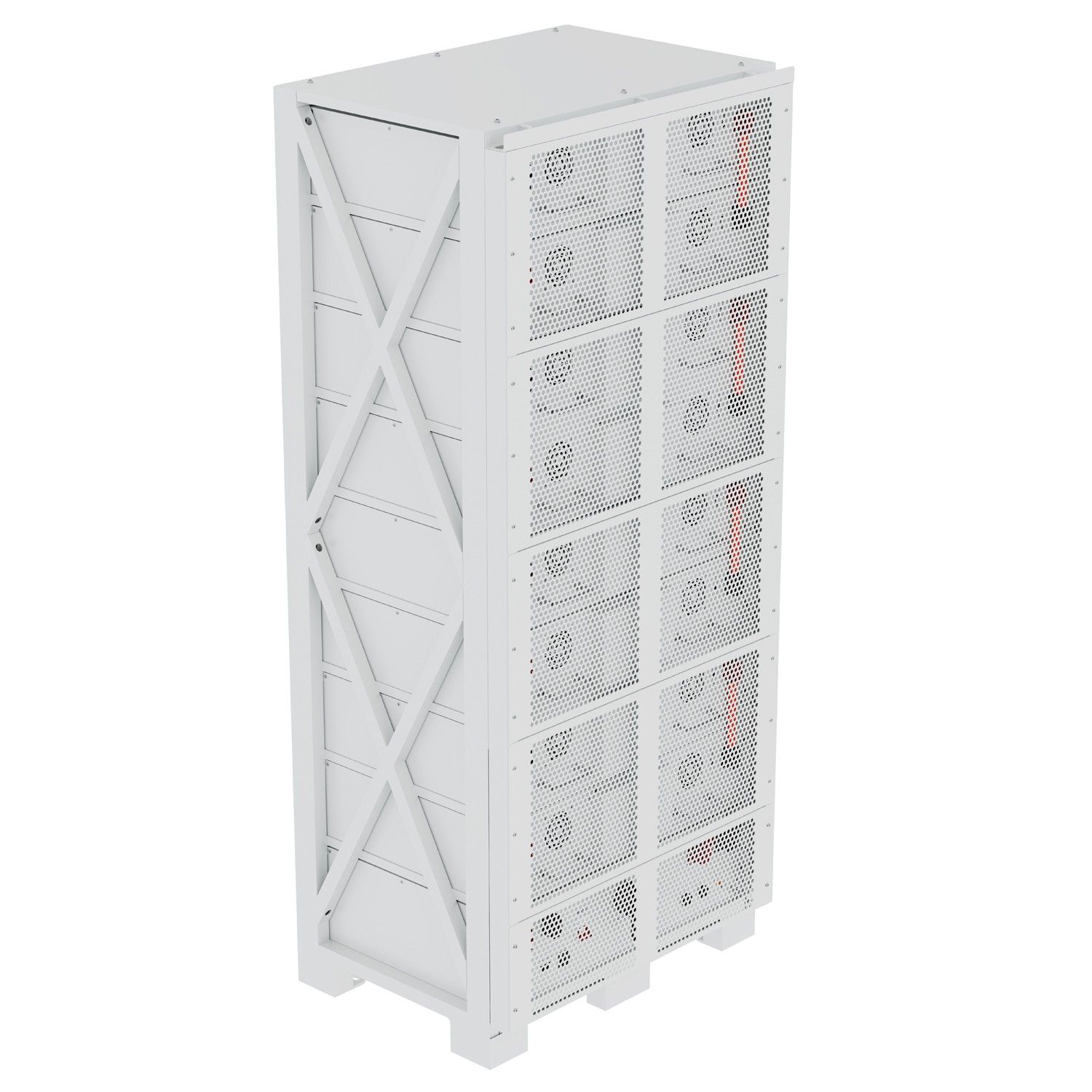

genixgreen battery BMS is compatible with multiple inverter brands
Model:HV-614V100AH
Rated voltage:614.4V
Rated capacity:100Ah (0.5C)
Rated energy:61.4KWH
Configuration:192S1
Charge voltage:691VDC
Discharge voltage:537VDC
| Model | HV-384V100AH | HV-460V100AH | HV-614V100AH | HV-768V280AH |
| Rated voltage | 384V | 460.8V | 614.4V | 768V |
| Rated capacity | 100Ah (0.5C) | 280Ah (0.5C) | ||
| Rated energy | 38.4KWH | 46KWH | 61.4KWH | 215.04KWH |
| Configuration | 120S1P | 144S1P | 192S1 | 240S1p |
| Charge voltage | 432VDC | 518VDC | 691VDC | 864VDC |
| Discharge voltage | 336VDC | 403VDc | 537VDC | 672VDC |
| Rated working current | 50A(0.5C) | 140A(0.5C) | ||
| Max. working current | 100A | 140A | ||
| Rated power | 19.2KW | 23KW | 30Kw | 107KW |
| Max.output power | 38.4KW(adjustable) | 46KW(adjustable) | 61KW (adjustable)| | 107KW(adjustable) |
| Recommended DoD | 90% | |||
| Range of working temp | -10~50°℃ | |||
| Working humidity range | 5-85%RH | |||
| Communication method | CAN2.0/RS485 | |||
| Compatible inverter brands | DEYE,Solis,Growatt,ATESS,Goodwe,Hoymiles,Afore, Megarevo,Invt,Pylontech,ThinkPower,Inhenergy | |||
| Working indicator | Blue:Power;Green:Run;Red:Alarm | |||
| cycle life | 25±2°C,0.2C/0.2C，EOL70%≥6000 | |||
| Display method | 10 inch (LCD)/PC Software | |||
| Protection Voltage protection | over charge and over discharge | |||
| Protection Temp. protection | Over temperature range protection | |||
| Protection Current protection | YES | |||
| Protection Leakage protection | YES | |||
| Dielectric withstand voltage | 1000VDc(not less than 2GQ2) | 1000VDC(not less than 2GQ2) | 2500VDC(not less than 2GQ) | 2500VDC(not less than 2GQ2) |
| Dimension | 776*600*1250M | 776*600*1400MM | 776*600*1800MM| | 1545*800*1800MM |
| Weight | 400-500KG | 450-550KG | 600-700KG | 2.2-2.4T |
| Protection level | IP 20 | |||
