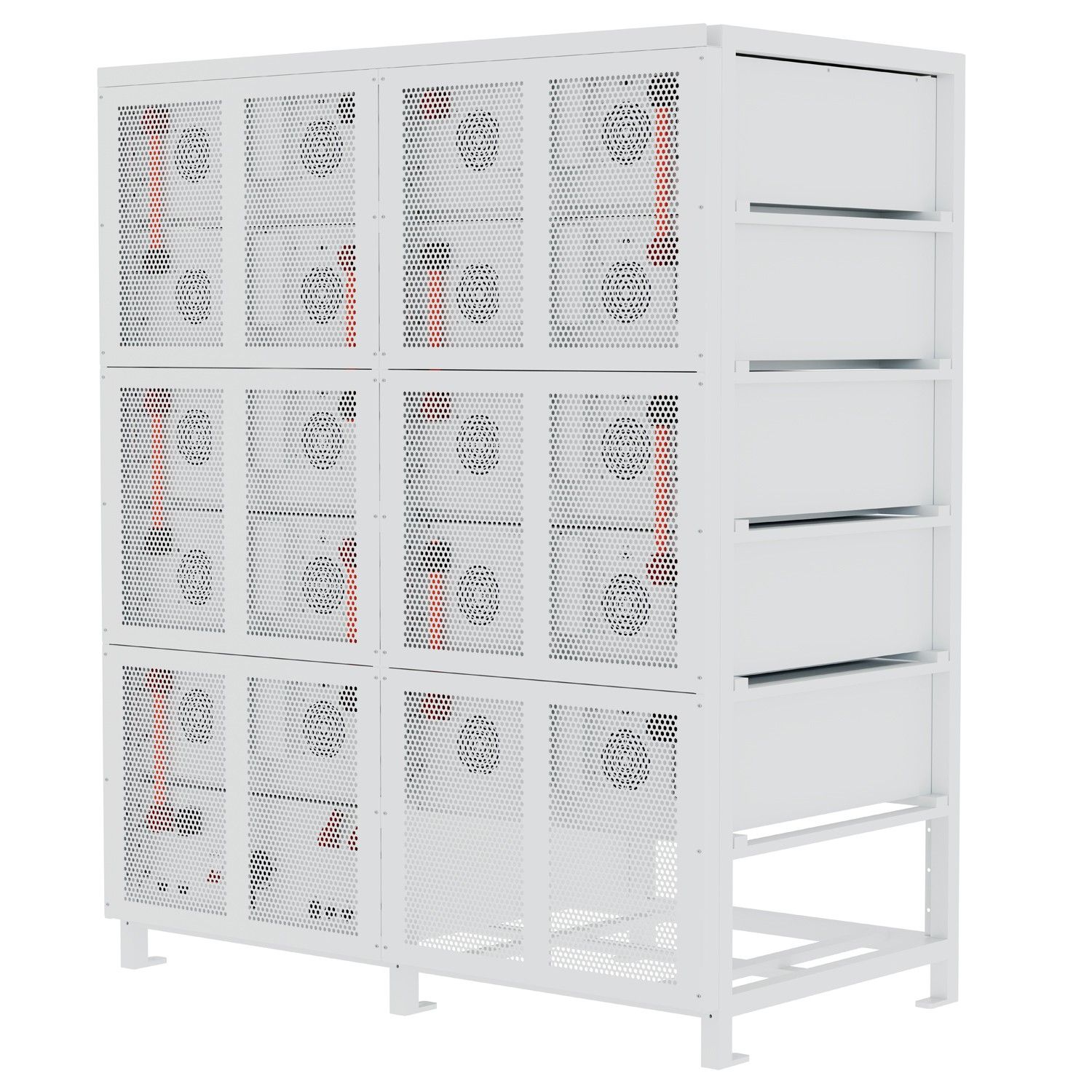

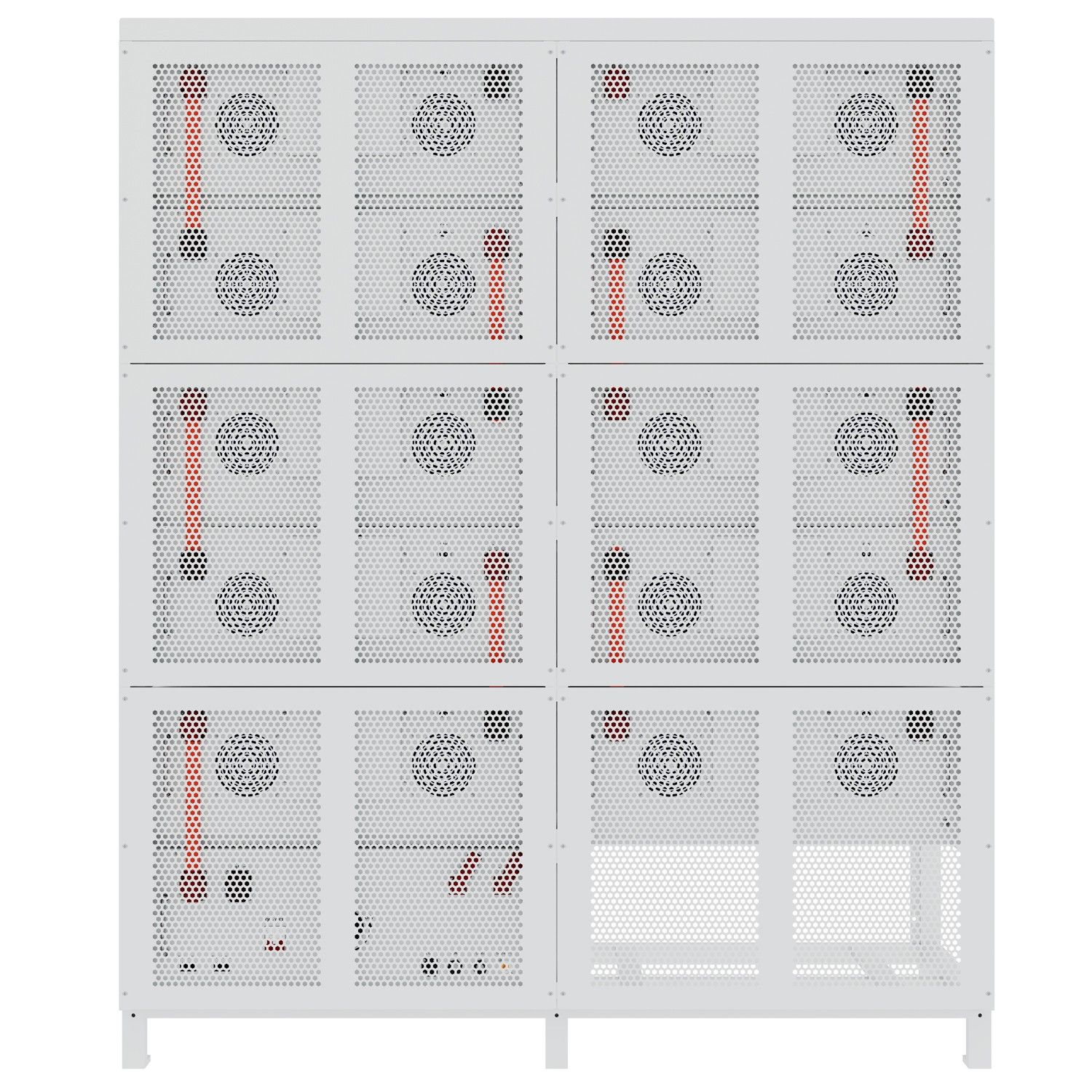

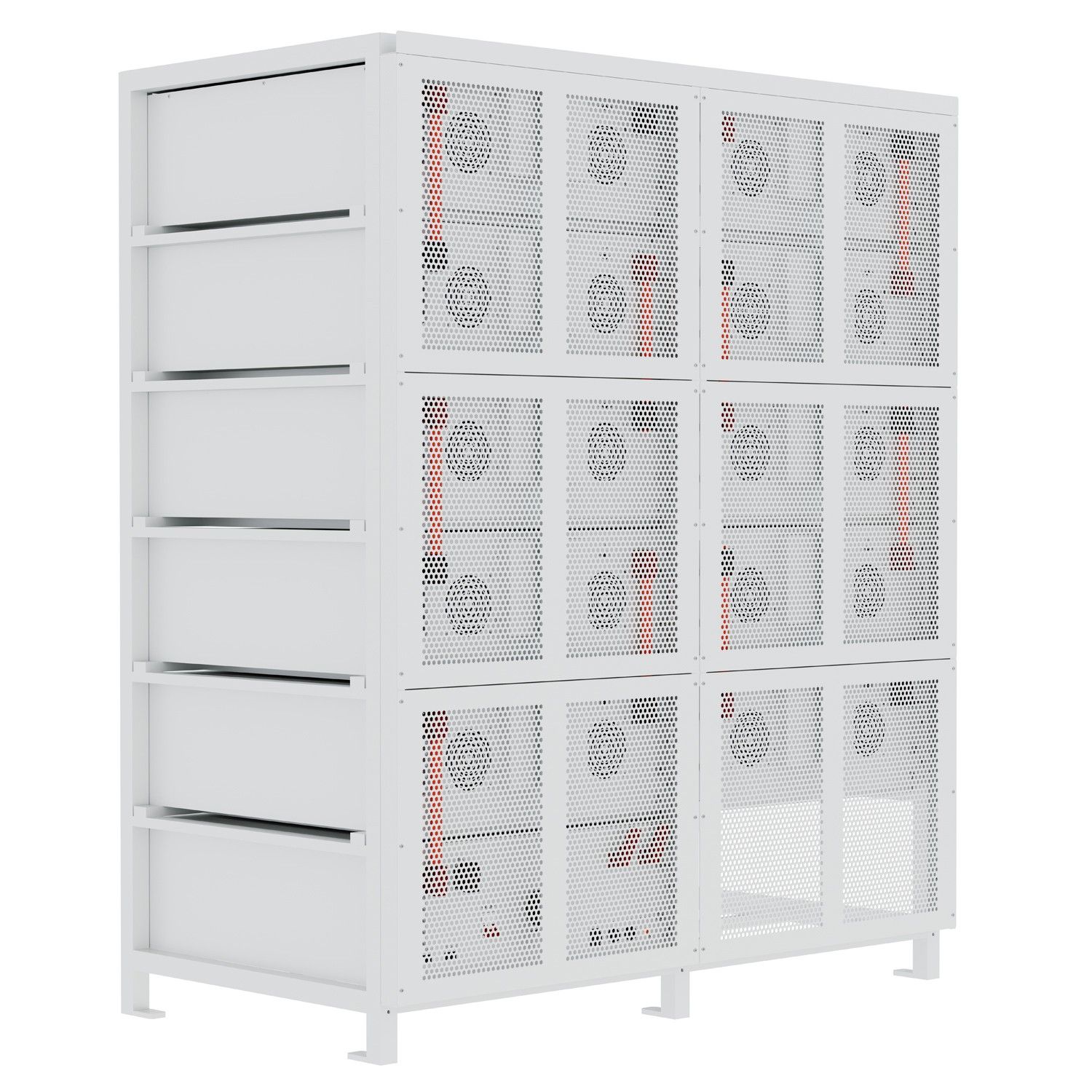

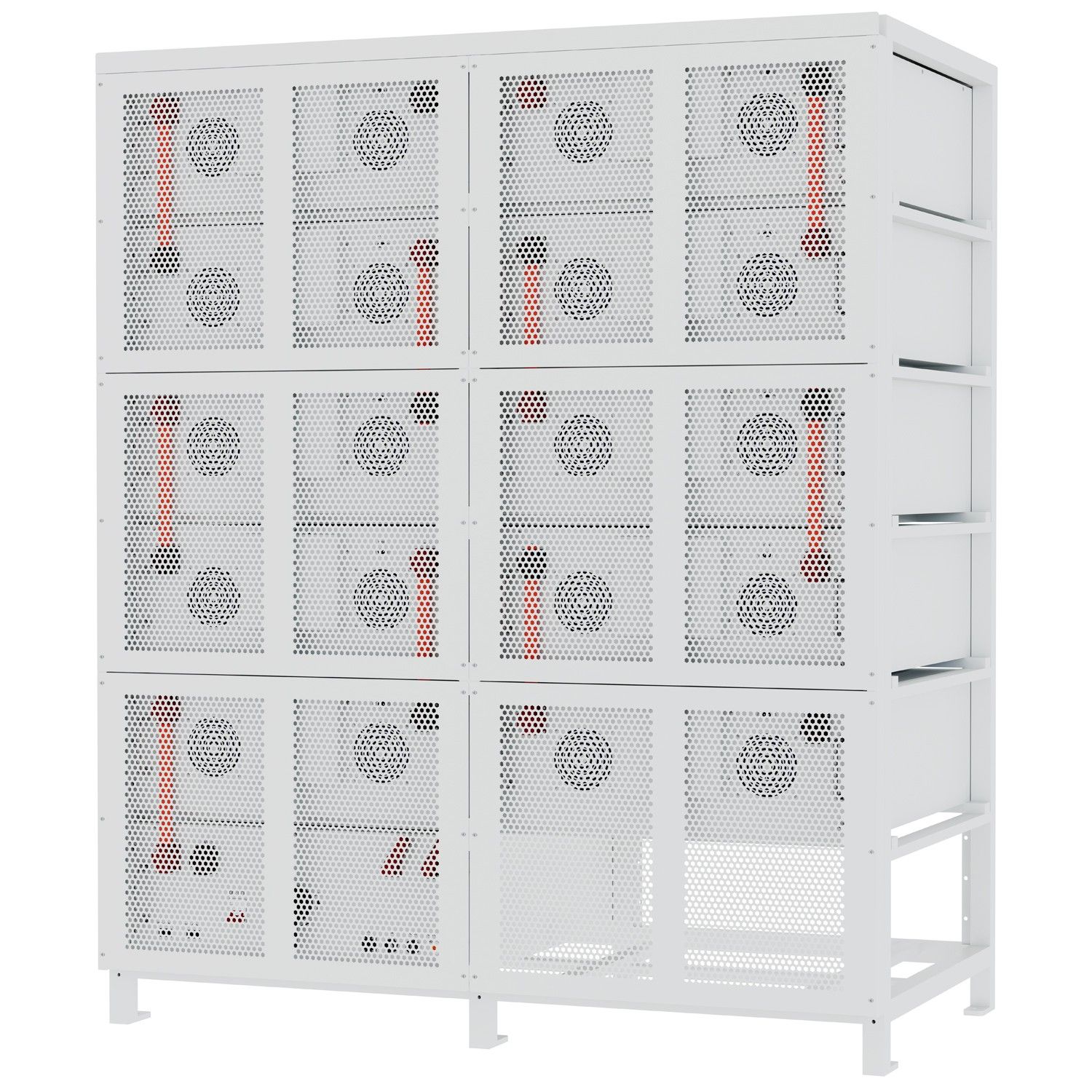

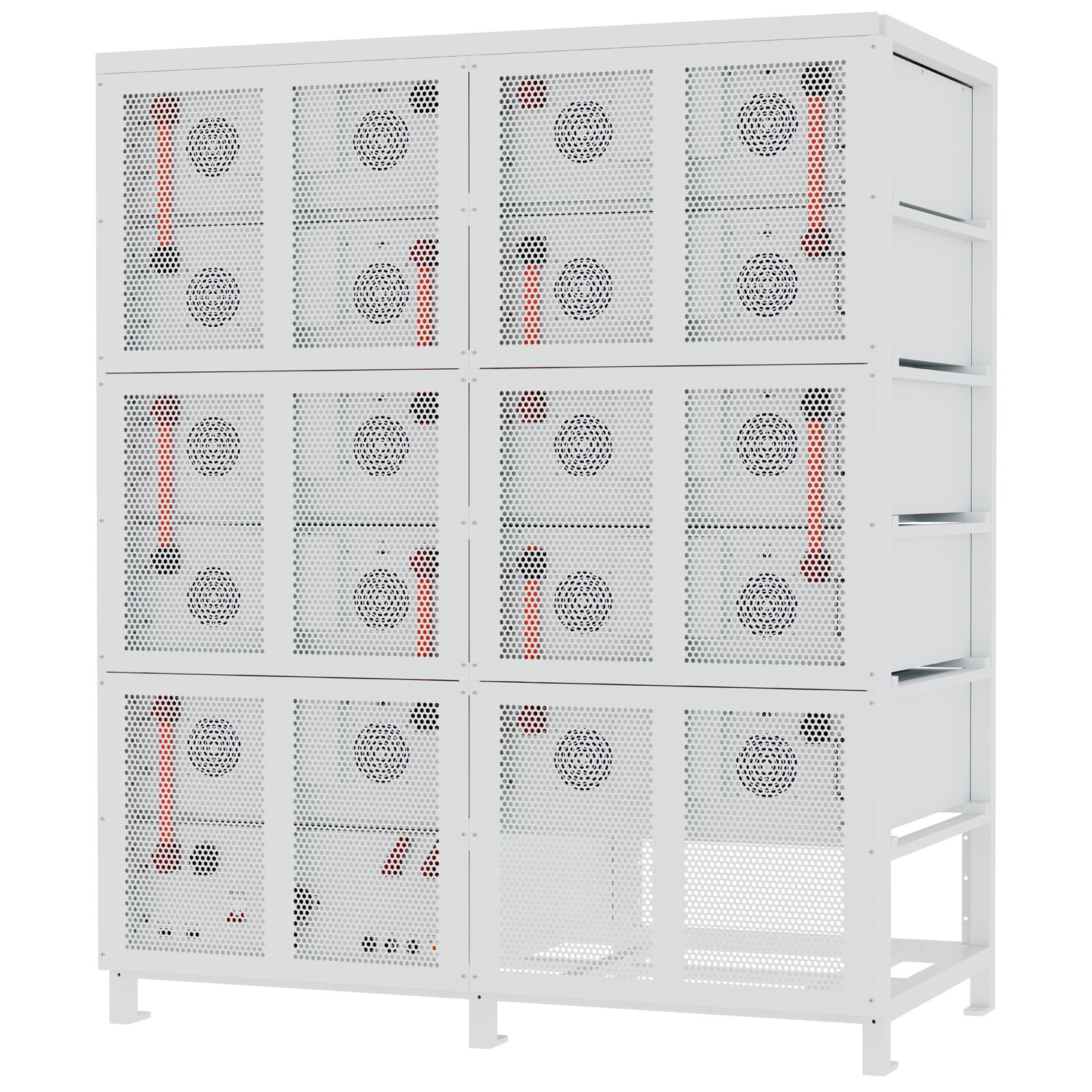

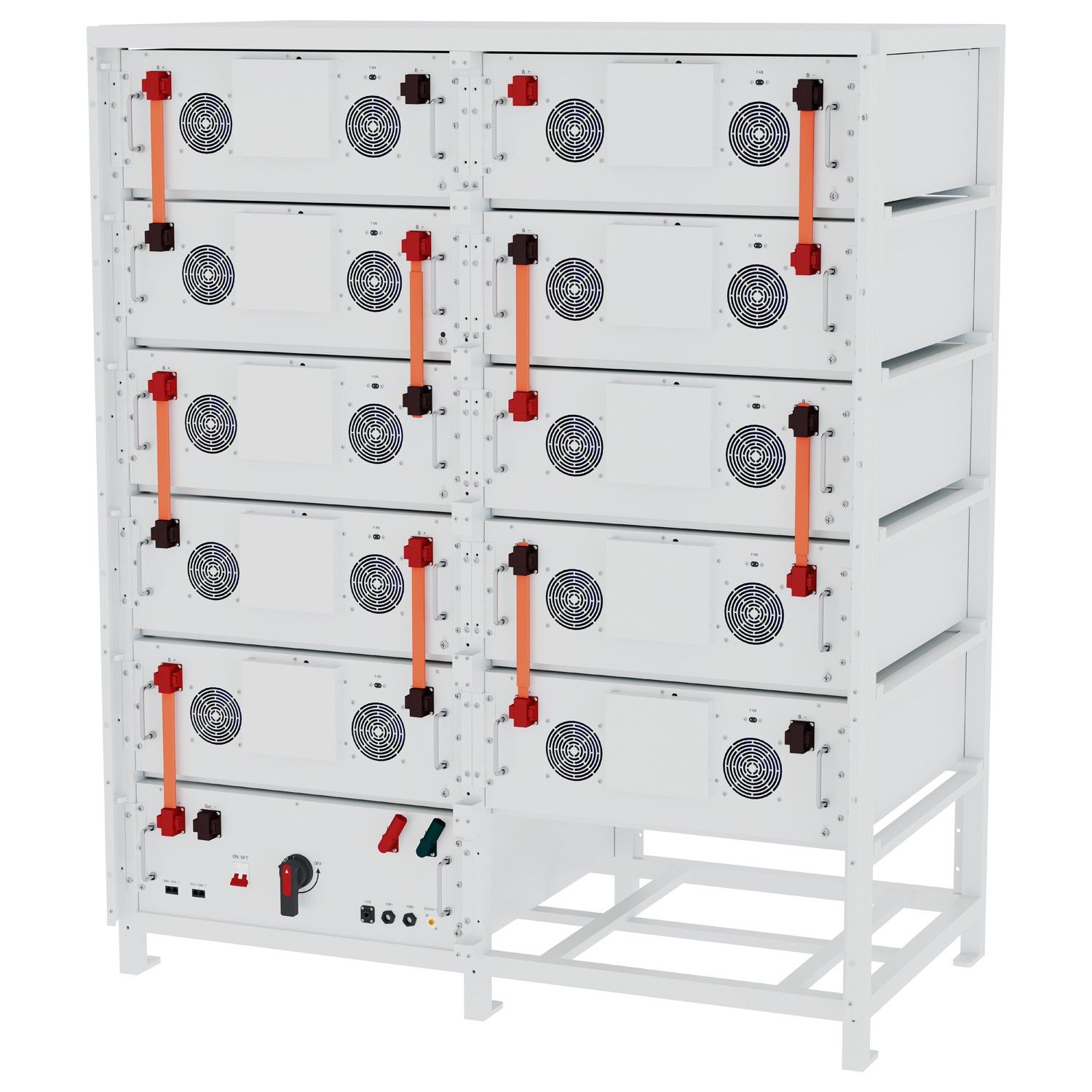

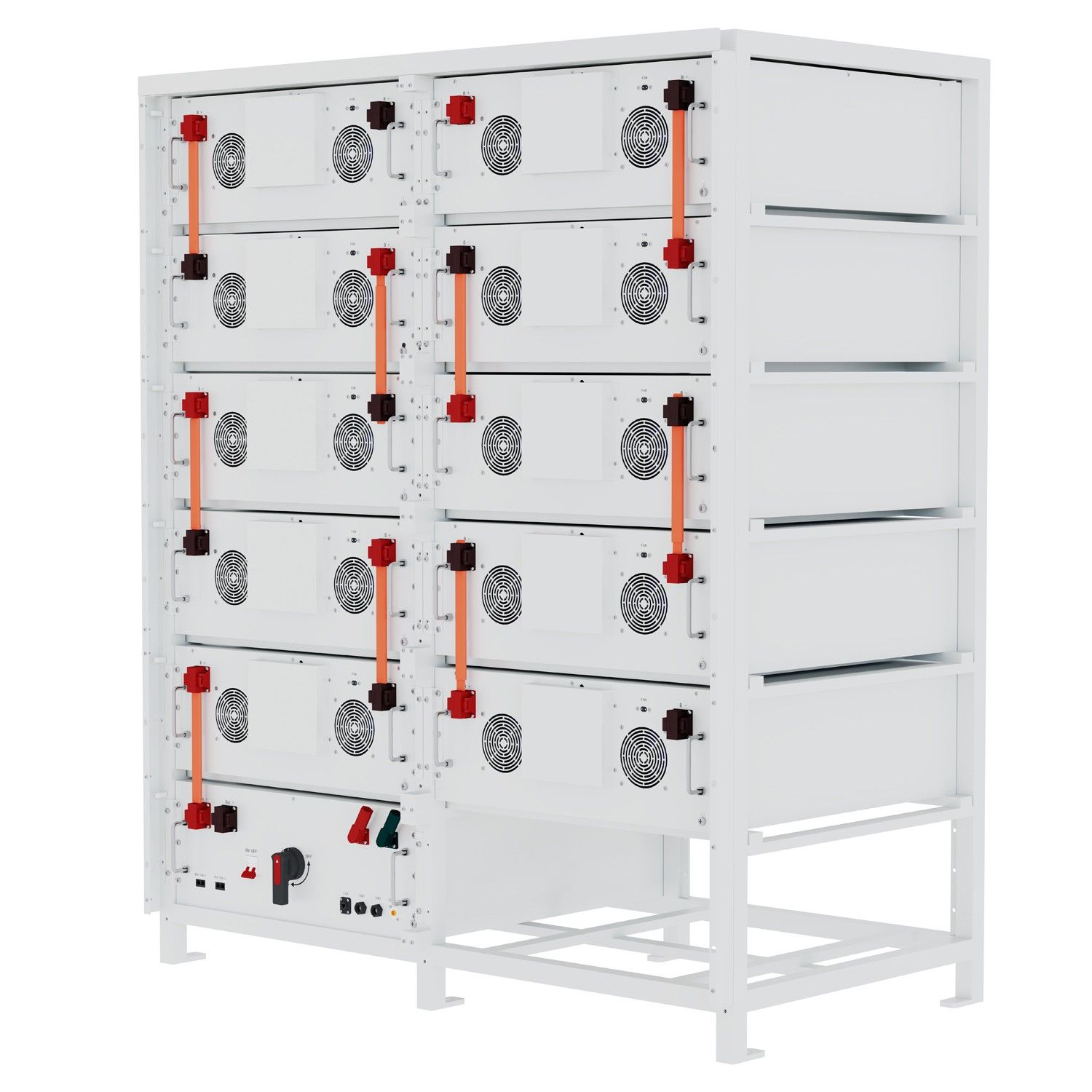

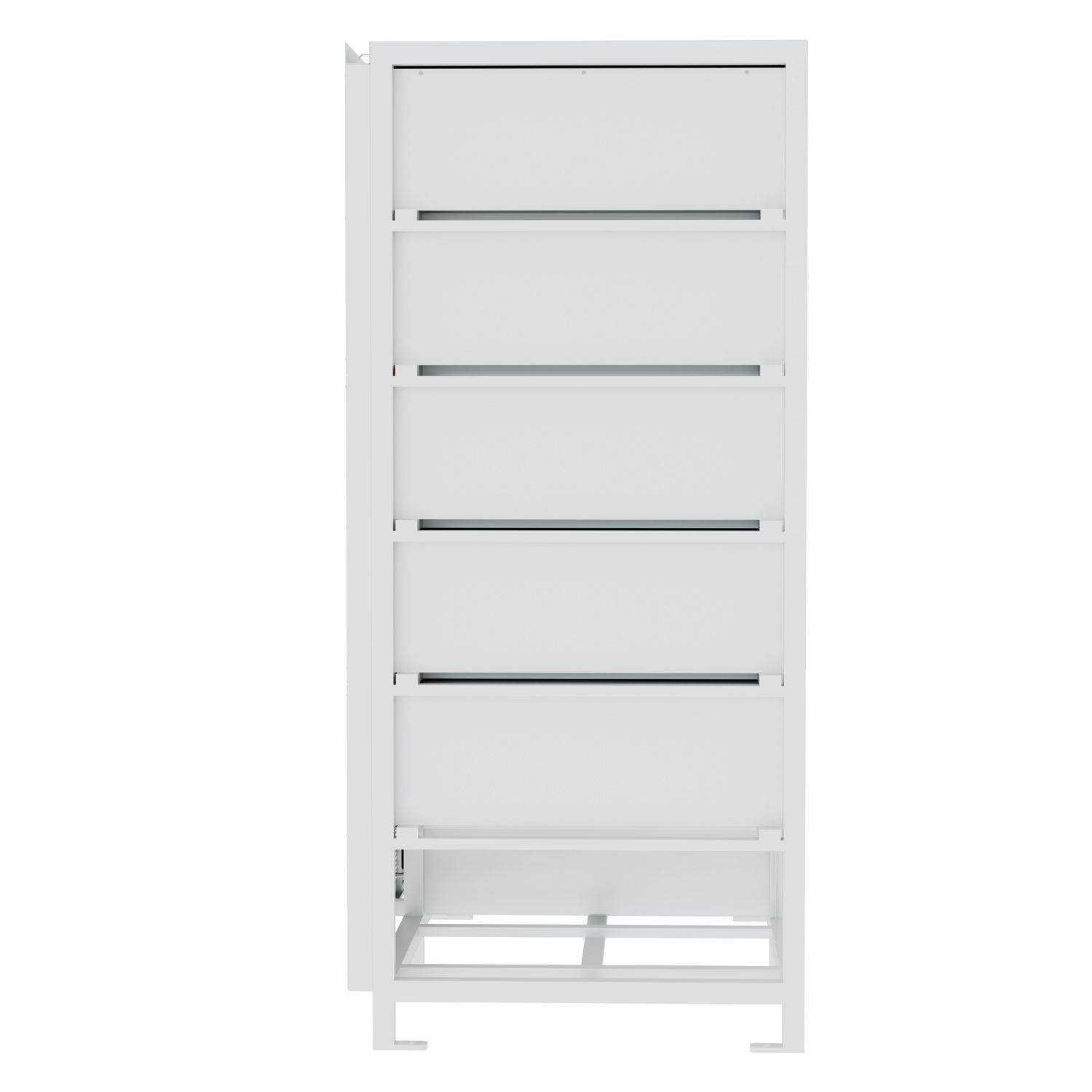

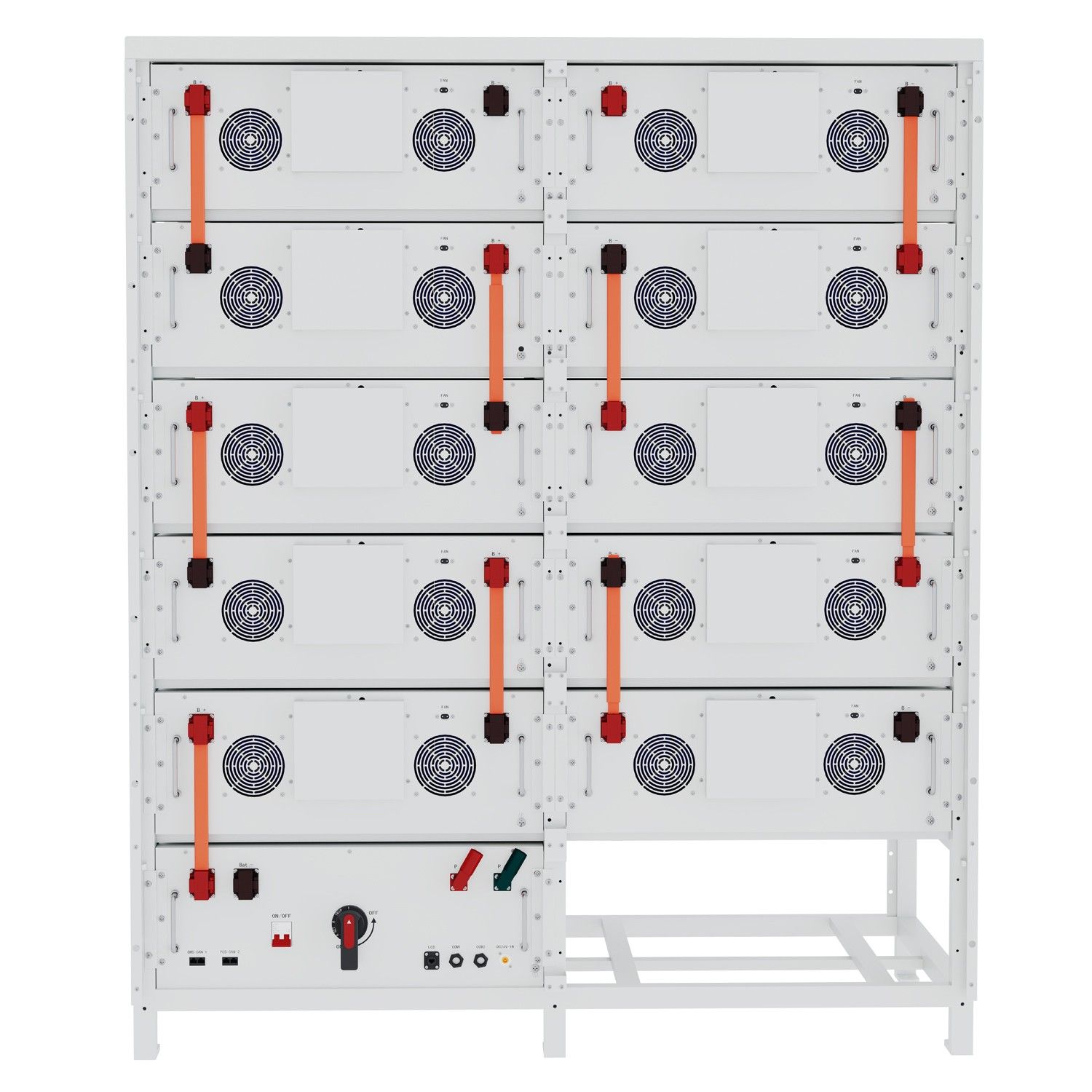

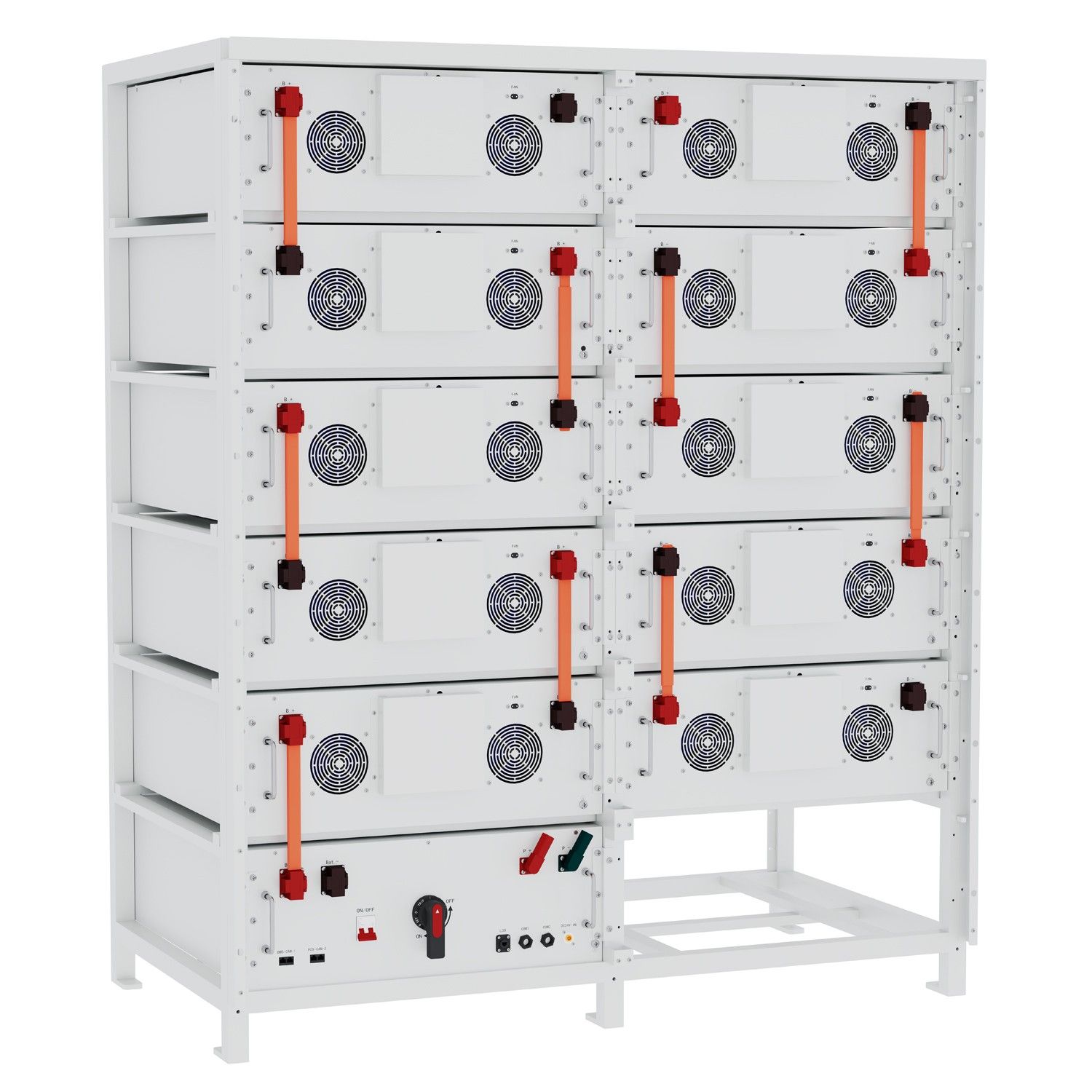

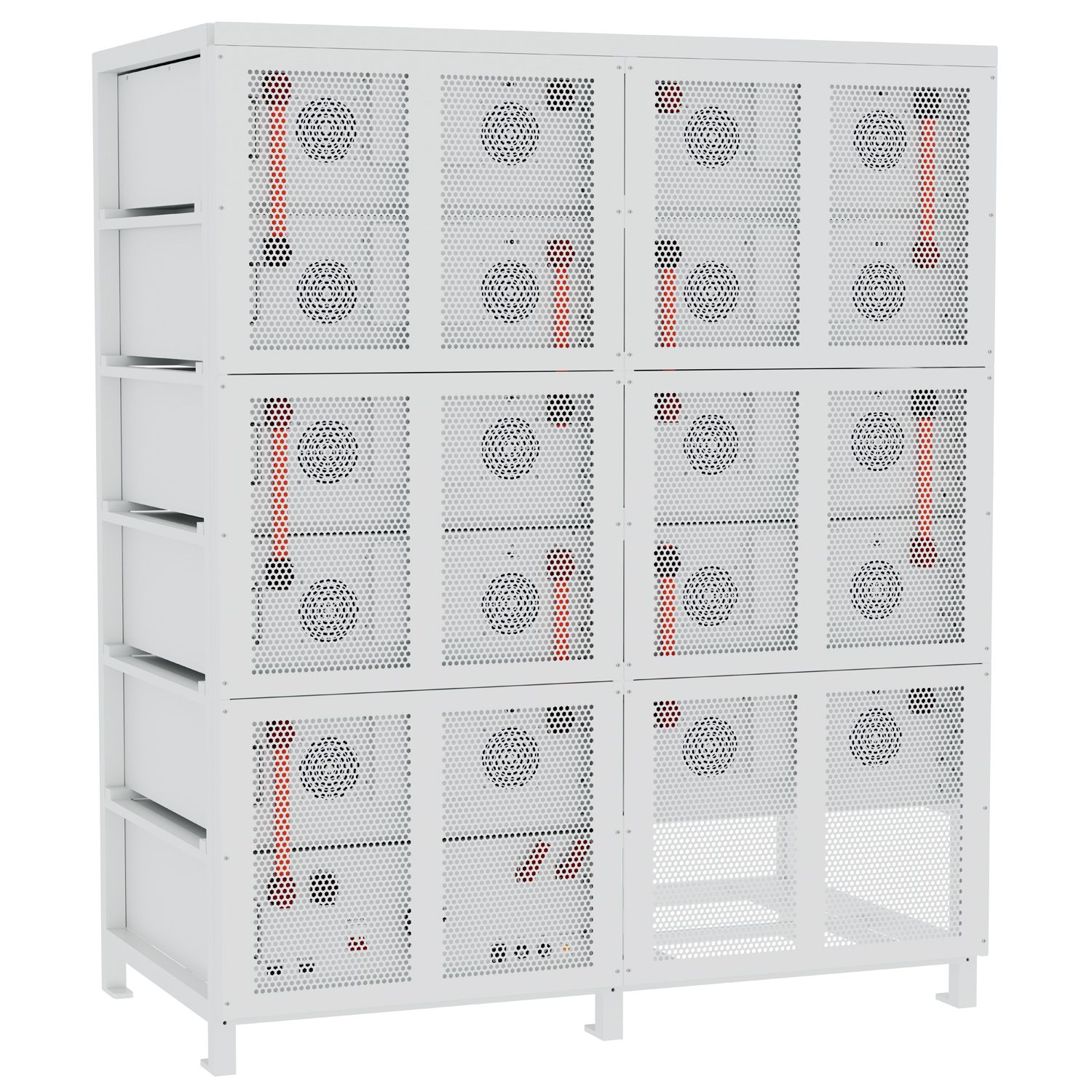

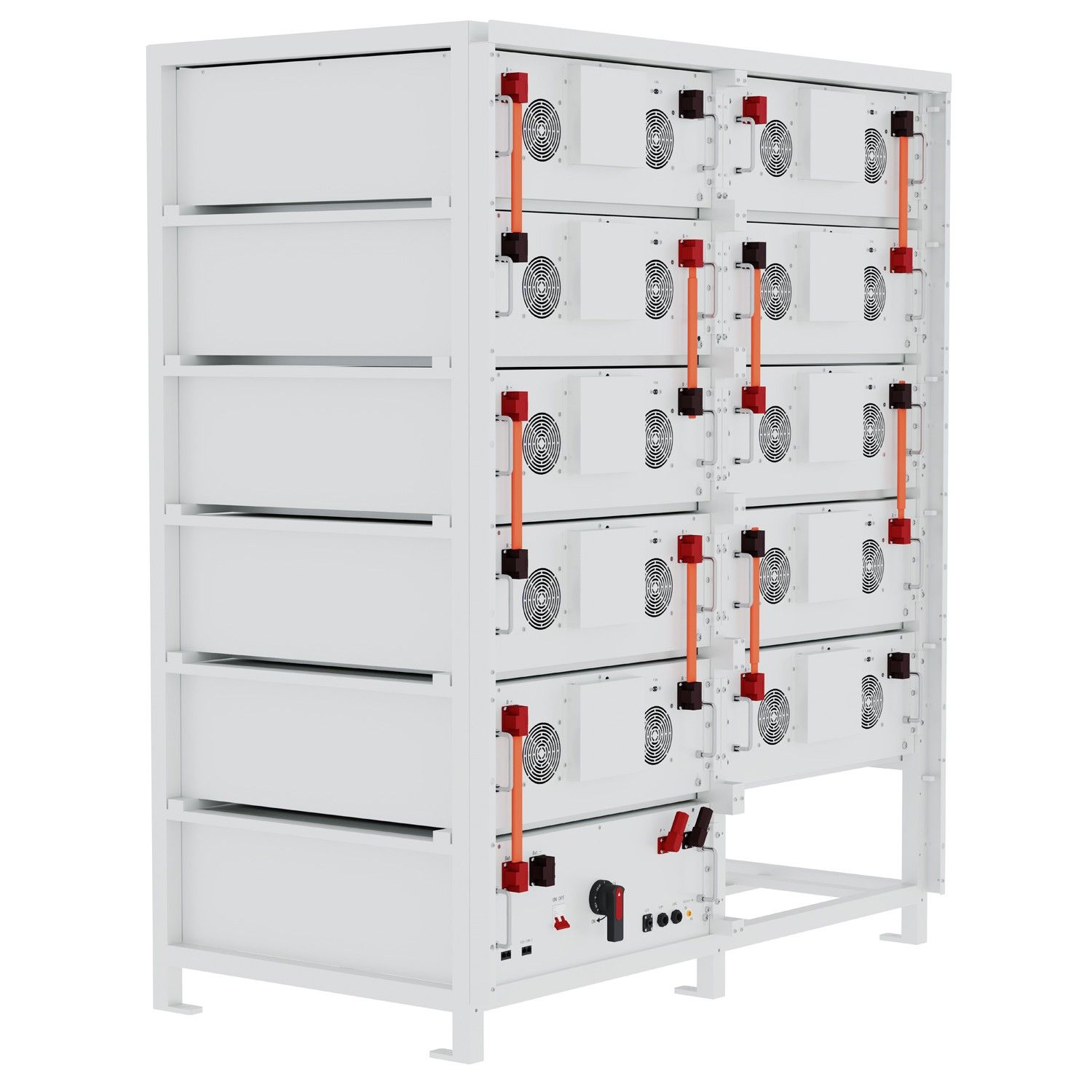

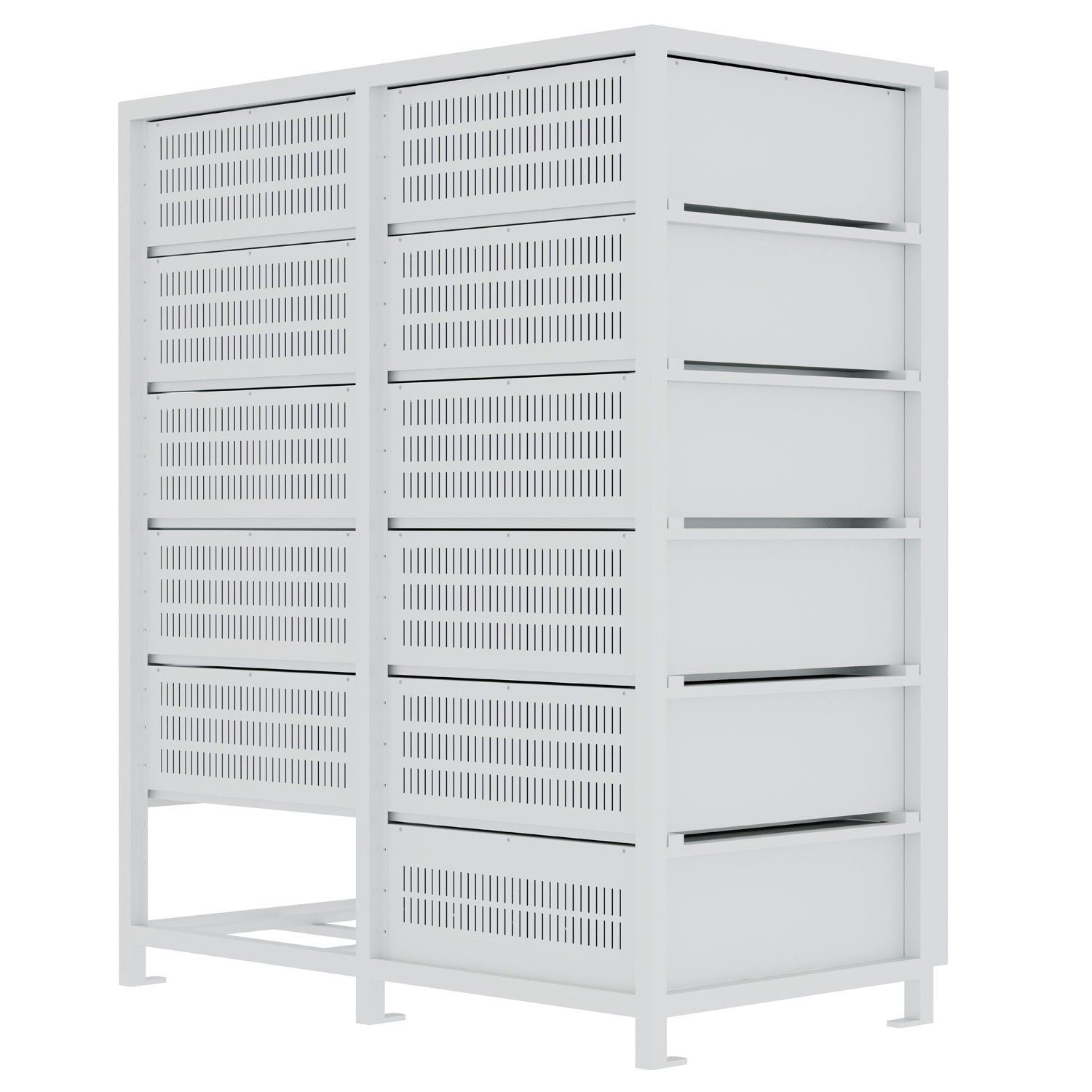

genixgreen battery BMS is compatible with multiple inverter brands
Model:HV-768V280AH
Rated voltage:768V
Rated capacity:280Ah (0.5C)
Rated energy:215.04KWH
Configuration:240S1p
Charge voltage:864VDC
Discharge voltage:672VDC
Model | HV-384V100AH | HV-460V100AH | HV-614V100AH | HV-768V280AH |
Rated voltage | 384V | 460.8V | 614.4V | 768V |
Rated capacity | 100Ah (0.5C) | 280Ah (0.5C) | ||
Rated energy | 38.4KWH | 46KWH | 61.4KWH | 215.04KWH |
Configuration | 120S1P | 144S1P | 192S1 | 240S1p |
Charge voltage | 432VDC | 518VDC | 691VDC | 864VDC |
Discharge voltage | 336VDC | 403VDc | 537VDC | 672VDC |
Rated working current | 50A(0.5C) | 140A(0.5C) | ||
Max. working current | 100A | 140A | ||
Rated power | 19.2KW | 23KW | 30Kw | 107KW |
Max.output power | 38.4KW(adjustable) | 46KW(adjustable) | 61KW (adjustable)| | 107KW(adjustable) |
Recommended DoD | 90% | |||
Range of working temp | -10~50°℃ | |||
Working humidity range | 5-85%RH | |||
Communication method | CAN2.0/RS485 | |||
Compatible inverter brands | DEYE,Solis,Growatt,ATESS,Goodwe,Hoymiles,Afore, Megarevo,Invt,Pylontech,ThinkPower,Inhenergy | |||
Working indicator | Blue:Power;Green:Run;Red:Alarm | |||
cycle life | 25±2°C,0.2C/0.2C,EOL70%≥6000 | |||
Display method | 10 inch (LCD)/PC Software | |||
Protection Voltage protection | over charge and over discharge | |||
Protection Temp. protection | Over temperature range protection | |||
Protection Current protection | YES | |||
Protection Leakage protection | YES | |||
Dielectric withstand voltage | 1000VDc(not less than 2GQ2) | 1000VDC(not less than 2GQ2) | 2500VDC(not less than 2GQ) | 2500VDC(not less than 2GQ2) |
Dimension | 776*600*1250M | 776*600*1400MM | 776*600*1800MM| | 1545*800*1800MM |
Weight | 400-500KG | 450-550KG | 600-700KG | 2.2-2.4T |
Protection level | IP 20 |
