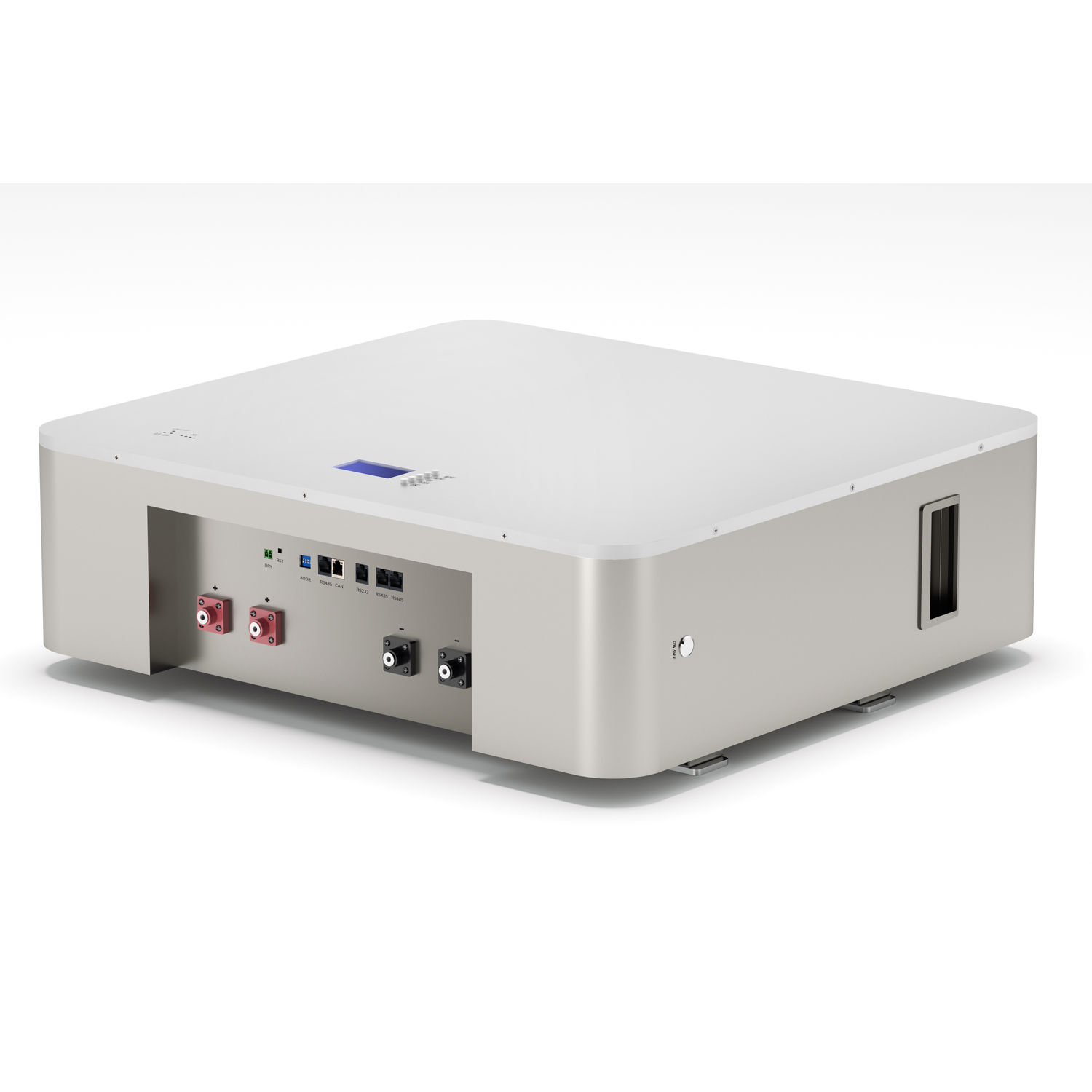

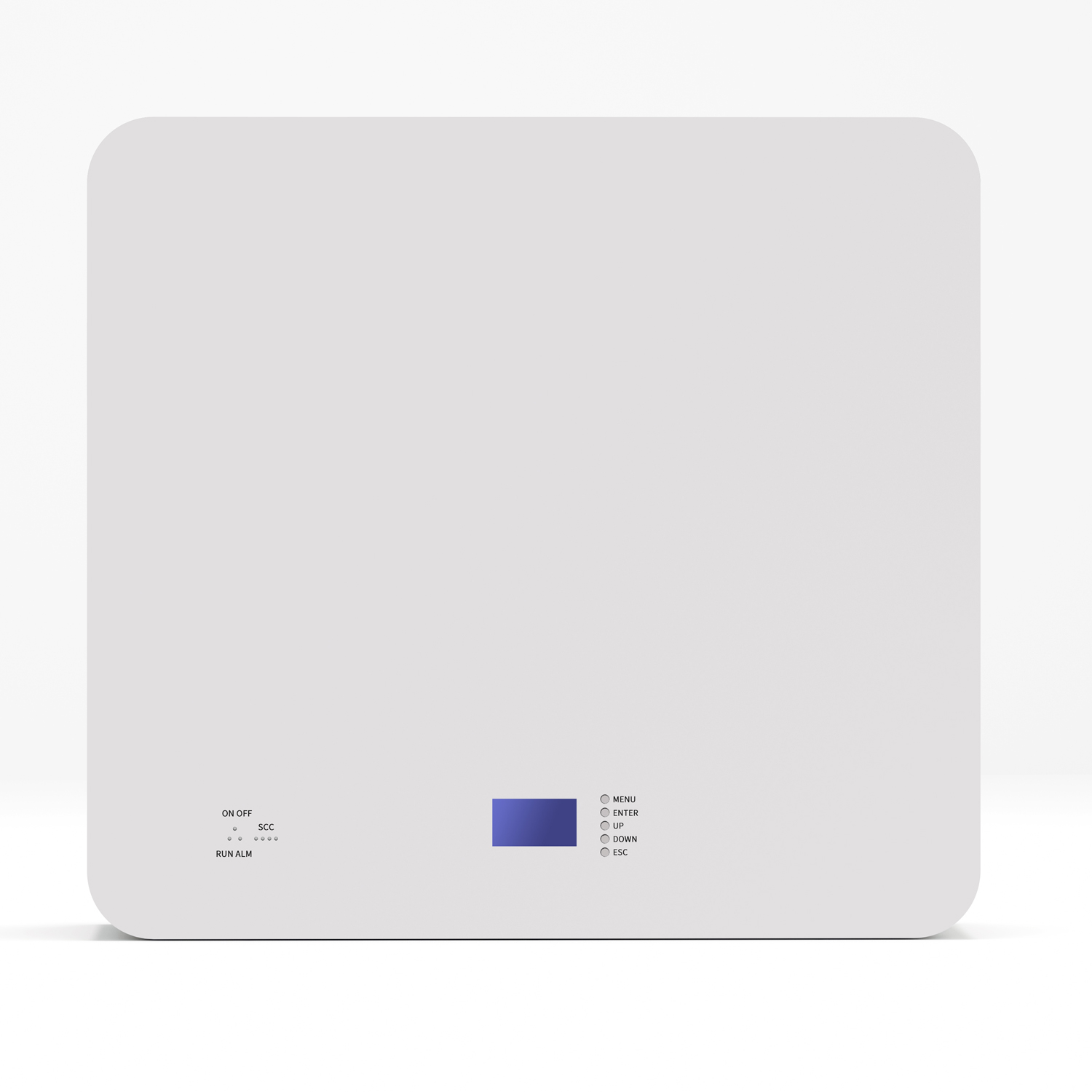

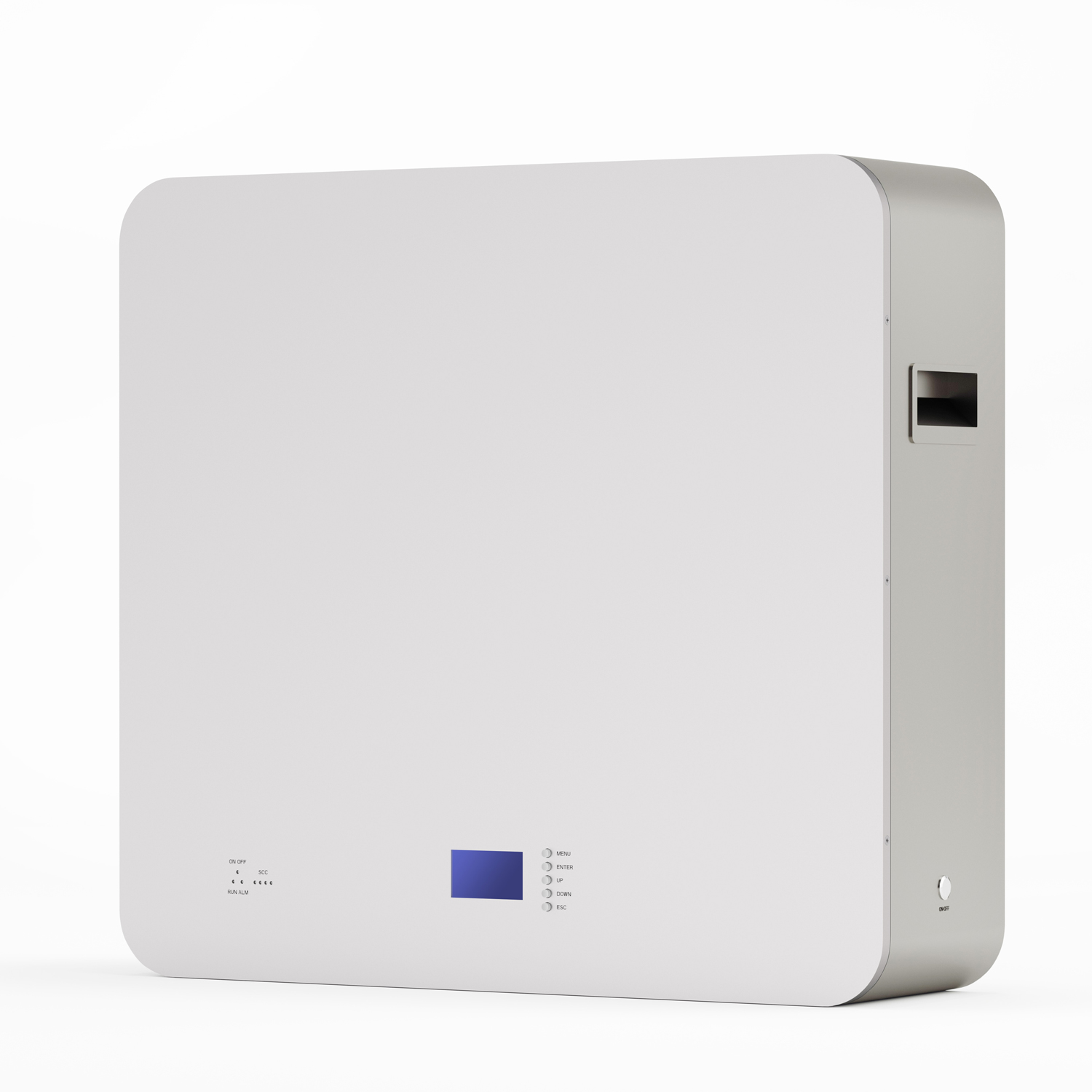

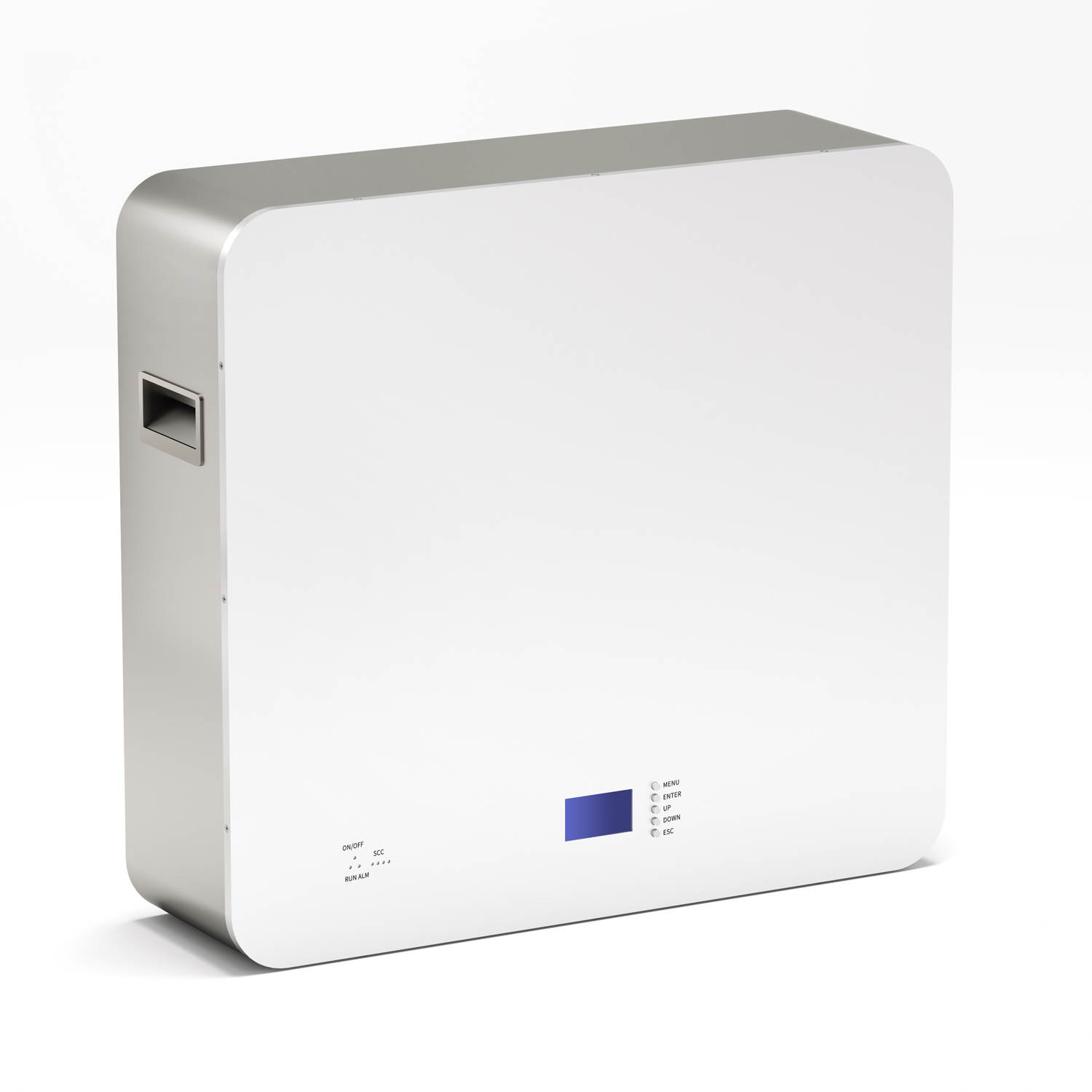

10kwh ES-BOX5 battery backup for house powerwall

Share

Model:ES-BOX5

Battery Type:LiFePO4

Energy:10240Wh

Cycle life:6000-8000 times

Rated Capacity:200Ah

Communication Port:CAN, RS485

Compitable Inverter Brand:SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc.

Product Description

10kwh ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall

10kw ES-BOX5 battery backup for house powerwall


ModelES-BOX5
Battery TypeLiFePO4
Energy10240Wh
Rated Capacity200Ah
Rated Voltage51.2V
Battery cellSquare Cube Prismatic Pouch 3.2V 200Ah Battery Cell
Configuration (*S*P)16S1P
Disharge Cut-off Protect Voltage40V
Charge Cut-off Protect Voltage58.4V
Max. Charge Current100A
Max. Discharge Current100A

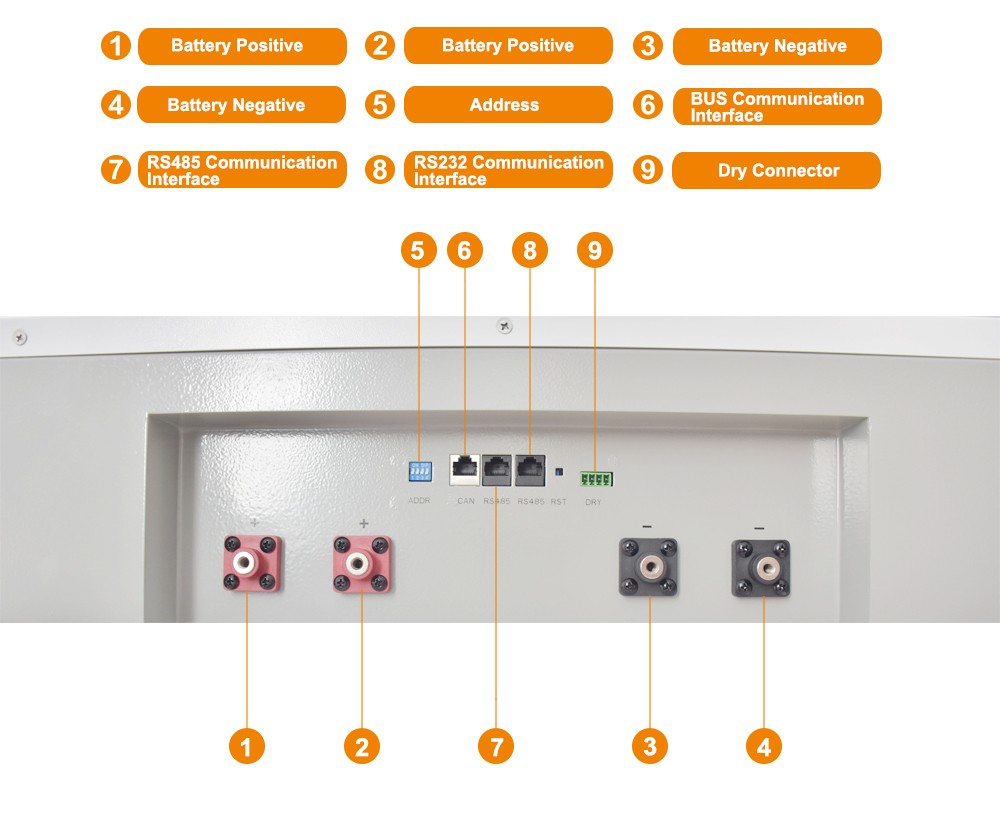

Communication PortCAN, RS485,RS232
Compitable Inverter BrandSMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc.
ParallelMax. 8 units in Parallels to get 81kwh.

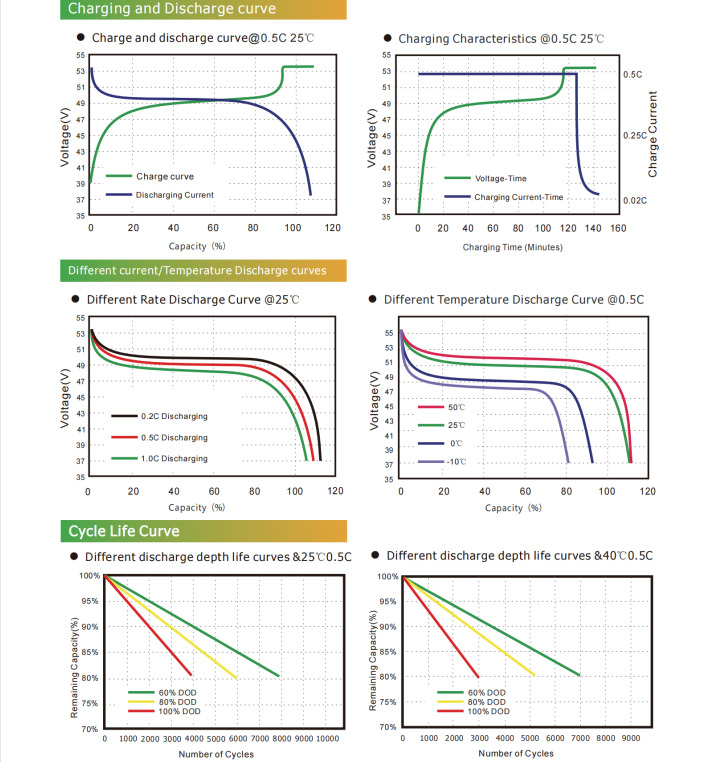

Cycle life6000-8000 times

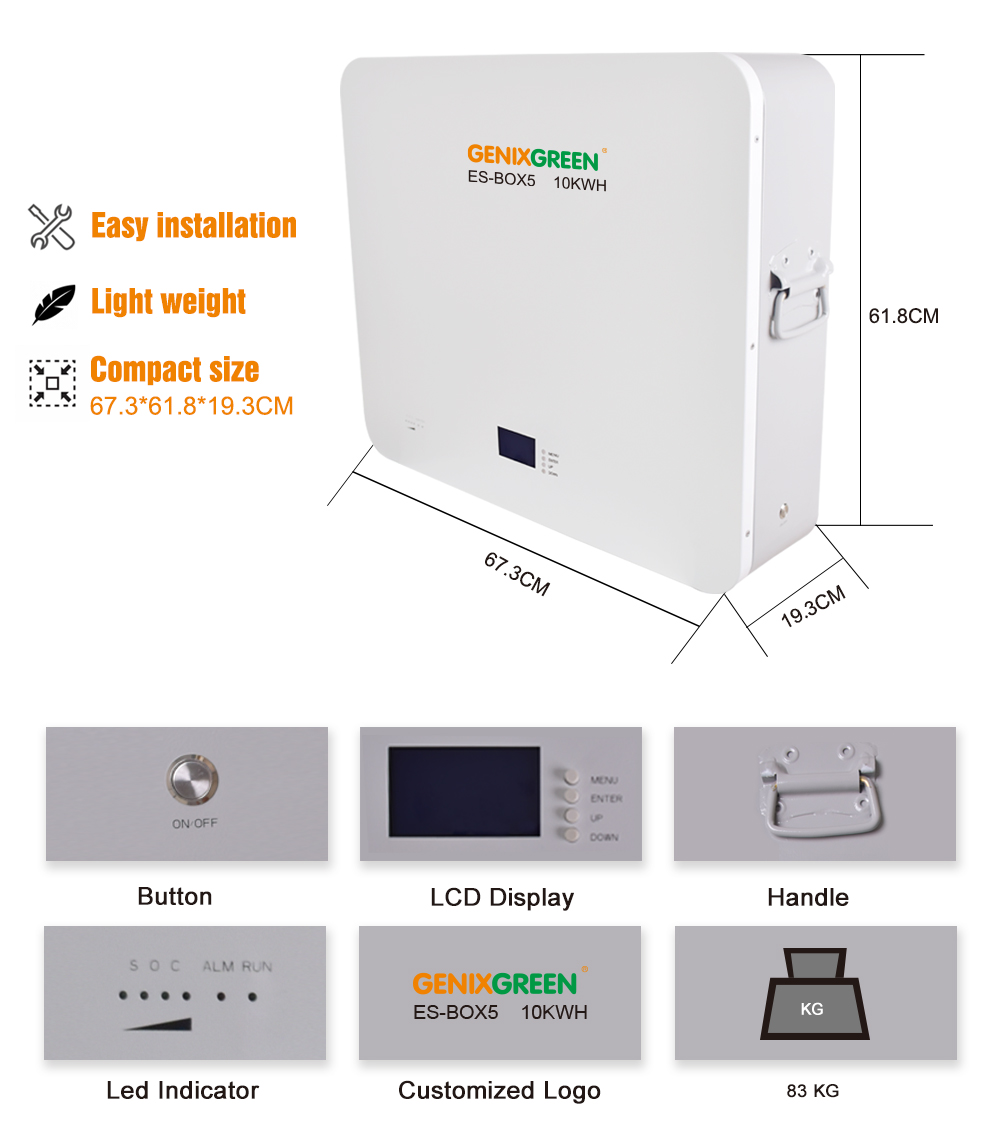

L*W*H (mm)673*618*193
Net Weight (KG)83KG
CoolingNatural cooling
EnvironmentIndoor

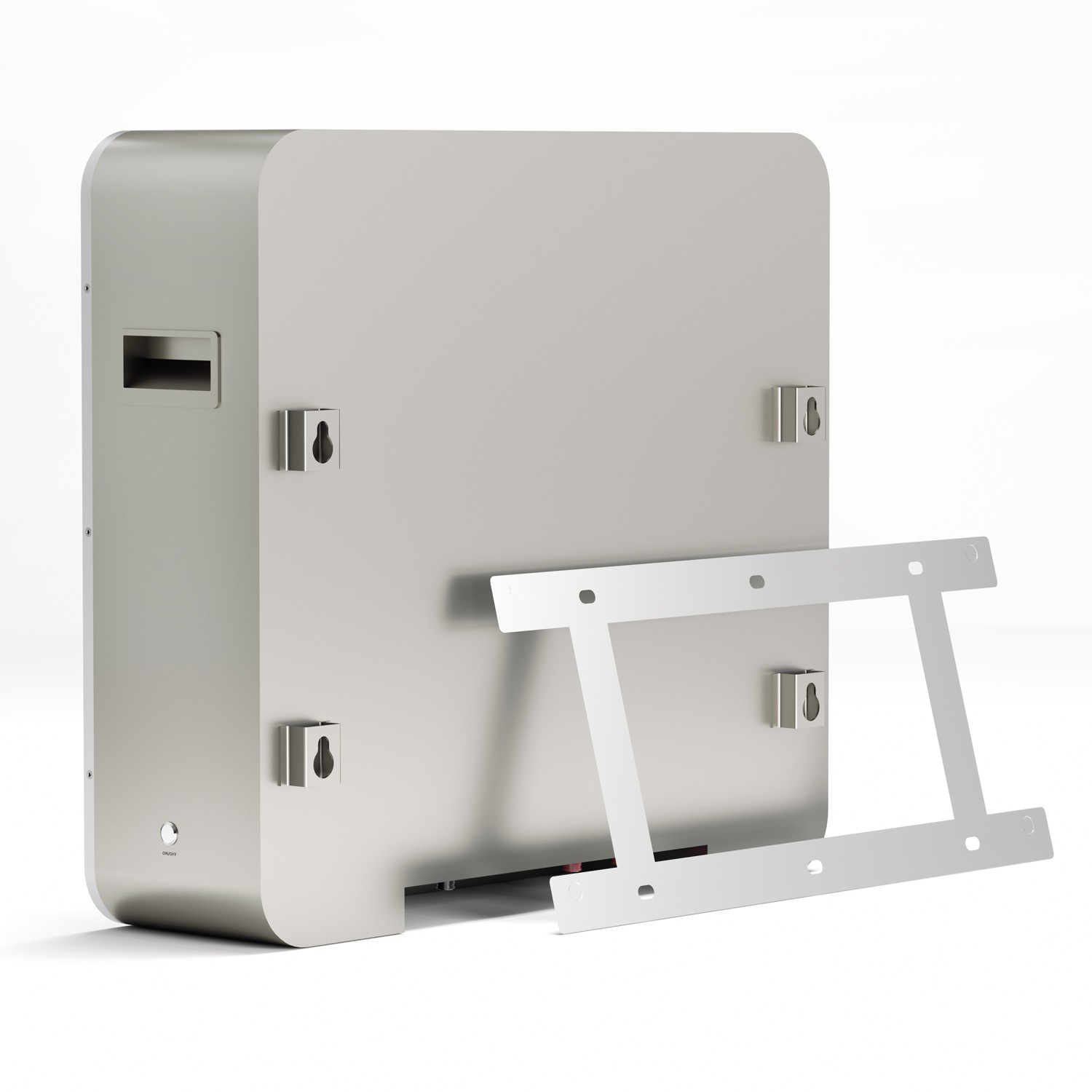

Mounting optionsWall mount
Discharge Temperature (℃)-10℃~+60℃
Charge Temperature (℃)0℃ ~+45℃
Storage Conditions–20°C to 30°C (–4°F to 86°F)
Up to 95% RH, non-condensing
State of Energy (SoE): 25% initial
Maximum Elevation3000 m (9843 ft)
