5kwh ES BOX2 home battery backup Power Storage Wall

Share

Model: ES-BOX2

Battery Type: LiFePo4

Battery Voltage: 51.2V

Battery Capacity: 100Ah

Cycle Life: >6000times

Application: Home Appliance

Communication: SMA, Growatt, Voltronic Power, Solis, Solax, Sungrow, Sofar, Goodwe etc

Warranty:5 years for machinery warranty

Dimension:600*510*173mm

Product Description

5kwh ES BOX2 home battery backup Power Storage Wall

Product Application

4.8kwh ES BOX2 home battery backup Power Storage Wall4.8kwh ES BOX2 home battery backup Power Storage Wall

4.8kwh ES BOX2 home battery backup Power Storage Wall

4.8kwh ES BOX2 home battery backup Power Storage Wall

Product parameter

ModelES-BOX2
Battery TypeLiFePO4
Energy5120Wh
Rated Capacity100Ah
Rated Voltage51.2V
Battery cell3.2V 100Ah Pirsmatic Battery Cell
Configuration (*S*P)16S1P
Disharge Cut-off Protect Voltage40V
Charge Cut-off Protect Voltage58.4V
Max. Charge Current100A
Max. Discharge Current100A
Communication PortCAN, RS485,RS232
Compitable Inverter BrandSMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc.
ParallelMax. 8 units in Parallels to get 40.96kwh.
Cycle life>6000times
L*W*H (mm)600*510*173
Net Weight (KG)63.5KG
CoolingNatural cooling
EnvironmentIndoor

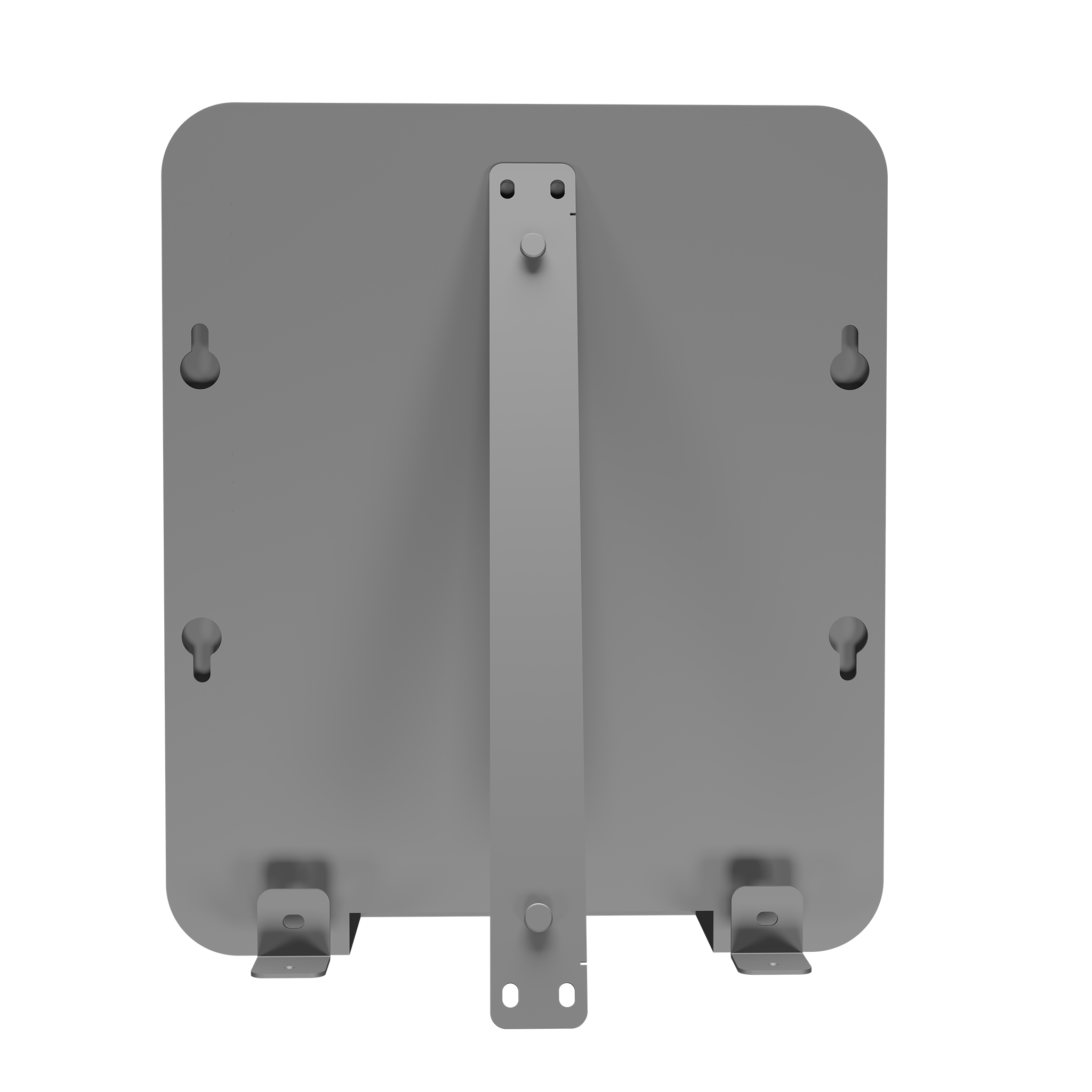

Mounting optionsWall mount
Discharge Temperature (℃)-10℃~+60℃
Charge Temperature (℃)0℃ ~+45℃
Storage Conditions–20°C to 30°C (–4°F to 86°F)

Up to 95% RH, non-condensing

State of Energy (SoE): 25% initial
