Nominal Energy :5KWH
Nominal Voltage :51.2V
Nominal Capacity :100Ah
Cell Type:LFP
Standard Charge Voltage :58.4V
Max Charge Current:100A
Discharge Cut-Off Voltage:40V

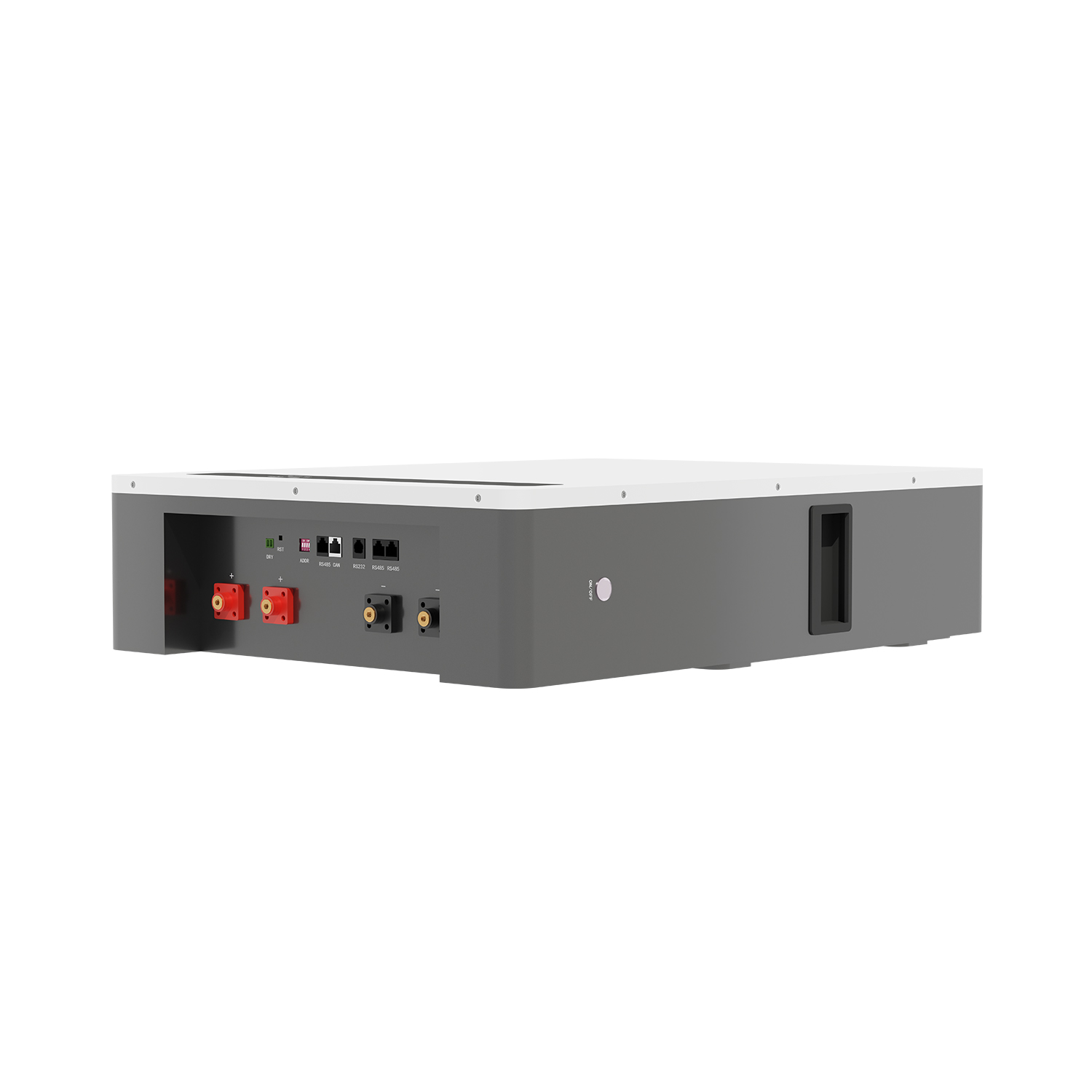

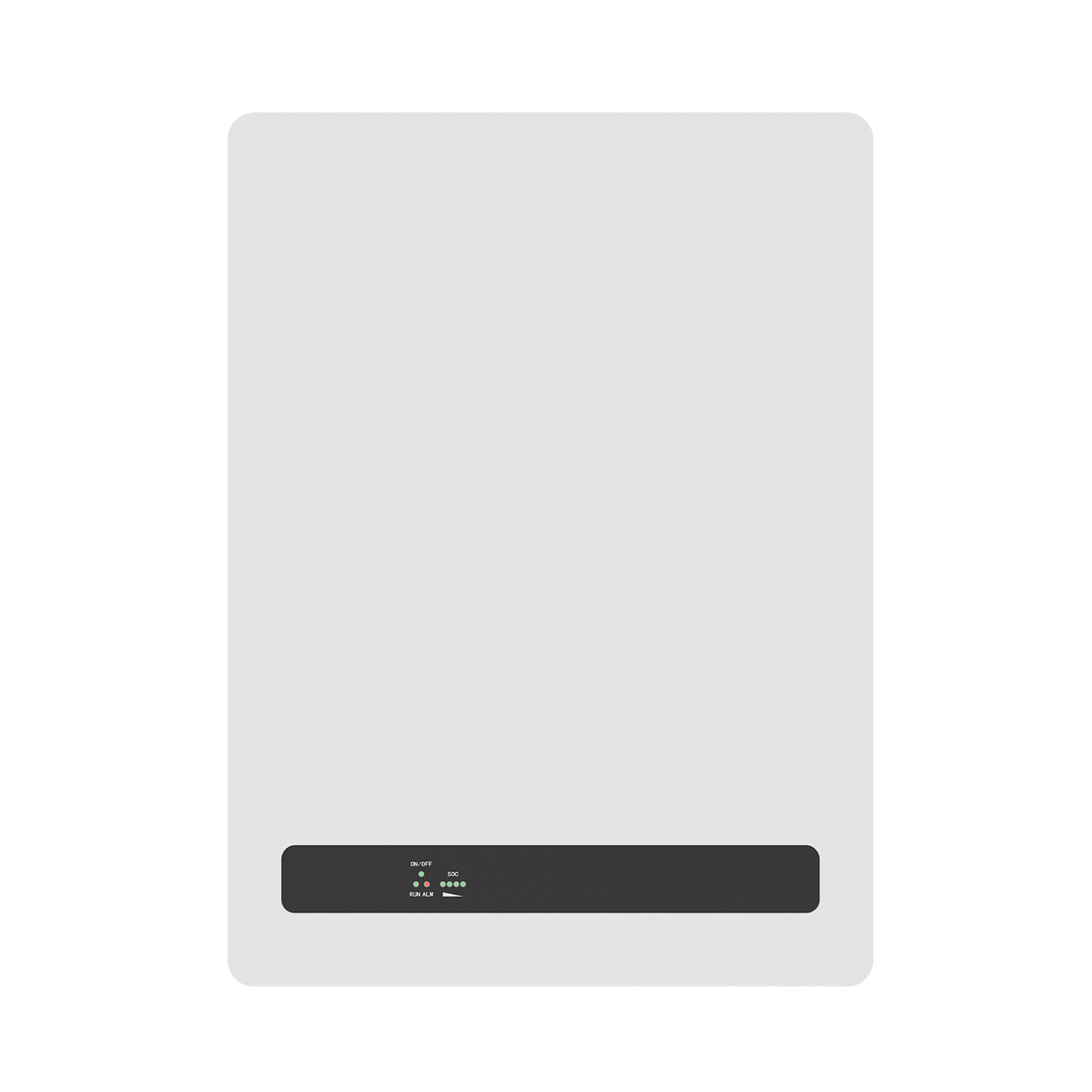

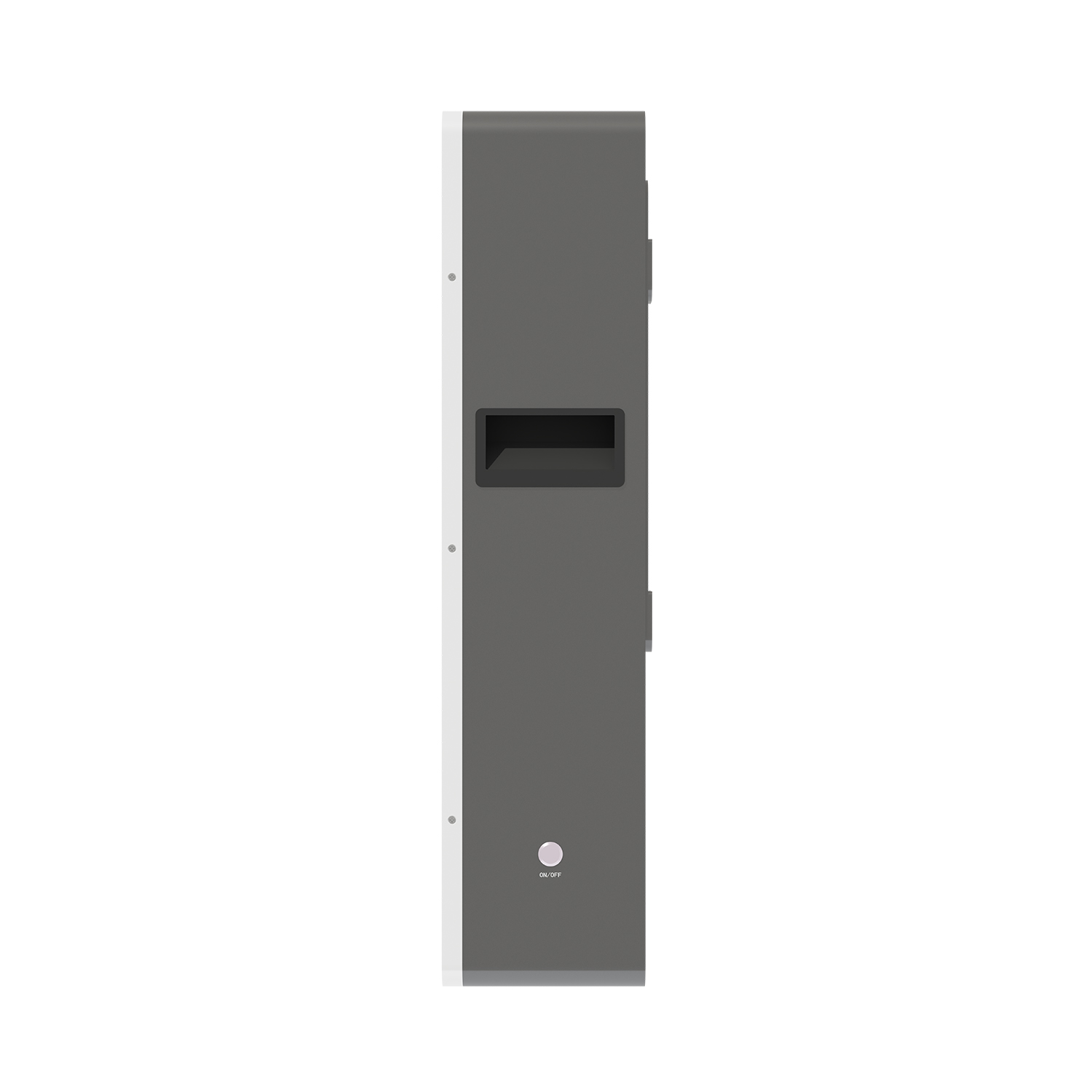

ES-BOX16 51.2V 5KWH LiFePO4 Wall Mounted Home Energy Storage Battery It is new lithium battery energy storage from genixgreen, which can provide you with cheap power when you are on the go or when the power goes out at home.
| Product Model | Genixgreen 5kwh |
| Nominal Energy | 5KWH |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 58.4V |
| Max Charge Current | 100A |
| Discharge Cut-Off Voltage | 40V |
| Max Discharge Current | 100A |
| Parallel Function | Support 15 Units In Parallel |

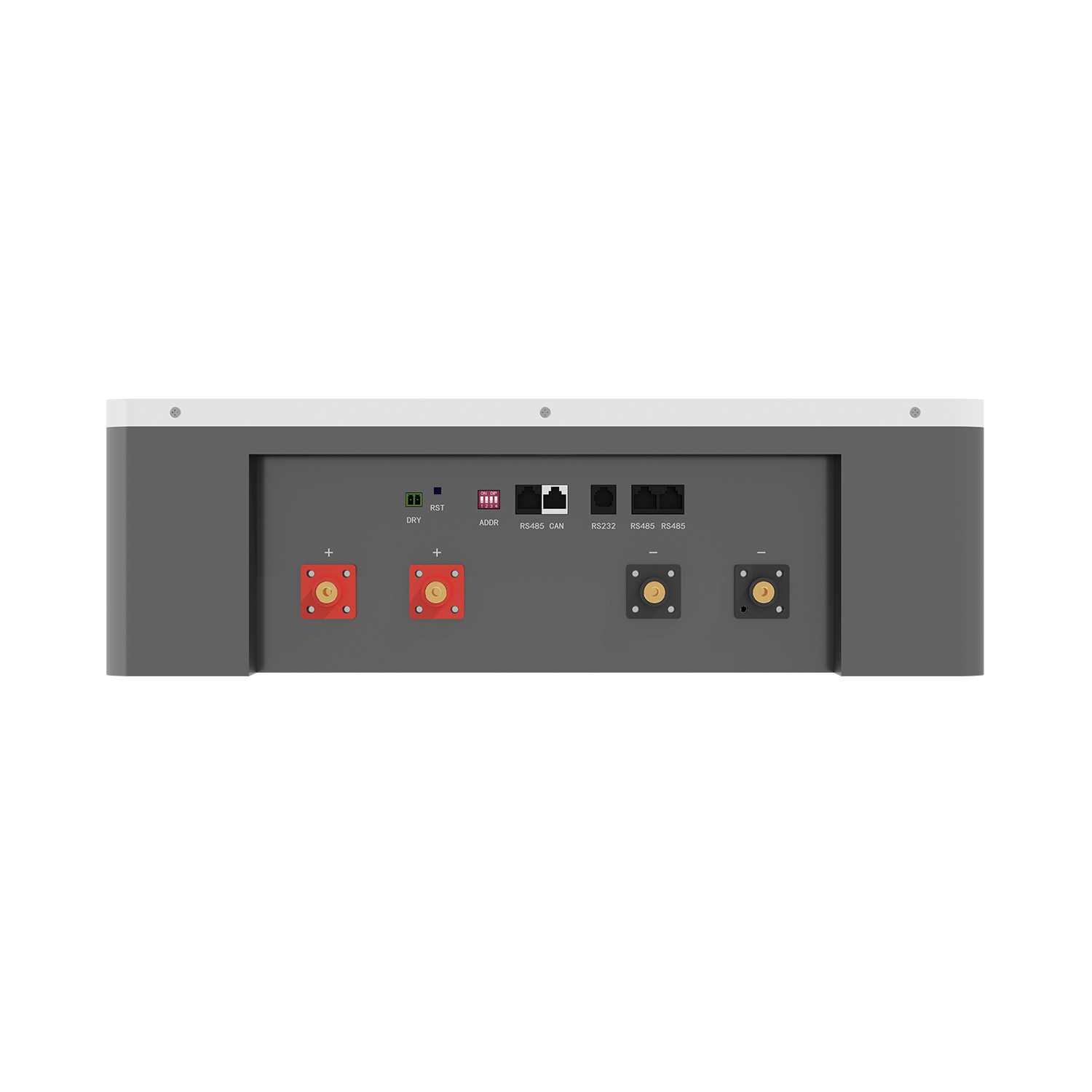

| Communication Interface | RS485、RS232、CAN (Optional) |
| Calendar Life | 15+ Years @25℃ 80%DOD |

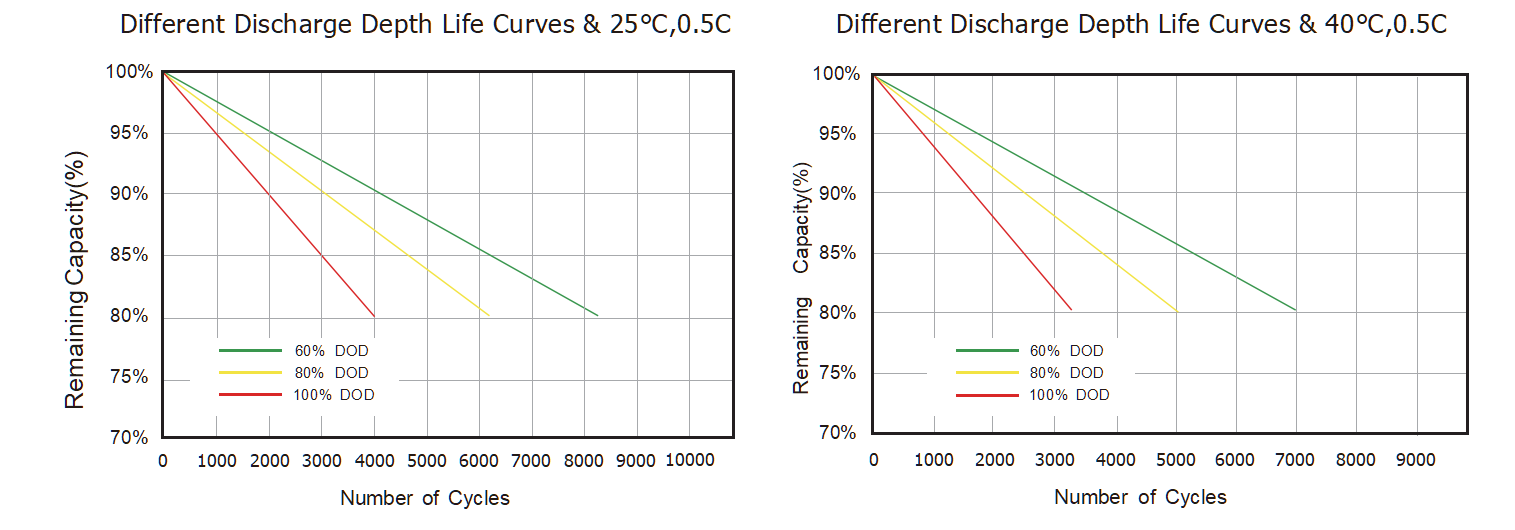

| Cycle Life * | ≥6000 Cycles (80%DOD) |
| Charge temperature range | 0~65℃ |
| Discharge temperature range | -20~65℃ |
| Certification | Cell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3 Pack:CE / MSDS / UN38.3 |
| Dimensions | 480*650*150mm |
| Weight | 55Kg |

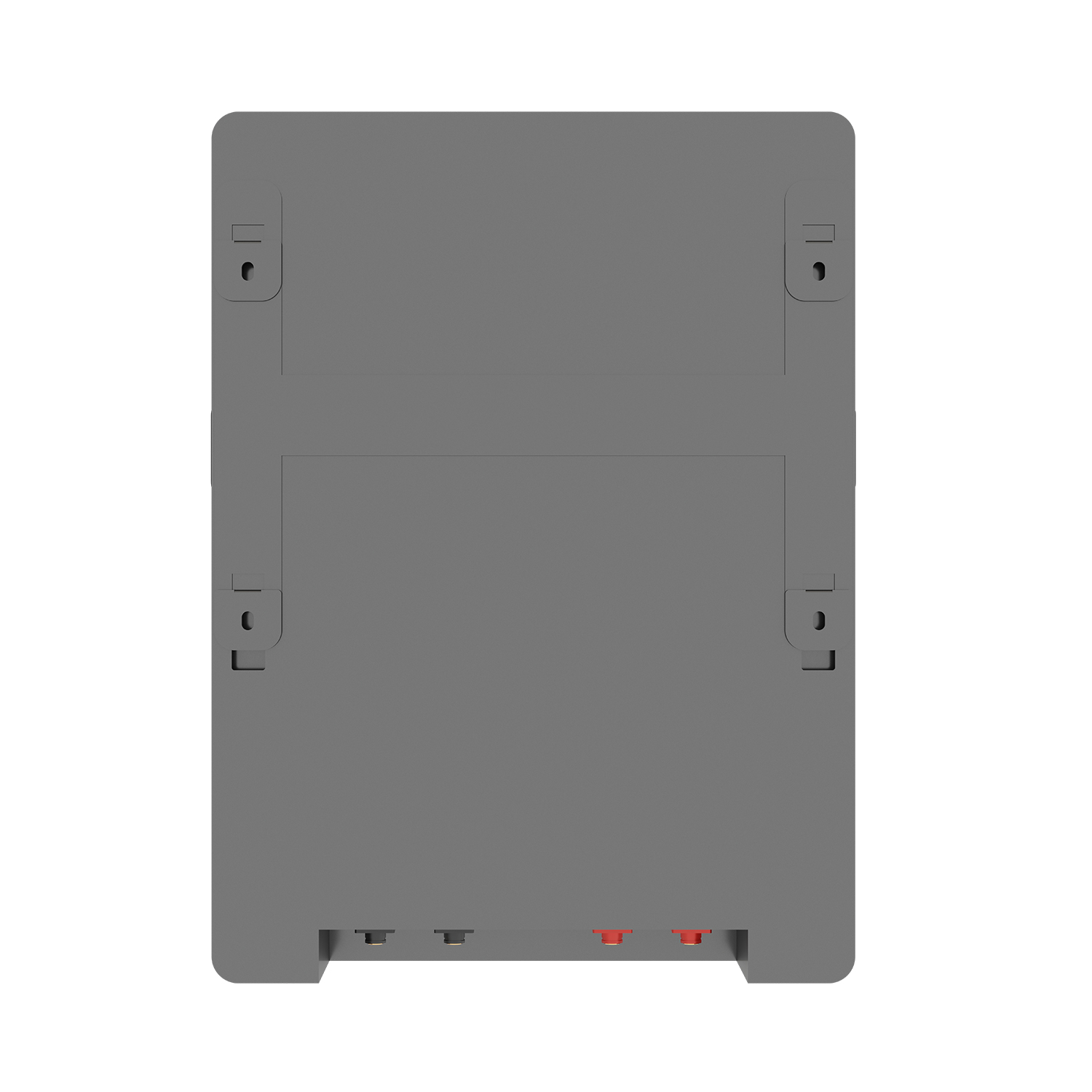

| lnstallation method | (Wall mounted) |
