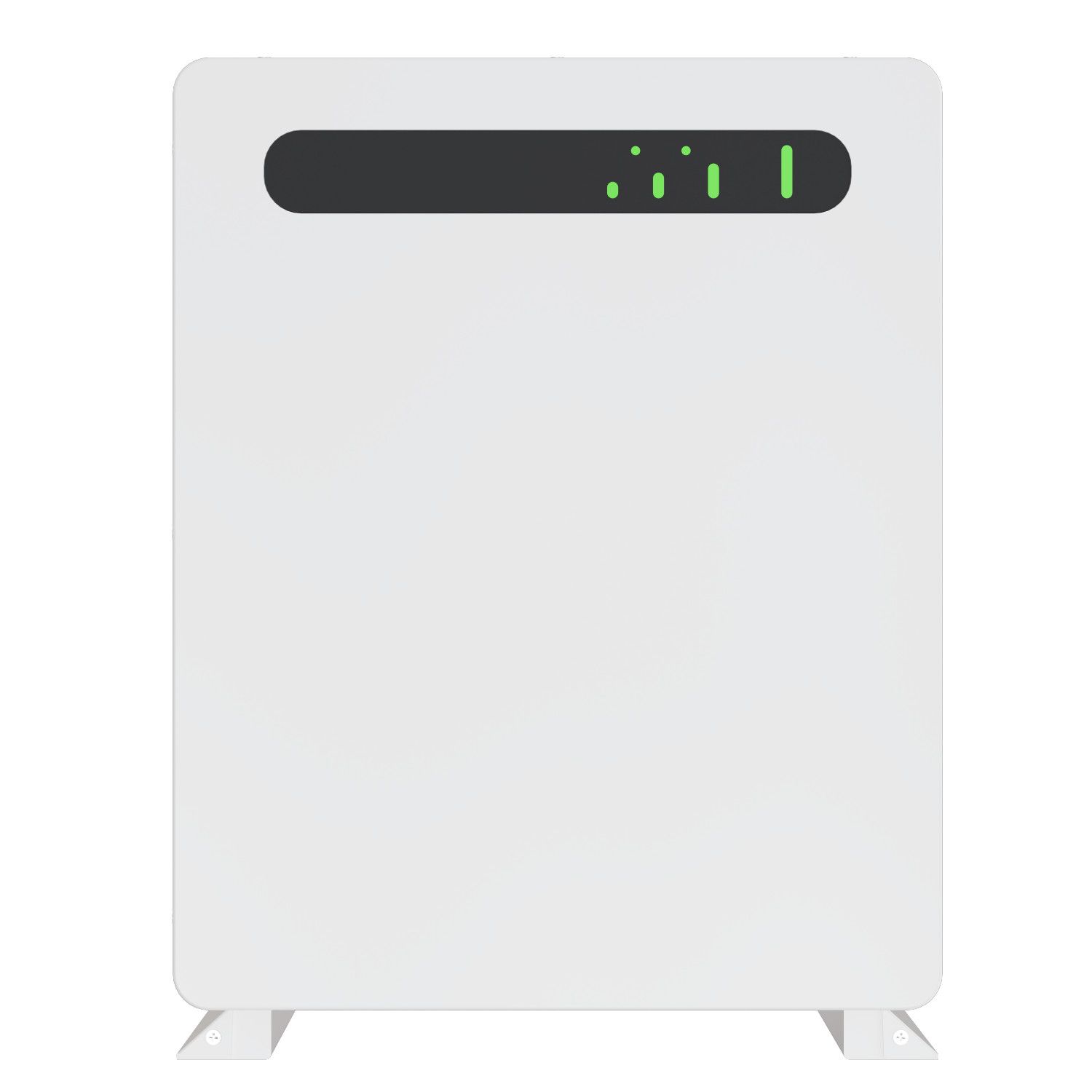

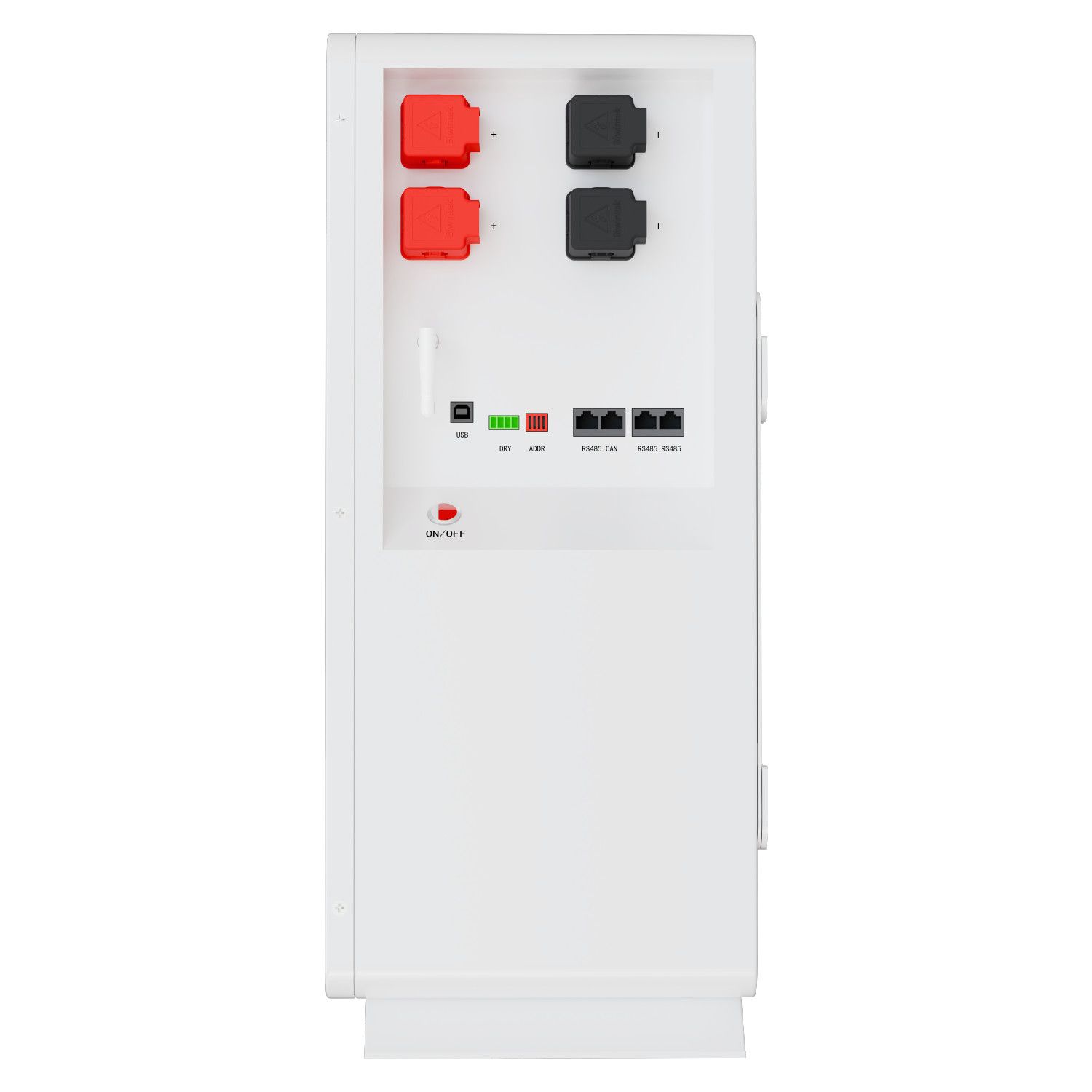

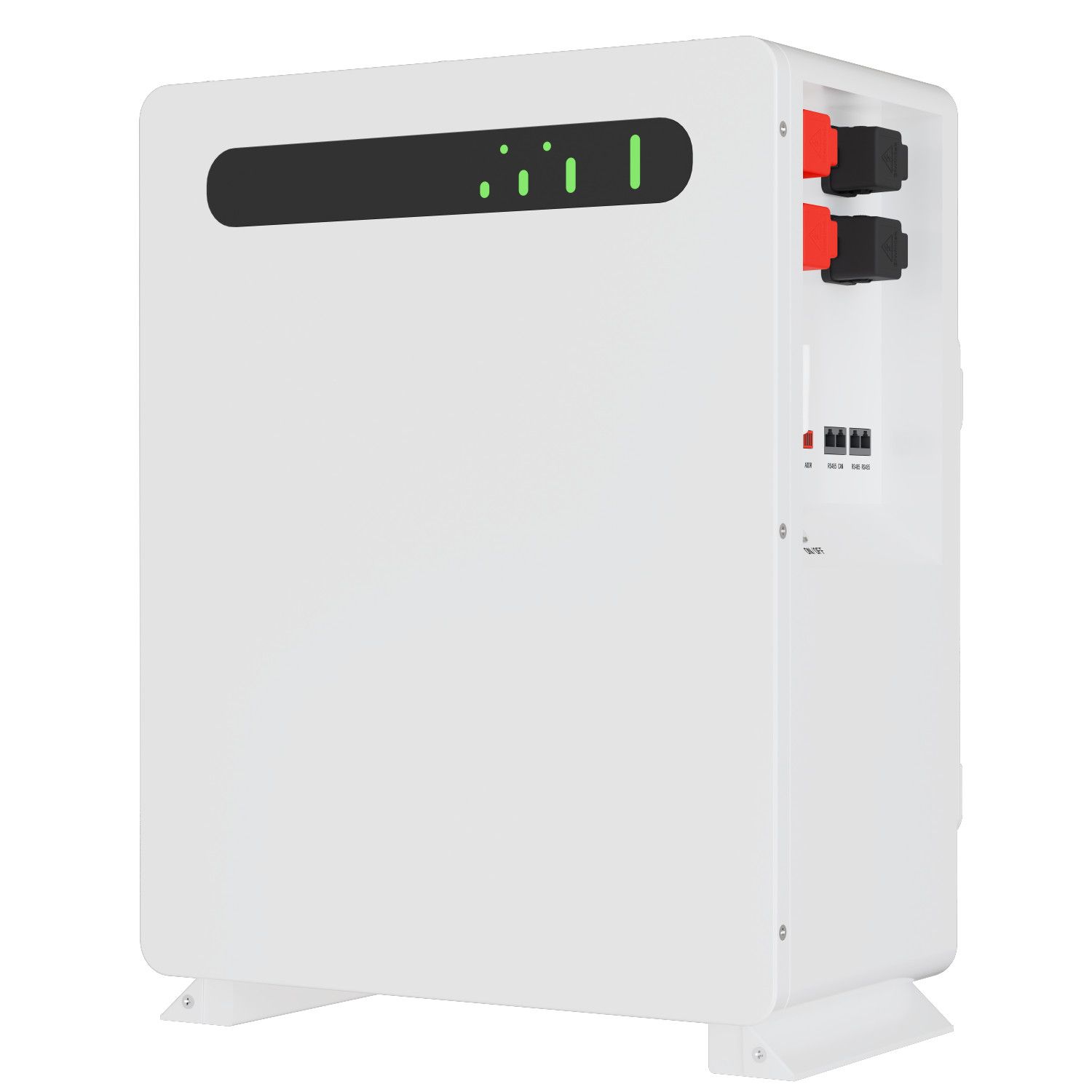

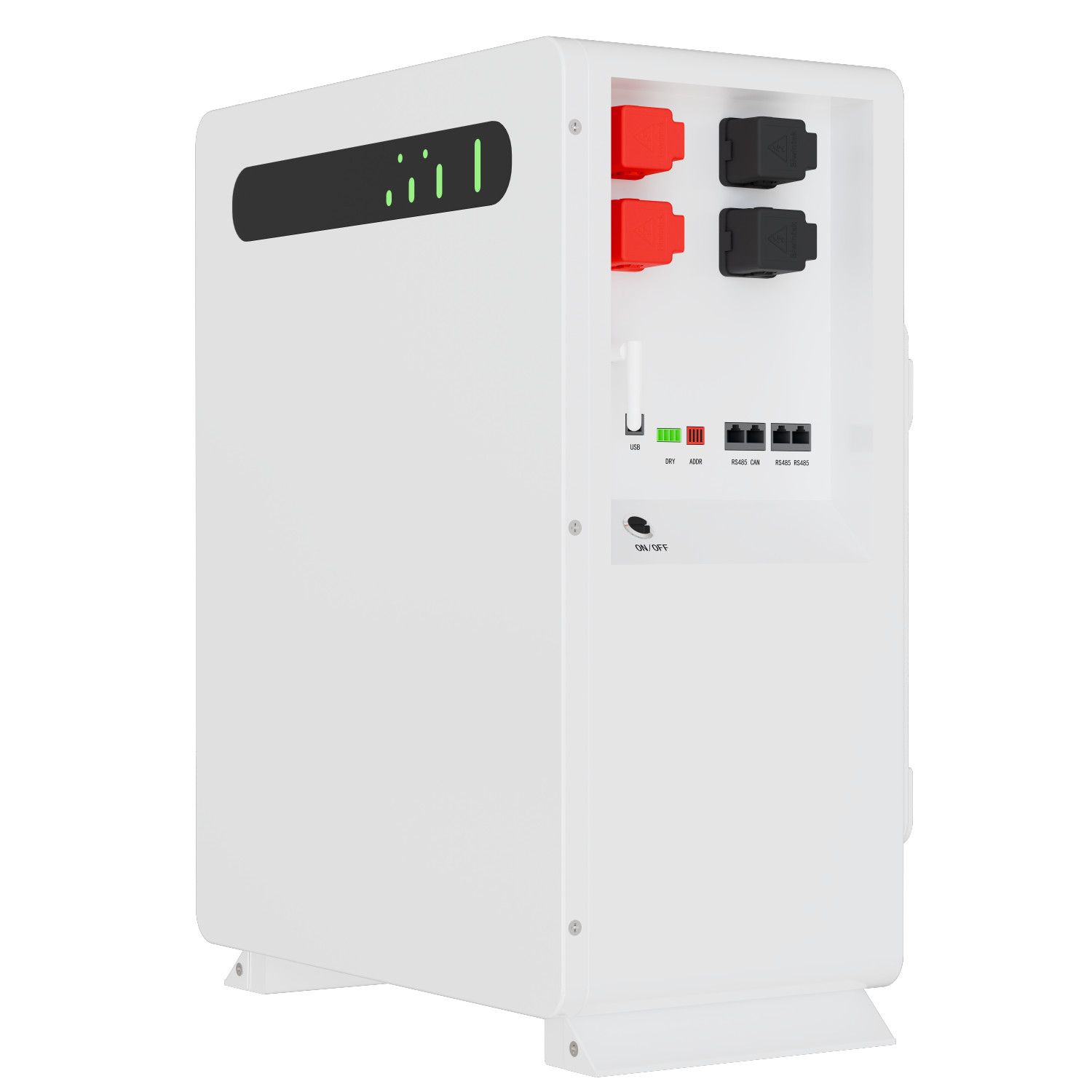

ES-BOX12S-Wall- Floor Mount LiFePO4 Battery
Nominal Voltage(V):51.2
Work Voltage Range(V):44.8~56
Nominal Capacity(Ah): 202
Nominal Energy(kWh):10.34
C Rating:0.75
Charge Voltage(V):55.2-56
Discharge Cutoff Voltage(V):44.8
Charge Cut Off Voltage(V)Max. Continuous ChargingCurrent(A):56.8
Max. Continuous DischargingCurrent(A):150
Advanced BMS with current limiting function
CAN Bus, fullyintegrates and communicates with leading Inverter
brands(Growatt,SMA,Sungrow,Goodwe,SOLAX,LUXPower,DEYE,MUST,Victron,Voltronic...ect.)
Excellent high temperature performance
High Cycle Life and Service Life
1C High Performance Lithium battery
High Energy Density and conversion efficiency
Complete with integrated Battery Management System
Compatible with most Inverters and chargers
Low self discharge

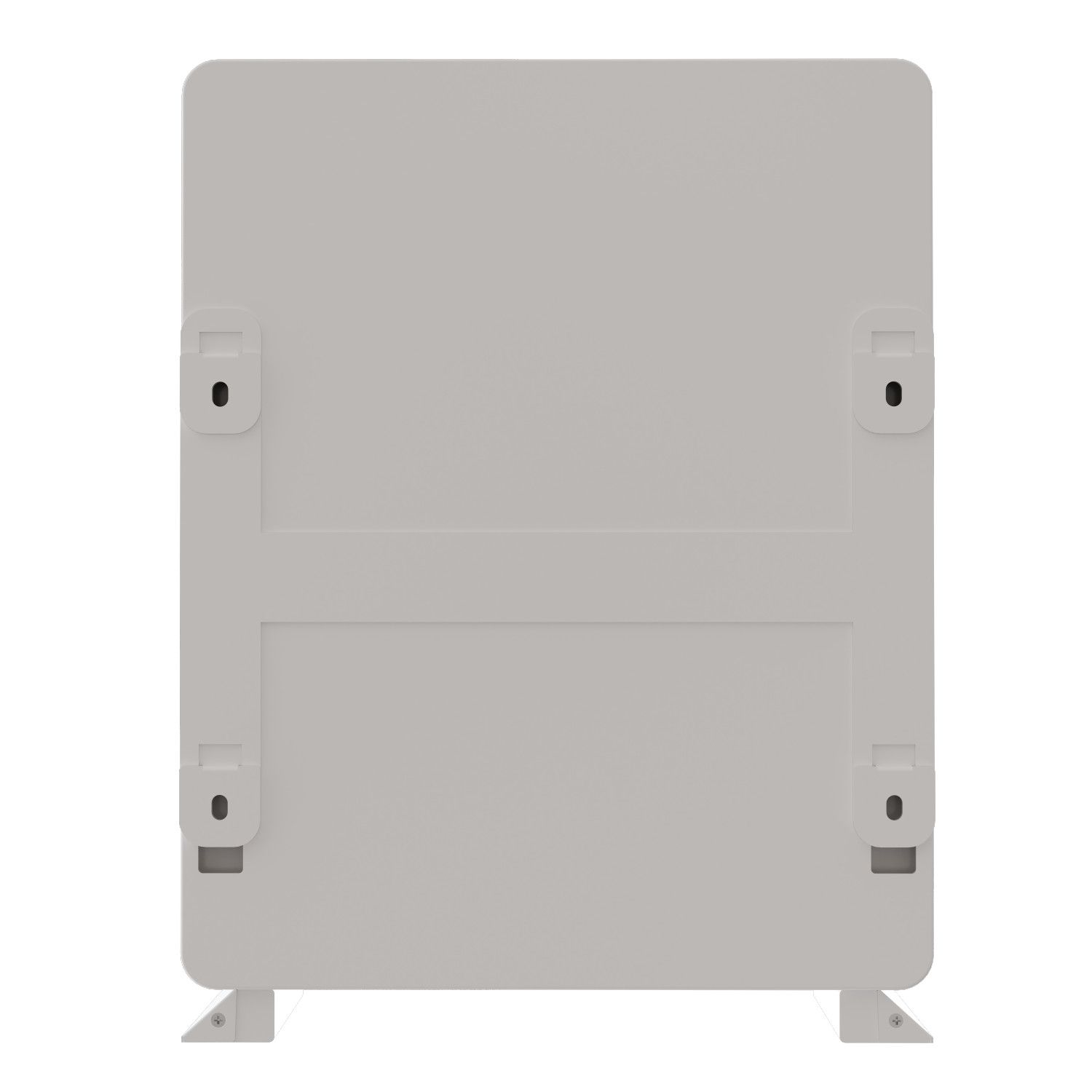

Easy wall mount or Floor Mount installation

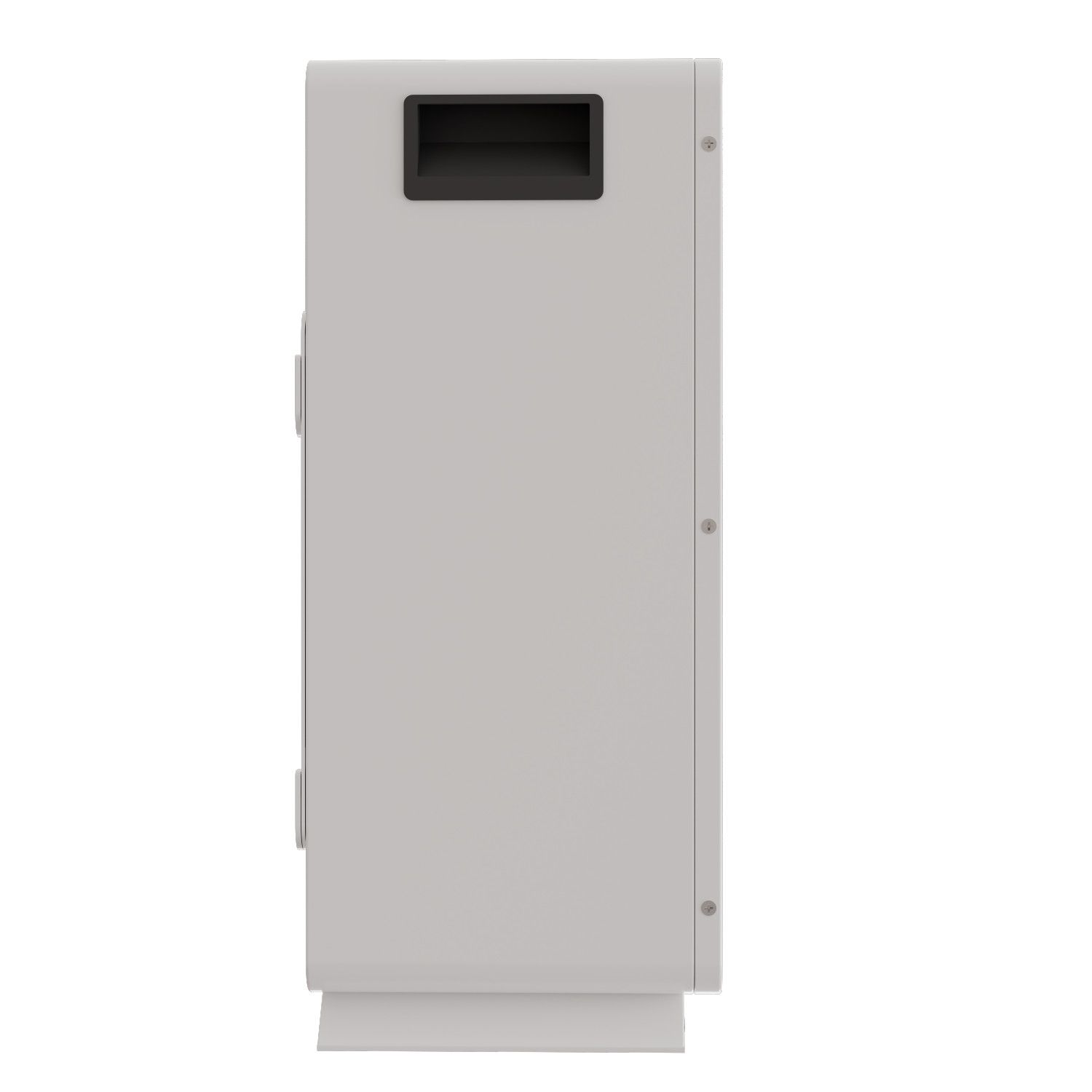

Heavy duty side handles for easy handling and mounting on the wallBuilt in protection for over-charge, over-discharge & over-temperature
| ltem | Parameter value |
| Nominal Voltage(V) | 51.2 |
| Work Voltage Range(V) | 44.8~56 |
| Nominal Capacity(Ah) | 202 |
| Nominal Energy(kWh) | 10.34 |
| C Rating | 0.75 |
| Charge Voltage(V) | 55.2-56 |
| Discharge Cutoff Voltage(V) | 44.8 |
| Charge Cut Off Voltage(V)Max. Continuous ChargingCurrent(A) | 56.8 |
| Max. Continuous DischargingCurrent(A) | 150 |
| 150 |
