Product Model:Green Deer 2.5kwh
Nominal Energy:2.5kwh(Actual 2.688kwh)
Nominal Voltage:25.6V
Nominal Capacity:Nominal 100Ah(Actual 105Ah)
Cell Type:29.2V
Standard Charge Voltage:58.4V
Communication Interface:RS485、RS232、CAN (Optional)

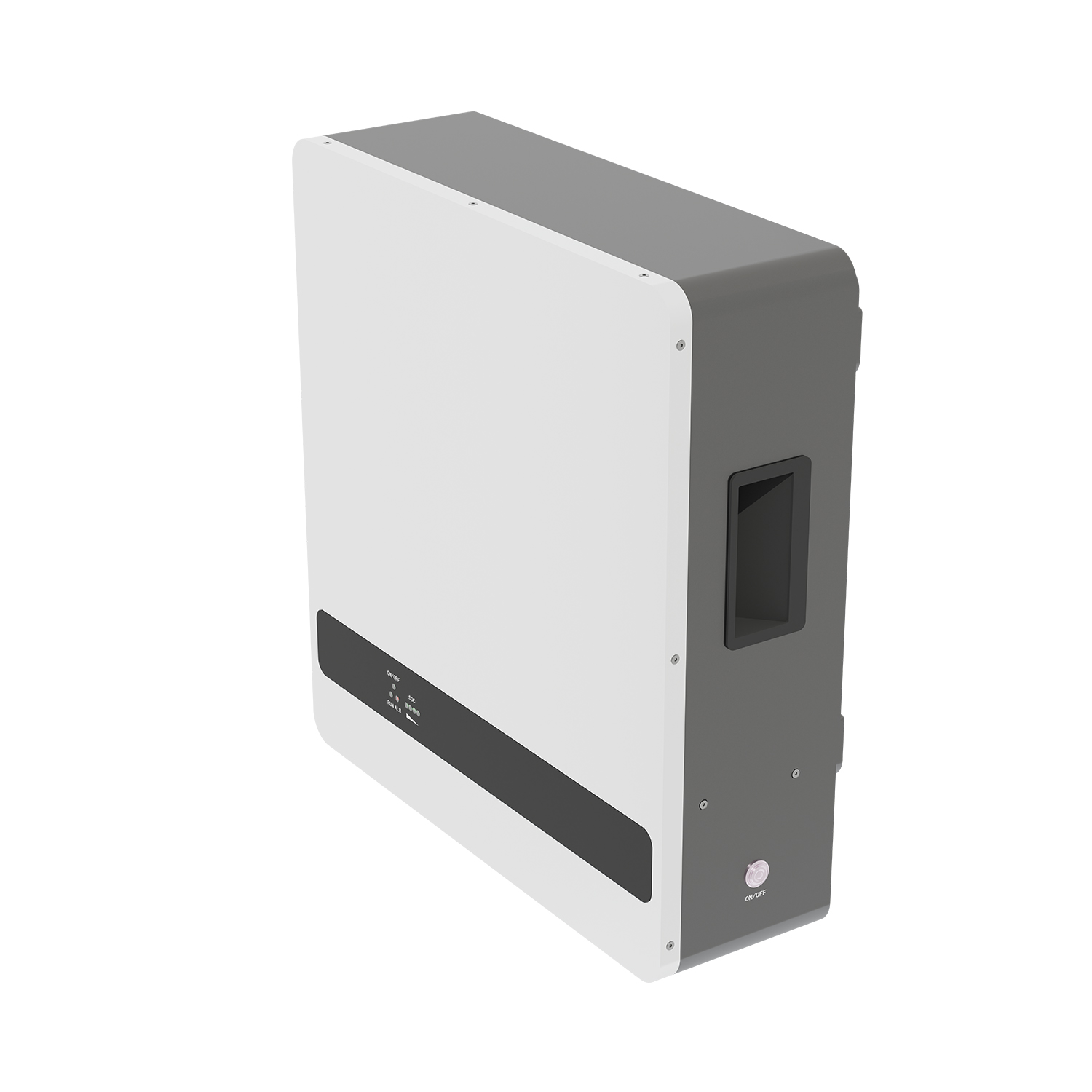

25.6V 2.5KWH ES-BOX17 LiFePO4 Wall-Mounted Home Energy Storage Battery which can provide you with cheap power when you are on the go or when the power goes out at home.
1.6000 cycles
at 80% DOD
2.1C/1C continual charge and discharge
3.5 years standard warranty
4.Superior LiFePO4 safety performance
5.Low voltage safety connection
6.Max. 15 modules parallel
Genixgreen's battery BMS supports simultaneous communication and compatible with multiple inverter brands
Super Points: ONE Battery For Multiple Brand Inverters
| Product Model | Green Deer 2.5kwh |
| Nominal Energy | 2.5kwh(Actual 2.688kwh) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | Nominal 100Ah(Actual 105Ah) |
| Cell Type | 29.2V |
| Standard Charge Voltage | 58.4V |
| Max Charge Current | 100A |
| Discharge Cut-Off Voltage | 20V |
| Max Discharge Current | 100A |
| Parallel Function | Support 15 Units In Parallel |

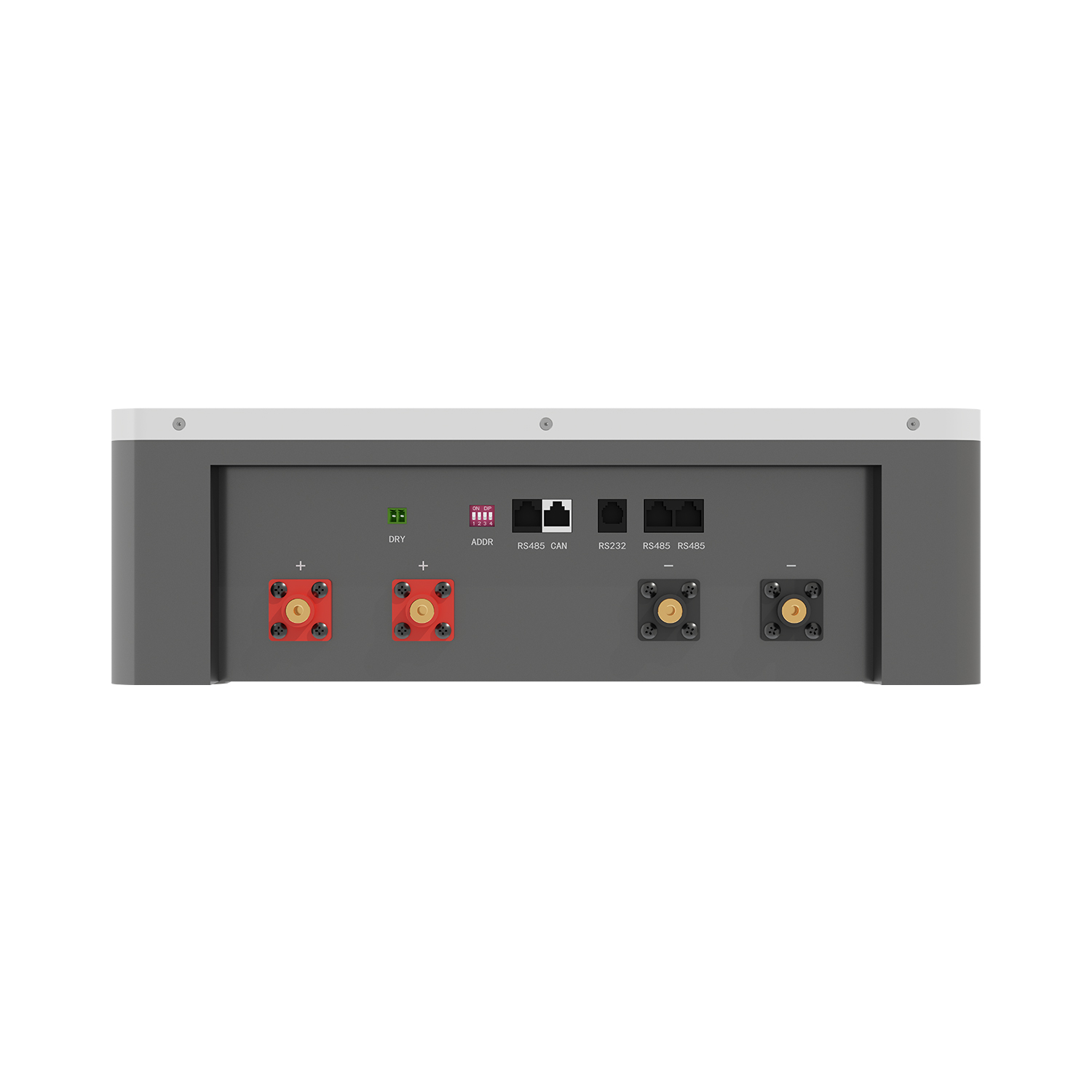

| Communication Interface | RS485、RS232、CAN (Optional) |

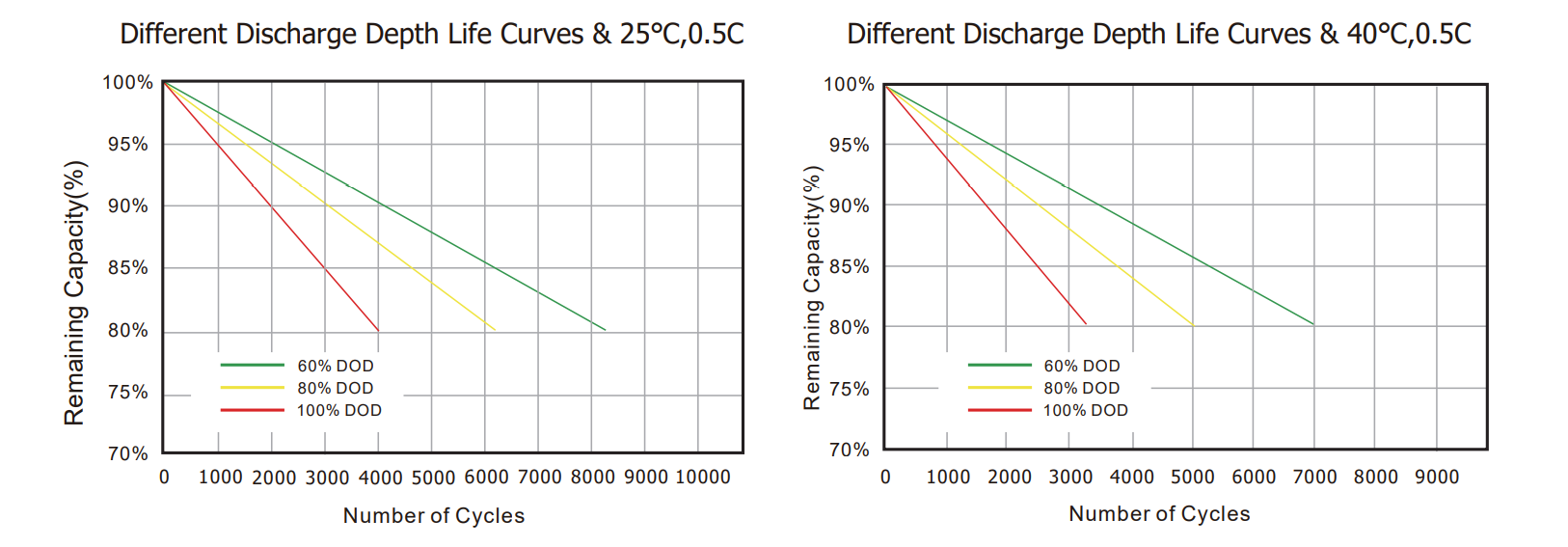

| Calendar Life | 15+ Years @25℃ 80%DOD |
| Cycle Life * | ≥6000 Cycles (80%DOD) |
| Charge temperature range | 0~65℃ |
| Discharge temperature range | ·-20~65℃ |
| Certification | Cell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3 Pack:CE / MSDS / UN38.3 |

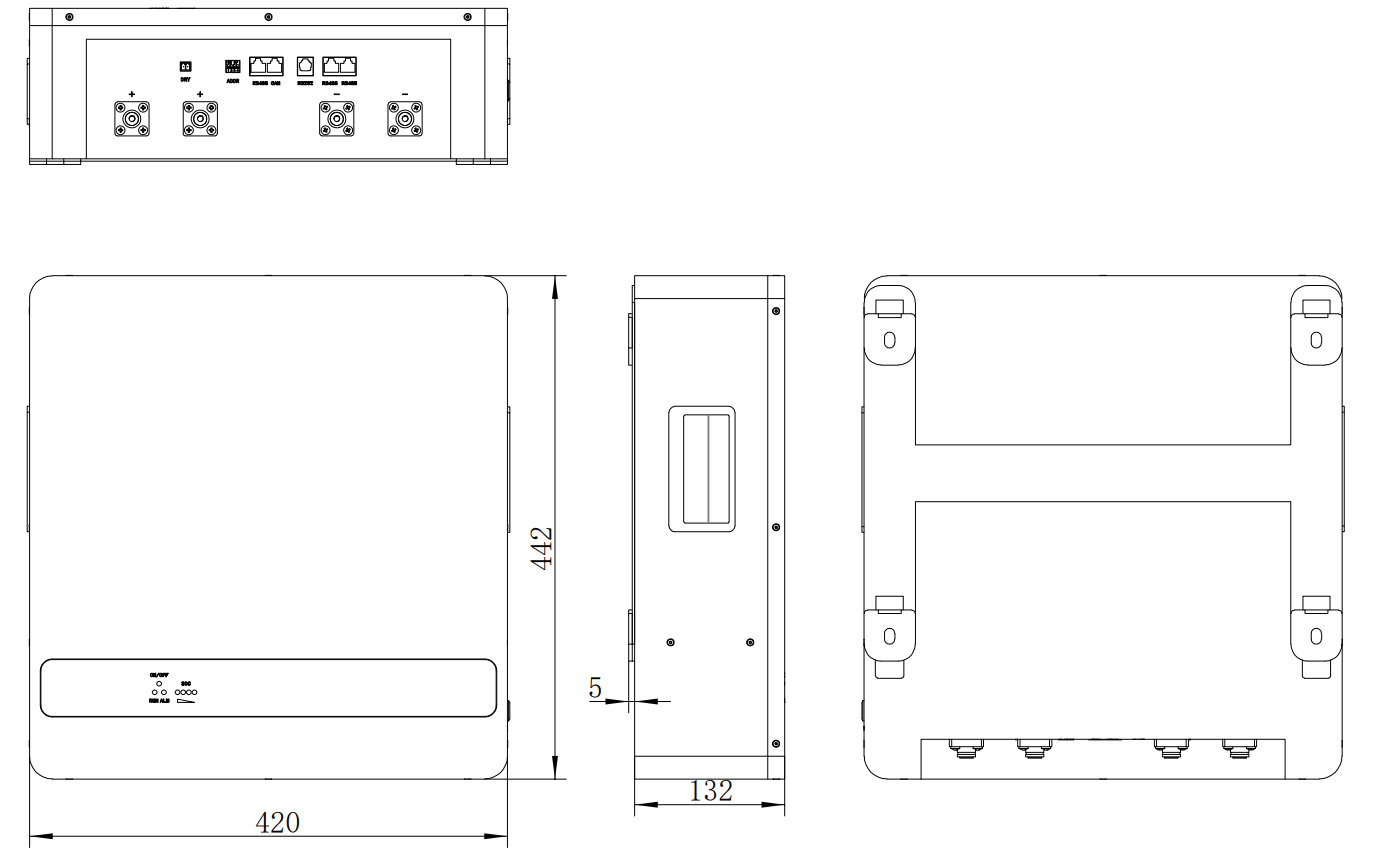

| Dimensions | 420*442*132mm |
| Weight | 28Kg |

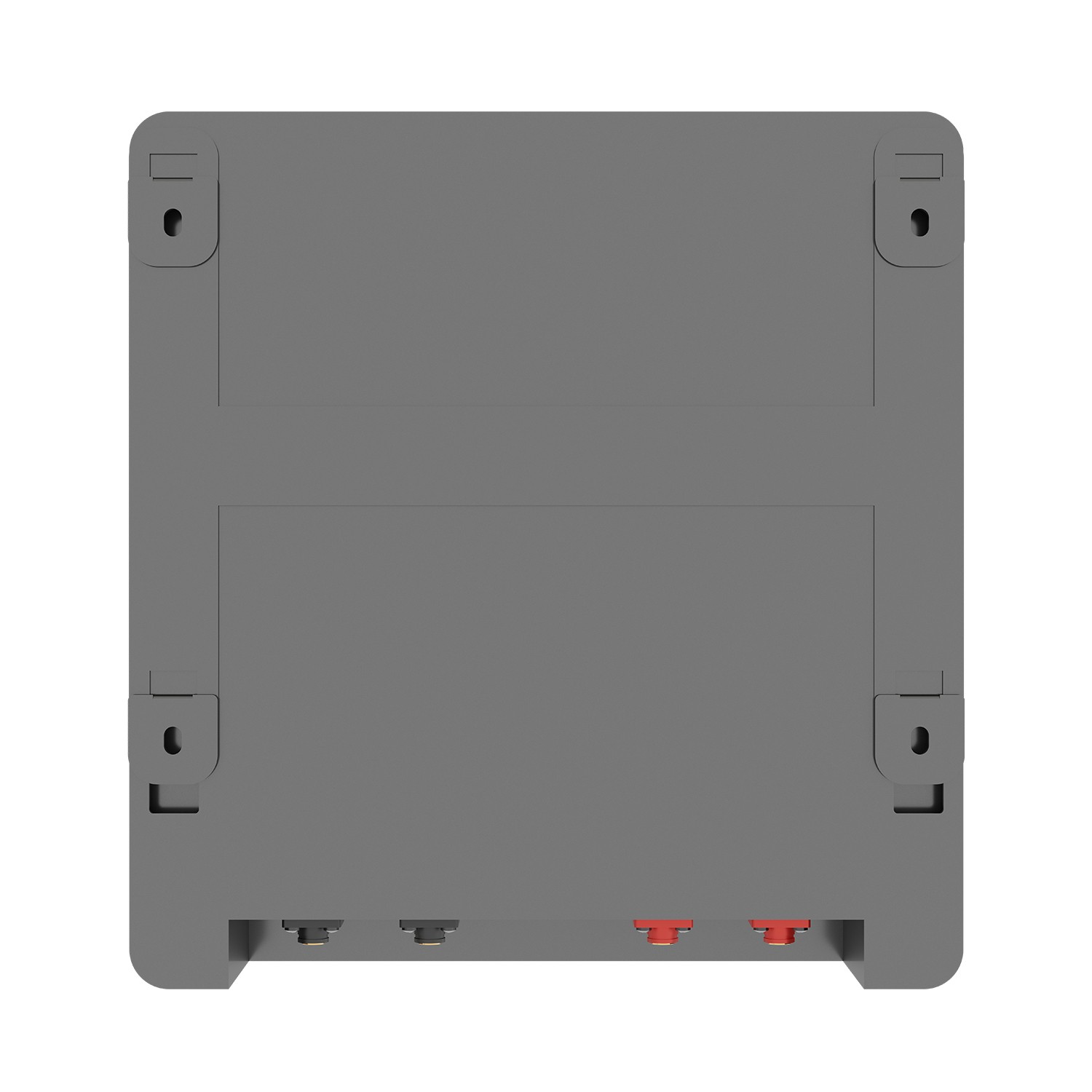

| lnstallation method | (Wall mounted) |

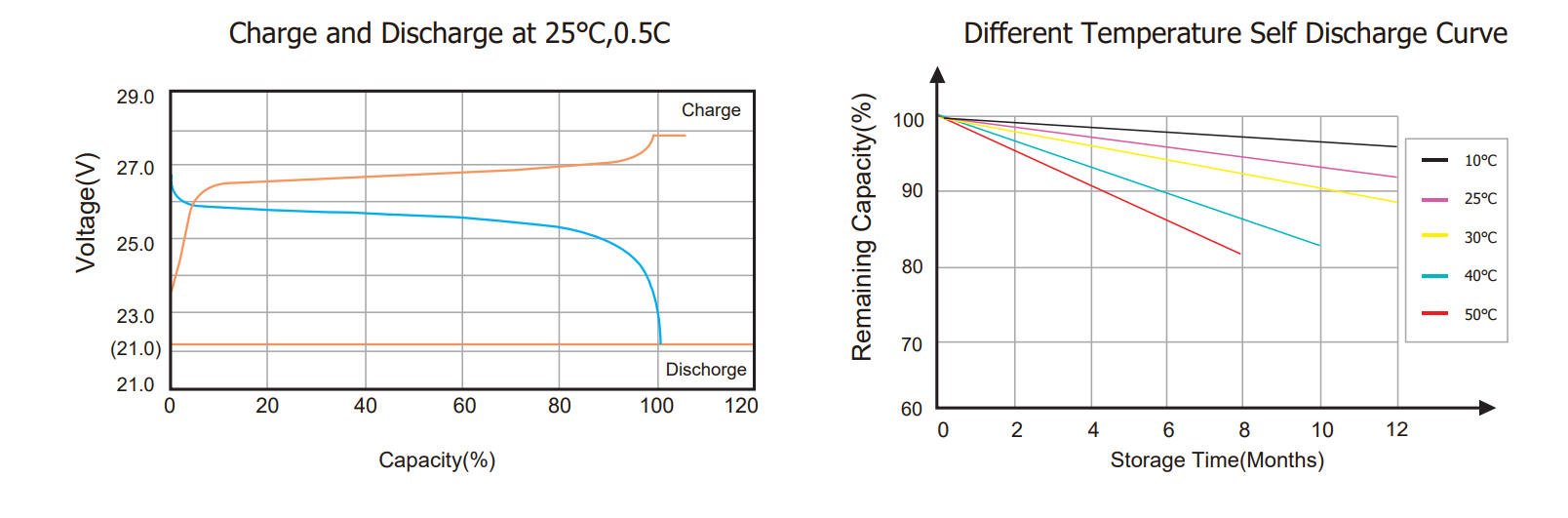

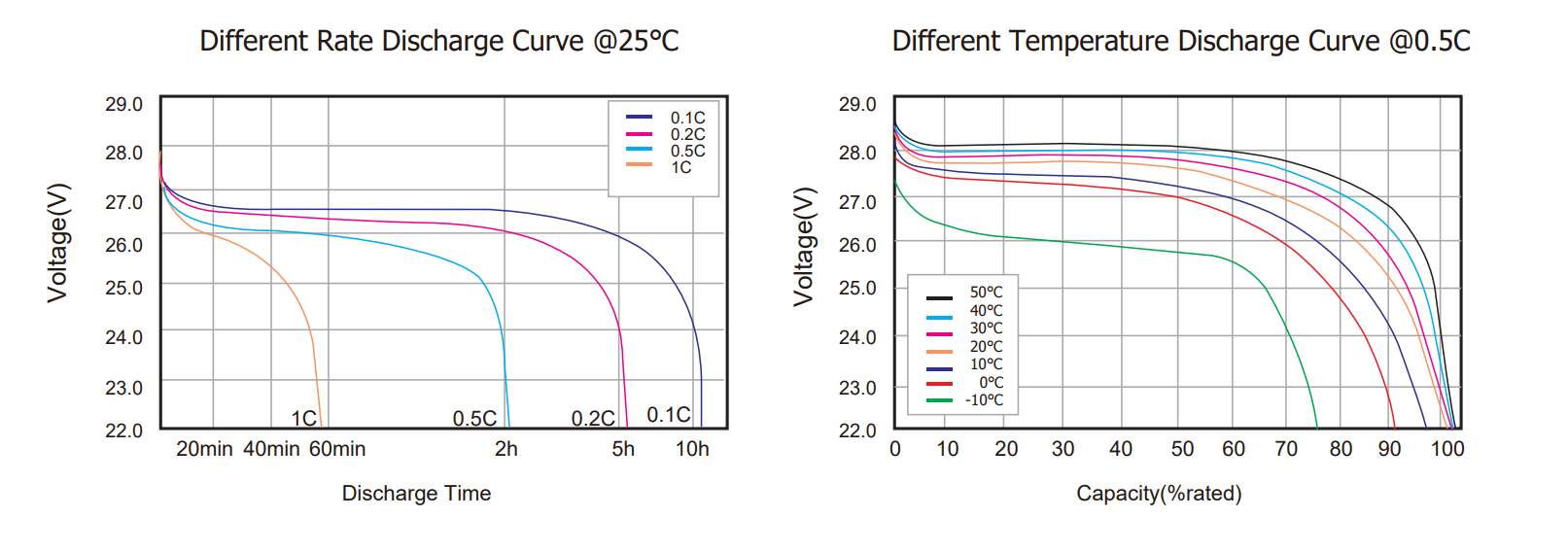

Charging and Discharge curve
