Model: ES-BOX6
Product specification: 51.2V100Ah
Battery Voltage: 51.2V
Battery Capacity: 100Ah
Cycle Life: >6000times
Communication interface: RS485、RS232、CAN(Optional)
Communication: SMA, Growatt, Voltronic Power, Solis, Solax, Sungrow, Sofar, Goodwe etc
Warranty:5 years for machinery warranty
Dimension:480*650*169.5MM
Genixgreen designs manufactures custom and standard battery packs for a variety of portable, power and stationary applications.5kwh ES-BOX6 lifepo4 lithium ion battery

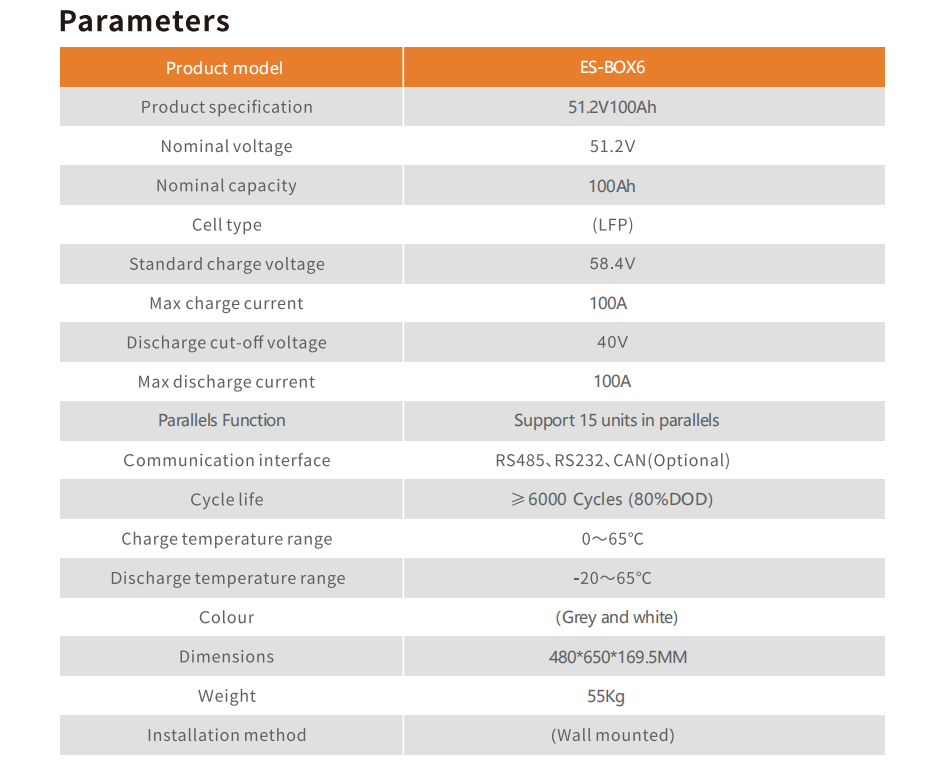

| Product model | ES-BOX6 |
| Product specification | 51.2V100Ah |
| Nominal voltage | 51.2V100Ah |
| Nominal capacity | 100Ah |
| cell type | (LFP) |
| Standard charge voltage | 58.4V |
| Max charge current | 100A |
| Discharge cut-off voltage | 40V |
| Max discharge current | 100A |
| Parallels Function | Support 15 units in parallels |
| Communication interface | RS485、RS232、CAN(Optional) |
| Cycle life | ≥6000 Cycles (80%DOD) |
| charge temperature range | 0～65C |
| Discharge temperature range | -20～65℃ |
| colour | (Grey and white) |
| Dimensions | 480*650*169.5MM |
| weight | 55Kg |
| lnstallation method | (Wall mounted) |
