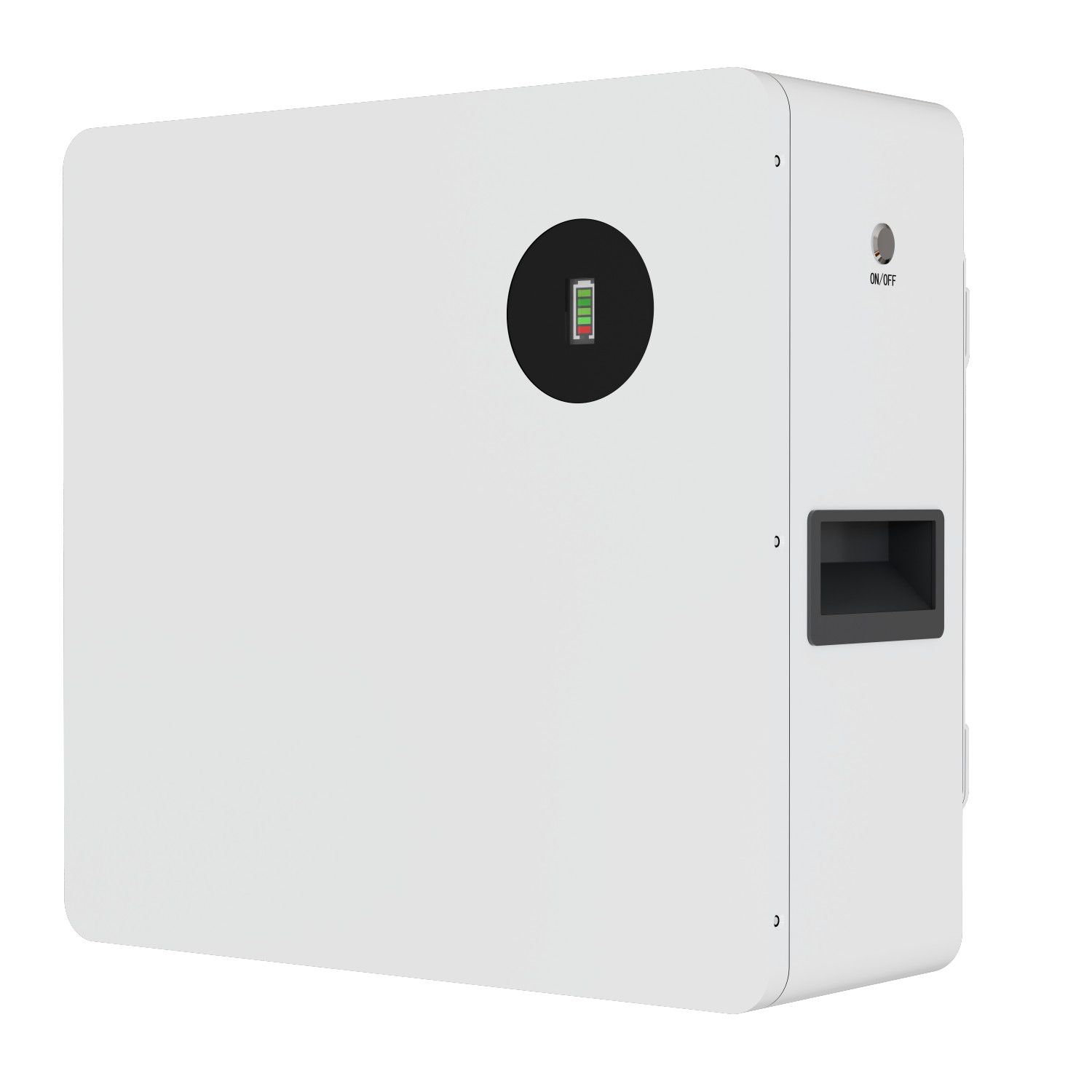

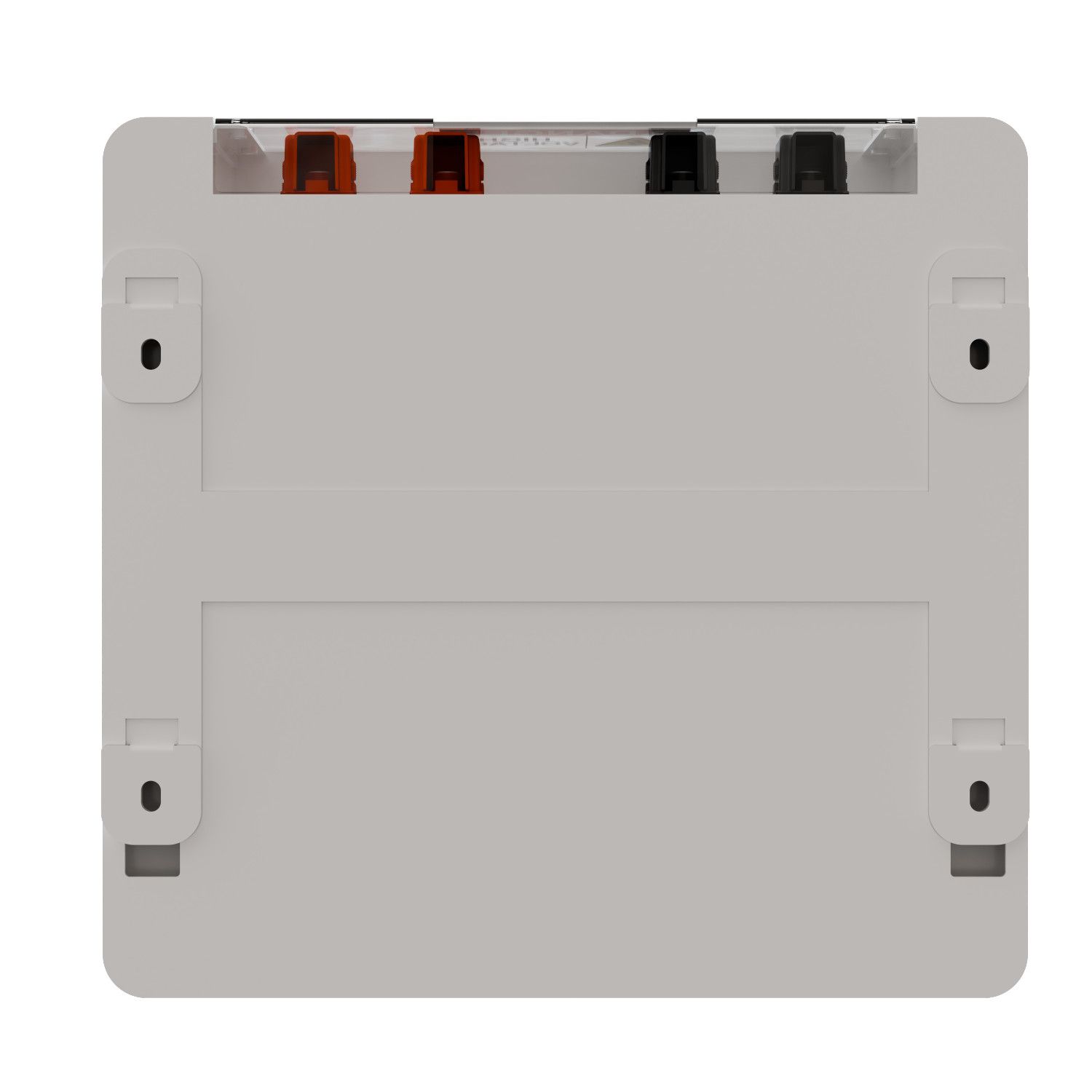

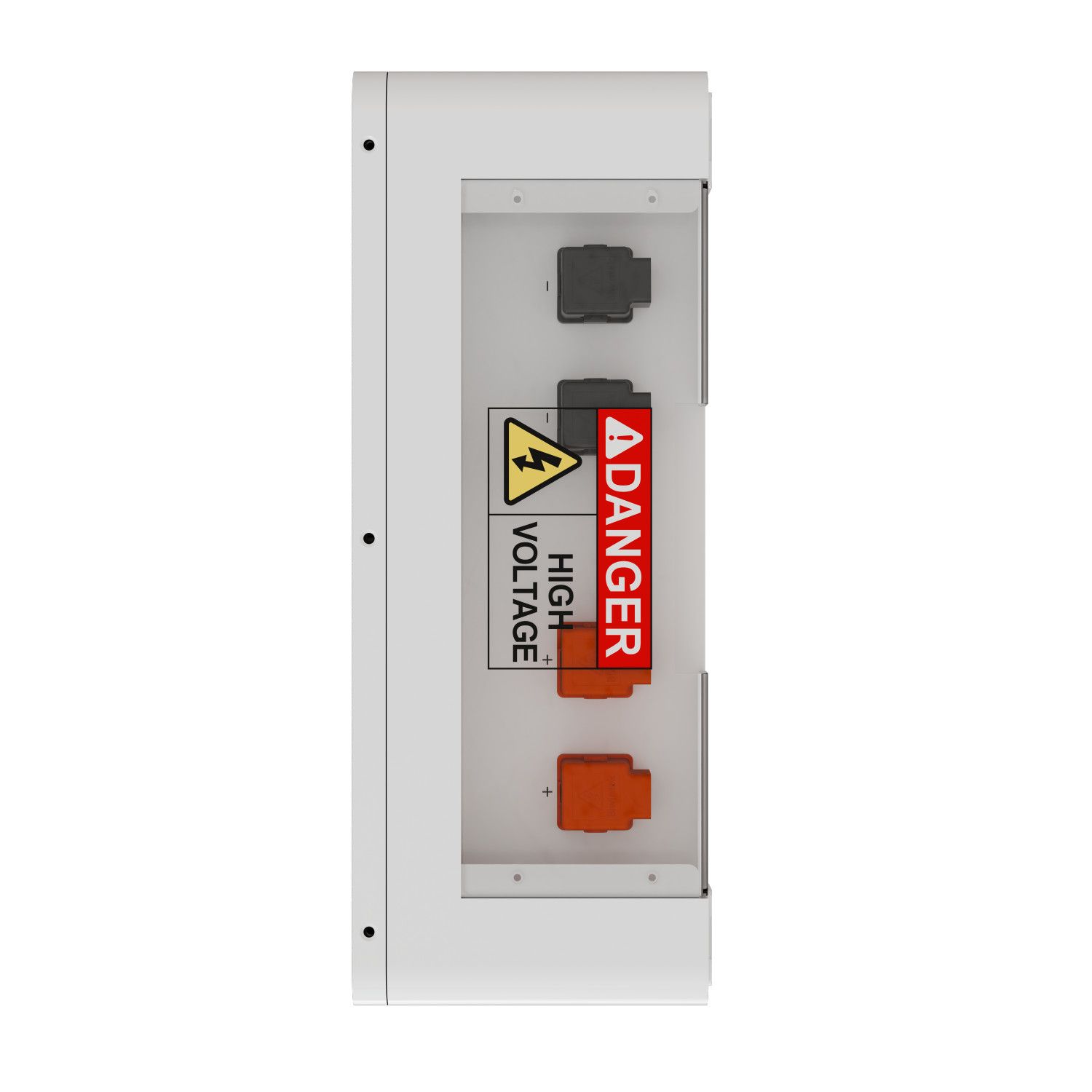

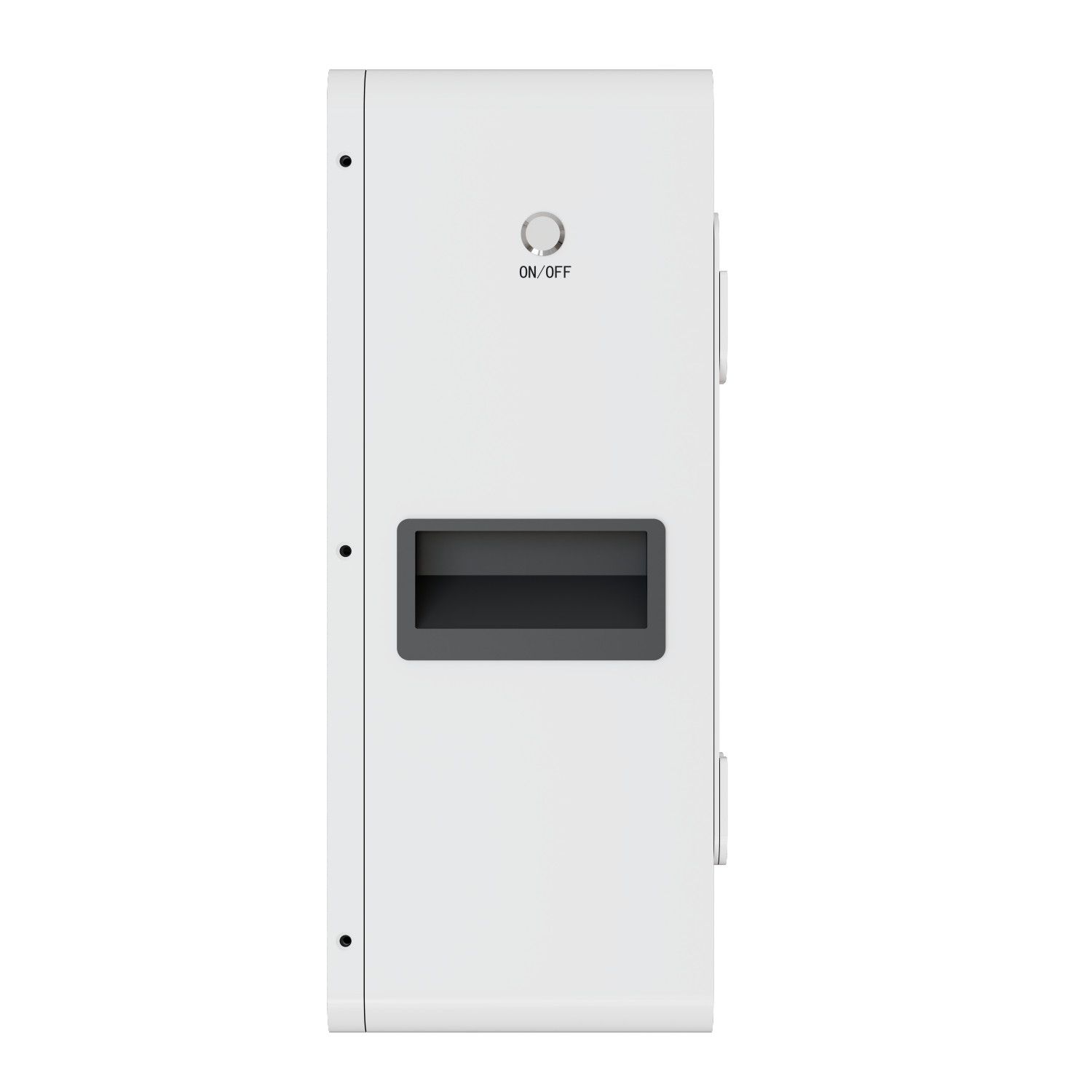

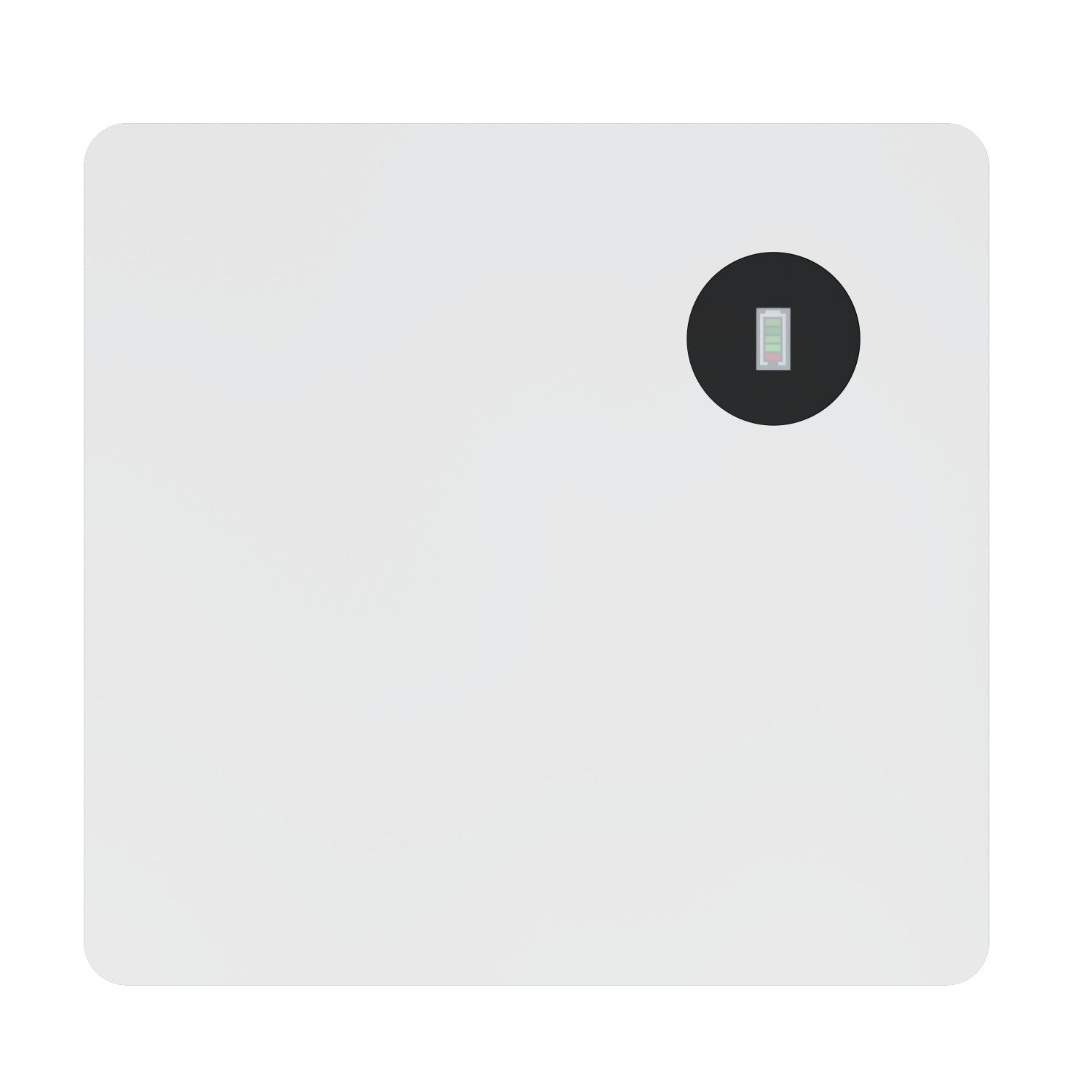

ES-BOX33S-Family mini Storage Power Wall

Nominal Energy                                            2.56kWh                                                5.12kWh

Nominal Voltage                                            25.6V                                                     51.2V

Nominal Capacity                                           100Ah                                                    100Ah

Cell Type                                                          LFP                                                       LFP

Standard Charge Voltage                               28.8V                                                     56.8V

Max Charge Current                                        100A                                                       100A

Discharge Cut-Off Voltage                              20V                                                      44.8V

Max Discharge Current                                    100A                                                      100A

Parallel Function                      Support In 2 Series and 2 Parallels                    Support 16 Parallels

Warranty                                                        3 years                                                   5 years

Cycle Life *                                       ≥4000 Cycles(80%DOD)                        ≥6000 Cycles(80%DOD)

Dimensions                                           420*400*158mm                                  520*500*150mm

Weight                                                            28Kg                                                     49Kg

Wi-FI Function                                              Optiona                                                 Support

lnstallation method                                                             (Wall mounted)

Charge temperature range                                                        0~65℃

Discharge temperature range                                                  -20~65℃

Certification

Cell: ROHS / MSDS /UN38.3 Pack:MSDS / UN38.3

*Test Condition: 0.2C charge & discharge @25℃
